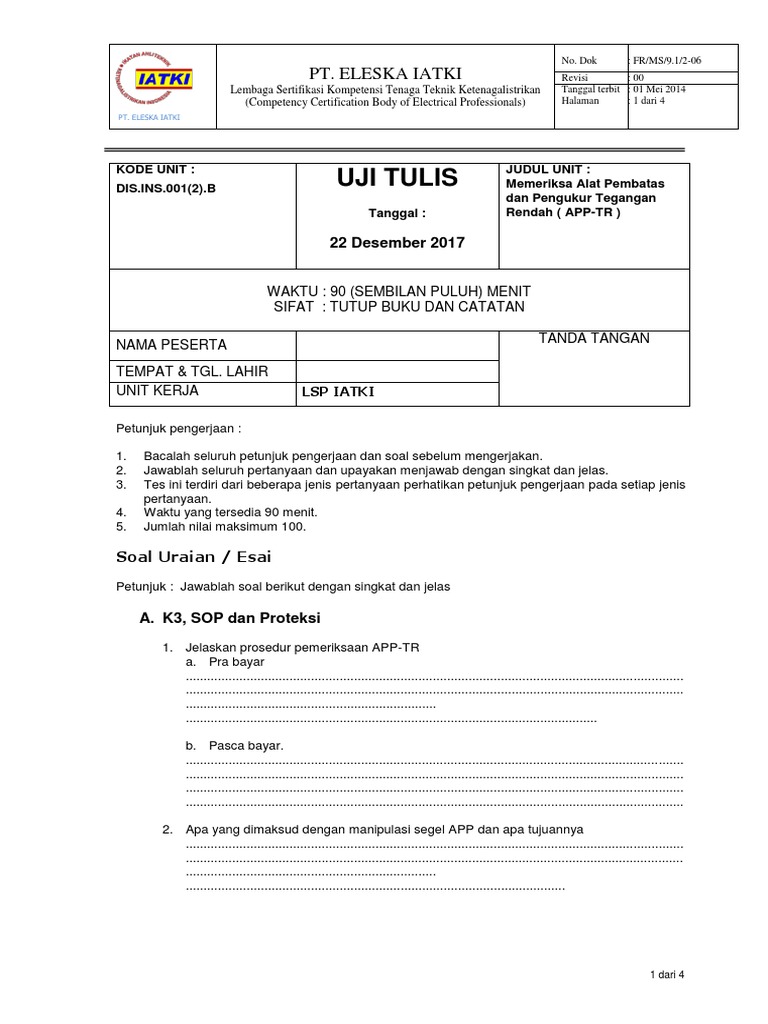

No. Dok : FR/MS/9.

1/2-06
PT. ELESKA IATKI Revisi : 00
Lembaga Sertifikasi Kompetensi Tenaga Teknik Ketenagalistrikan Tanggal terbit : 01 Mei 2014
(Competency Certification Body of Electrical Professionals) Halaman : 1 dari 4
PT. ELESKA IATKI

KODE UNIT : JUDUL UNIT :

DIS.INS.001(2).B
UJI TULIS Memeriksa Alat Pembatas
dan Pengukur Tegangan
Tanggal : Rendah ( APP-TR )

22 Desember 2017

WAKTU : 90 (SEMBILAN PULUH) MENIT

SIFAT : TUTUP BUKU DAN CATATAN

TANDA TANGAN
NAMA PESERTA
TEMPAT & TGL. LAHIR
UNIT KERJA LSP IATKI

Petunjuk pengerjaan :

1. Bacalah seluruh petunjuk pengerjaan dan soal sebelum mengerjakan.

2. Jawablah seluruh pertanyaan dan upayakan menjawab dengan singkat dan jelas.
3. Tes ini terdiri dari beberapa jenis pertanyaan perhatikan petunjuk pengerjaan pada setiap jenis
pertanyaan.
4. Waktu yang tersedia 90 menit.
5. Jumlah nilai maksimum 100.

Soal Uraian / Esai

Petunjuk : Jawablah soal berikut dengan singkat dan jelas

A. K3, SOP dan Proteksi

1. Jelaskan prosedur pemeriksaan APP-TR
a. Pra bayar
...........................................................................................................................................
...........................................................................................................................................
......................................................................
...................................................................................................................

b. Pasca bayar.
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................
...........................................................................................................................................

2. Apa yang dimaksud dengan manipulasi segel APP dan apa tujuannya
...........................................................................................................................................
...........................................................................................................................................
......................................................................
..........................................................................................................

1 dari 4
 No. Dok : FR/MS/9.1/2-06
PT. ELESKA IATKI Revisi : 00
Lembaga Sertifikasi Kompetensi Tenaga Teknik Ketenagalistrikan Tanggal terbit : 01 Mei 2014
(Competency Certification Body of Electrical Professionals) Halaman : 2 dari 4
PT. ELESKA IATKI

3. Jelaskan semua modus operandi pencurian listrik secara teknis dan non teknis yang
Sdr ketahui.
...........................................................................................................................................
...........................................................................................................................................
......................................................................
....................................................................................................................

4. Sebutkan jenis golongan tarif pelanggan yang saudara ketahui

....................................................................................................................
....................................................................................................................
....................................................................................................................
....................................................................................................................
....................................................................................................................
....................................................................................................................

B. Teori Listrik

5. Isi tabel dibawah ini

Daya (VA) Arus nominal MCB (Amp)

450 ...............
1300 ...............
2200 ..............
3500 ...............
4400 ...............

6. Didalam daya listrik terdapat 3 jenis daya, sebutkan dan tuliskan rumus daya tersebut
berikut satuannya
...........................................................................................................................................
...........................................................................................................................................
................................................................................................................................
................................................................................................................................

7. Sebuah instalasi listrik 1 fasa mempunyai peralatan listrik yang tersambung sebagai
berikut : 1 bh alat pemanas 1000 Watt, 1 bh lampu Mercuri 125 Watt, 1 buah AC 0,5
PK (368 Watt) . Faktor daya total 0,85. Hitung berapa besarnya arus yang mengalir ?
...........................................................................................................................................
...........................................................................................................................................
.................................................................................................................................
....................................................................................................................................

8. Berapa besarnya daya aktip (watt) yang dihitung berdasarkan data KWH meter :
C = 900 putaran / KWH dengan waktu putaran 25 detik selama 5 putaran.
……………………………………………………...................................................................
...........................................................................................................................................
..................................................................................…………………………………………
…………............................................................................................................................

9. Jelaskan spesifik / data name plate dari sebuah kWh Meter 1 Phasa ?
...........................................................................................................................................
...........................................................................................................................................
.......................................................................
...........................................................................................................................................
..........................

2 dari 4
 No. Dok : FR/MS/9.1/2-06
PT. ELESKA IATKI Revisi : 00
Lembaga Sertifikasi Kompetensi Tenaga Teknik Ketenagalistrikan Tanggal terbit : 01 Mei 2014
(Competency Certification Body of Electrical Professionals) Halaman : 3 dari 4
PT. ELESKA IATKI

C. Peralatan dan Pengawatan

10. Sebutkan bagian-bagian utama/konstruksi sebuah KWH meter dan apa fungsinya
masing-masing.
...........................................................................................................................................
...........................................................................................................................................
......................................................................
.........................................................................................................................

11. Jelaskan cara kerja sebuah KWH meter.

...........................................................................................................................................
...........................................................................................................................................
......................................................................
............................................................................................................

12. Jelaskan cara kerja sebuah MCB 1 fasa.

...........................................................................................................................................
...........................................................................................................................................
......................................................................
.........................................................................................................

13. Di APP-TR ada jenis segel, sebutkan dan jelaskan fungsi segel tersebut
...........................................................................................................................................
...........................................................................................................................................
......................................................................
.........................................................................................................

14. Bagian-bagian mana saja yang perlu disegel pada APP-TR .

...........................................................................................................................................
...........................................................................................................................................
......................................................................
..........................................................................................................

15. Jelaskan peralatan/alat ukur yang diperlukan untuk memeriksa APP-TR.

...........................................................................................................................................
...........................................................................................................................................
......................................................................
....................................................................................................................

16. Jelaskan fungsi kumparan arus dan kumparan tegangan pada KWH meter jenis elektro
mekanik.

...........................................................................................................................................
...........................................................................................................................................
......................................................................
....................................................................................................................

3 dari 4
 No. Dok : FR/MS/9.1/2-06
PT. ELESKA IATKI Revisi : 00
Lembaga Sertifikasi Kompetensi Tenaga Teknik Ketenagalistrikan Tanggal terbit : 01 Mei 2014
(Competency Certification Body of Electrical Professionals) Halaman : 4 dari 4
PT. ELESKA IATKI

17. Jelaskan apa akibatnya apabila dalam pengawatan APP-TR 1, kumparan tegangan
KWH meter putus.
...........................................................................................................................................
...........................................................................................................................................
......................................................................
.........................................................................................................

18. Jelaskan apa yang akan terjadi apabila di dalam pengawatan APP-TR 1 fasa, salah
satu fasa saluran masuk dan keluar dari KWH meter dijumper / bypass.
...........................................................................................................................................
...........................................................................................................................................
......................................................................
..........................................................................................................

D. Gambar Teknik

19. Gambarkan diagram 1 garis dari APP-TR yang terdiri dari SR – KWH meter - MCB
dan sikring pengaman pelanggan.

20. Gambar pengawatan lengkap dengan nomor terminalnya KWH meter 1 fasa

4 dari 4
