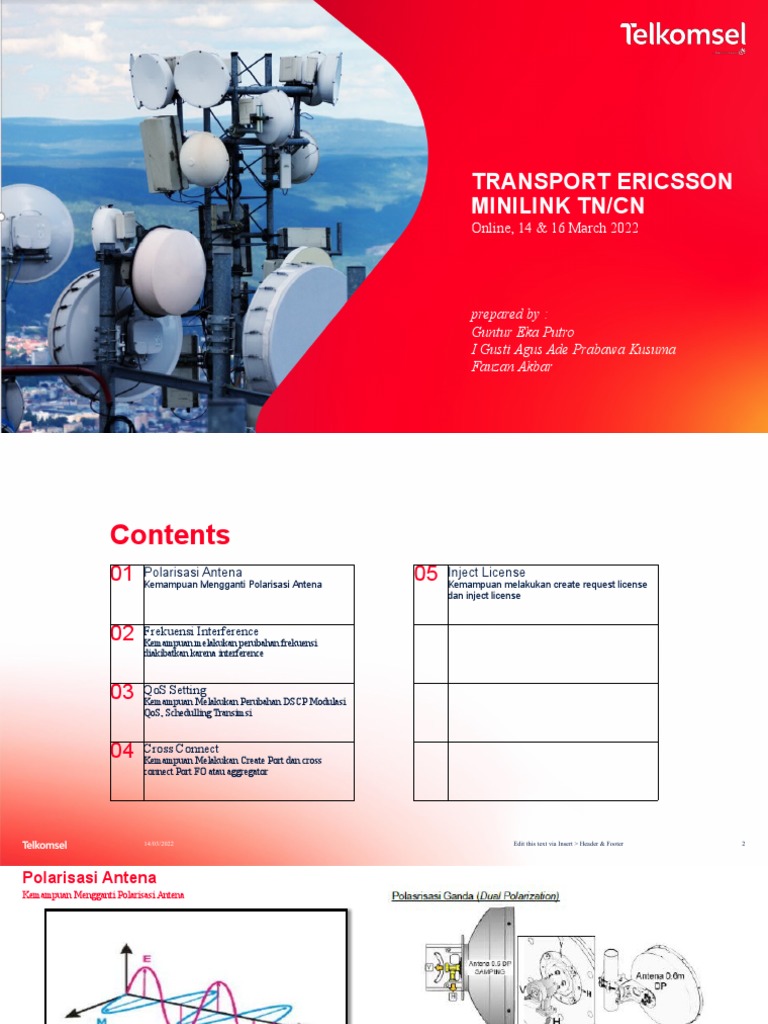

TRANSPORT ERICSSON

MINILINK TN/CN
Online, 14 & 16 March 2022

prepared by :
Guntur Eka Putro
I Gusti Agus Ade Prabawa Kusuma
Fauzan Akbar
Contents
01 Polarisasi Antena
Kemampuan Mengganti Polarisasi Antena
05 Inject License
Kemampuan melakukan create request license
dan inject license

02 Frekuensi Interference
Kemampuan melakukan perubahan frekuensi
diakibatkan karena interference

03 QoS Setting
Kemampuan Melakukan Perubahan DSCP Modulasi
QoS, Schedulling Transimsi

04 Cross Connect
Kemampuan Melakukan Create Port dan cross
connect Port FO atau aggregator

14/03/2022 Edit this text via Insert > Header & Footer 2
 Polarisasi Antena
Kemampuan Mengganti Polarisasi Antena

Polarisasi pada Antena

Internal
 Frekuensi Interference
Kemampuan melakukan perubahan frekuensi diakibatkan karena interference

Internal
 Frekuensi Interference
Kemampuan melakukan perubahan frekuensi diakibatkan karena interference

1. Spectrum Diagnostics Tools

Internal
 Frekuensi Interference
Kemampuan melakukan perubahan frekuensi diakibatkan karena interference

2. Manual Interference Test

Internal
 Frekuensi Interference
Kemampuan melakukan perubahan frekuensi diakibatkan karena interference

2. Manual Interference Test

Internal
 QoS Modulation Setting
Melakukan Perubahan Setting DSCP, Modulasi QoS dan Schedulling Transmisi

1. Pastikan Port yang akan di setting QoS 2. Switch Port harus dalam Rule “UNI”

Ethernet- Overview Ethernet switch > Switch port X > Configure

Internal
 QoS Modulation Setting
Melakukan Perubahan Setting DSCP, Modulasi QoS dan Schedulling Transmisi

3. Checking & Setup QOS LAN Switch port

LAN1/X/y > Configure > port QOS

BEFORE

AFTER

Internal
 QoS Modulation Setting
Melakukan Perubahan Setting DSCP, Modulasi QoS dan Schedulling Transmisi

4. Checking & Setup User Priority Mapping

LAN1/X/y > Configure > port QOS > link

Internal
 QoS Modulation Setting
Melakukan Perubahan Setting DSCP, Modulasi QoS dan Schedulling Transmisi

• PCP Selection : 8p0d

5. Checking & Setup QoS Ethernet Switch • Network Priority to TC Mapping : User Define
• Scheduling Profile : 4WFQ Strick Priority Mixed with Best Effort
ethernet Switch > Configure > Ethernet Switch Qos • Setup the percentage of Weight agree with design

Internal
 QoS Modulation Setting
Melakukan Perubahan Setting DSCP, Modulasi QoS dan Schedulling Transmisi

6. Checking and Setup Ethernet Switch User Define

Ethernet Switch ---> Configure ---> Ethernet Switch QoS ---> User Define Network Priority Mapping

Internal
 QoS Modulation Setting
Melakukan Perubahan Setting DSCP, Modulasi QoS dan Schedulling Transmisi

7. Checking and Setup Buffer / Queue Size

Ethernet Switch ---> Configure ---> Ethernet Switch QoS ---> Configure WAN Queue Size

Internal
 QoS Modulation Setting
Melakukan Perubahan Setting DSCP, Modulasi QoS dan Schedulling Transmisi

8. Result

WAN1/X/Y > Bandwidth Utilization TC Queue > Get All Interval

Configuration Before - Traffic Classification based on Pbit (Trusted Port:

classification
Ctag-PCP)
based on Pbit - Traffic Class (TC) Mapping: IEEE 802.1D-2004
Wireshark Taping Result at Point Mapping Wireshark Taping Result at Point
Downlink Direction (Core to RBS) A IEEE 802.1D-2004 Mapping Downlink Direction (Core to RBS) B

Only TC 2 is filled with

WAN traffic (no prioritization)
to FE

All traffic fill one

TC queue only at
TC 2

Configuration After - Traffic Classification based on DSCP (Trusted Port:

classification
based on DSCP
Wireshark Taping Result at Point
Downlink Direction (Core to RBS)
DSCP IPv4)
- Traffic Class (TC) Mapping: User Defined
Wireshark Taping Result at Point
A User Defined Downlink Direction (Core to RBS) B

By using trusted port: DSCP

Multiple TC are
IPv4 configuration, MINI-
filled with traffic
WAN LINK system also rewrites
to FE Pbit value based on ‘user
defined’ mapping. This
functionality restores
Traffics are priority information in the
distributed to multiple ethernet header (Pbit).
TC based on DSCP
value

Internal
 Cross Connect Port
Melakukan Cross Connect Port FO/Agg/LAN/WAN

1. Create New Port untuk aggregator

LAN Interface > LAN 1/x/x > Configure

Internal
 Cross Connect Port
Melakukan Cross Connect Port FO/Agg/LAN/WAN

2. Configure LAN1/X/X

Connect to : Port X
admin Status : UP
Alias Name : sesuai Kebutuhan (ex : TEST PORT AGG)
Speed : 1000 Mbps Duplex

Internal
 Cross Connect Port
Melakukan Cross Connect Port FO/Agg/LAN/WAN

3. Cross Connect VLAN

Ethernet > Ethernet Switch > Configure > VLAN

Internal
 Install and Manage License
Pendahuluan

Menggunakan CLI (Command

Menggunakan Minilink Craft
Line Interface)

- License di Perangkat Minilink memiliki 3 fitur. Fitur dasar (Basic Feature) adalah
bagian dari standar produk Minlink tersebut, fitur opsional (Optional Features) untuk
menambah kegunaan di Minilink dan fitur kapasitas (Capacity Features) untuk
meningkatkan kapasitas.

- License untuk beberapa fitur terdapat pada LKF (License Key File) yang tersimpan pada
RMM (Removable Memory Module). Fitur di MLTN hanya bisa di aktifkan apabila
license untuk fitur tersebut ada di RMM / MLTN dalam mode Unlocked Period.

- 1 License hanya untuk 1 radio Channel / pasangan radio (Unique License)

Internal
 Install and Manage License
Pendahuluan (2)

- Tanpa RMM (Unlocked Period) - Dengan RMM (License Locked)

Internal
 Install and Manage License
License Notification

Internal
 Install and Manage License
Install License dengan CLI

Enter Unlocked Mode Create License Request Install License (LKF sudah di
Folder FTP)

Exit Unlocked Mode

Internal
 Install and Manage License
Install License dengan Minilink Craft

Create License Request Install License (LKF sudah di Folder FTP)

- Klik kanan pada NE nya.

- Pilih Tools dan Pilig License
- Clik Create License Request / Install License

Internal
 Install and Manage License
Unlocked Period dengan Minilinkcraft

- Terdapat 3 pilihan untuk unlocked mode

- Digunakan apabila tidak memiliki license / urgensi lain.

Internal
