RBS

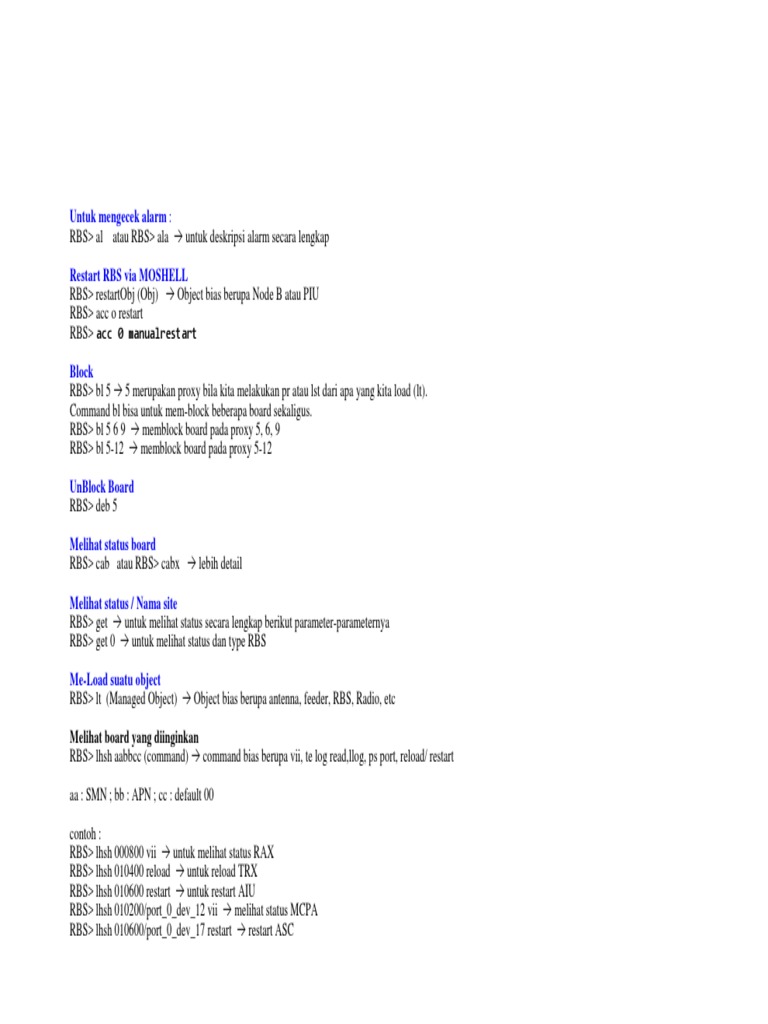

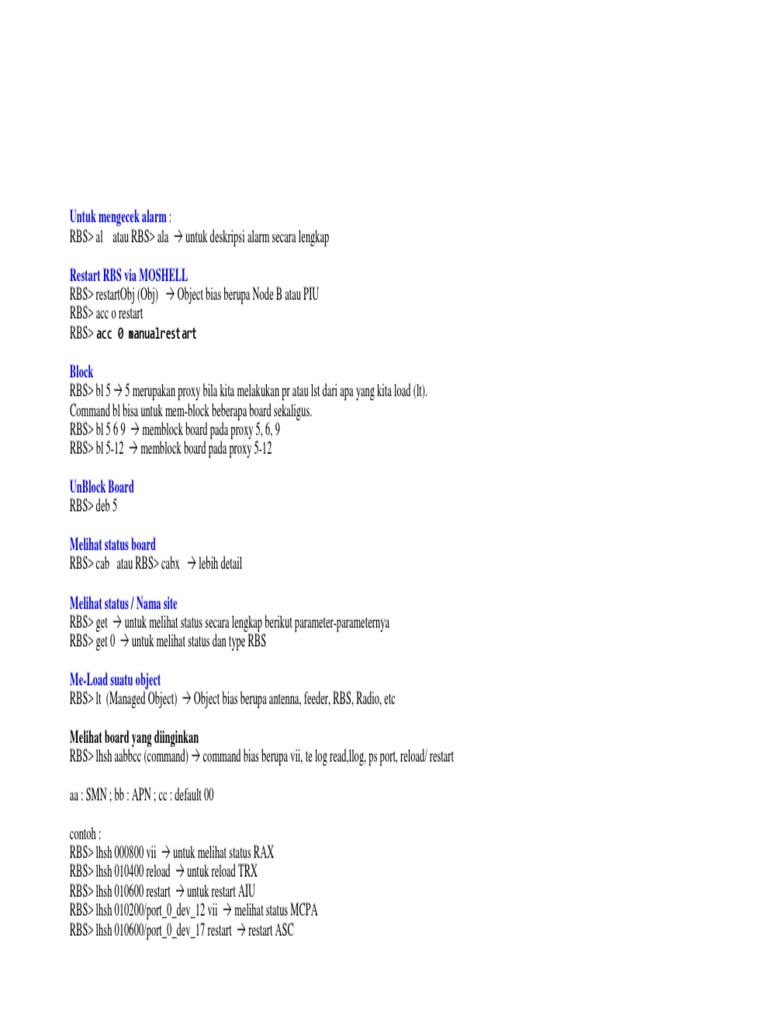

Untuk mengecek alarm :
RBS> al atau RBS> ala  untuk deskripsi alarm secara lengkap
Restart RBS via MOSHELL

RBS> restartObj (Obj)  Object bias berupa Node B atau PIU
RBS> acc o restart
RBS> acc 0 manualrestart
Block
RBS> bl 5  5 merupakan proxy bila kita melakukan pr atau lst dari apa yang kita load (lt).
Command bl bisa untuk mem-block beberapa board sekaligus.
RBS> bl 5 6 9  memblock board pada proxy 5, 6, 9
RBS> bl 5-12  memblock board pada proxy 5-12
UnBlock Board
RBS> deb 5
Melihat status board

RBS> cab atau RBS> cabx  lebih detail
Melihat status / Nama site

RBS> get  untuk melihat status secara lengkap berikut parameter-parameternya
RBS> get 0  untuk melihat status dan type RBS
Me-Load suatu object

RBS> lt (Managed Object)  Object bias berupa antenna, feeder, RBS, Radio, etc
Melihat board yang diinginkan

RBS> lhsh aabbcc (command)  command bias berupa vii, te log read,llog, ps port, reload/ restart
aa : SMN ; bb : APN ; cc : default 00
contoh :
RBS> lhsh 000800 vii  untuk melihat status RAX
RBS> lhsh 010400 reload  untuk reload TRX
RBS> lhsh 010600 restart  untuk restart AIU
RBS> lhsh 010200/port_0_dev_12 vii  melihat status MCPA
RBS> lhsh 010600/port_0_dev_17 restart  restart ASC
RBS> lhsh 010600/port_0_dev_17 ? bantuan command ASC
RBS> lhsh 010200/port_0_dev_12 ?  bantuan command MCPA
RBS> lhsh xxxxxx ps  untuk pencarian lebih lanjut
Melihat log Alarm

RBS> te log read atau RBS> ter atau RBS> llog  status restart
Bila ingin sort status yang diinginkan, tambahkan | grep …
RBS> te log read | grep clock  melihat status yang ada clock
RBS> te log read | grep error  melihat status yang ada error
RBS> te log read | grep faulty
RBS> te help  bantuan command te
Jika menggunakan command lt, maka akan muncul konfirmasi, pilih Y, setelah itu hajar dengan command pr atau lst.
RBS> lgs 2005-03-20

RBS> lgasmi 30
RBS> lgaevs 5h
RBS> lgac 30m
Untuk melihat Proxy

RBS> pr
Untuk melihat status secara detail, gunakan command get.
Melihat configuration version (CV)

RBS> cvls  melihat status CV terakhir
RBS> cvms  untuk membuat dan set CV baru
Melihat radiolink ID dan status pendudukan kanal radio

RBS> lt radio
RBS> get radio no
Apabila ingin merubah parameter, gunakan command set

Contoh : untuk merubah feeder delay dan redaman
RBS> lt feeder
RBS> get antfeedercable
RBS> get (proxy)
RBS> set (no proxy) dl attenuation xxxxxxxxxxxx  untuk setting att pada arah downlink x = merupakan nilai yang baru (12x)
Melihat apakah ada interference di TRX atau sector

RBS> lhsh 010400 te log clear  menghapus log lama pada TRX sector 1 (010400)
RBS> lhsh 010400 te e trace3 trxMeasIntLevelC  langsung disable, kemudian``
RBS> lhsh 010400 te log read
Melihat pendudukan kanal radio

RBS> lt radio
RBS> get radio no
Memilih CV yang digunakan pada saat startable

RBS> cvset (name CV)
Menambah Route
Pada DOC prompt  C: route print
Melihat status transmisi

Pada EMAS RNC, jika site A down E1 harus merah. Akan tetapi jika site A down dan LED E1 hijau, hal ini pasti karena di loop ke RNC.
Pada Moshell RNC, lt E1 dan lst, jika site down dan Op state disable, maka TRS problem (open), tapi jika Op state enable, maka TRS loop ke RNC.
……………………..
TxDeviceG faulty
1.
Site>Lt tx
Site>Get TxDeviceGroup
Change
Lihat cabx
loadHs false if txHs loadHs = true
set proxyxxx loadHs false/True
2.
Change CV
Cvls.
Cvms <cvname> [<operator>] [<comment>]
Cvcu melihat cv yg active
………….
lhsh 001200/port_8_dev_6 te log read baca log file
……………………….
Check TMA
PADEMANGAN TIMUR> lt tma
PADEMANGAN TIMUR>get TMA
……………………..
Check OBIF
Bekasi_Bintara> lt all
Bekasi_Bintara> cabx
Bekasi_Bintara> get OBIF
Bekasi_Bintara> get optical
-------------------------------------
lt utrancell
---------------------------------------
Check sektor status
182_Jamrut> lt all
182_Jamrut> pr fach
---------------------------------------------------------------------------------------------------
Melihat status RBS yang available

RNC> str
RNC> str –I 1003  melihat RBS 1003
RNC> lt utrancell
RNC> get utrancell
RNC> lst utrancell
RNC> set (no proxy) primaryCpichpower (value)  per 3 dB max.
Melihat RNC ok atau gak

RNC> std
Melihat cell error code

RNC> tg
Melihat status E1
RNC> lt E1
RNC> lst
Ubah Cell ID
RJK01> lt cell
RJK01> lt cell=0920
RJK01> get cell=0920 local
RJK01> get cell=0920
RJK01> set 1489 localCellId=9201
Block/DeBlock Cell CD12 IUBLINK
RNSBY01> lt cell
RNSBY01>get {IUBLINK} /Cell ID
RNSBY01>lst {IUBLINK} /Cell ID
RNSBY01>bl {proxy} untuk block
RNSBY01>dbl {proxy} untuk deblock
RNSBY01>lbl {IUBLINK} CD12 di block sekaligus

RNSBY01>ldeb {IUBLINK} CD12 di deblock sekaligus
Block/DeBlock Sektor – Utrancell

RNSBY01>lbl {utrancell} all sector di block sekaligus
RNSBY01>lbl {utrancell1} sector1 saja di block
RNSBY01>ldeb {utrancell} all sector di deblock sekaligus
RNSBY01>ldeb {utrancell1} sector1 saja di deblock
H str
…………………………………………………………………………………………
RetDevice_RetNotCalibrated
lt ret
lst
acl <proxy>
actc <proxy> forceCalibration (do it twice)
Loop Commen
RNSBY01> for ever
RNSBY01> strt
RNSBY01> 5
RNSBY01> done
Check all imsi list

RJK01> ueregprint all
Lihat software list RNC

U/ Trace
RJK01> pglist – check software RNC u/ target monitor handle=43 (default handle=42)
RJK01> pgload CXC1326054_R1D01 – jika belum aktif, load software 43 di RNC

RJK01> pgstart 43 – untuk mengaktifkan software 43 yg telah di load
RJK01> bo – list board di RNC u/ melihat GPB mana yang akan dimonitor
RJK01> lhsh 001400 te enable bus_send bus_receive RANAP* - mis GPB yang ada di Extension subrack dan di slot 13, dan kita hanya memonitor RANAP-nya
saja
NB.
> lhsh 011300 te enable bus_send bus_receive NBAP*
> lhsh 001400 te enable bus_send bus_receive RRC*
> ueenable imsi (XXXXXXimsi number)
Lokasi s/w decoder
[~/moshell]$ ls –l
Cara Chack All call Tras

[~/moshell]$ monitor6054 10.165.64.17 001400 -nolocal | /decoder.pl | /flow.pl -colour | tee ziccy
1. Utk Trace Protocol (Call Flow) in cygwin :
monitor6054.exe <IPADDRESS> <RNCMODULE> -nolocal |decoder/decoder.pl |decoder/flow.pl

==>before you use it in RNC do => te enable bus_send bus_receive NBAP*
te enable bus_send bus_receive RANAP*
te enable bus_send bus_receive RRC*
or => if want to trace 1 number only :

ueenable imsi <IMSINUMBER> bus_send bus_receive
Example:
[~/moshell/Tools]$ monitor6054.exe 10.165.64.17 001400 -nolocal |decoder/decoder.pl |decoder/flow.pl
. Utk Trace Protocol (Call Flow) in cygwin :
monitor6054.exe <IPADDRESS> <RNCMODULE> -nolocal |decoder/decoder.pl

|decoder/flow.pl
==>before you use it in RNC do => te enable bus_send bus_receive NBAP*
te enable bus_send bus_receive RANAP*
te enable bus_send bus_receive RRC*
te e all UEH_EXCEPTION
or => if want to trace 1 number only :

ueenable imsi <IMSINUMBER> bus_send bus_receive
Example:
[~/moshell/Tools]$ monitor6054.exe 10.165.64.17 001400 -nolocal

|decoder/decoder.pl |decoder/flow.pl -colour | tee bayu_h
1. ueregprint all
2. bo
3. mon 11 (GPB utk monitor)
4. lhsh 001100 pglist (hrs ada target monitor)
2. ueenable imsi 510109013009875 bus_send bus_receive
3. monitor6054.exe 10.165.64.17 001400 -nolocal |decoder/decoder.pl
|decoder/flow.pl
4. te default
uedisable all
Node B
--------------------------------------------------------------------------------------------------------
Check Kelerusan E1
RXBTM01> lpr 026 vcltp
061221-17:10:24 10.165.64.89 6.1zx CPP_MOM_MOM-CPP_4.3.3.8-3_0 stopfile=/tmp/1920

===================================================================================
Proxy MO
===================================================================================
1186 TransportNetwork=1,AtmPort=MS-27-1,VplTp=vp1,VpcTp=1,VclTp=vc02633
1312 TransportNetwork=1,Aal2Sp=1,Aal2Ap=b026
1313 TransportNetwork=1,Aal2Sp=1,Aal2Ap=b026,Aal2PathDistributionUnit=b026
3188 TransportNetwork=1,AtmCrossConnection=b026ia
3189 TransportNetwork=1,AtmCrossConnection=b026ib
3190 TransportNetwork=1,AtmCrossConnection=b026sa
3191 TransportNetwork=1,AtmCrossConnection=b026ca
3192 TransportNetwork=1,AtmCrossConnection=b026da
3193 TransportNetwork=1,AtmCrossConnection=b026sb
3194 TransportNetwork=1,AtmCrossConnection=b026cb
3195 TransportNetwork=1,AtmCrossConnection=b026db
3196 TransportNetwork=1,Aal5TpVccTp=b026qa
3197 TransportNetwork=1,Aal5TpVccTp=b026qb
3198 TransportNetwork=1,UniSaalTp=b026qa
3199 TransportNetwork=1,UniSaalTp=b026qb
3200 TransportNetwork=1,Aal2RoutingCase=b026
3201 TransportNetwork=1,Aal2PathVccTp=b026a1
3202 TransportNetwork=1,Aal2PathVccTp=b026a2
===================================================================================
Total: 25 MOs
RXBTM01> acc 1186-1189 eteloopback
061221-17:46:32 10.165.64.89 6.1zx CPP_MOM_MOM-CPP_4.3.3.8-3_0 stopfile=/tmp/1920

Call Action eteloopback on following MOs ?
===================================================================================
===================================================================================
Are you Sure [y/n] ? y
=================================================================================================================
Proxy MO Action Nr of Params
=================================================================================================================
1186 AtmPort=MS-27-1,VplTp=vp1,VpcTp=1,VclTp=vc02633 eteLoopBack 0
>>> Return value = true



=================================================================================================================
Total: 4 MOs attempted, 4 MOs actioned
RNSBY01> strt check VC pertama dan ke dua (bila ada)

RNSBY01> lt vc
RNSBY01> lacc atmport=es1-24-17 eteloopback

2193 AtmPort=ES1-24-17,VplTp=vp1,VpcTp=1,VclTp=vc32 eteLoopBack
0
>>> Return value = false
Atau lewat EM RNC equipment pilih MS atau ES terus pilih VC ke XX… cari E1 keXX
$>st ip (for rnc)

RNBTM01> st ip
061121-15:43:23 10.165.64.17 6.1zx RNC_NODE_MODEL_F_4_3 stopfile=/tmp/3428

===================================================================================
Proxy Adm State Op. State MO
===================================================================================
358 1 (ENABLED) Equipment=1,Subrack=MS,Slot=12,PlugInUnit=1,Program=ip_util
2529 1 (ENABLED) IpSystem=1,Ip=1
2530 1 (ENABLED) IpSystem=1,Ip=1,IpAtmLink=b004ib (RBS O&M ID)
2531 1 (ENABLED) IpSystem=1,Ip=1,IpAtmLink=b004ia
2532 1 (ENABLED) IpSystem=1,Ip=1,IpAtmLink=b003ib
2566 0 (DISABLED) IpSystem=1,Ip=1,IpAtmLink=RNBTMMUR1
2567 0 (DISABLED) IpSystem=1,Ip=1,IpAtmLink=RNBTMMUR2
===================================================================================
Total: 38 Mos
$>l+ <filename> make file loging in the cygwin/home/qdiariz

$>lt all
$>kget (to get all the configuration of the node)
$>l-
$>mom all sirmax (display all about sirmax parameter)

Ini ada cara untuk mengetahui erros second pada transmisi di 3G, kalau pakai IMA
MoShell> lst ImaGroup=ES-2-2-1 dis
MoShell> lk <ImaLink proxy #> phy
MoShell> lpr Subrack=...,Slot=..,PlugInUnit=1,Etmc41=1,Os155SpiTtp=pp1,Vc4.....
MoShell> lpget <PhyPath MO proxy #>
Repeat the lpget command every few seconds for a while. If the pmEs or pmSes counter increase, then you have a transport issue, not IMA.
Have a ticket open to fix the transport quality.
The above is even more important because the bad T1 or E1 quality is a significant cause of IMA Hanging. This means that this type of hanging
can occur very often when the transport quality is bad (if the Solutions are not loaded on BOTH sides of IMALinks: RBS and RXI or RNC). Fix
your transport problems !!
=alias what='cat /home/qxxxxx/moshell/sitefiles/ipdatabase | grep -i'
Trace Untuk mengetahui Interference at RNC
RNSBY01> tgd cell=SBY122W1 ulinterference celldata
061104-16:49:30 10.184.64.11 6.1zu RNC_NODE_MODEL_F_5_2 stopfile=/tmp/2960
-------------------------------------------------------------------------------------------------------------------------------
MO ulinterference celldata
-------------------------------------------------------------------------------------------------------------------------------
UtranCell=SBY122W1 -70 {hsdschRoParamsPtr 0x5ef7b024,areaAttribs{lac 3412,t3212 10,att 1,rac 1,nmo 1,sac 11221},cellFroId
118,cellRoPar
l 10663,primaryScramblingCode 73,primaryCpichPower 300,maxTxPowerUl 24,bchPower -31,cellReserved 1,treSelection 2,qualMeasQuantity 2,qHyst1
4,qHyst2 4,hoType 1,
nterval 100,congUlInterval 100,pwrCongFilter 1,tmCongAction 2000,releaseAseDl 1,congTimeOut 3000,txInterval 100,txFilter 5,fPwrUp 20,fPwrDown
10,dlCodeAdm 80,as
Adm 32,aseUlAdmOffset 0,tfsFlexConstant 10,minPwrRl -150,maxRate 40690,interRate 7760,minimumRate 1590,maxPwrMax 48,interPwrMax
38,minPwrMax 0,pwrEstFact 30,com
InterSearch 0,fachMeasOccaCycLenCoeff 0,accessClassNBarred 0,noOfUtranCellPosition 0,utranCellPosition{size
15,array{RoamIfFroUtranCellRoExtCellCoordD{latitudeS
e -1},RoamIfFroUtranCellRoExtCellCoordD{latitudeSign -1,latitude -1,longitude -1},RoamIfFroUtranCellRoExtCellCoordD{latitudeSign -1,latitude -
1,longitude -1},Ro
ordD{latitudeSign -1,latitude -1,longitude -1},RoamIfFroUtranCellRoExtCellCoordD{latitudeSign -1,latitude -1,longitude -
1},RoamIfFroUtranCellRoExtCellCoordD{lat
ngitude -1},RoamIfFroUtranCellRoExtCellCoordD{latitudeSign -1,latitude -1,longitude -1},RoamIfFroUtranCellRoExtCellCoordD{latitudeSign -1,latitude -
1,longitude
CellCoordD{latitudeSign -1,latitude -1,longitude -1},RoamIfFroUtranCellRoExtCellCoordD{latitudeSign -1,latitude -1,longitude -
1},RoamIfFroUtranCellRoExtCellCoor
ionAreaFroId 0,serviceAreaFroId 118,routingAreaFroId 0,iubLinkFroId 40,rncModuleId 0,maximumTransmissionPower 400,primarySchPower -
18,secondarySchPower -35,used
800,releaseAseDlNg 3,tmInitialG 3000,directedRetryTarget -1,loadSharingGsmThreshold 75,loadSharingGsmFraction 100,hardIfhoCorr 3,tmInitialGhs
500,tmCongActionG
kEnabled 0,sf4AdmUl 0,sf16gAdm 16,sHcsRat 3,hcsEnabled 0},cellSetupInRbsFlag 1,currMaxTransmissionPower 400,cgiPtr 0x5ef7bfcc,drhCcRefActiveFlag
1,drhCcRef 12 8
nged 0}
AAL2 Resource is Down
Site can not make a cal ,this could be caused by some problem:
1. Aal2pathdistribution unit at RNC-RXI and RNC-MGW is not enough
2. Aal2routingcase is not same at RNC and Node B
Loss Contact via Moshell
1. ssh <node IP>

2. secmode –t s (shut down the security mode of internal telnet and FTP server)
3. secmode –t u (turn on the security mode of internal telnet and FTP server)
4. exit
cara liat error second transmisi.
PBR024W_Melur> pget e1 es
070710-15:23:29 10.160.169.169 7.0g RBS_NODE_MODEL_H_6_6 stopfile=/tmp/4020

=================================================================================================================
MO Attribute Value
=================================================================================================================
Subrack=1,Slot=1,PlugInUnit=1,Cbu=1,Etmc1=1,E1PhysPathTerm=pp2 pmEs 0
Subrack=1,Slot=1,PlugInUnit=1,Cbu=1,Etmc1=1,E1PhysPathTerm=pp2 pmSes 0
Subrack=1,Slot=1,PlugInUnit=1,Cbu=1,Etmc1=1,E1PhysPathTerm=pp1 pmEs 8439
Subrack=1,Slot=1,PlugInUnit=1,Cbu=1,Etmc1=1,E1PhysPathTerm=pp1 pmSes 7407
=================================================================================================================
Total: 2 MOs
RNPBR01> dyncelldata cid 61
070716-15:49:18 10.160.168.17 7.0g RNC_NODE_MODEL_F_5_2 stopfile=/tmp/5652

$ dyncelldata cid 61
cId: 61
Cell froId: 9
CC SP: 010700/sp0.lnh/CommonChMainPT
rncModuleId: 2
IubLink froId: 3
Total ASE DL: 726
aseDlAdm: 500
beMarginAseDl: 0
Total ASE UL: 564
aseUlAdm: 500
aseUlAdmOffset: 0
beMarginAseUl: 0
CPM RL Count: 0
compModeAdm: 15
HSDPA UE Count: 0
hsdpaUsersAdm: 10
SF8 RL DL Count: 0
sf8Adm: 8
SF16 RL DL Count: 0
sf16Adm: 16
SF32 RL DL Count: 0
sf32Adm: 32
SF4 RL UL Count: 0
sf4AdmUl: 1
DL Code Allocation Level: 6.25 %
dlCodeAdm: 80 %
beMarginDlCode: 5
UL Interference: -83.1 dBm
Filtered DL Power: 17.25 %
pwrAdm: 75 %
pwrAdmOffset: 10 %
beMarginDlPwr: 10
Congestion State: Uncongested
$
RNPBR01> dyncelldata cid 63
070716-15:49:25 10.160.168.17 7.0g RNC_NODE_MODEL_F_5_2 stopfile=/tmp/5652

$ dyncelldata cid 63
cId: 63
Cell froId: 11
CC SP: 010600/sp0.lnh/CommonChMainPT
rncModuleId: 2
IubLink froId: 3
Total ASE DL: 726
aseDlAdm: 500
beMarginAseDl: 0
Total ASE UL: 726
aseUlAdm: 500
aseUlAdmOffset: 0
beMarginAseUl: 0
CPM RL Count: 0
compModeAdm: 15
HSDPA UE Count: 0
hsdpaUsersAdm: 10
SF8 RL DL Count: 0
sf8Adm: 8
SF16 RL DL Count: 0
sf16Adm: 16
SF32 RL DL Count: 0
sf32Adm: 32
SF4 RL UL Count: 0
sf4AdmUl: 1
DL Code Allocation Level: 6.25 %
dlCodeAdm: 80 %
beMarginDlCode: 5
UL Interference: -74.5 dBm
Filtered DL Power: 11.81 %
pwrAdm: 75 %
pwrAdmOffset: 10 %
beMarginDlPwr: 10
Congestion State: Uncongested
$
cara monitoring per imsi
RNBTM01> ueenable imsi 510108913010221 bus_send bus_receive
071119-18:33:11 10.165.64.17 7.0q RNC_NODE_MODEL_F_5_2 stopfile=/tmp/2124

$ ueenable imsi 510108913010221 bus_send bus_receive
0: imsi: imsi=510108913010221 check error info bus_send bus_receive interface object
RNBTM01> lh mod1 te log read | decoder/decoder.pl | decoder/flow.pl –color

……………
RNBTM01> uedisable imsi

$ uedisable imsi
trace entry 0 deleted.
ueTrace is passive
$
liat alarms 2 jam sebelumnya
Paradise Kamboja> lga 2h
071120-23:52:30 10.165.137.73 7.0q RBS_NODE_MODEL_H_6_6 stopfile=/tmp/768

......Get /c/logfiles/cello/CELLO_ALARM_LOG.xml /home/Bayu/moshell_logfiles/logs_moshell/tempfiles/20071120-234620_844/alarmLog844.xml ... OK
==================================================================================================================
==
Timestamp (UTC) S Problem Cause MO-reference
==================================================================================================================
==
liat sectoral antenna yang rusak
JKMT020W_KBSRA1> get retdevice
071122-11:49:32 10.12.67.169 7.0e RBS_NODE_MODEL_H_6_5 stopfile=/tmp/3088

==============================================================================================================
===
140 Equipment=1,SectorAntenna=3,AuxPlugInUnit=2,RetuDeviceGroup=1,RetDeviceSet=1
==============================================================================================================
===
RetDeviceSetId !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
VARIABLES :"$MO typename" = "EqcDeviceSetProxy", "$FRO typename" = "EqcBdhBoardDeviceHandler", "$Request type" =
"getRetsParameters()", "$result" = "1", "$Additional information" = "DataNotAvailable"
alarmStatus !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
availabilityStatus !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
operationalState !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
productNumber !!!! Processing
failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed" VARIABLES :"$MO typename" =
"EqcDeviceSetProxy", "$FRO typename" = "EqcBdhBoardDeviceHandler", "$Request type" = "getRetsParameters()", "$result" = "1", "$Additional
information" = "DataNotAvailable"
retType !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
revState !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
userLabel !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
==============================================================================================================
===
141 Equipment=1,SectorAntenna=3,AuxPlugInUnit=2,RetuDeviceGroup=1,RetDeviceSet=1,RetDevice=1
==============================================================================================================
===
RetDeviceId 1
alarmStatus 0 (NO_ALARM)
availabilityStatus 1192 (DEPENDENCY_FAILED & NOT_INSTALLED & DEPENDENCY & OFF_LINE)
electricalAntennaTilt 0
maxTilt 900
minTilt 0
operationalState 0 (DISABLED)
reservedBy [1] =
>>> reservedBy = NodeBFunction=1,Sector=3
usageState 0 (IDLE)
userLabel
==============================================================================================================
===
151 Equipment=1,SectorAntenna=2,AuxPlugInUnit=2,RetuDeviceGroup=1,RetDeviceSet=1
==============================================================================================================
===
RetDeviceSetId !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
alarmStatus !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
availabilityStatus !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
operationalState !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
productNumber !!!! Processing
failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed" VARIABLES :"$MO typename" =
"EqcDeviceSetProxy", "$FRO typename" = "EqcBdhBoardDeviceHandler", "$Request type" = "getRetsParameters()", "$result" = "1", "$Additional
information" = "DataNotAvailable"
retType !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
revState !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
userLabel !!!! Processing failure :se.ericsson.wcdma.rbs.boam.common.FroRequestFailedException TAG :"FroRequestFailed"
==============================================================================================================
===
152 Equipment=1,SectorAntenna=2,AuxPlugInUnit=2,RetuDeviceGroup=1,RetDeviceSet=1,RetDevice=1
==============================================================================================================
===
RetDeviceId 1
alarmStatus 0 (NO_ALARM)
availabilityStatus 1192 (DEPENDENCY_FAILED & NOT_INSTALLED & DEPENDENCY & OFF_LINE)
electricalAntennaTilt 0
maxTilt 900
minTilt 0
operationalState 0 (DISABLED)
reservedBy [1] =
>>> reservedBy = NodeBFunction=1,Sector=2
usageState 0 (IDLE)
cara liat parameter vswr
> lgasveuoyl 30 (uplink RSSI)

–> lh ru fui get vswr …. (To see the VSWR values)
–> lh ru fui get devstat…(to see status of antenna devices)
–> lh ru fui get faults …. (to see status of antenna dev.faults)
Masuk rnc via sec mode
[~]$ ssh 10.160.168.17

The authenticity of host '10.160.168.17 (10.160.168.17)' can't be established.
RSA key fingerprint is 29:10:a3:08:1f:21:f4:f2:52:c2:a2:25:b2:0d:e6:58.
Are you sure you want to continue connecting (yes/no)? y
Please type 'yes' or 'no': yes
Warning: Permanently added '10.160.168.17' (RSA) to the list of known hosts.
Administrator@10.160.168.17's password:
Welcome to OSE Shell OSE4.4.1.
$ secmode -t s
Failed to perform following action(s), cause: 'Telnet and ftp servers already set to OFF'.
$ secmode -t u
Command executed successfully
$ exit
Connection to 10.160.168.17 closed by remote host.
Connection to 10.160.168.17 closed.
[~]$ moshell 10.160.168.17
masuk oss
[~]$ telnet 10.173.0.106

Trying 10.173.0.106...
Connected to 10.173.0.106.
Escape character is '^]'.
SunOS 5.9
login: mouser
Password:
Last login: Tue Mar 13 15:47:47 from 10.173.0.108
Sun Microsystems Inc. SunOS 5.9 Generic May 2002
You have mail.
$ cd moshell
$ moshell 10.165.64.17
To check loopback on atmport

In node RNC,RXI,RBS
? lacc AtmPort=1-1-1,VplTp=vp2,VpcTp=1,VclTp=vc32 eteloopback
? Yes
? False – fail, true - pass
RXBTM01> lacc TransportNetwork=1,AtmPort=MS-8-1-10,VplTp=vp1,VpcTp=1,VclTp=vc45 eteloopback
061222-17:12:00 10.165.64.89
Call Action eteloopback on following MOs ?
===================================================================================
2562 TransportNetwork=1,AtmPort=MS-8-1-10,VplTp=vp1,VpcTp=1,VclTp=vc45
===================================================================================
Are you Sure [y/n] ? y
=================================================================================================================
Proxy MO Action Nr of Params
=================================================================================================================
2562 AtmPort=MS-8-1-10,VplTp=vp1,VpcTp=1,VclTp=vc45 eteLoopBack 0
=================================================================================================================
Total: 1 MOs attempted, 1 MOs actioned
Space hdd
To check space in HD
In node
? Cabd
? vols
RXBTM01> cabd
061222-16:38:05 10.165.64.89
put /home/bayu/moshell_logfiles/logs_moshell/tempfiles/tmp732_20061222-151855/lhCmd732 /c/tmp/lhCmd732 ... OK
================================================================
Global Vol total used free frw device unit
================================================================
/c 1315M 89M 7% 1226M 93% FRW mirrordd 0 <1400000-4094495>
----------------------------------------------------------------
================================================================
Local volume total used free frw device unit
================================================================
0002 /d 683M 36M 5% 646M 95% FRW idedd 0 <4-1399999>
0003 /d 683M 36M 5% 647M 95% FRW idedd 0 <4-1399999>
----------------------------------------------------------------
0001 /f 1801K 42K 2% 1759K 98% FRW ftldd 0 <4-3605>
0004 /f 1801K 120K 7% 1681K 93% FRW ftldd 0 <4-3605>
0005 /f 1801K 120K 7% 1681K 93% FRW ftldd 0 <4-3605>
0008 /f 1801K 722K 40% 1079K 60% FRW ftldd 0 <4-3605>
0010 /f 1801K 722K 40% 1079K 60% FRW ftldd 0 <4-3605>
0012 /f 1801K 722K 40% 1079K 60% FRW ftldd 0 <4-3605>
0014 /f 1801K 722K 40% 1079K 60% FRW ftldd 0 <4-3605>
0026 /f 1801K 436K 24% 1365K 76% FRW ftldd 0 <4-3605>
0027 /f 1801K 436K 24% 1365K 76% FRW ftldd 0 <4-3605>
0000 /f 1801K 42K 2% 1759K 98% FRW ftldd 0 <4-3605>
----------------------------------------------------------------
RXBTM01> vols
061222-16:38:42 10.165.64.89
$ vols
volume total used free frw device unit
/ 0K 0K 100% 0K 100% FR-
/null 0K 0K 100% 0K 100% FRW
/d 683M 36M 5% 646M 95% FRW idedd 0 <4-1399999>
/c 1315M 89M 7% 1226M 93% FRW mirrordd 0 <1400000-4094495>
/j 1315M 89M 7% 1226M 93% FRW /c 0 <1400000-4094495>
$ To check pm counters for E1

In RXI
? pr atmport=ms-x-y
? get <proxy>
? lpget Subrack=MS,Slot=x,PlugInUnit=1,Etm1=1,E1PhysPathTerm=ppy
RXBTM01> pr atmport=ms-12-1-10
061222-15:45:05 10.165.64.89
===================================================================================
Proxy MO
===================================================================================
3012 TransportNetwork=1,AtmPort=MS-12-1-10
===================================================================================
Total: 1 MOs
RXBTM01> get 3012
061222-15:46:08 10.165.64.89
=================================================================================================================
3012 TransportNetwork=1,AtmPort=MS-12-1-10
=================================================================================================================
AtmPortId MS-12-1-10
availabilityStatus 0 (NO_STATUS)
hecCorrectionMode true
operationalState 1 (ENABLED)
userLabel
uses Subrack=MS,Slot=12,PlugInUnit=1,Etmc41=1,Os155SpiTtp=pp1,Vc4Ttp=1,Vc12Ttp=10,E1Ttp=1
valueOfLastCellWithUnexp Struct{3}
>>> 1.vpi = 2
>>> 2.vci = 42156
>>> 3.pti = 0
=================================================================================================================
Total: 1 MOs
RXBTM01> lpget Subrack=MS,Slot=12,PlugInUnit=1,Etmc41=1,Os155SpiTtp=pp1,Vc4Ttp=1,Vc12Ttp=10,E1Ttp=1
061222-15:47:41 10.165.64.89
=================================================================================================================
MO Attribute Value
=================================================================================================================
Subrack=MS,Slot=12,PlugInUnit=1,Etmc41=1,Os155SpiTtp=pp1,Vc4Ttp=1,Vc12Ttp=10,E1Ttp=1 pmEs 35933
Subrack=MS,Slot=12,PlugInUnit=1,Etmc41=1,Os155SpiTtp=pp1,Vc4Ttp=1,Vc12Ttp=10,E1Ttp=1 pmSes 35930
=================================================================================================================
Total: 1 MOs
1 BOARD AND NODE RESTARTS

1.1 Restart Ranks
•Cold (in CPP3 =”restart with forced reload”)
–HW tests, HW reset, SW reloaded and restarted, non-persistent data is lost, T&E/llog is lost
–•Refresh
–HW reset, SW reloaded and restarted, non-persistent data is lost, T&E/llog is kept
–•Warm
–No HW reset, SW conditional reloaded, non-persistent data is lost
–•Hot
–No HW reset, SW conditional reloaded, State Data will survive (MP)
Rank Domain Reason HW HW SW Novram Dynamic CLI BSS/

reset tests reload Config. con- initiated
memory tainer
Cold Node, Power on, Total Fully Forced Cleared Deleted Deleted Cleared/
Pro- Reset or Initiated
cessor button, HW partial
watch dog
or Operator.
Re- Node, Operator or Total Small Forced Cleared Deleted Deleted Cleared/
fresh Pro- Function or Initiated
cessor partial
Warm Node, Operator or None None Condi- Pre- Deleted Deleted Cleared/
Pro- Function tional served Initiated
cessor
Hot Pro- Operator or None None Condi- Pre- Pre- Pre- Cleared/
gram Function tional served served served Initiated
Node PIU Processor Program
restart (MP/BP) SP/DP/FPG restart
restart A restart
Cold
Refres
Warm
Hot
1.2 Restart Commands from MO interface

FIXME: mom man restart
acc 0 restart
mom plug restart

mom restartrank
mom restartcause
acc 001400 restart
acc mod1 restart
acc 001900/sp0.lnh restart
acc cc1 restart
lacc ...auxplug restart
1.3 Restart Commands from OSE shell

FIXME: restartObj me
reload (difference between restartObj and reload)
1.4 Checking Restart Information

FIXME:
llog –l
dump list –a
dump info
lgsvm
cabr
lgd
restartcollector
lihat telog read
RNTPI01> lhsh 001400 te log read

RNTPI01> lh mod1 te log read | decoder/decoder.pl | decoder/flow.pl –color
Print all PM reports
BTM028W_PuriGarden> pmrg -m 3
TE Log Read tiap Bord
BTM028W_PuriGarden> cabx
071129-22:22:30 10.165.65.121 7.0q RBS_NODE_MODEL_H_6_6 stopfile=/tmp/4092

...
=====================================================================================================
SMN APN BOARD GREEN YELLOW RED PRODUCT NR REV DATE SERIAL NR TEMP COREMGR
=====================================================================================================
0 1 CBU1 ON 16HZ OFF ROJ 119 2209/1 R4B/A 20061120 TU8B198219 +27C Active*
0 4 RAX12 ON 16HZ OFF ROJ 119 2187/7 R1B 20070301 TU8B916400
0 5 RAX ON 16HZ OFF ROJ 119 2187/6 R1D 20061128 TU8B275241
0 10 TX6HS-03 ON 16HZ OFF ROJ 119 2254/5 R2C 20061020 AE53472195
0 12 OBIF ON 16HZ OFF ROJ 119 2238/2 R1B 20061215 TB37726078
-----------------------------------------------------------------------------------------------------
================================================================
SMN ProductNr Rev Name Date SerialNr
================================================================
0 ROJ 605 116/1 R1A Subrack 20040101 Baseband
0 ROJ 609 47/1 R2A BACKPLANE 20061109 X911124325
----------------------------------------------------------------
=================================================================================================================
SMN APN PORT BOARD GREEN YELLOW RED PRODUCT NR REV DATE SERIAL NR
=================================================================================================================
0 1 port_0_dev_5 XALM steady off off ZHY60113/1 R1B 20061226 TB37795891
0 12 port_0_dev_6 RRU steady 16hz off KRC161007/2 R1B 20061223 TB37771286
-----------------------------------------------------------------------------------------------------------------
lhsh 000100 te log read // CBU1

lhsh 000400 te log read // RAX12
lhsh 000500 te log read // RAX
lhsh 001000 te log read // TX6HS-03
lhsh 001200 te log read // OBIF
lhsh 001200/port_0_dev_6 te log read // RRU
Hw/Sw inventories, disk space, and HW errors
BTM028W_PuriGarden> inv
BTM028W_PuriGarden> inv . 0|L
BTM028W_PuriGarden> cabslxdgm
BTM028W_PuriGarden> lh mp sma -all
BTM028W_PuriGarden> lh coremp spashwinfo all ; nssmpinfo all ; hdstat
VC connections
Stvb
Check externalvci and all atribut
RNCJK01> lget VclTp=vc40 externalVci

=================================================================================================================
MO Attribute Value
=================================================================================================================
AtmPort=ES4-26-39,VplTp=vp1,VpcTp=1,VclTp=vc40 externalVci 40
AtmPort=MS-27-1,VplTp=vp8,VpcTp=1,VclTp=vc40 externalVci 40
AtmPort=MS-27-1,VplTp=vp12,VpcTp=1,VclTp=vc40 externalVci 40

RBS

Diunggah oleh

Informasi Dokumen

Deskripsi Asli:

Judul Asli

Hak Cipta

Format Tersedia

Bagikan dokumen Ini

Bagikan atau Tanam Dokumen

Opsi Berbagi

Apakah menurut Anda dokumen ini bermanfaat?

Apakah konten ini tidak pantas?

Hak Cipta:

Format Tersedia

RBS

Diunggah oleh

Hak Cipta:

Format Tersedia

Untuk mengecek alarm :

RBS> al atau RBS> ala  untuk deskripsi alarm secara lengkap

Restart RBS via MOSHELL

Melihat status board

Melihat status / Nama site

Me-Load suatu object

Melihat board yang diinginkan

aa : SMN ; bb : APN ; cc : default 00

Melihat log Alarm

RBS> lgs 2005-03-20

Untuk melihat Proxy

Untuk melihat status secara detail, gunakan command get.

Melihat configuration version (CV)

Melihat radiolink ID dan status pendudukan kanal radio

Apabila ingin merubah parameter, gunakan command set

Melihat apakah ada interference di TRX atau sector

Melihat pendudukan kanal radio

Memilih CV yang digunakan pada saat startable

Melihat status transmisi

Melihat status RBS yang available

Melihat RNC ok atau gak

Melihat cell error code

RNSBY01>lbl {IUBLINK} CD12 di block sekaligus

Block/DeBlock Sektor – Utrancell

Check all imsi list

Lihat software list RNC

RJK01> pgload CXC1326054_R1D01 – jika belum aktif, load software 43 di RNC

Cara Chack All call Tras

1. Utk Trace Protocol (Call Flow) in cygwin :

monitor6054.exe <IPADDRESS> <RNCMODULE> -nolocal |decoder/decoder.pl |decoder/flow.pl

or => if want to trace 1 number only :

[~/moshell/Tools]$ monitor6054.exe 10.165.64.17 001400 -nolocal |decoder/decoder.pl |decoder/flow.pl

. Utk Trace Protocol (Call Flow) in cygwin :

monitor6054.exe <IPADDRESS> <RNCMODULE> -nolocal |decoder/decoder.pl

or => if want to trace 1 number only :

[~/moshell/Tools]$ monitor6054.exe 10.165.64.17 001400 -nolocal

061221-17:10:24 10.165.64.89 6.1zx CPP_MOM_MOM-CPP_4.3.3.8-3_0 stopfile=/tmp/1920

061221-17:46:32 10.165.64.89 6.1zx CPP_MOM_MOM-CPP_4.3.3.8-3_0 stopfile=/tmp/1920

1187 AtmPort=MS-27-1,VplTp=vp1,VpcTp=1,VclTp=vc02635 eteLoopBack 0

1188 AtmPort=MS-27-1,VplTp=vp1,VpcTp=1,VclTp=vc02643 eteLoopBack 0

1189 AtmPort=MS-27-1,VplTp=vp1,VpcTp=1,VclTp=vc02644 eteLoopBack 0

RNSBY01> strt check VC pertama dan ke dua (bila ada)

RNSBY01> lacc atmport=es1-24-17 eteloopback

$>st ip (for rnc)

061121-15:43:23 10.165.64.17 6.1zx RNC_NODE_MODEL_F_4_3 stopfile=/tmp/3428

$>l+ <filename> make file loging in the cygwin/home/qdiariz

$>mom all sirmax (display all about sirmax parameter)

MoShell> lst ImaGroup=ES-2-2-1 dis

MoShell> lk <ImaLink proxy #> phy

MoShell> lpr Subrack=...,Slot=..,PlugInUnit=1,Etmc41=1,Os155SpiTtp=pp1,Vc4.....

MoShell> lpget <PhyPath MO proxy #>

=alias what='cat /home/qxxxxx/moshell/sitefiles/ipdatabase | grep -i'

Trace Untuk mengetahui Interference at RNC

RNSBY01> tgd cell=SBY122W1 ulinterference celldata

061104-16:49:30 10.184.64.11 6.1zu RNC_NODE_MODEL_F_5_2 stopfile=/tmp/2960

AAL2 Resource is Down

Loss Contact via Moshell

1. ssh <node IP>

070710-15:23:29 10.160.169.169 7.0g RBS_NODE_MODEL_H_6_6 stopfile=/tmp/4020

070716-15:49:18 10.160.168.17 7.0g RNC_NODE_MODEL_F_5_2 stopfile=/tmp/5652

RNPBR01> dyncelldata cid 63

070716-15:49:25 10.160.168.17 7.0g RNC_NODE_MODEL_F_5_2 stopfile=/tmp/5652
