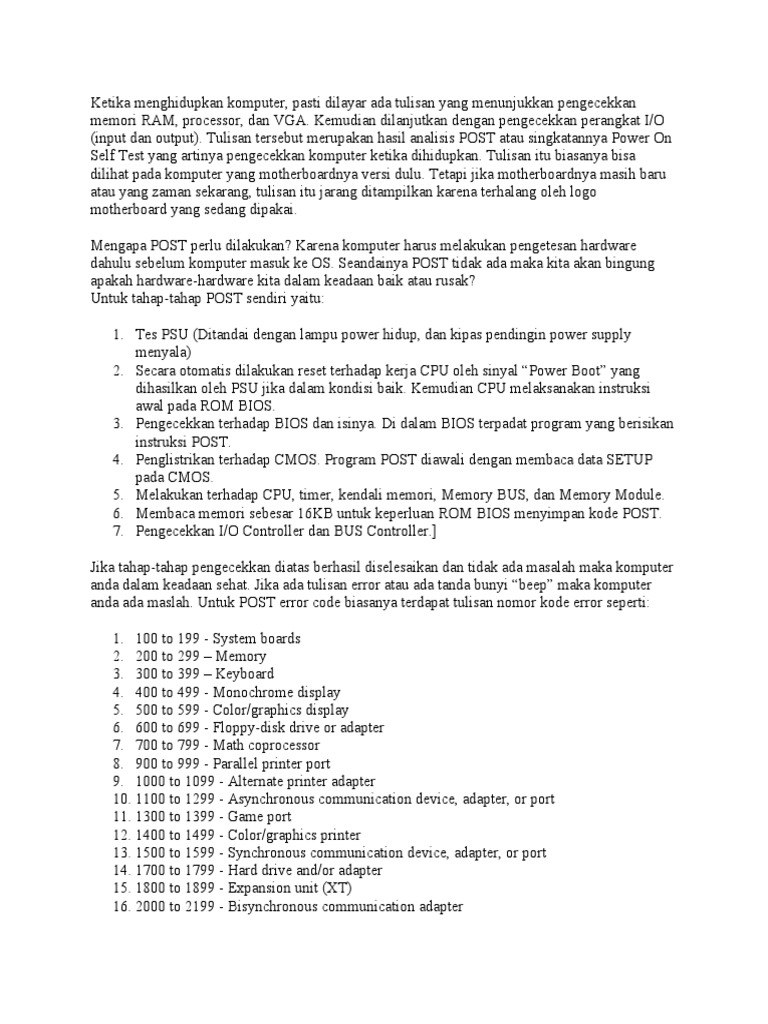

memori RAM, processor, dan VGA. Kemudian dilanjutkan dengan pengecekkan perangkat I/O
(input dan output). Tulisan tersebut merupakan hasil analisis POST atau singkatannya Power On
Self Test yang artinya pengecekkan komputer ketika dihidupkan. Tulisan itu biasanya bisa
dilihat pada komputer yang motherboardnya versi dulu. Tetapi jika motherboardnya masih baru
atau yang zaman sekarang, tulisan itu jarang ditampilkan karena terhalang oleh logo
motherboard yang sedang dipakai.
Mengapa POST perlu dilakukan? Karena komputer harus melakukan pengetesan hardware
dahulu sebelum komputer masuk ke OS. Seandainya POST tidak ada maka kita akan bingung
apakah hardware-hardware kita dalam keadaan baik atau rusak?
Untuk tahap-tahap POST sendiri yaitu:
1. Tes PSU (Ditandai dengan lampu power hidup, dan kipas pendingin power supply
menyala)
2. Secara otomatis dilakukan reset terhadap kerja CPU oleh sinyal “Power Boot” yang
dihasilkan oleh PSU jika dalam kondisi baik. Kemudian CPU melaksanakan instruksi
awal pada ROM BIOS.
3. Pengecekkan terhadap BIOS dan isinya. Di dalam BIOS terpadat program yang berisikan
instruksi POST.
4. Penglistrikan terhadap CMOS. Program POST diawali dengan membaca data SETUP
pada CMOS.
5. Melakukan terhadap CPU, timer, kendali memori, Memory BUS, dan Memory Module.
6. Membaca memori sebesar 16KB untuk keperluan ROM BIOS menyimpan kode POST.
7. Pengecekkan I/O Controller dan BUS Controller.]
Jika tahap-tahap pengecekkan diatas berhasil diselesaikan dan tidak ada masalah maka komputer
anda dalam keadaan sehat. Jika ada tulisan error atau ada tanda bunyi “beep” maka komputer
anda ada maslah. Untuk POST error code biasanya terdapat tulisan nomor kode error seperti:
Dan untuk “beep” error code maksudnya ketika komputer bermasalah maka akan ada bunyi beep
pada komputer anda. Bunyi beep dan penyebabnya bisa berbeda-beda tergantung merek BIOS
yang digunakan. Untuk bios AWARD BIOS:
NO Gejala Diagnotis
1 1 bip pendek PC dalam keadaan baik
2 1 bib panjang Permasalahan di memori
3 1 bib panjang, 2 bip pendek Kerusakan di modul DRAM Paritie
4 1 bib panjang, 3 bip pendek Kerusakan di bagian VGA
5 Bib terus menerus Kerusakan di modul memori atau memori
video
NO Gejala Diagnotis
1 1 bip pendek DRAM gagal merefresh
2 2 bip pendek Sirkuit gagal mengecek keseimbangan
DRAM Paritie
3 3 bip pendek BIOS gagal mengakses memori 64KB
pertama
4 4 bip pendek Timer pada sistem gagal bekerja
5 5 bip pendek Motherboard tidak dapat menjalankan
Processor
6 6 bip pendek Controller pada keyboard error
7 7 bip pendek Video Mode error
8 8 bip pendek Tes memori VGA gagal
9 9 bip pendek Checksum error
10 10 bip pendek CMOS Shutdows Read Write mengalami
error
11 11 bip pendek Cache memori error
12 1 bip panjang, 3 bip pendek Konfessional/Extended Memory rusak
13 1 bip panjang, 8 bip pendek Tes tampilan gambar gagal
Phoenix BIOS Beep Codes
Phoenix BIOS menggunakan beep code yang pasti untuk indikasi problem.
Di tabel, tanda ‘-’ yang berarti pause diantara beep.
Contohnya : 1 – 1 – 2 adalah BEEP <pause> BEEP <pause> BEEP BEEP
POSSIBLE CAUSE
BEEP CODE MEANING
..
1–1–2 CPU / motherboard failure Bad CPU / motherboard
1–1–3 CMOS read/write failure Bad motherboard
1–1–4 BIOS ROM failure Bad BIOS chip
1–2–1 Timer failure Bad motherboard
1–2–2 DMA failure Bad motherboard
1–2–3 DMA failure Bad motherboard
1–3–1 Memory refresh failure Bad memory
1–3–2 64K memory failure Bad memory
1–3–3 64K memory failure Bad memory
1–3–4 64K memory failure Bad memory
1–4–1 Address line failure Bad memory
1–4–2 Parity error Bad memory
1–4–3 Timer failure Bad motherboard
1–4–4 NMI port failure Bad motherboard
2–1–1 64K memory failure Bad memory
2–1–2 64K memory failure Bad memory
2–1–3 64K memory failure Bad memory
2–1–4 64K memory failure Bad memory
2–2–1 64K memory failure Bad memory
2–2–2 64K memory failure Bad memory
2–2–3 64K memory failure Bad memory
2–2–4 64K memory failure Bad memory
2–3–1 64K memory failure Bad memory
2–3–2 64K memory failure Bad memory
2–3–3 64K memory failure Bad memory
2–3–4 64K memory failure Bad memory
2–4–1 64K memory failure Bad memory
2–4–2 64K memory failure Bad memory
2–4–4 64K memory failure Bad memory
2–4–4 64K memory failure Bad memory
3–1–1 Slave DMA failure Bad motherboard
3–1–2 Master DMA failure Bad motherboard
3–1–3 Interrupt controller failure Bad motherboard
3 – 1 -4 Slave IC failure Bad motherboard
3 – 2 -2 Interrupt Controller failure Bad motherboard
3–2–3 <RESERVED>
3–2–4 Keyboard control failure Bad motherboard
3–3–1 CMOS batter failure Bad CMOS battery
3–3–2 CMOS configuration error Incorrect setting
3–3–3 <RESERVED>
3–3–4 Video memory failure Bad video card or memory
3–4–1 Video init failure Bad video card or memory
4–2–1 Timer failure Bad motherboard
4–2–2 CMOS shutdown failure Bad motherboard
4–2–3 Gate A20 failure Bad motherboard
4–2–4 Unexpected interrupt Bad processor
4–3–1 RAM test failure Bad memory
4–3–3 Timer failure Bad motherboard
4–3–4 RTC failure Bad motherboard
4–4–1 Serial port failure Bad motherboard
4–4–2 Parallel port failure Bad motherboard
4–4–3 Coprocessor failure Bad motherboard or CPU.
9–2–1 Video adapter incompatibility Use a different brand of video card
Diagnosa
No Gejala
Pesan/Peringatan Kesalahan
1 Tidak ada beep Power supply rusak, card monitor/RAM tidak
terpasang
2 1 beep pendek Normal POST dan PC dalam keadaan baik
3 beep terus menerus Power supply rusak, card monitor/RAM tidak
terpasang
4 Beep pendek berulang-ulang Power supply rusak, card monitor/RAM tidak
terpasang
5 1 beep panjang 1 beep pendek Masalah Motherboard
6 1 beep panjang 2 beep pendek Masalah bagian VGA Card (mono)
7 1 beep panjang 3 beep pendek Masalah bagian VGA Ccard (EGA).
8 3 beep panjang Keyboard error
9 1 beep, blank monitor VGA card sirkuit
Untuk yang 1 bip panjang, 8 bip pendek maksudnya tampilan tidak bisa muncul pada layar.
Penyebabnya pun bisa beragam.
