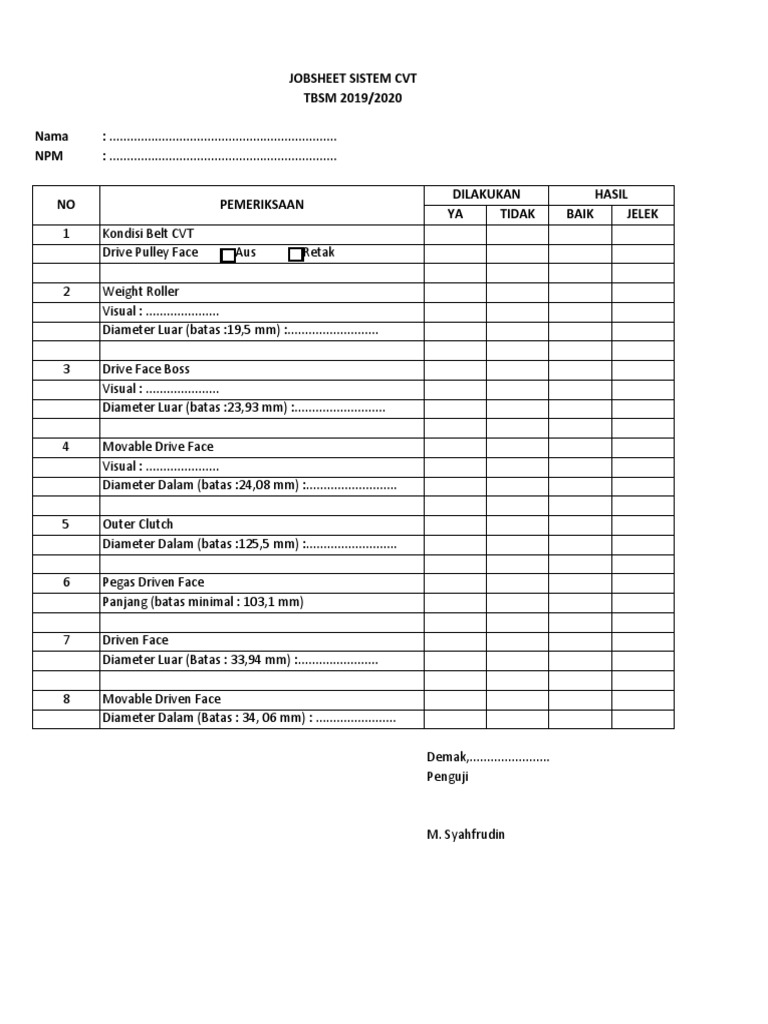

JOBSHEET SISTEM CVT

TBSM 2019/2020

Nama : .................................................................
NPM : .................................................................

DILAKUKAN HASIL
NO PEMERIKSAAN
YA TIDAK BAIK JELEK
1 Kondisi Belt CVT
Drive Pulley Face Aus Retak

2 Weight Roller
Visual : .....................
Diameter Luar (batas :19,5 mm) :..........................

3 Drive Face Boss

Visual : .....................
Diameter Luar (batas :23,93 mm) :..........................

4 Movable Drive Face

Visual : .....................
Diameter Dalam (batas :24,08 mm) :..........................

5 Outer Clutch
Diameter Dalam (batas :125,5 mm) :..........................

6 Pegas Driven Face

Panjang (batas minimal : 103,1 mm)

7 Driven Face
Diameter Luar (Batas : 33,94 mm) :.......................

8 Movable Driven Face

Diameter Dalam (Batas : 34, 06 mm) : .......................

Demak,.......................
Penguji

M. Syahfrudin
