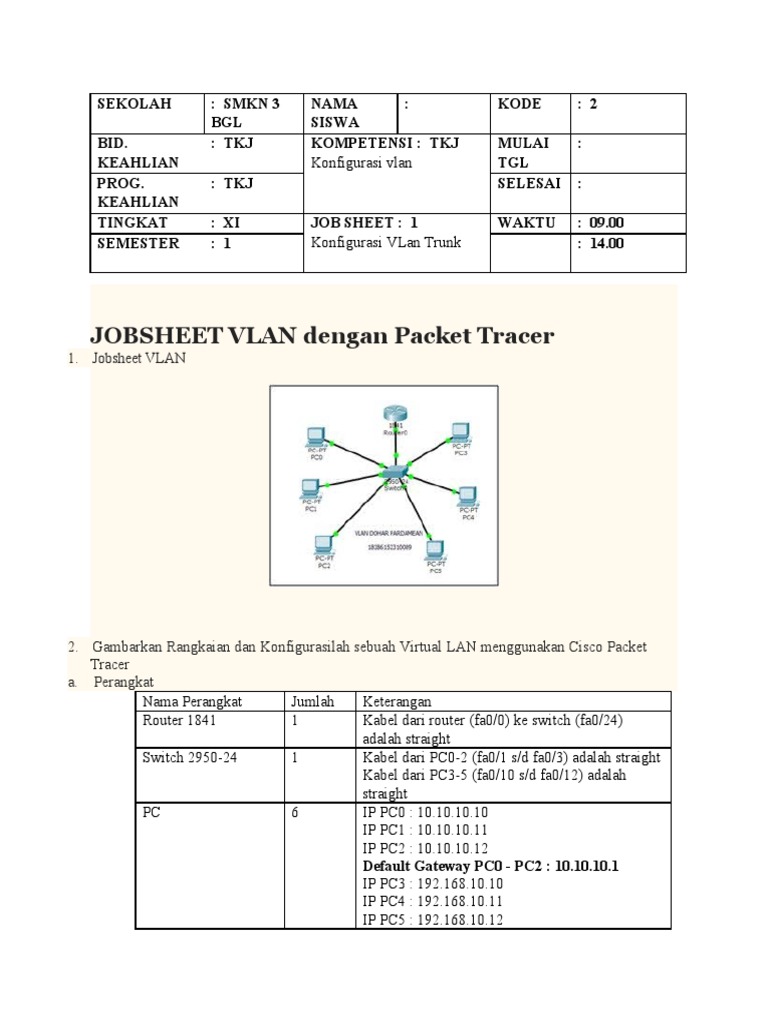

SEKOLAH :

SMKN 3 NAMA : KODE :  2

BGL SISWA
BID. :  TKJ KOMPETENSI :  TKJ MULAI :
KEAHLIAN Konfigurasi vlan TGL
PROG. :  TKJ SELESAI :
KEAHLIAN
TINGKAT :  XI JOB SHEET :  1 WAKTU :  09.00
SEMESTER :  1 Konfigurasi VLan Trunk :  14.00

JOBSHEET VLAN dengan Packet Tracer

1.      Jobsheet VLAN

2.      Gambarkan Rangkaian dan Konfigurasilah sebuah Virtual LAN menggunakan Cisco Packet
Tracer
a.       Perangkat
Nama Perangkat Jumlah Keterangan
Router 1841 1 Kabel dari router (fa0/0) ke switch (fa0/24)
adalah straight
Switch 2950-24 1 Kabel dari PC0-2 (fa0/1 s/d fa0/3) adalah straight
Kabel dari PC3-5 (fa0/10 s/d fa0/12) adalah
straight
PC 6 IP PC0 : 10.10.10.10
IP PC1 : 10.10.10.11
IP PC2 : 10.10.10.12
Default Gateway PC0 - PC2 : 10.10.10.1
IP PC3 : 192.168.10.10
IP PC4 : 192.168.10.11
IP PC5 : 192.168.10.12
 Default Gateway PC0 - PC2 : 192.168.10.1
b.      Konfigurasi pada perangkat Switch
Switch>en
Switch#configure terminal
Switch(config)#vlan 10
Switch(config-vlan)#name VLAN10
Switch(config-vlan)#exit
Switch(config)#vlan 20
Switch(config-vlan)#name VLAN20
Switch(config-vlan)#exit
Switch (config)# exit
Switch#show vlan

Switch#
Switch#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#int f0/24
Switch(config-if)#switchport mode trunk
Switch(config-if)#no shut
Switch(config-if)#exit
Switch(config)#int f0/1
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 10
Switch(config-if)#exit
Switch(config)#int f0/2
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 10
Switch(config-if)#exit
 Switch(config)#int f0/3
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 10
Switch(config-if)#exit
Switch(config)#int f0/10
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 20
Switch(config-if)#exit
Switch(config)#int f0/11
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 20
Switch(config-if)#exit
Switch(config)#int f0/12
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 20
Switch(config-if)#end
Switch#
%SYS-5-CONFIG_I: Configured from console by console

Switch#

c.       Konfigurasi pada perangkat Router

Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int f0/0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed

state to up

Router(config-if)#int f0/0.10
Router(config-subif)#
%LINK-5-CHANGED: Interface FastEthernet0/0.10, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.10,

changed state to up

Router(config-subif)#encapsulation dot1Q 10
Router(config-subif)#ip add 10.10.10.1 255.0.0.0
Router(config-subif)#int f0/0.20
 Router(config-subif)#
%LINK-5-CHANGED: Interface FastEthernet0/0.20, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.20,

changed state to up

Router(config-subif)#encapsulation dot1Q 20
Router(config-subif)#ip add 192.168.10.1 255.255.255.0
Router(config-subif)#end
Router#
%SYS-5-CONFIG_I: Configured from console by console

Router#

3.       Hasil
Lakukan uji coba ping dari PC0 ke PC1, tuliskan hasilnya
......................................................................................................................................................
......................................................................................................................................................
...............................................................

4.       Lakukan Uji coba Ping dari PC3 ke PC5, tuliskan hasilnya

......................................................................................................................................................
......................................................................................................................................................
...............................................................
5.       Lakukan Uji coba Ping dari PC0 ke PC4, tuliskan hasilnya
......................................................................................................................................................
......................................................................................................................................................
...............................................................
6.       Lakukan Uji coba Ping dari PC5 ke PC2, tuliskan hasilnya
......................................................................................................................................................
......................................................................................................................................................
...............................................................
7.       Troubleshooting ( Pemecahan masalah ) jika ada
......................................................................................................................................................
......................................................................................................................................................
...............................................................
8.       Kesimpulan
