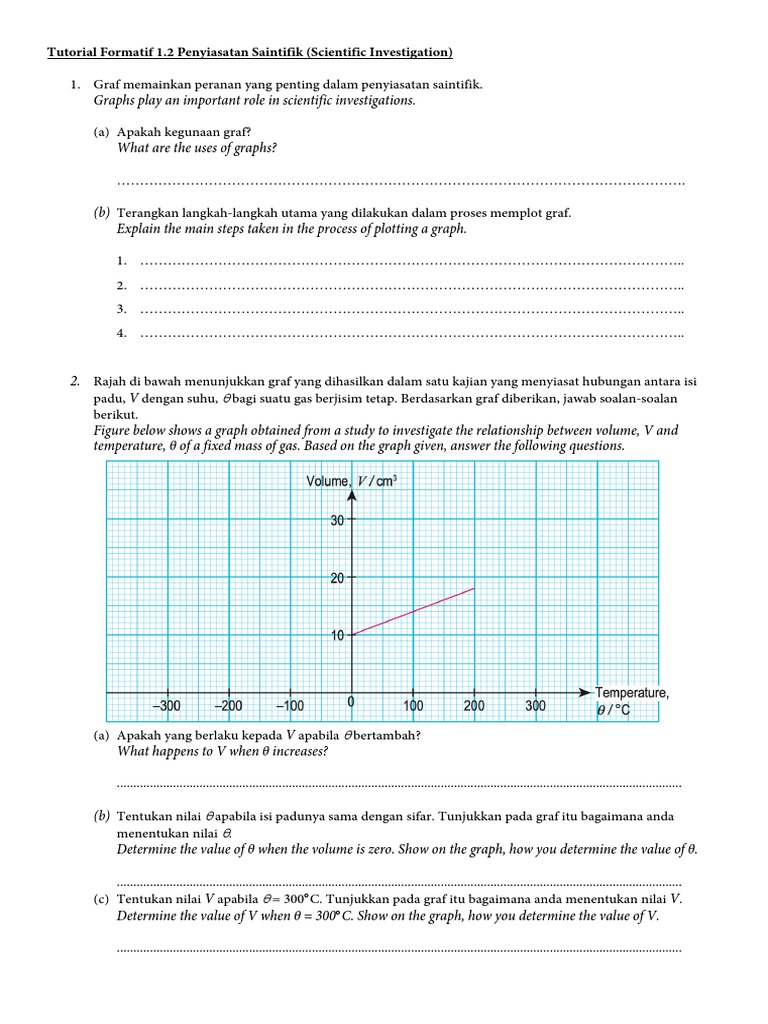

Tutorial Formatif 1.

2 Penyiasatan Saintifik (Scientific Investigation)

1. Graf memainkan peranan yang penting dalam penyiasatan saintifik.

Graphs play an important role in scientific investigations.

(a) Apakah kegunaan graf?

What are the uses of graphs?

…………………………………………………………………………………………………………….

(b) Terangkan langkah-langkah utama yang dilakukan dalam proses memplot graf.
Explain the main steps taken in the process of plotting a graph.

1. ………………………………………………………………………………………………………..
2. ………………………………………………………………………………………………………..
3. ………………………………………………………………………………………………………..
4. ………………………………………………………………………………………………………..

2. Rajah di bawah menunjukkan graf yang dihasilkan dalam satu kajian yang menyiasat hubungan antara isi
padu, V dengan suhu, q bagi suatu gas berjisim tetap. Berdasarkan graf diberikan, jawab soalan-soalan
berikut.
Figure below shows a graph obtained from a study to investigate the relationship between volume, V and
temperature, θ of a fixed mass of gas. Based on the graph given, answer the following questions.

(a) Apakah yang berlaku kepada V apabila q bertambah?

What happens to V when θ increases?

...........................................................................................................................................................................

(b) Tentukan nilai q apabila isi padunya sama dengan sifar. Tunjukkan pada graf itu bagaimana anda
menentukan nilai q.
Determine the value of θ when the volume is zero. Show on the graph, how you determine the value of θ.

...........................................................................................................................................................................
(c) Tentukan nilai V apabila q = 300°C. Tunjukkan pada graf itu bagaimana anda menentukan nilai V.
Determine the value of V when θ = 300°C. Show on the graph, how you determine the value of V.

...........................................................................................................................................................................
