PT.
JAYA TEKNIK INDONESIA
WINDSOR APARTMENT PROJECT

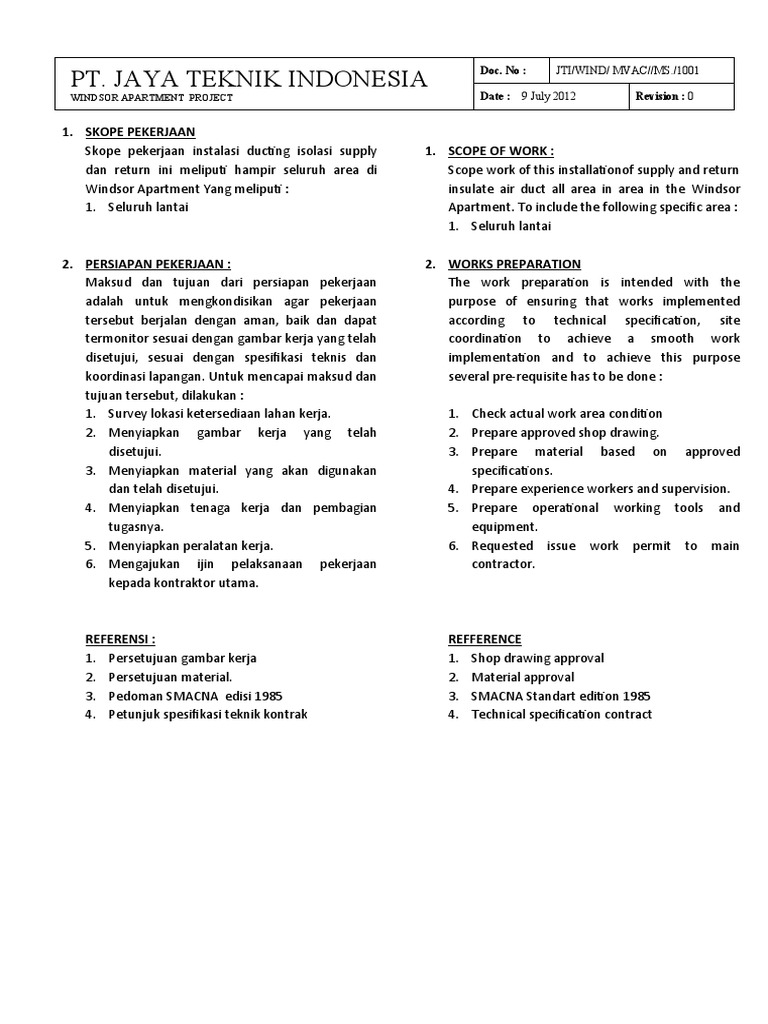

1. SKOPE PEKERJAAN
Skope pekerjaan instalasi ducting isolasi supply
dan return ini meliputi hampir seluruh area di
Windsor Apartment Yang meliputi :
1. Seluruh lantai
2. PERSIAPAN PEKERJAAN :
Maksud dan tujuan dari persiapan pekerjaan
adalah untuk mengkondisikan agar pekerjaan
tersebut berjalan dengan aman, baik dan dapat
termonitor sesuai dengan gambar kerja yang telah
disetujui, sesuai dengan spesifikasi teknis dan
koordinasi lapangan. Untuk mencapai maksud dan
tujuan tersebut, dilakukan :
1. Survey lokasi ketersediaan lahan kerja.
2. Menyiapkan gambar kerja yang telah
disetujui.
3. Menyiapkan material yang akan digunakan
dan telah disetujui.
4. Menyiapkan tenaga kerja dan pembagian
tugasnya.
5. Menyiapkan peralatan kerja.
6. Mengajukan ijin pelaksanaan pekerjaan
kepada kontraktor utama.
REFERENSI :
1. Persetujuan gambar kerja
2. Persetujuan material.
3. Pedoman SMACNA edisi 1985
4. Petunjuk spesifikasi teknik kontrak
Doc. No : JTI/WIND/ MVAC//MS./1001
Date : 9 July 2012 Revision : 0
1. SCOPE OF WORK :
Scope work of this installationof supply and return
insulate air duct all area in area in the Windsor
Apartment. To include the following specific area :
1. Seluruh lantai
2. WORKS PREPARATION
The work preparation is intended with the
purpose of ensuring that works implemented
according to technical specification, site
coordination to achieve a smooth work
implementation and to achieve this purpose
several pre-requisite has to be done :
1. Check actual work area condition
2. Prepare approved shop drawing.
3. Prepare material based on approved
specifications.
4. Prepare experience workers and supervision.
5. Prepare operational working tools and
equipment.
6. Requested issue work permit to main
contractor.
REFFERENCE
1. Shop drawing approval
2. Material approval
3. SMACNA Standart edition 1985
4. Technical specification contract
 PT. JAYA TEKNIK INDONESIA
Doc. No : JTI/WIND/ MVAC//MS./1001

WINDSOR APARTMENT PROJECT Date : 9 July 2012 Revision : 0

3. MATERIAL YANG DIGUNAKAN :

1. Baja lapis seng
2. Support (besi siku) 3. MATERIALS NEED EQUIPMENT :
3. Baut dan Mur 1. Galvanized steel sheet
4. Dynabolt 2. Support ( angle steel)
5. Karet Paking 3. Nut and Bolt
6. Flint Coat 4. Dynabolt
7. Glass Wool – Density 24 kg/m3(Isolasi Luar) 5. Rubber gasket
– Density 48 kg/m3(Plenum) 6. Flint coat
8. Lem 7. Glass wool – Density 24 kg/m3(with Isolation)
9. Kawat ayam – Density 48 kg/m3(Plenum)
10. Paku leuress 8. Sealant
11. Kain pelapis 9. Wire mash
10. Spidle rim
4. PERALATAN KERJA : 11. Glass coat
1. Obeng minus
2. Obeng plus 4. WORKING TOOLS :
3. Mesin bor 1. Screwdrivers
4. Meteran 2. Screwdrivers
5. Gunting Seng 3. Drilling machine
6. Tang rivet 4. Meter
7. Kunci pas 10 mm – 22 mm 5. GI sheet cutter
8. Kabel power 6. Rivets
9. Sifat air 7. Close wrench 10 mm – 12 mm
10. Palu 8. Cable power
11. Gergaji besi 9. Carpenter level
12. Benang ( untuk lot instalasi pipa) 10. Hammer
13. Tambang 11. Hacksaw
14. Lampu sorot 500 Watt 12. Yarn ( for leveling)
15. Gelas ukur 13. Mine
14. Spot lamp 500 Watt
5. ALAT BANTU : 15. Measuring tube
1. Scaffolding komplit standart sagety 5. MISCELEANUS TOOLS:
2. Tangga 1. Scaffolding according to safety
2. ladder
6. ANALISA RESIKO BAHAYA PEKERJAAN :
1. Terjatuh 6. HAZARD ANALYSIST :
2. Mata terkena debu pengeboran 1. Fall
3. Terkena bor 2. Eyes hit by drilling dust
4. Tersengat aliran listri 3. Hit by drill
5. Kebakaran yang diakibatkan dari pengelasan 4. Electricution
6. Mata gerinda pecah 5. Fire cause by welding works
7. Terkena percikan las. (Lebih detail lihat JSA / Risk 6. Broken grinding wheel
Assessment terlampir). 7. Hit by welding slugs. (More detail see JSA /
Risk Assessment attachment)
 PT. JAYA TEKNIK INDONESIA
WINDSOR APARTMENT PROJECT
7. LANGKAH KERJA DUCTING DENGAN ISOLASI :
Dalam pekerjaan instalasi pemasangan ducting
dengan isolasi, kerja yang akan dilakukan untuk
membuat instalasi supply dan return duct yang
akan dilakukan di antaranya :
1. Fabrarikasi ducting sesuai dengan gambar
yang sudah disetujui di work shop.
2. Hasil fabrikasi ducting tersebut dikirim ke site
proyek
3. Perakitan ducting sesuai dengan ukuran.
4. Ducting yang di rakit, disambung, antara
sambungan dipasang karet gasket dan sealant
5. Ducting di cat flint coat secara menyeluruh
pada permukaan luar ducting.
6. Ducting di balut dengan glass wool dan diikat
dengan tali plastik hingga kencang lalu balut
alumunium foil kemudian untuk
pengencangan direkatkan menggunakan duct
tape
7. Untuk ducting lebar lebih dari 800 di pasang
spindle pin berjarak 500 mm horizontal &
vertikal
8. Pasang scaffolding, marking posisi ducting dan
gantungan support
9. Melubangi slab dak di dua sisi ducting yang
akan dipasang dynaset. Pasang support dan
landasan , Ducting dipasang sesuai dengan
gambar.
10. Tes kebocoran dengan lampu listrik 500 watt
yang di ikat tambang di masukkan ke dalam
ducting.
11. Atau dapat menggunakan metode
pengasapan yang ditekankan ke dalam ducting
dan akan terlihat ada asap keluar dari celah
kebocoran untuk identifikasi kebocoran
tersebut.
12. Jika ada bocor maka oleskan sealant di
permukaan ducting yang bocor tersebut.
Doc. No : JTI/WIND/ MVAC//MS./1001
Date : 9 July 2012 Revision : 0
7. INSULATION DUCT STEP OF WORK :
In the duct non isolation supply and return
installation several steps shall be done to include :
1. Ducting fabrication in accordance with the
drawing in the workshop
2. Fabrication duct are deliverd to the side
3. Duct assembling according to duct Size.
4. Install rubber gasket for each duct joint and
sealant
5. Ducting painted with plink coat thoroughly
coat the mater surface.
6. Ducting in wraping with wool glass and bound
with string of rapiah boisterous till then wrap
foil aluminum later; then for boisterous.
gummed by tape duct.
7. For wide ducting more than 800 in tide of
spindle pin apart 500 horizontal mm &
vertical.
8. Installation of scaffolding. Marking the
position of ducting and hanger support
9. Drill slab concrete for both sides of the
ducting install the dynabolt/ dynaset. Install
the support and foundation. Ducting installed
in accordance with the drawing.
10. Leak test shall be electric lamp 500 Watt,
which the tighey use mine in to Ducting
11. Or use fogging method which is duct line will
be pressed by fogging and see fogg come out
from the leak area to identify the leakage.
12. If there is leaking hence dabbing sealant on
the surface of ducting.
 PT. JAYA TEKNIK INDONESIA
WINDSOR APARTMENT PROJECT
8. LANGKAH KERJA UNTUK DUCTING ISOLASI
8. INTERNAL INSULATION DUCT
DALAM :
Dalam pekerjaan instalasi pemasangan ducting
dengan isolasi dalam, kerja yang akan dilakukan
untuk membuat instalasi supply dan return duct
yang akan dilakukan di antaranya :
1. Fabrarikasi ducting sesuai dengan gambar
yang sudah disetujui di work shop.
2. Hasil fabrikasi ducting tersebut dikirim ke
site / proyek
3. BJLS sebelum dirakit harus di pasang isolasi
dalam terlebih dahulu.
4. Permukaan bagian dalam lembaran BJLS
diberi perekat dan Spindle dengan jarak yang
sudah ditentukan.
5. Permukaan yang tidak ada Spindle dioleskan
perekat yang kuat dan di pasang glass wool
merata.
6. Permukaan glass wool di pasang glass coat
dan diikuti pemasangan wire mesh, di kunci
dengan menggunakan spindle pin.
7. Bagian pinggir dari BJLS yang dipasang isolasi
dan kain glass coat di rapihkan dan dioleskan
perekat.
8. Perakitan ducting sesuai dengan ukuran.
9. Ducting yang dirakit, disambung, antara
sambungan dipasang karet gasket dan sealant
10. Pasang scaffolding, marking posisi ducting dan
gantungan support
11. Melubangi slab dak di dua sisi ducting yang
akan dipasang dynaset. Pasang support dan
landasan , Ducting dipasang sesuai dengan
gambar.
12. Tes kebocoran dengan lampu listrik 500 watt
yang di ikat tambang di masukkan ke dalam
ducting.
13. Atau dapat menggunakan metode
pengasapan yang ditekankan ke dalam ducting
dan akan terlihat ada asap keluar dari celah
kebocoran untuk identifikasi kebocoran
tersebut.
14. Jika ada bocor maka oleskan sealant di
permukaan ducting.
Doc. No : JTI/WIND/ MVAC//MS./1001
Date : 9 July 2012 Revision : 0
STEP OF
WORK :
In the duct non isolation supply and return
installation several step shall be done to include :
1. Ducting fabrication in accordance with the
drawing in the workshop
2. Fabrication duct are deliverd to the side
3. BJLS before made by ducting have to in
insulation tide in beforehand
4. Surface of sheet interior of BJLSM in tide stick
on and Spindle with distance which have been
determined
5. Surface which there no Spindle dabbed by
glue of Aica and in tide of glass wool flatten
6. Surface of wool glass in tide of glass coat and
followed by installation of mesh wire, in pin
key of ( Pin Spindle).
7. Part of periphery of attached by BJLS is cloth
and insulation of glass coat in primping and
dabbed by glue of Aica
8. Duct assembling according to duct Size.
9. Install rubber gasket for each duct joint and
seal.
10. Install scaffolding, Marking the position of
ducting and hanger support
11. Drill slab concrete for both sides of the
ducting install the dynabolt/ dynaset. Install
the support and foundation. Ducting installed
in accordance with the drawing.
12. Leak test shall be electric lamp 500 Watt,
which the tighey use mine in to Ducting
13. Or use fogging method which is duct line will
be pressed by fogging and see fogg come out
from the leak area to identify the leakage.
14. If there is leaking hence dabbing sealant on
the surface of ducting.
 PT. JAYA TEKNIK INDONESIA
Doc. No : JTI/WIND/ MVAC//MS./1001

WINDSOR APARTMENT PROJECT Date : 9 July 2012 Revision : 0

KRITERIA YANG BISA DITERIMA PEKERJAAN DUCTING:

ACCEPTABLE CRITERION OF DUCTING WORKS:
1. Ducting terpasang sesuai dengan BOD persetujuan
1. Ducting attached as according to BOD
gambar kerja
approval/permission of job/activity picture
2. Ducting terpasang harus lurus dan level
2. Ducting attached have to be diametrical and level
3. Sambungan ducting tidak ada yang bocor
3. Extension of Ducting nothing that leak
