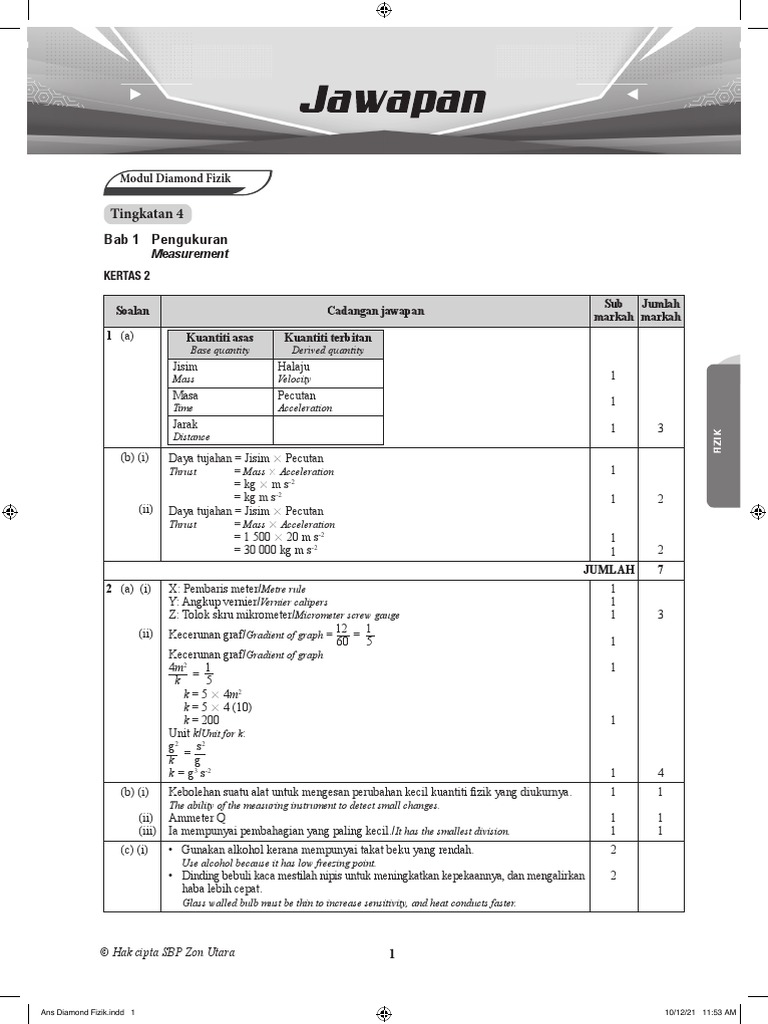

Tingkatan 4
Bab 1 Pengukuran
Measurement
KERTAS 2
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) Kuantiti asas Kuantiti terbitan
Base quantity Derived quantity
Jisim Halaju
Mass Velocity 1
Masa Pecutan
Time Acceleration
1
Jarak 1 3
FIZIK
Distance
(b) (i) Daya tujahan = Jisim 3 Pecutan
Thrust = Mass 3 Acceleration 1
= kg 3 m s-2
= kg m s-2 1 2
(ii) Daya tujahan = Jisim 3 Pecutan
Thrust = Mass 3 Acceleration
= 1 500 3 20 m s-2 1
= 30 000 kg m s-2 1 2
JUMLAH 7
2 (a) (i) X: Pembaris meter/Metre rule 1
Y: Angkup vernier/Vernier calipers 1
Z: Tolok skru mikrometer/Micrometer screw gauge 1 3
(ii) 12 1
Kecerunan graf/Gradient of graph = =
60 5 1
Kecerunan graf/Gradient of graph
4m2 1 1
=
k 5
k = 5 3 4m2
k = 5 3 4 (10)
k = 200 1
Unit k/Unit for k:
g2 s2
=
k g
k = g3 s-2 1 4
(b) (i) Kebolehan suatu alat untuk mengesan perubahan kecil kuantiti fizik yang diukurnya. 1 1
The ability of the measuring instrument to detect small changes.
(ii) Ammeter Q 1 1
(iii) Ia mempunyai pembahagian yang paling kecil./It has the smallest division. 1 1
(c) (i) • Gunakan alkohol kerana mempunyai takat beku yang rendah. 2
Use alcohol because it has low freezing point.
• Dinding bebuli kaca mestilah nipis untuk meningkatkan kepekaannya, dan mengalirkan 2
haba lebih cepat.
Glass walled bulb must be thin to increase sensitivity, and heat conducts faster.
(b) Kedua-dua mereka menggunakan walkie-talkie atau telefon pintar. Masa yang diambil
untuk melalui jarak 5 km direkodkan dan selang masa, t ditentukan atau kaedah lain
yang munasabah.
Both of them use walkie-talkie or smart phone. The time taken to pass through distance of 5 km is
recorded and the time interval, t is determined or other reasonable method. 5 5
(c) Had laju lebuh raya di Malaysia = 110 km j -1
1
Malaysian highway speed = 110 km h-1
= 30.56 m s-1 1
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) Gerakan jatuh bebas/Free fall motion 1 1
(b) Pecutan graviti/Gravitational acceleration 1 1
(c) • Syiling akan sampai ke dasar tiub lebih awal berbanding dengan bulu pelepah. 1
The coin will reach the bottom tube earlier than the feather.
• Kedua-dua syiling dan bulu pelepah mengalami rintangan udara. 1
Both coin and feather experience air resistance.
• Kawasan permukaan bulu pelepah lebih besar, maka rintangan udara yang bertindak
adalah lebih besar. 1 3
The surface area of feather is bigger, thus the air resistance acted is bigger.
(d) (i) Halaju berkurang/Velocity decreases 1 1
(ii) Tinggi maksimum bola/Maximum height of the ball
v2 = u2 + 2 gs 1
02 = 202 + 2 (−9.81) s
s = 20.39 m 1
Masa yang diambil oleh bola untuk mencapai tinggi maksimum, t
Time taken of the ball to reach the maximum height, t
v−u
g= 1
t
FIZIK
0 − 20
−9.81 =
t
t = 2.04 s 1 4
JUMLAH 10
2 (a) Hasil darab jisim dan halaju/Product of mass and velocity 1 1
(b) • Apabila brek ditekan, kereta itu berhenti secara tiba-tiba. 1
When the brake is pressed, the car stops suddenly.
• Momentum kereta itu berkurang//menjadi sifar. 1
The momentum of the car decreases//becomes zero.
• Kotak tersebut akan bergerak ke hadapan kereta. 1
The box will move forward of the car.
• Hal ini kerana inersia kotak menyebabkan kotak itu bergerak. 1 4
This is due to inertia of the box causes it to continue its moving motion.
(c)
Ciri-ciri/Characteristics Huraian/Explanation
Takat didih cecair brek adalah tinggi Tidak mudah meruap//bertukar menjadi 2
The boiling point of the brake fluid is high gas//Tidak mudah dimampatkan
Not easily volatile//turns into gas//Not easily
compressed
Ketebalan paip brek adalah tebal Ketahanan pada tekanan yang tinggi//
The thickness of the brake line is thick Tidak mudah pecah 2
Withstand high pressure//Not easily break
Nisbah luas keratan rentas untuk omboh Menghasilkan daya output yang besar 2
roda dan omboh induk adalah tinggi Produces greater output force
The ratio of cross-sectional area of wheel
piston and master piston is high
Jenis brek untuk roda hadapan ialah Lebih efektif untuk berhentikan roda// 2
cakera Lebih cengkaman//Beri geseran di antara
The type of brake for front wheel is disc cakera dan pad brek
More effective to stop the wheel//More grip//Give
friction between the disc and the brake pad
(b) • Pecutan penerjun dalam Rajah 3.1 lebih besar berbanding dengan penerjun dalam 1
Rajah 3.2.
The acceleration of sky diver in Diagram 3.1 is larger than sky diver in Diagram 3.2. 1
• Daya impuls penerjun dalam Rajah 3.1 lebih besar berbanding penerjun dalam Rajah 3.2.
The impulsive force of sky diver in Diagram 3.1 is larger than sky diver in Diagram 3.2. 1
• Masa impak bagi penerjun dalam Rajah 3.1 lebih singkat berbanding penerjun dalam
Rajah 3.2.
The time of impact of sky diver in Diagram 3.1 is shorter than sky diver in Diagram 3.2. 1
• Apabila masa impak berkurang, daya impuls meningkat.
When the time of impact decreases, the impulsive force increases. 1 5
• Apabila pecutan bertambah, daya impuls meningkat.
When the acceleration increases, the impulsive force increases.
(c) • Alu dan lesung mempunyai permukaan yang kasar. 1
Pestle and mortar have the hard surface.
• Apabila alu menghentam lesung dengan kelajuan yang tinggi. 1
When the pestle hit the mortar with high speed.
• Ia akan mengurangkan masa impak. 1
It will reduce the time of impact.
• Maka, daya impuls yang tinggi terhasil. 1 4
Thus, a larger impulsice force is produced.
FIZIK
JUMLAH 20
Bab 3 Kegravitian
Gravitational
KERTAS 2
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) (i) 2 2
m 1 F F m2
Jasad 1 r Jasad 2
Body 1 Body 2
(ii) Daya graviti/Gravitational force 1 1
(b) Hukum Kegravitian Semesta Newton 1 1
Newton’s Universal Law of Gravitation
JUMLAH 4
2 (a) (i) • Jejari orbit planet A lebih pendek berbanding planet B. 1
Radius of orbit of planet A is shorter than planet B.
• Tempoh masa mengorbit bagi planet A lebih singkat berbanding planet B. 1
Orbital period of planet A is shorter than planet B.
• Semakin besar jejari orbit planet, semakin lama tempoh masa mengorbit bagi planet. 1 3
The larger the radius of orbit of a planet, the longer the orbital period of the planet.
(ii) Hukum Kepler Ketiga/Kepler’s Third Law 1 1
(iii) Kuasa dua tempoh orbit planet adalah berkadar terus dengan kuasa tiga jejari orbitnya 1 1
The square of the orbital period of any planet is directly proportional to the cube of the radius of
its orbit
= 2.04 3 1028
rB = 2.73 3 109 m 1 2
(ii) 4p2r3 1
M=
GT2
= 4p2 [(3.8 3 108)3] 1
(6.67 3 10-11) 3 (224 3 24 3 60 3 60)2
= 8.67 × 1022 kg 1 3
Arah putaran satelit mengikut arah Satelit berada di kedudukan yang sama 2
putaran Bumi dengan pemerhati di permukaan Bumi
Direction of satellite rotation is in the The satellite is in the same position as the
direction of the Earth’s rotation observer on the surface of the Earth
Satelit yang paling sesuai untuk dihantar ialah satelit R kerana jenis orbit ialah geopegun, 2 10
arah putaran satelit mengikut arah putaran Bumi, tempoh orbit adalah 24 jam dan tempoh
hayat yang panjang.
The most suitable satellite to be sent is satellite R because the type of orbit is geostationary, the
direction of satellite rotation is in the direction of the Earth’s orbit, the orbital period is 24 hours and
has longer life span.
JUMLAH 20
3 (a) Jarak/Distance 1 1
(b) 9.81 m s-2 1 1
(c) • Bentuk graf adalah garis lurus bagi kedudukan r < R, manakala bentuk graf adalah 1
melengkung bagi kedudukan r ùR
The shape of the graph is a straight line for r < R, while the shape of the graph is a curve for
rùR
• Pecutan graviti, g adalah berkadar terus dengan jarak dari pusat Bumi bagi 1
kedudukan r < R
Gravitational acceleration is directly proportional to the distance from the centre of the Earth
for r < R
• Pecutan graviti, g adalah berkadar songsang dengan kuasa dua jarak dari pusat Bumi 1
bagi kedudukan r ù R
Gravitational acceleration is inversely proportional to the square of the distance from the centre
of the Earth for r ù R
• Bagi kedudukan r < R, pecutan graviti, g adalah berkadar terus dengan jarak dari 1 4
pusat Bumi. Tetapi apabila kedudukan r ù R, pecutan graviti, g adalah berkadar
songsang dengan kuasa dua jarak dari pusat Bumi
For r < R, the gravitational acceleration is directly proportional to the distance from the centre
of the Earth. While, when r ù R, the gravitational acceleration, g is inversely proportional to
the square of the distance from the centre of the Earth
JUMLAH 20
FIZIK
Bab 4 Haba
Heat
KERTAS 2
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) (i) Merkuri mengembang/Mercury expand 1 1
(ii) Legap//Tidak melekat pada kaca 1 1
Opaque//Does not stick on glass
(iii) Menggunakan skala pembahagian yang kecil/Use smaller scale of division 1 1
(b) (i) 20 cm 1 1
(ii) Lq 3 100°C
q=
L100
(18.9 − 1.6) 1
= 3 100
(21.6 − 1.6)
= 86.5°C 1 2
JUMLAH 6
2 (a) Kuantiti haba, Q yang diserap semasa pendidihan atau kuantiti haba yang dibebaskan 1 1
semasa kondensasi bagi 1 kg bahan itu tanpa perubahan suhu
The quantity of heat, Q that is absorbed during boiling or the quantity of heat released during
condensation of 1 kg of the substance without any change in temperature
(b) • Peluh tersejat melalui penyejatan 1
Sweat evaporates by evaporation
• Haba diserap daripada badan menyebabkan kesan penyejukan 1
Heat absorbed from the body causing cooling effect
• Kadar penyejatan bertambah 1
Rate of evaporation increases
• Haba dipindahkan daripada cecair kepada gas 1 4
Heat transfer from liquid to gas
Set radas yang paling sesuai digunakan ialah set radas S kerana kepingan X ialah asbestos, 2 10
cecair Y ialah minyak, bahan Z ialah kertas tisu dan kuasa pemanas rendam yang tinggi.
The most suitable set of apparatus to be used is S because plate X is asbestos, liquid Y is oil, material
Z is tissue and high power of immersion heater.
JUMLAH 20
3 (a) (i) Haba terbentuk daripada tenaga/Heat is formed of energy 1 1
(ii) • Isi padu udara yang terperangkap dalam Rajah 3.2 lebih rendah berbanding dengan 1
dalam Rajah 3.1.
Volume of trapped air in Diagram 3.2 is lower than in Diagram 3.1. 1
• Tekanan yang dikenakan dalam Rajah 3.2 lebih tinggi berbanding dalam Rajah 3.1.
Pressure exerted in Diagram 3.2 is higher than in Diagram 3.1. 1
• Suhu udara terperangkap bagi kedua-dua rajah adalah sama.
Temperature of trapped air for both diagrams are same.
• Semakin rendah isi padu udara yang terperangkap, semakin tinggi tekanan. 1
The lower the volume of trapped air, the higher the pressure.
• Hukum Boyle/Boyle’s law. 1 5
(b) • Tekanan berkadar terus dengan kedalaman air. 1
The pressure is directly proportional to the depth of water.
• Gelembung udara bergerak ke atas, kedalaman air berkurang. 1
The air bubbles rises up, the depth of water decreases.
• Tekanan berkurang, isi padu gelembung udara meningkat. 1
The pressure decreases, the volume of air bubbles increases.
• Tekanan berkadar songsang dengan isi padu. 1 4
The pressure is inversely proportional to the volume.
(c)
Ciri-ciri Huraian
Characteristics Explanation
Bilangan tingkap yang banyak Lebih banyak udara yang sejuk masuk//
Large number of windows Lebih banyak udara panas keluar// 2
Pengudaraan yang baik
More cool air flows in//More hot air flows
out//Good ventilation
Ciri-ciri Huraian
Characteristics Explanation
Saiz tingkap yang besar Penyejukan yang cepat//Pergerakan
2
Big size of windows udara yang baik
Cool faster//Good air movement
Muatan haba tentu yang tinggi bagi Tidak mudah dipanaskan
bahan untuk dinding Not easily heated 2
High specific heat capacity of material for
the wall
Jenis bahan untuk bumbung mempunyai Tidak mudah dipanaskan 2
muatan haba tentu yang tinggi Not easily heated
The type of material for the roof has high
specific heat capacity
Ciri tambahan yang boleh menyejukkan Menyingkirkan udara panas 2 10
rumah itu adalah pemasangan kipas Remove hot air
ekzos
Additional feature that can cool the house is
by installing exhaust fan
JUMLAH 20
FIZIK
Bab 5 Gelombang
Waves
KERTAS 2
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) (i) Antinod//Interferens membina//Puncak bertemu puncak 1 1
Antinode//Constructive interference//Crest meet crest
(ii) • Apabila dua puncak bertemu/bertindih 1
When two crests meet/overlap
• Amplitud maksimum/interferens membina berlaku 1 2
The maximum amplitude/constructive interference occur
(b) (i) Interferens memusnah/Destructive interference 1
Sebab: Bunyi yang kuat dimusnahkan 1 2
Reason: Sound loudness is destroyed
(ii) Poros/Porous 1
Sebab: Boleh menyerap bunyi 1 2
Reason: Able to absorb sound
(iii) Tebal/Thick 1
Sebab: Penyerapan bunyi tinggi//Tiada pantulan bunyi 1 2
Reason: High sound absorption//No reflection of sound
JUMLAH 9
2 (a) Zarah-zarah medium bergetar pada arah yang selari dengan arah perambatan 1 1
gelombang
Particles of the medium vibrate in the direction parallel to the direction of propagation of the
wave
(b) vt
d= 1
2
1500 3 0.12 1
=
2
= 90 m 1 3
Jenis sistem radar yang paling sesuai ialah jenis sistem radar R kerana mempunyai
diameter piring parabola yang besar, jenis gelombang yang dipancar adalah gelombang
mikro, jarak penerima isyarat dari piring parabola adalah sama dengan panjang fokus
dan ketinggian piring parabola adalah tinggi
The most suitable type of radar system is R because it contains large diameter of the parabolic disc,
(ii) type of wave transmitted is microwave, distance of the signal receiver from the parabolic disc is 2 2
same as focal length and height of the parabolic disc is high
Cuaca. Cuaca yang buruk boleh menjejaskan penghantaran dan penerimaan gelombang
Weather. Bad weather can affect the transmission and reception of the wave
(d) • Apabila pembesar suara menerima input, diafragma menggetarkan molekul udara 1
When the loudspeaker receive input, the diaphragm vibrate air molecules
• Diafragma bergerak ke hadapan menghasilkan mampatan molekul udara di hadapan 1
pembesar suara
Diaphragm move forward produces a compression of air molecules in front of the loudspeaker
• Diafragma bergerak ke belakang menghasilkan renggangan molekul udara 1
Diaphragm move backward produces a rarefaction of air molecules
• Siri mampatan dan renggangan menghasilkan gelombang bunyi//tenaga dipindahkan 1
Series of compression and rarefaction produce sound wave//energy transferred
• Arah getaran molekul udara selari dengan arah perambatan gelombang//gelombang 1 4
membujur
Direction of vibration of molecules air parallel to the direction of propagation of the wave//
longitudinal wave
[Mana-mana/Any 4]
JUMLAH 20
3 (a) (i) Satu warna//Satu gelombang//One colour//One wavelength 1 1
(ii) • Jarak di antara dua pinggir dalam Rajah 3.2 adalah lebih besar berbanding dalam Rajah 3.1 1
The distance between two consecutive fringes in Diagram 3.2 is larger than in Diagram 3.1
• Pemisahan antara dwicelah Young bagi kedua-dua rajah adalah sama 1
The Young double-slits separation for both diagrams are same.
• Jarak di antara skrin dan dwicelah Young bagi kedua-dua rajah adalah sama. 1
The distance between the screen and the Young double-slits for both diagrams are same.
• Panjang gelombang cahaya biru lebih pendek berbanding cahaya merah. 1
The wavelength of the blue light is shorter than the red light.
• Semakin besar panjang gelombang, semakin besar jarak di antara dua pinggir berturutan. 1 5
The larger the wavelength, the larger the distance between two consecutive fringes.
FIZIK
Menggunakan papan lembut//bahan yang Supaya kesan pantulan dapat
menyerap bunyi, contohnya permaidani dikurangkan//Mengurangkan pantulan 2
yang tebal yang tidak perlu pada lantai
Using soft board//materials which are sound So that reflection affects can be reduced//
absorbers, example thick carpet Reduce unneccessary reflection of the floor
Pemasangan pembesar suara pada tempat Liputan yang luas//Gelombang tidak
yang tinggi disekat
Assemble the loudspeaker at a high place Wide coverage//The wave is not blocked 2
Pemasangan sistem pembesar suara yang Untuk menghasilkan bunyi yang kuat//
berkuasa tinggi jelas 2 10
Assemble a higher power loudspeaker system To produce a louder//an audible sound
JUMLAH 20
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) (i) Tidak/ No 1 1
(ii) Sinar cahaya bergerak dari objek ke udara dibiaskan menjauhi normal. Sinar cahaya yang 1 1
memasuki mata lelaki itu menyebabkan imej kelihatan lebih dekat kepada permukaan air
Rays of light travel from the object to the air is refracted away from the normal. The rays of light then
enter the eyes of the man causes the object to appear apparently nearer to the surface of the water
(b) Mata
Mata
Eye
Eye
Permukaan laut
Surface of sea water
Imej 3 3
OO
Objek
Objek
0.5m
0.5 m Object
Object Dasar laut
Seabed
Dasar laut
Seabed
© Hak cipta SBP Zon Utara 11
F u F Sinar 1
Ray 1
Sinar 2
• Imej maya dan tegak Ray 2
Virtual and upright image 1 4
(b) (i) 1 1 1 1
f = u +v
1 1 1 1 2
= +
−10 20 v
v = −6.7 cm
(ii) v hi
= 1
u ho
v
hi = 3 ho 1
u
6.7
= 3 10.5
20 1 3
= 3.5 cm
(c)
Ciri-ciri Huraian
Characteristics Explanation
Susunan bagi prisma pada satu sisi Pantulan dalam penuh berlaku dua kali
binokular adalah Total internal reflection occurs twice
Arrangement of the prisms on one side of
the binocular is 2
2
Sudut prisma ialah 45° − 90° − 45° Membolehkan pantulan dalam penuh berlaku
Angle of prism is 45° − 90° − 45° Enable total internal reflection happens
2
Bahan bagi prisma ialah kaca Tidak mudah calar//Hasil imej yang lebih jelas
Material for the prism is glass Not easy to scratch//Produce clearer image
FIZIK
• Saiz imej berkadar songsang kepada jarak objek/ Semakin bertambah jarak objek, 1 5
semakin bertambah saiz imej yang terhasil
The size of the image is inversely proportional to the object distance/The longer the object
distance, the bigger the size of the image produced
(c) (i) • Sinar cahaya dari objek yang jauh difokuskan pada titik fokus kanta L 1
Light rays from distant object is focused onto focal point of lens L
• Imej terbentuk, I bertindak sebagai objek bagi kanta K berada pada titik fokus kanta K 1
The image formed, I acts as object for lens K at the focal point of lens K
• Jarak di antara kanta L dan K ialah (50 + 5) = 55 cm
Distance between lens L and lens K is (50 + 5) = 55 cm 2
• Imej akhir diperbesar, maya, songsang dan di infiniti 2 6
The final image is magnified, virtual, inverted and at the infinity
(ii)
Teleskop Mikroskop majmuk
Telescope Compound microscope
Kuasa kanta objek lebih rendah daripada Kuasa kanta objek lebih tinggi daripada
kanta mata kanta mata 1
Power of objective lens is lower than eyepiece Power of objective lens is higher than the eyepiece
JUMLAH 20
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) (i) FF/N
/N
14
14
12
12 3
10
10
8
8
6
6 1 1
4
4
2
2
00 xx/cm
/ cm
11 2
2 3
3 44 55 66 77 1 1
(ii) Hukum Hooke/Hooke’s law
Pemalar spring = kecerunan graf 1
(iii)
Spring constant = gradient of the graph
12 − 0
=
5−0 1 2
= 2.4 N cm-1
(b) Tenaga yang tersimpan = luas di bawah graf 1
Energy stored = area under the graph
1
= (9.6) (0.04)
2
= 0.192 J 1 2
JUMLAH 6
2 (a) Daya-daya yang bertindak ke atasnya menghasilkan daya paduan sifar 1 1
The forces acting on it produce a zero resultant force
(b) (i) W = mg
= 4 3 9.81
= 39.24 N 1 1
(ii) 2T1 sin 60° = 39.24 1
T1 = 22.66 N 1
2T2 sin 45° = 39.24 1
T2 = 27.75 N 1 4
(c) Kaedah dalam Rajah 2.1 kerana tegangan tali yang rendah//tidak mudah putus 2 2
Method in Diagram 2.1 because the tension of the string is smaller//not easily broken
(d) v = u + at 1
= 0 + (9.81 3 0.6)
= 5.89 m s-1 1 2
(e)
Ciri-ciri Huraian
Characteristics Explanation
Kaedah menggerakkan kereta sorong Daya ke bawah yang kecil//Daya paduan
dengan menarik kereta sorong ke bawah yang kecil//Tekanan yang 2
Method of moving the wheelbarrow is by sedikit
pulling the wheelbarrow Smaller downward force//Smaller downward
resultant force//Less pressure
Ciri-ciri Huraian
Characteristics Explanation
Jisim kereta sorong yang kecil Jisim yang kecil//Daya ke bawah yang
Smaller mass of the wheelbarrow kecil//Daya paduan ke bawah yang
kecil//Tekanan yang sedikit 2
Smaller mass//Smaller downward force//
Smaller downward resultant force//Less
pressure
Saiz tayar yang besar Tekanan yang dikenakan kecil//Luas
Bigger size of tyre permukaan yang besar//Tidak mudah 2
tenggelam
Smaller pressure exerted//Bigger surface
area//Not easily sinking
Sudut antara pemegang dengan garis Tekanan ke bawah yang kecil//Daya
2
mengufuk yang besar paduan ke bawah yang kecil//Tekanan
Bigger angle between the handle and the rendah
horizontal line Smaller downward force//Smaller downward
resultant force//Less pressure
Kereta sorong yang paling sesuai ialah X kerana kaedah mnggerakkan kereta sorong
dengan menarik kereta sorong, jisim kereta sorong yang kecil, saiz tayar yang besar 2 10
dan sudut antara pemegang dengan garis ufuk yang besar.
The most suitable wheelbarrow is X because the method of moving the wheelbarrow is by
FIZIK
pulling the wheelbarrow, smaller mass of the wheelbarrow, bigger size of tyre and bigger angle
between the handle and the horizontal line.
JUMLAH 20
3 (a) (i) Apabila halaju malar/When velocity is constant,
F = ma
T cos 20° − 300 = 1500 3 0 1 1
T = 319.25 N
(ii) Bergerak pada pecutan seragam/Moving with uniform acceleration,
F = ma
T cos 20° − 300 = 1500 3 1.5 1
T = 2173.65 N 1 2
F = ma 1
(iii) 3000 cos 20° − 300 = 1500 3 a
a = 1.68 m s-2 1 2
(b) (i)
& Tolak Tarik Fy
Pushing Pulling
(ii)
F F
2+2 4
Fy Berat, W Berat, W
Weight Weight
JUMLAH 20
Bab 2 Tekanan
Pressure
KERTAS 2
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) Daya yang bertindak ke atas apabila terdapat perbezaan tekanan antara permukaan 1 1
bawah suatu objek yang terendam di dalam suatu cecair
Force acting upwards on an object immersed in a liquid when there is pressure difference between
the lower surface and upper surface of the object.
(b) FB
1 1
(c) (i) FB = mg
= (5.4 × 106) × (9.81) 1
= 5.2974 3 107 N 1 2
(ii) FB = ρVg
5.2974 × 107 = 1080 3 V 3 9.81 1
V = 5000 m3 1 2
(d) Berkurang/Decreases 1 1
JUMLAH 7
2 (a) Ketumpatan air//Kedalaman air//Pecutan graviti 1 1
Density of water//Depth of water//Gravitational acceleration
(b) P = ρhg + Patm
Tekanan ke atas ikan/Pressure on the fish
PI = 1000 (0.5) (9.81) + 1 3 105 1
= 1.04905 3 105 Pa 1
Tekanan ke atas ketam/Pressure on the crab
PK = 1000 (1.5) (9.81) + 1 3 105 1
= 1.14715 3 105 Pa 1 4
FIZIK
Tiang beg cecair intravena yang paling sesuai adalah tiang M kerana berketumpatan 2 10
rendah, mempunyai pelaras ketinggian, mempunyai banyak roda dan tiang diperbuat
daripada bahan yang kuat.
The most suitable intravenous pole drip bag stand is pole stand M because low density, has height
adjuster, has many wheels, dan made up from stronger material.
JUMLAH 20
3 (a) Tekanan yang dikenakan pada suatu cecair tertutup, tekanan dipindahkan secara seragam 1 1
ke seluruh bahagian cecair
The pressure applied on an enclosed liquid is transmitted uniformlyin all directions in the liquid
(c) F2
F1
Bab 3 Elektrik
Electricity
KERTAS 2
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) Kadar kerja yang dilakukan/Rate of work done 1 1
(b) Tenaga elektrik kepada tenaga kinetik/Electrical energy to kinetic energy 1 1
(c) Kecekapan lampu filamen/The efficiency of the filament lamp
Kuasa output 1
= 3 100%
Kuasa input
Output power
= 3 100%
Input power
45
= 3 100%
100
= 45% 1
Kecekapan lampu pendarfluor/The efficiency of the fluorescent lamp
= Kuasa output 3 100%
Kuasa input
1
Output power
= 3 100%
Input power
75
= 3 100%
100
= 75% 1 4
JUMLAH 6
2 (a) Kawasan sekitar suatu zarah bercas di mana sebarang cas elektrik yang berada dalam 1 1
kawasan tersebut akan mengalami daya elektrik
The region around a charged particle where any electric charge in the region will experience an
electric force
(b) (i) 1 1
Bekalan kuasa yang digunakan ialah VLT Kekuatan medan elektrik yang tinggi 2
FIZIK
Power supply used is EHT Stronger electric field strength
2
Jarak antara dua plat logam yang rapat Laju ayunan yang tinggi
Close distance between two metal plates High speed of oscillation
Radas yang paling sesuai ialah radas J kerana mempunyai bekalan kuasa yang digunakan 2 10
ialah VLT, jarak antara dua plat logam yang rapat, jisim bola polistirena yang rendah
dan salutan pada bola polistirena ialah salutan logam.
The most suitable apparatus is apparatus J because it has EHT power supply, close distance
between two metal plates, lighter mass and metallic coating of polystyrene ball.
JUMLAH 20
3 (a) (i) Tenaga yang dibekalkan atau kerja yang dilakukan oleh satu sumber elektrik untuk 1 1
menggerakkan satu coulomb cas dalam satu litar lengkap
The energy transferred or work done by an electrical source to move one coulomb of charge in a
complete circuit
(ii) • Daya gerak elektrik bagi kedua-dua rajah adalah sama. 1
The electromotive force for both diagram are same.
• Bacaan voltmeter bagi Rajah 3.1 lebih tinggi berbanding pada Rajah 3.2. 1
The voltmeter reading in Diagram 3.1 is higher than in Diagram 3.2.
• Bacaan ammeter bagi Rajah 3.1 lebih tinggi berbanding pada Rajah 3.2. 1
The ammeter reading in Diagram 3.1 is higher than in Diagram 3.2.
• Semakin rendah kehilangan voltan, semakin tinggi bacaan ammeter. 1
The lower the voltage loss, the higher the ammeter reading.
• Semakin rendah kehilangan voltan, semakin rendah rintangan dalam. 1 5
The lower the voltage loss, the lower the internal resistance.
JUMLAH 20
Bab 4 Keelektromagnetan
Electromagnetism
KERTAS 2
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) (i) Bergerak/Moving 1 1
(ii) • Interaksi antara medan magnet/Interaction between magnetic field 1
• Hasilkan daya/Produce force 1 2
(b) (i) Bentuk magnet kekal yang melengkung 1
Curved shape of the permanent magnet
Sebab: Hasilkan medan magnet jejarian//Menambah kekuatan medan magnet//Garis medan 1 2
magnet lebih tumpat
Reason: Generate radial magnetic field//Add strength of the magnetic field//The magnetic field lines
are more dense
(ii) Bilangan lilitan gegelung yang banyak 1
The larger number of turns of the coil
Sebab: Menambahkan kekuatan medan magnet 1 2
Reason: Increase the strength of magnetic field
(iii) ahan teras yang digunakan ialah teras besi lembut
B 1
he material of the core used is soft iron core
T
Sebab: Mudah dimagnetkan dan dinyahmagnetkan 1 2
Reason: Easy to be magnetised and demagnetised
JUMLAH 9
Bilangan lilitan gegelung yang banyak Daya paduan magnet yang besar 2
The more number of turns of coil Larger magnetic resultant force
Kekuatan magnet kekal yang tinggi Daya paduan magnet yang besar 2
High strength of the permanent magnet Larger magnetic resultant force
FIZIK
of wear and tear for the carbon brush
Model motor a.t. yang paling sesuai ialah model Y kerana mempunyai ketumpatan 2 10
gegelung yang rendah, bilangan lilitan gegelung yang banyak, kekuatan magnet kekal
yang tinggi dan bilangan segmen dalam komutator yang banyak.
The most suitable model of d.c. motor is model Y because it contains low density of the coil, the
more number of turns of coil, high strength of the permanent magnet and the more number of
(ii) segment in the commutator.
• Waranti//Jaminan kerana untuk mengelakkan kos pembaikan yang tidak perlu 2
Warranty because to avoid any unneccessary repair cost
• Kekuatan berus karbon kerana motor akan mempunyai jangka hayat yang panjang 2 2
Strength of carbon brush because the motor will has longer life span
[Mana-mana 2/Any 2]
(d) • Knob berputar//Magnet berputar 1
Knob rotates//Magnets rotates
• Fluks magnet dipotong oleh gegelung//Perubahan dalam fluks magnet 1
agnetic flux is cut by coil//changing in magnetic flux
M
• Arus aruhan dihasilkan//Induced current is produced 1
• Tenaga elektrik bertukar menjadi tenaga cahaya 1 4
Electric energy change to light energy
JUMLAH 20
3 (a) Petua tangan kiri Fleming/Fleming’s left-hand rule 1 1
(b) • Bacaan ammeter pada Rajah 3.2 lebih besar berbanding Rajah 3.1. 1
The ammeter reading in Diagram 3.2 is larger than in Diagram 3.1.
• Jarak rod kuprum bergerak pada Rajah 3.2 lebih jauh berbanding Rajah 3.1. 1
The distance of copper rod moved in Diagram 3.2 is further than in Diagram 3.1.
• Medan magnet kekal bagi kedua-dua rajah adalah sama. 1
The magnetic field of the permanent magnet for both diagrams are same.
• Semakin besar arus elektrik, semakin jauh jarak gerakan rod kuprum. 1
The larger the electric currect, the further the distance of copper rod moved.
• Semakin besar arus elektrik, semakin meningkat daya yang dihasilkan. 1 5
The larger the electric current, the increase the magnitude of force produced.
JUMLAH 20
Bab 5 Elektronik
Electronics
KERTAS 2
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) (i) Perintang peka cahaya/Light-dependent resistor 1 1
(ii) Transistor/Transistor 1 1
(iii) Geganti/Relay 1 1
(b) Untuk mengawal arus tapak 1 1
To control the base current
(c) Bertambah/Increase 1 1
(d) • Apabila VS bertambah, arus tapak bertambah 1
As VS increases, the base current increases
• Menyebabkan arus pengumpul bertambah dengan magnitud yang besar 1
Causing the collector current to increase by a large magnitude
• Ini menyebabkan geganti melengkapkan litar yang mempunyai motor 1 3
This will cause the relay to complete the circuit which contains the motor
JUMLAH 8
2 (a) Bahan yang mempunyai kekonduksian antara konduktor dan penebat 1 1
Materials which have a conductivity between conductors and insulators
FIZIK
termistor dan perintang adalah betul dan mempunyai penggera.
Circuit B is the most suitable because positive terminal of battery is connected to the collector
and the negative terminal is connected to the emitter, the location of the thermistor and the
resistor is correct and has alarm.
(d) (i) Beza keupayaan/Potential difference R3
= 1000 3 12 1
500 + 1000 1 2
= 8V
(ii) Beza keupayaan/Potential difference R1
= 12 V − 8 V 1
=4V 1 2
(iii) Ya kerana beza keupayaan merentasi R1 adalah lebih besar daripada 1 V. 1+1 2
Yes because the potential difference accros R1 is greater than 1 V.
3 (a) (i) 6 V 1 1
(ii) 20 kΩ + 10 kΩ = 30 kΩ 1 1
(iii) V 1
I=
R
= 6
30 3 103
= 2.0 3 10-4A 1 2
(iv) VYZ = IR 1
= (2.0 3 10-4) 3 (10 3 103) 1 2
=2V
(v) Untuk melindungi transistor daripada arus yang tinggi
To protect transistor from high current 1 1
(b) • Rintangan PPC yang tinggi//High resistance of LDR 1
• Beza keupayaan melalui YZ tinggi//VYZ tinggi 1
High potential difference across YZ//High VYZ
• Arus tapak IB mengalir//Base current IB flows 1
• Ic tinggi//Arus pengumpul mengalir//Transistor diaktifkan//Arus mengalir melalui LED 1 3
atau diod
Higher Ic//Collector current flows//Transistor activated//Current flows through LED or diode
[Mana-mana 3/Any 3]
JUMLAH 20
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) 138 1 1
(b) Nukleus helium yang terdiri daripada dua proton dan dua neutron 1 1
Helium nucleus which consists of two protons and two neutrons
(c) (i) 86 1 1
(ii) 222 1 1
JUMLAH 4
2 (a) (i) Isotop dengan nukleus tidak stabil yang boleh memancarkan sinaran radioaktif 1 1
Isotopes with unstable nuclei that can emit radioactive radiation
(ii) • Radioisotop diletakkan di dalam paip 1
Radioisotope is put in the pipe
• Tiub Geiger-Muller digunakan untuk mengesan radiasi 1
eiger-Muller tube is used to detect the radiation
G
• Kadar//Bacaan meningkat radiasi pada titik kebocoran (disebabkan oleh jumlah air// 1
radiasi yang tertumpu pada titik kebocoran)
The rate//reading of radiation increases at the leak point (due to the amount of water//radiation
concentrated at the leak point)
• Pembaikan dijalankan pada titik kebocoran 1 4
Repair is conducted at the leak point
FIZIK
so that nuclear fission can occur
2
Bahan dinding ialah konkrit tebal dan Mengelakkan kebocoran radiasi
plumbum Prevent radiation leakage
Material of the wall is thick concrete and lead
2 10
Model reaktor nuklear yang paling sesuai ialah reaktor M kerana mempunyai separuh
hayat bahan api yang panjang, lokasi dekat dengan sungai, moderator yang digunakan
ialah grafit dan bahan dinding ialah konkrit tebal dan plumbum.
The most suitable nuclear reactor model is reactor M because it contains long half-life of
the fuel, location is near the river, moderator used is graphite and material of the wall is thick
concrete and lead.
JUMLAH 20
3 (a) (i) Pembelahan nukleus/Nuclear fission 1 1
(ii) • Menghasilkan 2 nukleus anak 1
Produces 2 daughter nuclei
• 3 neutron yang bergerak pantas dan bebaskan tenaga yang besar 1
3 fast moving neutrons release a large amount of energy
• Neutron-neutron tersebut membedil nukleus uranium yang lain 1
These neutrons will bombard other uranium nuclei
• Dan membebaskan neutron yang lebih banyak melalui tindak balas berantai yang 1 4
berterusan
And release more neutrons through continuous chain reaction
Lokasi loji jana kuasa nuklear berdekatan Mudah untuk menyejukkan reaktor
dengan sungai//sumber air Easy to cool down the reactor
2
Location of the nuclear power plant is near a
river//water sources
Ciri-ciri Huraian
Characteristics Explanation
Dinding teras nuklear diperbuat daripada Menghalang sinaran radioaktif terlepas
konkrit yang tebal dan plumbum ke persekitaran 2
Walls of the reactor core is made up of thick Prevent radioactive radiations from leaking
concrete and lead into the surroundings
Air sebagai agen penyejuk Mempunyai muatan haba tentu yang 2
Water as a cooling agent tinggi dan mudah didapati
Has high specific heat capacity and available
Kaedah pengawalan tenaga menggunakan Mengawal kadar tindak balas 2
boron atau kadmium sebagai rod Controls the reaction rate
pengawal//grafit sebagai moderator
Energy control method by using boron or
cadmium as control rod//graphite as moderator
Langkah keselamatan seperti sisa radioaktif Supaya tidak mencemarkan alam 2 10
disimpan di dalam kanister plumbum dan sekitar
diletakkan jauh daripada manusia So it would not pollute the environment
Safety measure such as radioactive waste is kept
in lead canister and put far away from human
JUMLAH 17
Sub Jumlah
Soalan Cadangan jawapan
markah markah
1 (a) Mempunyai kedua-dua sifat gelombang dan sifat zarah 1 1
Possesses both wave and particles properties
(b) Pembelauan/Diffraction 1 1
(c) (i) c
f =
λ
3.0 3 108
=
750 3 10-9
= 4 3 1014 Hz 1 1
(ii) P = nhf
= (3.45 3 1018) 3 (6.63 3 10-34) 3 (4 3 1014) 1
= 0.915 W 1 2
JUMLAH 5
Stesen jana kuasa yang paling sesuai ialah P kerana lokasi di gurun, saiz panel suria
yang besar, bahan sel suria diperbuat daripada logam dan bilangan panel suria yang 2 10
banyak.
The most suitable solar power plant is P because it location at desert, larger size of solar
panel, material of solar cell is made up of metal and a lots of number of solar panel.
(d) (i) hc
Wo =
λo 1
FIZIK
(6.63 3 10-34) (3.00 3 10-8)
= 370 3 10-9
= 5.38 3 10-19 J
(ii) Kmax = E − W 1 2
hc
= − Wo
λo 1
(6.63 3 10-34) (3.00 3 108) − (5.38 3 10-19) 1
= 370 3 10-9
= 4.57 3 10-19 J
1
Kmax = mv2 1 3
2
1
4.57 3 10 = 2 (9.11 3 10-31) v 2
-19
JUMLAH 20
