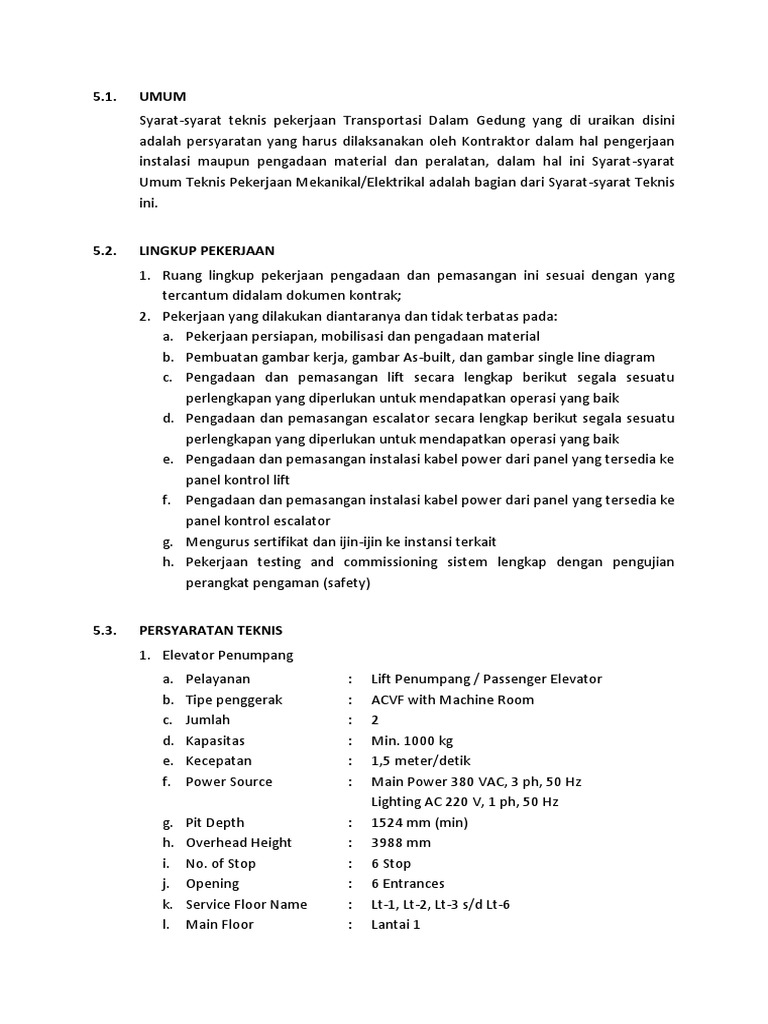

5.1.

UMUM
Syarat-syarat teknis pekerjaan Transportasi Dalam Gedung yang di uraikan disini
adalah persyaratan yang harus dilaksanakan oleh Kontraktor dalam hal pengerjaan
instalasi maupun pengadaan material dan peralatan, dalam hal ini Syarat-syarat
Umum Teknis Pekerjaan Mekanikal/Elektrikal adalah bagian dari Syarat-syarat Teknis
ini.

5.2. LINGKUP PEKERJAAN

1. Ruang lingkup pekerjaan pengadaan dan pemasangan ini sesuai dengan yang
tercantum didalam dokumen kontrak;
2. Pekerjaan yang dilakukan diantaranya dan tidak terbatas pada:
a. Pekerjaan persiapan, mobilisasi dan pengadaan material
b. Pembuatan gambar kerja, gambar As-built, dan gambar single line diagram
c. Pengadaan dan pemasangan lift secara lengkap berikut segala sesuatu
perlengkapan yang diperlukan untuk mendapatkan operasi yang baik
d. Pengadaan dan pemasangan escalator secara lengkap berikut segala sesuatu
perlengkapan yang diperlukan untuk mendapatkan operasi yang baik
e. Pengadaan dan pemasangan instalasi kabel power dari panel yang tersedia ke
panel kontrol lift
f. Pengadaan dan pemasangan instalasi kabel power dari panel yang tersedia ke
panel kontrol escalator
g. Mengurus sertifikat dan ijin-ijin ke instansi terkait
h. Pekerjaan testing and commissioning sistem lengkap dengan pengujian
perangkat pengaman (safety)

5.3. PERSYARATAN TEKNIS

1. Elevator Penumpang
a. Pelayanan : Lift Penumpang / Passenger Elevator
b. Tipe penggerak : ACVF with Machine Room
c. Jumlah : 2
d. Kapasitas : Min. 1000 kg
e. Kecepatan : 1,5 meter/detik
f. Power Source : Main Power 380 VAC, 3 ph, 50 Hz
Lighting AC 220 V, 1 ph, 50 Hz
g. Pit Depth : 1524 mm (min)
h. Overhead Height : 3988 mm
i. No. of Stop : 6 Stop
j. Opening : 6 Entrances
k. Service Floor Name : Lt-1, Lt-2, Lt-3 s/d Lt-6
l. Main Floor : Lantai 1
 m. Operation : 1 KS Simplex Selective - Collective
n. All Floor Jamb : Full Jamb With LED Panel In Hair Line Finished
Stainless Steel Sheet
o. Hatch Door : 2 panel center opening (CO) Automatic Door - 2
Hrs Fire Rated
p. Hatch Door Panel For All Floor : High Quality Hair Line Finished Stainless Steel
Sheet
q. Hatch Sill : Extruded Hard Allumunium
r. Door opening : 900 (W) x 2100 (H) mm - CO
s. Hall Signals :
i. Hall Position Indicator & Hall Call Button For All Floors : LED Type with
preannouncing arrows
ii. Floor Signal And Hall Touch Sensitive Push Button
t. Car Size :
i. Internal Maximal 1560 (W) x 1530 (D) x 2405 (H) mm
ii. Hoistway Available Maximal 2300 (W) x 2350 (D) mm
iii. Counterweight Side Drop
u. Car Door Panel : High Quality Hair Line Finished Stainless Steel
Sheet
v. Car Wall : High Quality Hair Line Finished Stainless Steel
Sheet
w. Flooring : Black Speckled Rubber
x. Car Signal : Touch Sensitive Car Operating Panel Combined
With LED Car Position Indicator
y. Door Control : Reopens When Obstructed By Any Object While
Closing With Multiple Infra Red Beams
z. Car Lighting : Lights 30 Minute During Power Failure And
Charged By Automatic Rescue Device with Lead
Acid Battery
aa. Interphone Andalarm Buzzer : Included In Car And M/C Room
bb. Overload Signal : Audible Overload Protective Device
cc. Ventilation : Single Speed Blower Type Fan & Ventholes
dd. Emergency Exit : Provided At Ceiling Panel
ee. Emergency Call : Stop & Call Button On Car Operating Panel
ff. Inspection Stat. : Provided On The Top Of Car
gg. Fireman Service : Enable Feature

2. Lift Service
a. Pelayanan : Lift Service / Service Elevator / Fire Lift
b. Tipe penggerak : ACVF with Machine
c. Jumlah : 1
d. Kapasitas : Min. 1500 kg
e. Kecepatan : 1 meter/detik
f. Power Source : Main Power 380 VAC, 3 ph, 50 Hz
Lighting AC 220 V, 1 ph, 50 Hz
g. Pit Depth : 1524 mm (min)
h. Overhead Height : 3988 mm
i. No. of Stop : 6 Stop
j. Opening : 6 Entrances
k. Service Floor Name : Lt-1, Lt-2, Lt-3 s/d Lt-6
l. Main Floor : Lantai 1
m. Operation : 1 KS Simplex Selective - Collective
n. All Floor Jamb : Full Jamb With LED Panel In Hair Line Finished
Stainless Steel Sheet
o. Hatch Door : 2 panel center opening (CO) Automatic Door - 2
Hrs Fire Rated
p. Hatch Door Panel For All Floor : High Quality Hair Line Finished Stainless Steel
Sheet
q. Hatch Sill : Extruded Hard Allumunium
r. Door opening : 1750 (W) x 2100 (H) mm - CO
s. Hall Signals :
i. Hall Position Indicator & Hall Call Button For All Floors : LED Type with
preannouncing arrows
ii. Floor Signal And Hall Touch Sensitive Push Button
t. Car Size :
i. Internal Maximal 2350 (W) x 1530 (D) x 2405 (H) mm
ii. Hoistway Available Maximal 3100 (W) x 2350 (D) mm
iii. Counterweight Side Drop
u. Car Door Panel : High Quality Hair Line Finished Stainless Steel
Sheet
v. Car Wall : High Quality Hair Line Finished Stainless Steel
Sheet
w. Flooring : Black Speckled Rubber
x. Car Signal : Touch Sensitive Car Operating Panel Combined
With LED Car Position Indicator
y. Door Control : Reopens When Obstructed By Any Object While
Closing With Multiple Infra Red Beams
z. Car Lighting : Lights 30 Minute During Power Failure And
Charged By Automatic Rescue Device with Lead
Acid Battery
aa. Interphone Andalarm Buzzer : Included In Car And M/C Room
bb. Overload Signal : Audible Overload Protective Device
 cc. Ventilation
dd. Emergency Exit
ee. Emergency Call
ff. Inspection Stat.
gg. Fireman Service
: Single Speed Blower Type Fan & Ventholes
: Provided At Ceiling Panel
: Stop & Call Button On Car Operating Panel
: Provided On The Top Of Car
: Enable Feature

4. `Standard Elevator Features :

a. Automatic By Pass (75 % loading)
b. Overload feature
c. Safety Edge
d. Fire Emergency Return
e. Emergency alarm bell
f. Emergency stop switch
g. Door open & close button
h. Car Arrival Gong
i. Car Call Registered Lights
j. Corridor Call Resistered Lights
k. Up & Down Indicator Arrows
l. Emergency Landing Device / Automatic
m. Rescue Device

5.4. MATERIAL
1. Material Door
• Door Panel Finishes : Hairline Stainless Steel
• Type of architrave : Narrow Jamb
• Architrave finishes : Hairline Stainless Steel
• Landing Indication Panel : LED Red with directional and positional
indicator
• Landing Operation Panel : Flat White Glass Finishes
2. Material Car
• Car Door : Hairline Stainless Steel
• Car Transom : Hairline Stainless Steel
• Car Operating Panel : Flat White Glass Design
• Front Wall : Hairline Stainless Steel
• Side Wall : Hairline Stainless Steel
• Rear Wall : Hairline Stainless Steel
• Mirror : Full Height Mirror
• Handrail : Rear Side Type Handrail Hairline Stainless Steel
• Kickplate : Anodized alumunium Grey
 • Car Floor : Black Speckled Rubber
• Car Ceiling : Foggy Stainless Steel
• Lighting : Fluorescent Lamp above front and rear wall in
deco lighting

11.5. MERK
Standard kualitas dari Pilar, Otis, Sanei, dan Mitsubishi (Setara) yang mempunyai
cabang atau kantor distribusi serta servis di Indonesia
