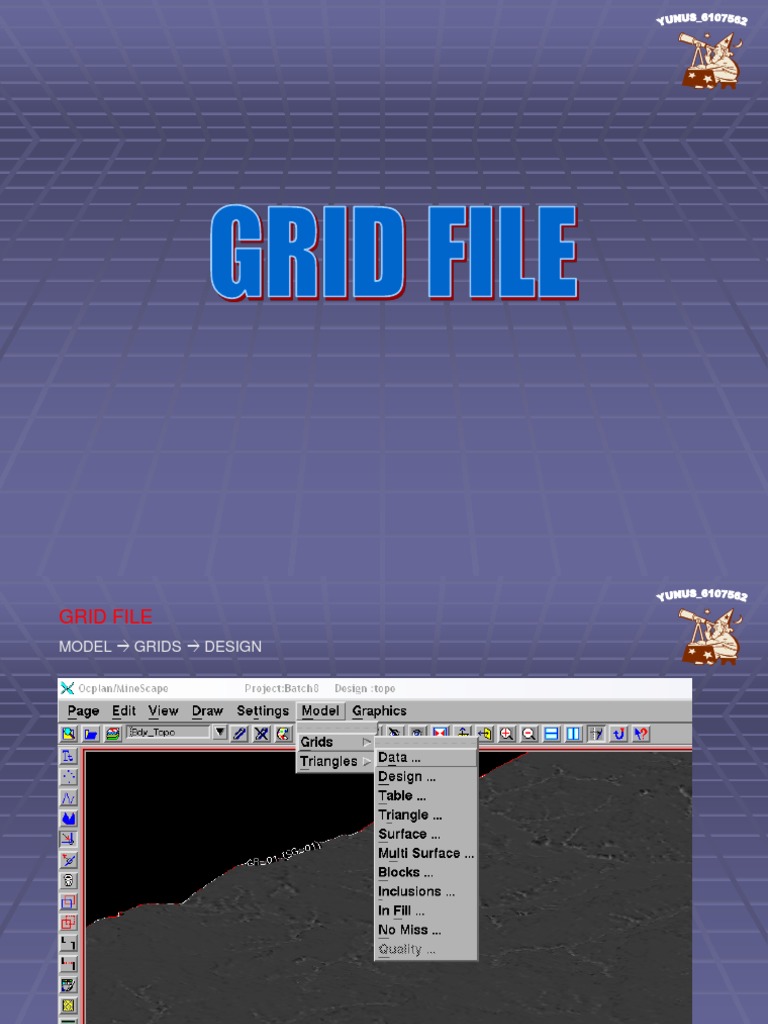

GRID FILE

MODEL GRIDS DESIGN

 Ketik sendiri

```

Klik kanan create

Dari data design / point
 Isi pada Tab CONTROLS
i. sheet specs
ii. grid specs
NOTE.
iii. Interpolater spec
Interpolater spec fem (finite element methode) dan checklist smooth
grid patch
 Isi pada Tab OUTPUT
i. Grid file (lihat slide make grid file)
ii. value
iii. Value unit category
iv. Unit

NOTE.
Pada polygon domain adlh optional (lihat pengertian pd iclude/inclusive)
 Ketik sendiri

Klik kanan create

Masukkan file
sheet yg sdh ada
Ketik sendiri
Ketik
Product Stratmodel
Create Schema

Single/tdk ada percabangan Ada Perbedaan Sesar

Masih Bercabang
SCHEMA (TAB MODEL)

sch_batch8

sch_batch8_tab
sch_batch8_grid

Ambil dr data grid file

parting : apakah dari data bor ada parting atau tidak

Inclined ; jika pemboran diakukan miring

Minimum separation dipake 0, biar lebih akurat jarak split

SCHEMA (TAB DEFAULT)

Search raadius ; sejauh mana data

tersebut berpengaruh terhadap data laen
SCHEMA (TAB LITHOLOGY)
Note : codes di isi sesuai permodelan, bisa tidak diisi ketika hanya 1 model saja (batubara)
SCHEMA (TAB ELEMENTS)
Interval ketika datanya menyatakan data from & to

Perlu ditambahi dengan weath (lapisan pelapukan)

WEATH PROCESS
Dibuat at grid file dulu, ( MODEL GRID SURFACE )

Schema di kosongi dulu

(topography _ tab model - 1.5 (tebal lapisan weath)

sama dengan proses grid file

SCHEMA (TAB ELEMENTS)
Penambahan name untuk kategori weath (pelapukan)

Comformable : digenerate
Continous : tdk memperhit-kan extrapolation
Pinch : membaji / meruncing
Zero : berakhir ketika data tidak ada
Tergantung kondisi geologi
Extrapolation Distance
kondisi geologi cadangan terukur cadangan tereka cadangan terkira
Normal 250 250 ~ 500 500 ~1000
Moderate 125 125 ~ 250 250 ~ 500
Complex 75
SCHEMA (TAB COMPOUND)
Di isi pada kolom name, upper, lower, continuity
SCHEMA (TAB SURVEY)
Untuk updating data jadi hanya di gunakan ketika ada data survey pick up roof / floor batubara
SCHEMA (TAB COMFORMABLE)
Note : perhatikan pda perbedaan antara weath & coal

SCHEMA (TAB LIMITS & FAULTS)

Note : untuk dalam proses ini, di skip dulu untuk TAB LIMITS & FAULT
MAKE TREND SURFACE
Draw line sejajar dip ( sudut dip = sudut strike + 90 ) ; (kaidah tangan kiri) ; (pada layer trend)
Copy paralel seluas bdy sheet yang ada
Buat data triangle dan boundary nya (MODEL TRIANGLE DESIGN)

NEXT
SCHEMAS EDIT TAB ELEMENT
TAB CONFORMABLE

NEXT RE RUNNING SCHEMA

FAULTS (PATAHAN / SESAR)
create design file faults draw line between drill hole drape to topo surface
NEXT
FAULTS CREATE (TAB HEADER)

Fault Extent : menyatakan jarak dari patahan (10 atau 100 atau

Fault Era : apabila ada perpotongan antara 2 fault (fault tua akan dikalahkan oleh fault muda)
FAULTS
FAULTS IMPORT
FAULTS CREATE (TAB VERTEX)
Pick Vertex pada line snap pada vertex yang ada (tekan V pada keyboard)
Throw ( ketebalan ; pada awal points 0, selanjutnya sesuai ketebalan ( di coba simulasi dengan nilai 20 atau -20)
Dip : di isi sesuai dengan dip yang ada
Note : untuk nilai throw + atau - akan menentukan kategori faults (apakah terjadi sesar naik atau sesar normal)
untuk arah pick up vertex akan menentukan fault searah ke down dip atau sebaliknya (Kaidah Tangan Kiri)
(contoh strike < 90 ; dengan nilai throw positif akan menghasilkan sesar naik, begitu sebaliknya)
(contoh strike > 90 ; dengan nilai throw positif akan menghasilkan sesar normal, begitu sebaliknya)
 INGAT KAIDAH TANGAN KIRI
Pick Up Line
U/ MENENTUKAN STRIKE & DOWN DIP
NEXT STEP
SCHEMA EDIT
RUN MODELLING
BUILD TABLE BUILD GRID (GRAPHICS SECTION STRATMODEL)
Note : untuk table file & grid file diganti dengan table & grid file baru
NEXT LOAD / IMPORT DRILL HOLE
DRILL HOLES IMPORT

Dari data survey&lithology (excel_prn)

Create design file&report file

Create control format survey & lithology

CREATE CONTROL (SURVEY FORMAT SPEC)

create

Check mark jika menghitung tiap karakter

Sesuai dengan batas spasi

CREATE CONTROL (LITHOLOGY FORMAT SPEC)
Note : sama dengan proses survey format spec
SETUP MODEL
SETUP DISPLAY DEFS SURFACES

SCHEMA
Name :
DISPLAY DEFINITIONS
Surface
Colour
Section Line Style
Section Weight
DISPLAY DEFINITION
SETUP DISPLAY DEFS INTERVALS

Memberikan karakteristik colour, section line style, fill

pattern, pattern size & drill hole line weight
RUNNING PEMODELAN
SCHEMA PROCESS BUILD TABLE

Note :
CONTROLS
Load survey as drill holes (not check mark)
OPTIONAL
Penetration File & Constraint File (blank)
LOOK MODEL IN TABLE FILE

SCHEMA EDIT

KLIK KANAN VIEW

RUNNING PEMODELAN
SCHEMA PROCESS BUILD GRID
create grid spec

Disesuaikan dengan jarak titik bor

(setengah dari jarak titik bor yg ada)
LOOK MODEL IN GRID FILE

SCHEMA EDIT

KLIK KANAN VIEW

CROSS SECTION
CREATE DESIGN FILE
(line_section)
CREATE LAYER
(0_blanks)
(line_x_dholes)
DRAW LINE (cross section & snap on drill holes)

NEXT STEP
GRAPHICS SECTION STRATMODEL
TAB IO

Create (dimension 2D)

TAB SECTIONS

Dimana grafik sect akan di letakkan

Klik kanan row fill down Generate

TAB CONTROLS

Garis bantu

Coridor width : radius pengaruh garis section terhadap drill hole yang lain
Hole Display Width : lebar jarak tampilan
TAB DISPLAYS
ANOTHER PROCESS FOR CHECKING MODEL
INTERROGGATE STATISTIC DRILL HOLE
ANOTHER PROCESS FOR CHECKING MODEL
INTERROGGATE STATISTIC MODEL
PROCESS FOR CHECKING MODEL
 DATA :
BOR
OUT CROP SCHEMA
SURVEY
TOPO
QUALITY

MODEL TAB

MODEL GRID

NOT OK CHECK BY SECT NOT OK

CHECK BY THIKNEES

OK
NEXT STEP
CONTOUR STRUCTURE
GRAPHICS COUNTOUR MULTI
TAB ATTRIBUTE

Klik kanan, row fill down

Create, dimension 3D
TAB CONTROLS
TAB DOMAIN

pick up polygon
TAB LIMITS
TAB DISPLAYS
NEXT STEP
CREATE CROP LINE (subcrop, outcrop, pinchout, splitline)
GRAPHICS EXTENT MULTI
PROCESS LIKE AS COUNTOUR STRUCTURE
Note : pada polygon domain tidak perlu ada pick up data
Parameter Kualitas Batubara :
Moisture
TM (Total Moisture) : Surface Moisture + Inherent Moisture
Inherent Moisture : kandungan air yang terkandung murni dari batubara (dalam % ; prosentase terhadap berat batubara)
Surface Moisture : kandungan air yang berasal dari luar batubara (lingkungan, hujan, dll)
CV (Calory Value)
Nilai yang menyatakan panas batubara ketika di bakar

Ash (%)
Material yang tidak terbakar ketika proses pembakaran batubara sedang berlangsung
( nilai ash bisa di kurangi dengna proses pencucian batubara ; makin rendah ASH makin tinggi nilai CV)

Sulfur (Max 2,5%)

Kandungan FeS2 dalam batubara
Ada 2 kandungan sulfur : sulfur organik ( ct faktor dari tumbuhan ) & anorganik ( ct faktor dari air laut )
Efek kadar sulfur tinggi adalah polutan (hujan asam) dan alasan faktor industri (karat)
HGI (rata 35 ~ 55)
Tingkat Kemudahan Gerusan
FC
Karbon tertambat, kandungan karbon dalam batubara , semakin tinggi nilai FS semakin baik kualitasnya

VM (Volatile Metre)
Gas gas yang menguap / terbakar pada suhu ruangan
Makin tinggi nilai VM makin tinggi kemungkinan batubara terbakar
NEXT STEP
QUALITY
QUALITY DEFINITION CREATE

QUALITY DEFINITION
Buat dari 8 parameter kualitas batubara

8 parameter
NEXT STEP
QUALITY
QUALITY KEY QUALITY CREATE
NEXT STEP
QUALITY
QUALITY QUALITY MODEL CREATE

KEMUDIAN KLIK OK
NEXT STEP
NEXT STEP
QUALITY
QUALITY DEFAULT CREATE
QUALITY IMPORT QUALITY

Hanya DH Load _user defined

QUALITY COMPOSITE DRILL HOLE
Qual com disini
CREATE SEAM BAYANGAN (SEAM C)
MSCAPE EXPLORER SURFACES EXPRESSION CREATE
(SURFACE NAME C_FLOOR & C_ROOF)
CREATE SEAM BAYANGAN (SEAM C)
MSCAPE EXPLORER SURFACES INTERVAL CREATE
(INTERVAL NAME SEAM C
CREATE SECTION SEAM BAYANGAN (SEAM_C)
GRAPHICS SECTION SURFACES
CREATE DRILL HOLES BAYANGAN / TAMBAHAN

Open design file sect_2d layer sect_dholes

Draw drill holes di sect_dholes
Draw drill holes point di holes sesuai dengan jarak di sect_2d drape topo
diperoleh koordinat drill holes (X,Y,Z)
Extend roof & floor seam batubara to boundary of drill holes bayangan
Hitung karakteristik seam batubara ( from to, thickness, dll ; kaidah phytagoras)
CREATE DRILL HOLES BAYANGAN / TAMBAHAN

Open data excel survey & lithology

Save as ( type file .prn)

Data Text to Coloumn

Buat dalam format data rata kiri dengan jumlah desimal yang sama

Drill Holes ID ; Easting ; Northing ; From ; To

CREATE DRILL HOLES BAYANGAN / TAMBAHAN

Open design file sect_2d layer sect_dholes

Draw drill holes di sect_dholes
Draw drill holes point di holes sesuai dengan jarak di sect_2d drape topo
diperoleh koordinat drill holes (X,Y,Z)
Extend roof & floor seam batubara to boundary of drill holes bayangan
Hitung karakteristik seam batubara ( from to, thickness, dll ; kaidah phytagoras)

Open data excel survey & lithology

Save as ( type file .prn)
OPTIMIZE DESIGN

Model Block Reserve

Block : searah strike
Strip : tegak lurus dengan strike
Kesimpulan : metode SOLID relatig lebih akurat cuma lambat

Summary of OB =
Summary of COAL = ..

NOTE :
Data Countour Structure (Floor) dan Out Crop / Crop Line
DATA BATTER BLOCKS SOLID KUBUS PROYEKSI
BATTER BLOCKS : proyeksi dengan garis proyeksi imaginier
CREATE BLOCKS
STRIP_DESIGN GENERATE STRIPS (Tab MAIN)

Ada 4 : leave, short, long, average

Jarak antar blocks Seam B

Counter (karakter di belakang)

End blocks
Start_blocks

Note : B_Blocks = Blocks Seam B

STRIP_DESIGN GENERATE STRIPS (Tab SIDE_DEFINITION)

create

Blok line / garis sejajar strip (KECUALI POLYGON)

Klik kanan create hw45, lw30 de el el

 NEXT (GENERATE STRIPS)..

Start end_wall

Start Strip
Finish end_wall
Interior Strip

End Strip
CREATE STRIP
STRIP_DESIGN CONVERT_TO_STRIP

Draw sort line lalu pick

Start Endwall Start strip

Interior strip

End strip

Finish Endwall
NEXT
STRIP_DESIGN STRIP_INTERSECTION

Klik kanan row fill down

Create primary / secondary units

Ada 2 karakter salah B72A & B72B

Note : pilih salah satu (fill dowm

atau create list file)

NEXT MINESCAPE EXPLORER BLOCKS TOOLBARS PROCESS (GAMBAR PALU / HAMMER)

NEXT .

Seam B _ Battblocks

BE AWARE
NEXT .
NOTE : Lihat di apakah ada ID yang dobble innisial ( ada karakter A / B )
NEXT .
METHODE : MSCAPE EXPLORER BLOCKS PROCESS MERGE BATTER BLOCKS
NEXT .

BLOCK NAMES PICK

KLIK KIRI (KLIK TENGAH UNTUK MELIHAT BATTER
BLOCKS)
KLIK KIRI OK
NEXT OUTPUT
NEW BATTER BLOCKS : DI SESUAIKAN DENGAN
BATTER BLOCKS TERBESAR

NOTE : BISA JUGA DENGAN EDIT POLYGON JGN LUPA RENAME STRIP
NEXT .
STRIP DESIGN RENAME STRIP

NOTE : DAPAT DI LIHAT DI ELEMENT EDIT

NEXT .
STRIP DESIGN PROJECT SOLIDS
STRIP_INTERSECTION (INTERSECT BATTER BLOCKS)

Max 50 row
Apakah ada yang masih punya identitas dobel (A&B) ??
STEP 01 ( SOLID RESERVE VOLUME )
RESERVE SAMPLE SOLIDS
STEP 01 (CONTINUE . )
TAB SETUP

Create List File

Not check mark

NOTE for SAMPLE TYPE :

u/ point : total luas area dibagi sample density
u/ area : sample density 50 ; artinya tiap luasan 50 square metre
STEP 01 (CONTINUE . )
TAB INTERVAL
STEP 01 (CONTINUE . )
TAB GEOLOGY ; SURFSETS ; BENCHES ; QUALITIES
(sementara di kosongi dulu ; tunggu info selanjutnya )
STEP 01 (CONTINUE . )
(TABLE VIEWER)

KLIK KANAN VIEW

STEP 02 ( MINING RESERVES )
RESERVE EVALUATE SAMPLES MINING RESERVE
STEP 02 ( CONTINUE MINING RESERVE )

LESS : thickness coal yang hilang akibat expose & pick up floor
STEP 02 (CONTINUE MINING RESERVE )
(TABLE VIEWER)

KLIK KANAN VIEW

STEP 03 (EVALUATE / CALCULATE MINING RESERVE )
RESERVES EVALUATE SAMPLE MINING RESERVE
STEP 04 (EVALUATE / CALCULATE MINING RESERVE )
RESERVES ACCUMULATE SAMPLE
STEP 05 (REFORMAT SAMPLES )
RESERVES REFORMAT SAMPLES BLOCK

Acc_res_solb_min

KLIK KANAN CREATE

STEP 05 (CONTINUE REFORMAT SAMPLES )
CREATE TABLE FILE

Rfm_acc_res_solb_min
STEP 05 (CONTINUE REFORMAT SAMPLES )
REFORMAT ( TABS REPORTING ; SLOPES ; OTHER )

NOTE : u/ TABS SLOPES & OTHER sementara di abaikan

STEP 05 (CONTINUE REFORMAT SAMPLES )
(APPLY & TABLE VIEWER)

KLIK KANAN VIEW .

STEP 06 (EXPORT TO MS EXCEL )
MSCAPE EXPLORER TABLE FILE GENERIC rfm_res_solb_min EXPORT
 STEP 02 EDIT TOTALRRMASS
(SUMMARY OF RRMASS = .)
SAMPLE OF EXCELFORMULA
= SUM(IF(RIGHT(C1:V1,6)=RRMASS,C2=V2))
NOTE :
VOL OB = (TOTAL VOL (VOLCOAL / 1,3))
RRMASS (COAL) = TOTAL RR MASS
TOTAL LOSS COAL = TOTAL VOL TOTAL RRMASS

STEP 03 CREATE COLOUMN OB

SUMMARY OF OB = TOTAL VOL TOTAL RRMASS

STEP 04
SELECT ALL COPY PASTE VALUE

STEP 05
DELETE COLUMN EXCEPT NAME, TOTALRRMASS ; OB

STEP 06
COPY COLOUMN BLOCKNAME, INSERT COLOUMN, AND REPLACE (FROM SBB TO B)

STEP 07
DATA TEXT TO COLOUMN FIXED WITH PISAHKAN KODE BLOCK 7 KODE STRIP (B02 & S05
STEP 08
RENAME BLOCKNAME ; BLOCK ; STRIP ; COAL ; OB

STEP 09
CREATE COLOUMN CCOAL ; COB ; CSR (C = CUMULATIVE ) ; SRCOLOUR
CCOAL = IF(B2=B1,D2+D1,D2)
COB = IF(B2=B1,E2+E1,E2)
CSR = IF(ISERROR(G2/F2)=TRUE,1000,G2/F2)
SRCOLOUR = IF(H2<=2,3,4)

STEP 10
COLOUMN WIDTH SAVE AS (FORMAT SPACE DELIMITED) FOLDER DATA PROJECT (RESGRAPHICS)
STEP 07 (LOAD DATA RESGRAPHICS)
MSCAPE EXPLORER TABLE FILE GENERIC IMPORT

KLIK KANAN CREATE

Generic Load (data resgraphics from excel)

STEP 07 (CONTINUE LOAD DATA RESGRAPHICS )
CREATE TABLE FILE

NOT NUMERIC

JUMLAH KARAKTER
STEP 07 (CONTINUE LOAD DATA RESGRAPHICS)
NEXT (APPLY LOAD RESGRAPHICS & INPUT LENGTH/TOKEN)
STEP 07 (CONTINUE LOAD DATA RESGRAPHICS)
TABLE VIEWER

KLIK KANAN VIEW .

STEP 08 (RESGRAPHICS PROCESS)
MSCAPE EXPLORER ACTIONS RESGRAPHICS PROCESS

BLOCKNAME
CSR
CCOAL
STEP 09 (RESGRAPHICS PROCESS)
LAYER B_RESGRAPHICS
 STEP 08 (PIT DESIGN)

CREATE DESIGN FILE PIT_DGN

1. DRAW LINE ; SESUAIKAN DENGAN BATAS SR YANG DISYARATKAN
LAYER B_RESGRAPHICS
2. COPY LAYER SUBCROP (CTH : SEAM B BATAS LWWALL)
3. COPY LAYER COUTOUR STRUCTURE (CTH : SEAM B)
4. DRAPE LINE KE SURFACE (CTH : B_FLOOR)
5. CONNECT SUBCROP & DRAWING LINE
6. POLYGON RELIMIT CLIP WORLD
7. PROJECT HW45 & LW30 CONECT CONVERT TO POLYGON
8. MODELS TRIANGLE DESIGN
9. RESERVE SAMPLES POLYGON
CONTINUE ..
POLYGON RESERVE
CONTINUE ..
POLYGON RESERVE ( TABS GEOLOGY DLL DI KOSONGI DULU )
CONTINUE ..
SAMA DENGAN PROSES RESERVE (BLOCK & STRIP)
FROM STEP 02 STEP 06
NOTE :
STEP 05 ; REFORMAT SAMPLES (TABS REPORTING)
CHECK MARK ON TOTAL VOL ; TOTAL MASS ; TOTAL RRMASS ; & INTERVAL MASS

STEP 06 ;
 CONTINUE ..

1. Open pit_dgn create layer fix_dgn_b

2. Copy Subcrop & Line Design ke layer fix_dgn_b
3. Continue & Snap Design Line to Subcrop Line
4. Extend Line Design
5. Caution DELETE ANNOTATION (EDIT PROPERTIES ANNOTATION
STRING (Del) )
6. Dipakai overall slope 45, single slope 65, tinggi bench 10, lebar bench 5
7. Create Tag Design Segment
8. Tag Design Segment
9. Insert ramp
10. Project & Offset
 CREATE TAG DESIGN SEGMENT
STRIP DESIGN TAG DESIGN SEGMENT

Methode : Tag Design Segments (LW 30 & HW 65 ) tag pada vertices pertama dari line design atau subcrop
INSERT RAMP
STRIP DESIGN RMPS INSERT RAMP

KLIK KANAN CREATE

NEXT CAD APPLY KE HW (DITEMPATKAN DIMANA RAMP TERSEBUT)

 PROJECTS AND OFFSET RAMPS
STRIP DESIGN RMPS PROJECTS AND OFFSET

Step Methode :
1. Tab OPERATIONS
2. Klik Install Methode Bench Install methode Element
3. Bench artinya per bench berapa kita reserve ; Elevation artinya dari elevasi berapa sam pai berapa kita reserve ; Surface IDEM
4. Klik Start Methode Bench
5. Klik Tab SETTINGS
PROJECTS AND OFFSET RAMPS (CONTINUE)
TAB SETTINGS

KLIK KANAN CREATE

PROJECTS AND OFFSET RAMPS (CONTINUE)
CREATE DEFINE BENCH LEVEL

TINNGI BENCH 10

TOP :
DOWN : Elv Mx TO Elv Min

UP : Elv Min TO Elv Max

DOWN : Elv Mx TO Elv Min
PROJECTS AND OFFSET RAMPS (CONTINUE . )
CREATE DEFINE BENCH LEVEL

NOTE : u/ min curve radius dan perpindicular ramp nds dibiarkan kosong (alasan smoothing)
PROJECTS AND OFFSET RAMPS (CONTINUE . )
GENERATES CREATES & TOES APPLY

APPLY
PROJECTS AND OFFSET RAMPS (CONTINUE . )
FINISH (INSERT RAMP, PROJECT & OFFSETS )

NOTE :
1. INSERT RAMP PADA ELV TERENDAH DENGAN ARAH ANAK PANAH KELUAR PIT
2. APABILA ADA PERBEDAAN ARAH ANAK PANAH RAMP DAN TAG DESIGN SEGMENTS ; BISA DILANJUTKAN DENGAN
TAG DESIGN SEGMENT PADA LINE DESIGN SEBELUM & SESUDAH ANAK PANAH (INSERT RAMP)
3. UNTUK START VALUE PADA BENCH DAPAT DI MULAI PADA ELV MINIMUM MAYORITAS
 NEXT STEP
1. Copy Line Design & Line Subcrop to layer 0_blanks
2. Connect Create Polygon
3. Copy layer Seam_Floor (Cth : Seam B) to layer 0_blanks
4. Edit Relimit Clip World
5. Move element in layer 0_blanks layer fix_b_dgn
6. Model Triangle Design ( 2 files )

2 layers
INTERSECTION
MSCAPE EXPLORER TRIANGLES FILES PROCESS (TABS INTERSECTION)
NEXT .. CONTINUE

STEP 01. DELETE LINE DI AREA SUB CROP / LOWWALL

STEP 02. CONNECT LINE DI AREA HW WALL
STEP 03. EDIT LINE WEIGHT (FOURX)
NEXT .. CONTINUE

STEP 01. CONNECT INTERSECTIN WITH SUBCROP LINE

STEP 02. CONVERT TO POLYGON RELIMIT CLIP WORLD

PICK UP
NEXT .. CONTINUE

STEP 01. DRAW OFFSET (+- 5,0 m) drape topo

STEP 02. DELETE LINE
NEXT .. CONTINUE
NEXT .. CONTINUE

HITUNG RESERVE FINAL DESIGN !!!!!!!!!!

SETTING MINESITE UNTUK ACTION RESGRAPHICS
ANOTHER METHODE FOR INTERSECTION
GRAPHICS COUNTOUR MULTI
ANOTHER METHODE FOR INTERSECTION
LAYER B_TOTAL CONNECT LINE (LIKE INTERSECTION)
SUBCROP OFFSET 5,0 M CONNECT TO INTERSECTION CONVERT TO POLYGON
G_BLOCKS
CREATE LAYER
DRAW LINE (ADA 2 LINE) STRIPS DESIGN GENERATE STRIPS
G_STRIPS
DRAW LINE (ADA 2 LINE) STRIPS DESIGN GENERATE STRIPS
G_BATTERBLOCKS
STRIP_DESIGN STRIP_INTERSECTION

CREATE
VOLUME_RESERVE
RESERVES SAMPLES POLYGON

CREATE
Option 01
CORD BLOCK AGAR CENTRING
MENGGUNAKAN RL EXPRETION
 IMPORT DATA SCHEDULLING
TO MS EXCEL

1. Import data Sch_m1 & Sch_m2 ke design schedule

2. Attach Design Blocks Layer G_BattBlocks
3. Create Layer Mal Draw Polygon (Rectangle di ujung BattBlocks)
4. Create Point di tengah Polygon
5. Draw Offset Polygon 2,0 m
6. Draw Points di sudut Polygon hasil offset
7. Create Points like this
8. Jadikan layer m1 sebagai current layer
9. Jadikan layer mal sebagai display layers
10. Block points di layer m1
11. Copy Elements Snap to center layer mal
12. Snap keliling ke semua point di layer mal
 WASTE DUMP DESIGN

1. CREATE LAYER DRAW POLYGON DRAPE TO TOPO

2. TENTUKAN SUDUT OVERALL 55, LEBAR BENCH 10, TINGGI BENCH 10 M
3. STRIPS TAG DESIGN SEGMENTS CREATE WD55
4. (ANGLE 55 ; OFFSETS 10)
5. TAG DESIGN SEGMENTS APPLY (UNTUK WASTE DUMP DESIGN ANGLE
HARUS DI DALAM)
 BATCH 8 _ ENG

1. MODEL
2. FINAL DESIGN SESUAI SR
3. PIT DESIGN 65, TINGGI BENCH 10 , LEBAR BENCH 5,0 M
4. DISPOSAL SINGLE 55, BENCH 5 M, BERM 10 M
5. SCHEDULE YEARLY UNTUK 5 TAHUN
6. TOTAL PLAN KEBUTUHAN UNIT + PERE
7. KEBUTUHAN BLASTING 70%
8. COST
Menunjukan elevasi floor A1
 Elevasi titik bor
Ketebalan seam yang
>0.5
