ASPEN PLUS v8.

6
by aspen tech

TUTORIAL 5
Column

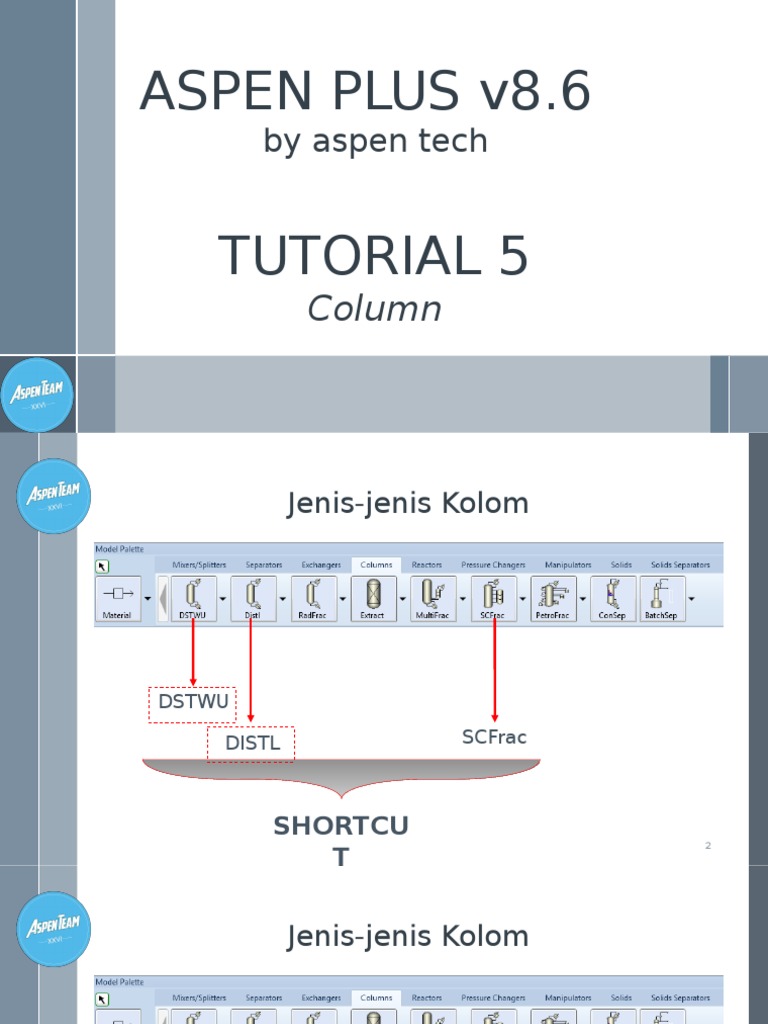

 Jenis-jenis Kolom

DSTWU

DISTL SCFrac

SHORTCU
2
 Jenis-jenis Kolom

RadFrac MultiFrac MultiFrac

RIGOROU
S 3
Overview
Model Characteristic
DSTWU DSTWU performs a Winn Underwood Gilliland shortcut design
calculation for a single feed, two product distillation column, with
a partial or total condenser.
DISTL Distl is a shortcut multicomponent distillation rating model. This
model uses the Edmister approach to separate an inlet stream
into two products.
RadFrac RadFrac is a rigorous model for simulating all types of multistage
vapor liquid fractionation operations. In addition to ordinary
distillation, it can simulate:
1. Absorption
2. Reboiled absorption
3. Stripping
4. Reboiled stripping
5. Extractive and azeotropic distillation

4
 EXERCISE
Suatu campuran bahan sebagai berikut ingin dipisahkan dengan
menggunakan kolom.
Komponen Flowrate
(lbmol/hr)
Propane 15.2
Reflux Ratio : 1.5 x Reflux
Iso-butane 45.6 minimum
N-butane 760 Pressure drop column: 0.2 kg/scm
N-pentane 855
Iso-pentane 49
Lakukan simulasi sehingga sebanyak 99% N-Butane (LK) termbil sebagai
hasil hatas dan i-Pentane (HK) yang terbawa sebagai hasil atas hanya 4%
dari jumlah feed. Umpan masuk pada kondisi cair jenuh pada tekanan 8
kg/scmG. Analisis hasil dari simulasi menggunakan DSTWU, DSTL, dan
5
Input Component dan Property Method

6
Process Flow Diagram

7
Input Stream

8
 Input DSTWU
RR = 1.5 (actual)
RR= - 1.5 (1.5 x
Rmin)

Komponen NBP
(C)
N-pentane 36.07
Iso-pentane (HK) 27.844
N-butane (LK) -0.5
Propane -0.5
Iso-butane -11.72

9
 Pressure Drop
Pcond= 7.9
kg/scmG

Feed
P= 0.1
Pin = 8 Kg/scmG kg/scm
P= 0.2 kg/scm

P= 0.1
kg/scm

Pbot =
8.1 10
Kg/scmG
Input DSTWU

11
Hasil DSTWU
Hasil DSTWU
Process Flow Diagram

14
 Input DISTL

INPUT
DISTL

15
Hasil DISTL
Process Flow Diagram

17
 Input RadFrac

Result
DSTWU

Result
DSTWU

18
Input RadFrac

Result
DSTWU

19
 Feed Stage Radfrac
N-1 N-1
Feed Liquid
Umpan berfasa liquid
Feed
N N
Vapor
Umpan berfasa gas
N+1

Above On Stage
Stage

Dilakukan perhitungan flash Tidak dilakukan perhitungan

flash 20
Input RadFrac
Hasil RadFrac
Perbandingan DSTWU,DISTL, dan RadFrac
Komposisi Distilat

23
Perbandingan DSTWU,DISTL, dan RadFrac
Komposisi Bottom

24
Perbandingan DSTWU,DISTL, dan RadFrac

Faktor DSTWU DISTL RADFRAC

Pembanding
Condenser duty 6.39719 Gcal/hr 6.17382 -6.1097
Gcal/hr Gcal/hr

Reboiler Duty 6.17086 Gcal/hr 6.39352 6.3329 Gcal/hr

Gcal/hr

25
Plate to Plate Calculation RadFrac

26
Plate to Plate Calculation RadFrac

27
