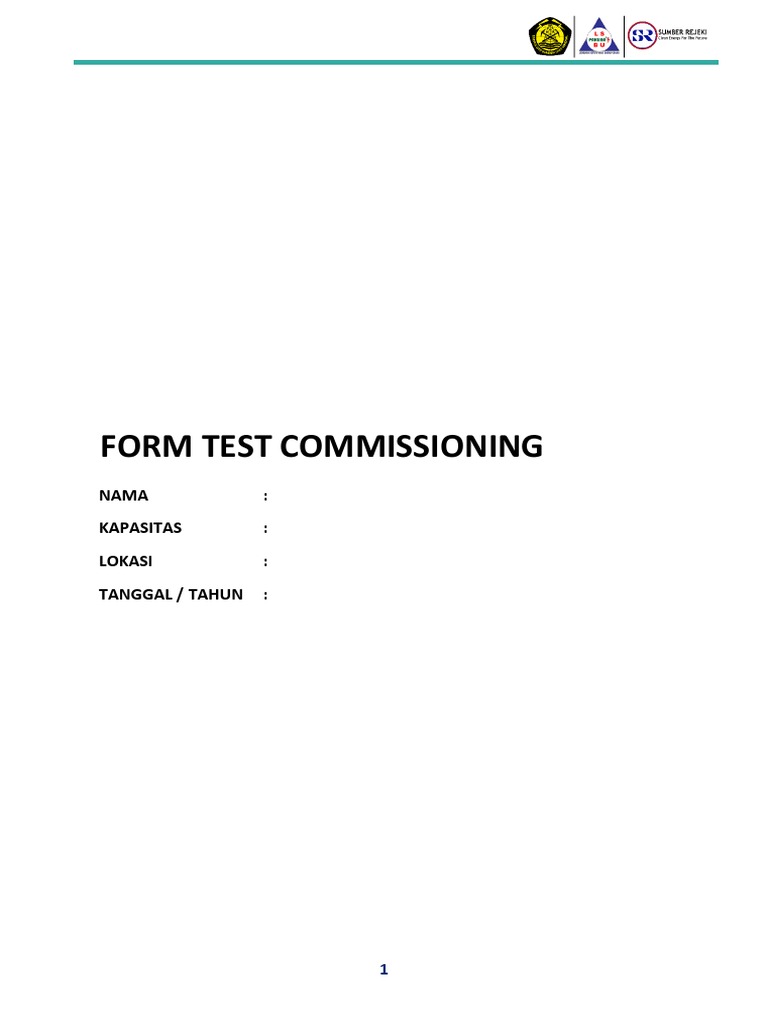

FORM TEST COMMISSIONING

NAMA :
KAPASITAS :
LOKASI :
TANGGAL / TAHUN :

1
 TEST COMMISSIONING PLTS ROOFTOP 15 ~ 100 kWp
INFORMASI PROJECT
Kapasitas PLTS : 15 / 20 / 25 / 30 / 40 / 45 / 50 / 75 / 100 kWp
Tanggal Start Instalasi :
Tanggal Finish Instalasi :
Tanggal Commissioning :
Nama Site :
Alamat S :
GPS Koordinat :
PIC On site :
Contact Person :

TIM PELAKSANA COMMISSIONING

CV.SUMBER REJEKI : INSTANSI / DINAS :
1. 1.
2. 2.
3. 3.
4. 4.

1. SPESIFIKASI SISTEM
Module Solar Cell Photovltaic (PV)
Pabrikasi Merk
Model /Type
Kapasitas / Daya tiap modul Wp
Dimensi tiap modul MM
Jumlah modul terpasang Unit
Jumlah modul dalam hubungan seri (Jumlah modul dalam 1 string) Unit
Jumlah hubungan parallel String

Grid Inverter
Pabrikan Merk
Model / Type
Kapasitas / Daya tiap inverter kW
Jumlah Inverter terpasang Unit
Jumlah Phasa Phasa
Tegangan input (MPP range) Vdc
Tegangan keluaran Vac
Frekuensi Hz

2
Penyangga Modul
Bahan
Jumlah modul surya dalam 1 penyangga (Array) Modul
Kemiringan Modul Derajat
Jumlah penyangga (Array) Unit

Panel DC Combiner Box

Bahan Panel
Enclosure
Jumlah Input String
Jumlah Output
Jumlah Phasa Phasa
Tegangan input (MPP range) Vdc
Tegangan keluaran Vac
Frekuensi Hz

Pengkabelan
No Deskripsi Instalasi Jenis/Type Kabel Ukuran Kabel
1 Modul PV » DC Combiner Box
2 DC Combiner Box » On Grid Inverter
3 On Grid Inverter » Panel Distribusi (MDP)
4 Panel Distribusi (MDP) » Panel LVMDP Existing

Panel Distribusi (MDP)

Bahan Panel
System Kapasitas kW
Jumlah Masukan Input
Jumlah Keluaran/Feeder Output
Rating CB Input Ampere
Rating CB Output Ampere
Rating Arrester (In) kA
Panel Distribusi (MDP) Unit
Monitoring Tegangan (V) Ada □ Tidak Ada □
Monitoring Arus (A) Ada □ Tidak Ada □
Monitoring Frekuensi (Hz) Ada □ Tidak Ada □
Monitoring Energi Meter (kWh) Ada □ Tidak Ada □
Lampu Indicator Ada □ Tidak Ada □

3
Grounding System
1 Jumlah Stick Rod Grounding Penangkal Petir Unit
2 Jumlah Stick Rod Grounding Peralatan Unit
3 Diameter Stick Rod Unit

Catatan Instalasi

……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………………………

4
2. PENGUKURAN
 Pengukuran String PV

Panel DC Combiner Box 1

String No. 1 2 3 4
Cek Polaritas (+) dan (-)
Cek Kabel Grounding
Tegangan (Voc) V V V V
Arus (Imp) A A A A
Pengujian
Waktu Pengujian
WIB / WITA / WIT

Panel DC Combiner Box 2

String No. 1 2 3 4
Cek Polaritas (+) dan (-)
Cek Kabel Grounding
Tegangan (Voc) V V V V
Arus (Imp) A A A A
Pengujian
Waktu Pengujian
WIB / WITA / WIT

Panel DC Combiner Box 3

String No. 1 2 3 4
Cek Polaritas (+) dan (-)
Cek Kabel Grounding
Tegangan (Voc) V V V V
Arus (Imp) A A A A
Pengujian
Waktu Pengujian
WIB / WITA / WIT

Panel DC Combiner Box 4

String No. 1 2 3 4
Cek Polaritas (+) dan (-)
Cek Kabel Grounding
Tegangan (Voc) V V V V
Arus (Imp) A A A A
Pengujian
Waktu Pengujian
WIB / WITA / WIT

5
  Pengukuran Grid Inverter

Panel DC Combiner Box 1

Grid Inverter 1 2 3 4
Serial Number
Cek Polaritas (+) dan (-)
Cek Kabel Grounding
Cek Display LCD
Cek Sistem Monitoring Wifi Via HP
Kapasitas Inverter kW kW kW kW
Tegangan Input MPPT 1 Vdc Vdc Vdc Vdc
Tegangan Input MPPT 2 Vdc Vdc Vdc Vdc
Arus Input MPPT 1 A A A A
Arus Input MPPT 2 A A A A
Tegangan Output AC L1 - N Vac Vac Vac Vac
Tegangan Output AC L2 - N Vac Vac Vac Vac
Pengujian
Tegangan Output AC L3 - N Vac Vac Vac Vac
Arus Output AC L1 A A A A
Arus Output AC L2 A A A A
Arus Output AC L3 A A A A
Waktu Pengujian
WIB / WITA / WIT

 Pengukuran Panel Distribusi (MDP)

Pengukuran Panel Distribusi (MDP)

Cek Polaritas Kabel (L1,L2,L3,N,PE)
Cek Kabel Grounding
Cek Kerapian Instalasi
Cek Label / Tanda Peringatan
Cek Lampu Indikator Panel
Cek Display Monitoring Panel
V out Phasa L1 - N Vac
V out Phasa L2 - N Vac
V out Phasa L3 - N Vac
V out Phasa to Phasa L1 – L2 Vac
Pengujian V out Phasa to Phasa L2 – L3 Vac
V out Phasa to Phasa L3 – L1 Vac
Output Current Phasa L1 Vac
Output Current Phasa L2 Aac
Output Current Phasa L3 Aac

6
  Datalogger ( Shine Wifi-X )

Datalogger (Shine Wifi-X) 1 2 3 4

Serial Number (SN)
Check Code (CC)

 Pengukuran Grounding Pentanahan

Grounding
Sistem Grounding Grounding Penangkal Petir Grounding Peralatan
Kondisi Cuaca
Nilai Petanahan Ω Ω

3. CATATAN PENUTUP
INFORMASI INSTANSI / DINAS
Nama Instansi / Dinas
Nama Pejabat Terkait
Jabatan
Alamat Instansi / Dinas
Kode Pos
Telepon Instansi / Dinas
Email

Pelaksana : Approved By :
CV. Sumber Rejeki

( ) ( )
