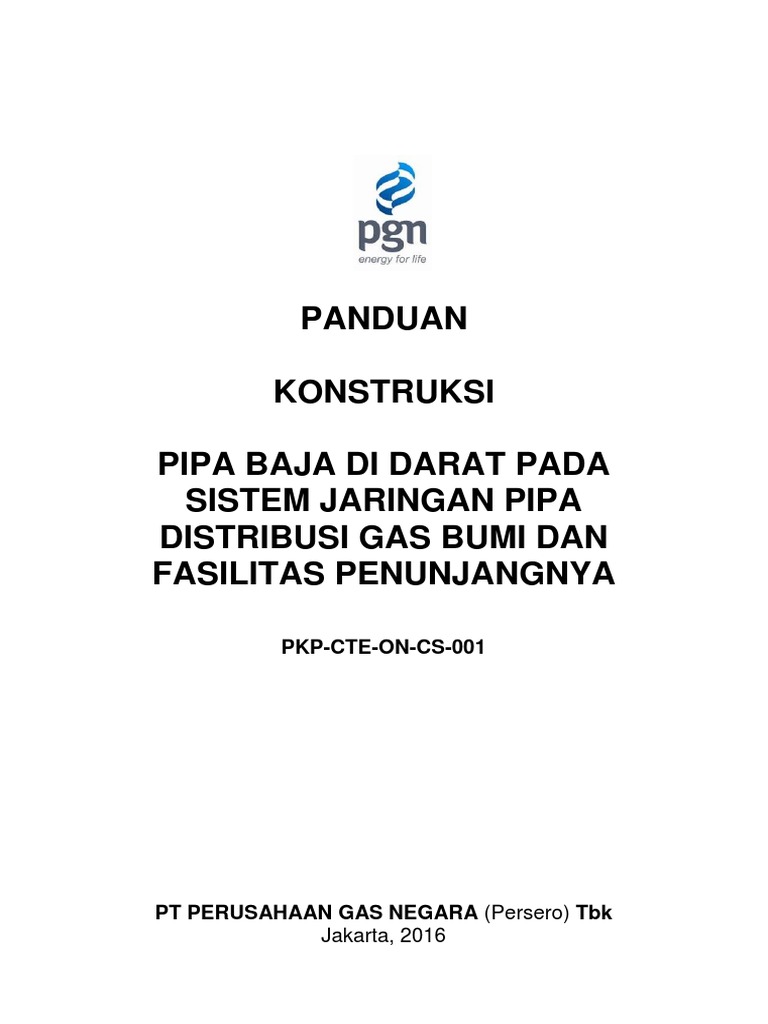

KONSTRUKSI
PKP-CTE-ON-CS-001
KONSTRUKSI
PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
Hal
VOL I PANDUAN / GUIDANCE 1
BAB I UMUM / GENERAL 2
BAB II SURVEI / SURVEY 12
BAB III PERSIAPAN DAN PEMBERSIHAN JALUR PIPA / PIPE ROUTE 22
PREPARATION AND CLEARING
BAB IV PENGGALIAN LUBANG PERCOBAAN / TRIAL HOLES 28
EXCAVATION
BAB V MARKER DAN AKSESORIS / MARKER AND ACCESSORIES 32
BAB VI PEMBENGKOKAN PIPA / FIELD BENDING 38
BAB VII PENANGANAN, TRANSPORTASI, DAN PENYIMPANAN PIPA, 44
VALVE, FITTING, DAN MRS / HANDLING, TRANSPORTATION,
AND STORAGE OF PIPE, VALVE, FITTING, AND MRS
BAB VIII PENGANGKUTAN DAN PENJAJARAN / HAULING AND 68
STRINGING
BAB IX PEKERJAAN GALIAN PIPA / PIPE TRENCH EXCAVATION 73
BAB X PENGELASAN / WELDING 86
BAB XI PENGUJIAN TIDAK MERUSAK / NON DESTRUCTIVE 100
EXAMINATION
BAB XII FIELD JOINT COATING / FIELD JOINT COATING 192
BAB XIII PENURUNAN PIPA / PIPE LOWERING IN 202
BAB XIV PROTEKSI KATODIK / CATHODIC PROTECTION 209
BAB XV PENIMBUNAN GALIAN / BACKFILLING 235
BAB XVI CLEANING DAN GAUGING / CLEANING AND GAUGING 240
BAB XVII WATER FILLING DAN UJI HIDROSTATIK / WATER FILLING AND 251
HYDROSTATIC TEST
BAB XVIII DEWATERING, PIGGING DAN SWABBING / DEWATERING, 265
PIGGING AND SWABBING
BAB XIX DRYING DAN NITROGEN PURGING / DRYING AND NITROGEN 276
PURGING
BAB XX PERBAIKAN KEMBALI / REINSTATEMENT 285
BAB XXI SURVEY DAN DOKUMENTASI AS-BUILT / AS-BUILT SURVEY 289
AND DOCUMENTATION
BAB XXII TIE-IN PIPA / PIPELINE TIE-IN 301
BAB XXIII PERLINTASAN / CROSSING 307
BAB XXIV PEMASANGAN VALVE / VALVE INSTALLATION 329
BAB XXV SISTEM ODORISASI / ODORIZATION SYSTEM 333
BAB XXVI PENGECATAN / PAINTING 339
BAB XXVII HOT TAPPING / HOT TAPPING 367
BAB XXVIII SIPIL / CIVIL 389
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
VOLUME I / VOL I
PANDUAN / GUIDANCE
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
BAB I / SECTION I
UMUM / GENERAL
9. Pengelasan 9. Welding
10. Pengujian Tidak Merusak 10. Non Destructive Examination
11. Field Joint Coating 11. Field Joint Coating
12. Penurunan Pipa ke Dalam Galian 12. Pipe Lowering In
13. Proteksi Katodik 13. Cathodic Protection
14. Penimbunan Galian 14. Back Filling
15. Cleaning dan Gauging 15. Cleaning and Gauging
16. Water Filling dan Uji Hidrostatik 16. Water Filling and Hydrostatic Test
17. Dewatering, Pigging dan Swabbing 17. Dewatering, Pigging and Swabbing
18. Drying dan Nitrogen Purging 18. Drying and Nitrogen Purging
19. Perbaikan Kembali 19. Reinstatement
20. Survey dan Dokumentasi As-Built 20. As-Built Survey and Documentation
21. Tie-in Pipa 21. Pipeline Tie-in
22. Perlintasan 22. Crossing
23. Pemasangan Valve 23. Valve Installation
24. Sistem Odorisasi 24. Odorization System
25. Pengecatan 25. Painting
26. Hot Tapping 26. Hot Tapping
27. Sipil 27. Civil
28. Elektrikal 28. Electrical
29. Commissioning 29. Commissioning
1.3.3. Batasan ruang lingkup ditunjukan melalui 1.3.3. Battery limit of scope can be shown in
gambar skematik pada Lampiran Gambar Attachment Figure 1.1.
1.1.
Lampiran / Attachment
BAB II / SECTION II
SURVEI / SURVEY
sesuai zona proyeksi dan menggunakan System. World Geodetic System (WGS-
datum World Geodetic System (WGS- 84) Datum. Elevation used refers to MSL
84). Ketinggian yang digunakan mengacu (Mean Sea Level) or derived from Geoid
kepada MSL (ketinggian rata-rata muka Indonesia.
air laut) atau diturunkan dari Geoid
Indonesia.
2.5.3. Sebelum Survei Pra-Konstruksi 2.5.3. Prior to Pre-Construction Survey, the
dilakukan, Pelaksana Pekerjaan harus Work Executor shall acquire construction
mendapatkan izin pelaksanaan / permit from the related authorities.
konstruksi dari pihak terkait.
2.5.4. Pelaksana Pekerjaan harus bertanggung 2.5.4. The Work Executor shall be responsible
jawab terhadap akurasi dan kelengkapan for the accuracy and completeness of all
hasil pekerjaan. Pelaksana Pekerjaan work performed. The Work Executor
harus bertanggung jawab atas biaya- shall be liable for all costs associated
biaya perbaikan hasil pekerjaan. with correcting any deficiencies in his
work.
2.5.5. Titik Ikat (BM) harus digunakan untuk 2.5.5. Benchmarks (BM) shall be used to re-
menetapkan datum plane yang sama establish the same datum plane used in
seperti pada Survei Awal. BM harus Preliminary Survey. BM shall be used as
digunakan sebagai referensi pengukuran reference for measurement area within
untuk area dalam radius 5 km. radius 5 km.
2.5.6. BM harus mengacu kepada SRGI. 2.5.6. Benchmarks (BM) shall refer to SRGI.
2.5.7. Titik Ikat Sementara (TBM) harus 2.5.7. Temporary Benchmark (TBM) shall be
dipasang pada semua lokasi perlintasan. established at all crossing locations.
2.5.8. Baik BM maupun TBM harus diletakkan 2.5.8. Both BM and TBM shall be located in a
pada tempat yang aman untuk secure area to avoid damage cause of
menghindari kerusakan akibat akitivitas construction activity.
konstruksi.
2.5.9. Lokasi harus diberi patok ulang sehingga 2.5.9. The location shall be re-staked so that
pekerja konstruksi dapat menentukan construction crew will be able to locate
posisi atau garis penggalian. the alignment or ditch line.
2.5.10. Titik lokasi yang disurvei seperti pada 2.5.10. Surveyed location point shall be staked
semua persilangan dan garis tengah on all crossing and on the centerline of
lokasi yang direncanakan untuk the proposed location of crossovers,
crossover, tee, valve utama, sambungan tees, mainline valve, station connections
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
stasiun dan fasilitas pipa lainnya, harus and other pipe facilities.
diberi patok.
2.5.11. Jika pipa akan dipasang pada jalur yang 2.5.11. If the pipe is to be installed within a
berupa jalan umum, jalur pipa harus public road, the pipe route shall be
diidentifikasi dengan menggunakan garis identified by fence lines, pole lines or
pembatas, garis timbul atau penanda pipe route marker.
jalur pipa.
2.5.12. Semua utilitas yang ada di bawah tanah 2.5.12. All underground utilities within the
pada area konstruksi harus diketahui construction area shall be located prior to
sebelum proyek dimulai. Pemilik utilitas start the project. The owner of the utilities
tersebut harus dihubungi secara shall be contacted directly to locate.
langsung untuk menentukan lokasinya.
2.5.13. Safety Induction diberikan sebelum 2.5.13. Safety Induction is given before starting
memulai pekerjaan, dan menggunakan work, and use of Personal Protective
Alat Pelindung Diri (APD) minimum Equipment (PPE) for a minimum of work.
selama bekerja.
2.5.14. Job Safety Analysis (JSA) dan Permit To 2.5.14. Job Safety Analysis (JSA) and Permit To
Work (PTW) yang sesuai dilengkapi Work (PTW) are suitably equipped
sebelum pekerjaan dimulai serta before starting work and communicated
dikomunikasikan kepada pekerja pada to workers at the time Toolbox Meeting.
saat Toolbox Meeting.
2.5.15. Prosedur keselamatan dan kesehatan 2.5.15. Safety and healthy procedure during Pre-
pada pekerjaan Survei Pra-Konstruksi Construction Survey shall comply with
harus mengacu pada Dokumen Pedoman PGN’s Pedoman Keselamatan,
Keselamatan, Kesehatan Kerja, Kesehatan Kerja, Pengamanan, dan
Pengamanan, dan Pengelolaan Pengelolaan Lingkungan serta Energi
Lingkungan serta Energi (K3P2L-E) PGN. (K3P2L-E).
2.7. Survei Pra-Konstruksi Pipa Induk / 2.7. Pre-Construction Survey Main Line /
Pipa Cabang Branch Line
2.7.1. Verifikasi Jalur Pipa 2.7.1. Pipe Route Verification
2.7.1.1. Sebelum konstruksi dilaksanakan, survei 2.7.1.1. Prior to the commencement of
mengenai kelayakan dan kejelasan rute construction, the verification survey of
jalur pipa yang didasarkan pada rencana the pipe route shall be conducted based
jalur pipa hasil dari Survei Awal harus on the proposed pipe route as provided
dilakukan. by Preliminary Survey.
2.7.1.2. Pekerjaan mengenai survei kelayakan di 2.7.1.2. Verification survey work to be performed
sepanjang rencana jalur pipa harus along the proposed pipe route shall
meliputi: includes the following:
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
a. Data yang relevan dari survei rute a. Relevant data from previous route
sebelumnya termasuk survei dan survey including survey and
dokumentasi mengenai perubahan documentation regarding re-route
rute dari posisi sebelumnya. and deviations.
b. Memastikan bahwa area jalur pipa b. To ensure that the pipe corridor is
untuk konstruksi sudah bebas dan free and clear of obstructions as well
bersih dari gangguan termasuk as permission accomplishment from
penyelesaian perizinan dari pihak the authorities.
yang terkait.
c. Menentukan tempat penyimpanan c. To determine stockpile at the project
pipa di lokasi proyek. site.
d. Hasil survei verifikasi ini harus dibuat d. The verification survey result shall be
dalam bentuk laporan yang berisikan reported with well documented
foto, gambar konstruksi, dan photos, construction drawings, and
dokumen terkait yang terdokumentasi other related documents.
dengan baik.
2.7.3. Perlintasan dan Layout Fasilitas 2.7.3. Crossings and Layout of Facilities
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
2.7.3.1. Semua pemilik utilitas di perlintasan 2.7.3.1. The owner of the utilities at the crossing
harus diindentifikasi dan dihubungi area shall be identified and contact
secara langsung. directly.
2.7.3.2. Patok yang digunakan harus mencukupi 2.7.3.2. Number of stakes shall be sufficient in
sehingga konstruksi perlintasan sesuai order to construct the crossing as plan.
dengan rencana.
2.7.3.3. Semua fasilitas perpipaan harus diberi 2.7.3.3. All pipeline facilities shall be staked out
patok sesuai dengan rencana. according to the plan.
2.7.3.4. Semua perlintasan dengan sungai, jalan 2.7.1.1. All crossing with river, road and railroad
atau rel harus diberi tanda dan dibuat shall be marked and the cross sections
gambar potongan melintangnya. shall be drawn.
2.7.4. Tie-In Pipa 2.7.4. Pipeline Tie-In
2.7.4.1. Semua interkoneksi dengan fasilitas 2.7.4.1. All interconnection with existing facilities,
terpasang, lokasi dan kedalaman pipa location and depth of the existing pipeline
terpasang atau valve harus diidentifikasi or valve shall be identified completely.
secara lengkap.
2.7.4.2. Jika penyambungan baru akan dibuat 2.7.4.2. If the new tap is to be made by installing
dengan cara pemasangan tee fitting pada a tee fitting in the existing pipeline
pipa terpasang (bukan hot tapping), profil instead of a hot tap connection, the
pipa terpasang harus diketahui untuk profile of the existing pipeline shall be
mengetahui jarak aman atau sekitar 15 m obtained for a distance of 15 m of the
dari tee yang direncanakan untuk proposed tee to determine the exact
dipasang, untuk mengetahui elevasi yang elevation of the existing pipeline.
pasti dari pipa terpasang.
BM.
2.7.6.3. Pengukuran situasi jalur harus 2.7.6.3. Measurements shall use a total station
menggunakan alat total station atau equipment or NTRIP RTK (Network
menggunakan alat NTRIP RTK (Network Transport of RTCM via Internet Protocol
Transport of RTCM via Internet Protocol Real Time Kinematic) equipment.
Real Time Kinematic).
2.7.6.4. Metode pengukuran vertikal untuk titik 2.7.6.4. The method to be used for the vertical
kerangka (BM dan TBM) harus diukur control survey shall apply the direct
menggunakan alat pengukur ketinggian differential leveling in a double stand
yang presisi (waterpass) dengan metode technique, using a precise automatic
double stand. leveling (waterpass) or any equivalent
instrument.
2.7.6.5. Sebelum pelaksanaan survei, alat-alat 2.7.6.5. Prior to commence the survey, the
yang akan digunakan harus diuji dan instruments which are proposed for used
dikalibrasi agar kualitasnya baik, sesuai shall be tested and calibrated for its good
dan akurasinya terjamin. quality, adjustment and accuracy
guarantee.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Lampiran / Attachment
Keterangan:
GDOP / Geometric Dilution of Precision
Lama pengamatan sesuai tabel di atas berdasarkan hasil pengujian:
- Di daerah lintang menengah (mid-latitudes)
- Level aktivitas ionosfir yang relatif tinggi (berdasarkan variasi 11 tahunan)
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
jalur pipa dapat tidak dilakukan pada not conducted on distibution pipeline
konstruksi pipa distribusi jika didapatkan construction if the pipeline route
kondisi jalur pipa yang telah bersih dan condition is clear and no need further
tidak perlu dipersiapkan lebih lanjut. preparation.
3.5.4. Pekerjaan tidak boleh dilakukan pada 3.5.4. Work should not carried out at night
malam hari kecuali mendapatkan izin unless written permission by PGN and
tertulis dari PGN. facility owner.
3.5.5. Penentuan jenis peralatan yang 3.5.5. Selection of the equipment used for land
digunakan untuk melakukan pembersihan preparation and clearing shall consider
jalur dan persiapan lahan harus the field condition.
memperhatikan kondisi lapangan.
3.5.6. Setiap pekerjaan persiapan jalur pipa 3.5.6. Whenever the pipe route preparation
yang akan melewati jalan-jalan activities cross housing driveways,
perumahan, pintu masuk ke properti milik entrance to private properties or other
pribadi ataupun jalan akses lainnya, access road, information shall be given
pemberitahuan harus diberikan kepada to the owner at least 24 hours prior to
pemilik paling tidak 24 jam sebelum commencement of the work.
pekerjaan tersebut dilaksanakan.
3.5.7. Penggunaan jalan masuk, pintu masuk 3.5.7. In any circumstances, the use of any
ataupun jalan akses milik pribadi, untuk private driveway, entrance or access
kondisi apapun, tidak diperbolehkan road is prohibited without obtaining the
tanpa memperoleh izin tertulis terlebih specific written permission from the
dahulu dari pemiliknya. owner.
3.5.8. Penyiapan dan penggalian yang melalui 3.5.8. Preparation and excavation activities
sebuah sungai, selokan, jalur irigasi, anak crosses a river, stream, irrigation
sungai, saluran air, dan sebagainya, channel, creek, drain, culvert etc, shall
jangan sampai menghambat arus air di not obstruct or prejudicially effect the flow
dalamnya. of water there in.
3.5.9. Saat pekerjaan persiapan dan 3.5.9. During preparation and clearing pipeline
pembersihan jalur pipa dilakukan harus route, centerline stake shall be
selalu memperhatikan posisi patok jalur recognized to confirm with pre-
hasil staking out untuk menentukan construction survey result.
kesesuaian dengan jalur pipa hasil survei
pra-konstruksi.
3.5.10. Safety Induction diberikan sebelum 3.5.10. Safety Induction isgiven before starting
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
3.7. Tanda Lalu Lintas dan Papan Nama 3.7. Traffic Sign and Project Name Board
Proyek
3.7.1. Selama pekerjaan persiapan, di sekitar 3.7.1. During preparation work, around the site
lokasi harus dipasang fasilitas pengendali shall be provided by the traffic controller
lalu lintas seperti tanda-tanda lalu lintas, facilities such as signs, barricades and
barikade dan fasilitas lain yang other facilities in accordance with this
disyaratkan dalam panduan ini, Bab V, guidance, Section V, Marker and
Marker dan Aksesoris dan atau Accessories and or rules of the
peraturan-peraturan instansi terkait. authorities.
3.7.2. Untuk memberi informasi awal kepada 3.7.2. As preliminary information to the street
pengguna jalan, di sekitar lokasi proyek user, adjacent to the site at the secure
pada jarak yang aman perlu dipasang distance, warning sign informing the
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
BAB IV / SECTION IV
PENGGALIAN LUBANG PERCOBAAN / TRIAL HOLE EXCAVATION
pada pekerjaan Lubang Percobaan harus Hole work shall comply with PGN’s
mengacu pada Dokumen Pedoman Pedoman Keselamatan, Kesehatan
Keselamatan, Kesehatan Kerja, Kerja, Pengamanan, dan Pengelolaan
Pengamanan, dan Pengelolaan Lingkungan serta Energi (K3P2L-E).
Lingkungan serta Energi (K3P2L-E) PGN.
laporan yang berisikan semua utilitas, of all utilities, Trial Hole sketch, Trial Hole
sketsa Lubang Percobaan, dimensi dimension, distance among utilities and
Lubang Percobaan, jarak antara utilitas enclose photograph.
dan menyertakan foto dokumentasi.
4.6.9. Laporan harus dibuat untuk setiap 4.6.9. Report shall be made for each Trial Hole.
Lubang Percobaan.
4.6.10. Lubang Percobaan harus segera 4.6.10. Trial Hole shall be backfilled and
ditimbun dan dikembalikan seperti kondisi reinstated. In any condition, Trial Hole
awal. Pada kondisi apapun, Lubang could not be in open position for more
Percobaan tidak boleh terbuka selama than 24 hours.
lebih dari 24 jam.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
BAB V / SECTION V
MARKER DAN AKSESORIS / MARKER AND ACCESSORIES
sepanjang jalur pipa dan pada lokasi and at location where there is a
yang rawan kerusakan atau gangguan. probability of damage or interference.
5.5.3. Tanda atau marker di sekitar jalur pipa 5.5.3. Sign or marker surrounding pipe route
harus dipelihara dan diberi proteksi shall be maintained and protected in
sehingga dapat mudah dibaca, tidak order to be easily read, not obscured and
kabur dan tidak mudah rusak. not easily broken.
5.5.4. Prosedur keselamatan dan kesehatan 5.5.4. Safety and healthy procedure during
pada pekerjaan penandaan dan markers and accessories work shall
aksesorisnya harus mengacu pada comply with PGN’s Pedoman
Dokumen Pedoman Keselamatan, Keselamatan, Kesehatan Kerja,
Kesehatan Kerja, Pengamanan dan Pengamanan dan Pengelolaan
Pengelolaan Lingkungan serta Energi Lingkungan serta Energi (K3P2L-E)
(K3P2L-E) PGN. Document.
5.6. Prosedur Penandaan dan Aksesoris 5.6. Procedure for Markers and
Accessories
5.6.1. Papan nama proyek dan tanda 5.6.1. Project name board and safety sign
pengaman
a. Pelaksana Pekerjaan harus a. Work Executor shall install project
memasang papan nama proyek dan name board and safety signs during
rambu-rambu pengaman selama construction.
konstruksi berlangsung.
b. Pelaksana Pekerjaan harus b. Work Executor shall install safety
memasang tanda pengaman dan signs and traffic signs in accordance
rambu lalu lintas sesuai dengan with the rules of toll road if the
aturan pengelola jalan tol jika jalur pipelines are in Rumija Tol. Safety
pipa berada di Rumija Tol. Tanda signs and traffic signs in accordance
pengaman dan rambu lalu lintas with Volume II Typical Drawing or
sesuai dengan Volume II Gambar provision of toll road operators.
Tipikal atau ketentuan dari pengelola
jalan tol.
c. Direksi Keet ditandai dengan papan c. Direksi Keet shall be identified by
nama proyek yang berisikan project name board including
informasi mengenai nama proyek, information of project name, name of
nama lokasi, nama Pelaksana location, Work Executor, working
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Pekerjaan, izin pekerjaan dan waktu permit and project schedule refer to
pelaksanaan mengacu pada Volume Volume II Typical Drawing.
II Gambar Tipikal.
d. Di area konstruksi harus ditandai d. Construction area shall be identified
dengan Papan Tanda Pengaman dan by Safety Sign and Safety Barricade
dilengkapi Dinding Pengaman refer to Volume II Typical Drawing.
mengacu pada Volume II Gambar
Tipikal.
e. Pada lokasi galian terbuka yang e. At location at open trenching that is
sedang dikerjakan dapat being done can use Barricade
menggunakan Barricade Banner Banner Layout Type-1 and Type-2.
Layout Type-1 dan Type-2.
f. Pada lokasi pekerjaan pengelasan f. At welding or field joint coating
atau field joint coating dapat location can use Barricade Banner
menggunakan Barricade Banner Layout Type-3
Layout Type-3.
g. Pada lokasi galian terbuka yang g. at location at open trenching which
sedang tidak dikerjakan, seperti : was not done such as : utility
pekerjaan penggalian utilitas (kabel trenching (electrical cable, fiber
listrik, fiber optik, kabel telepon optic, underground telephone cable,
bawah tanah, penggalian untuk bak valve box digging, crossing, hot
valve, crossing, hot tapping, dan tie- tapping and tie-in) and welding
in) dan pada lokasi pekerjaan activity at public area and public
pengelasan pipa di ruang publik dan street and at stringing area that there
jalan umum dan pada lokasi is no working activity (no workers)
penjajaran pipa yang tidak dikerjakan can use Barricade Banner Layout
(tidak ada pekerja) dapat Type-4
menggunakan Barricade Banner
Layout Type-4.
5.6.3. Marker post jalur pipa 5.6.3. Marker post of pipe route
a. Marker post jalur pipa distribusi a. Distribution pipe route marker post
dipasang secara permanen setiap shall be permanently installed at
500 meter sepanjang jalur pipa yang intervals 500 meters along the pipe
berisi informasi tanda peringatan jalur route which has information of gas
pipa gas, nomor Contact Center pipe route warning sign, Contact
PGN, nomor tagging dan tipe Center number, tagging number and
tekanan. pressure classification.
b. Marker post harus dipasang di kedua b. Marker post shall be installed on
sisi perlintasan jika lebar perlintasan both side of crossing if the road,
jalan, sungai, rel kereta api > 5 meter. river, railway crossing width > 5
meters.
c. Marker post juga harus dipasang c. Marker post shall also be located at
pada lokasi main (Sectional) / branch main (Sectional) / branch valve area,
valve, pos (rumah) transformer transformer and rectifier post, pipe
rectifier, jembatan pipa dan stasiun. bridge and stations.
d. Desain marker post harus mengacu d. Design of each marker posts shall
pada Volume II Gambar Tipikal dan comply with Volume II Typical
Prosedur Operasi Asset Tagging Drawing and Prosedur Operasi Asset
PGN. Tagging PGN.
e. Marker post harus ditempatkan pada e. Marker post shall be designed for
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
BAB VI / SECTION VI
PEMBENGKOKAN PIPA / FIELD BENDING
Lampiran / Attachment
dengan aman.
7.3.5. Painted Pipe adalah pipa yang diberi 7.3.5. Painted Pipe is line pipe having a thin
lapisan pelindung untuk mencegah korosi coating intended to prevent corrosion
selama pemindahan. during transit and can possibly be in form
of a primer for further coating.
7.3.6. Pipa yang terikat adalah beberapa pipa 7.3.6. A Bundle is bundling of some line
yang diikat dalam satu ikatan. pipes.
7.5.1. Peralatan angkat dan angkut harus 7.5.1. Lifting and transport equipment shall
memiliki sertifikat kelayakan dari MIGAS have certificate of eligibility from MIGAS
atau Disnaker / Depnaker / Kemenaker or Disnaker / Depnaker / Kemenaker
dengan mencantumkan hasil pengujian. attaching testing result.
7.5.2. Operator alat angkat harus memiliki surat 7.5.2. Operator lifting equipment shall have
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Alat Pelindung Diri (APD) minimum Equipment (PPE) for a minimum of work.
selama bekerja.
7.5.12. Job Safety Analysis (JSA) dan Permit To 7.5.12. Job Safety Analysis (JSA) and Permit To
Work (PTW) yang sesuai dilengkapi Work (PTW) are suitably equipped
sebelum pekerjaan dimulai serta before starting work and communicated
dikomunikasikan kepada pekerja pada to workers at Toolbox Meeting.
saat Toolbox Meeting.
7.5.13. Prosedur keselamatan dan kesehatan 7.5.13. Safety and healthy procedure during
pada pekerjaan penanganan, transportasi handling, transportation, and storage of
dan penyimpanan pipa harus mengacu pipe shall comply with PGN’s Pedoman
pada Dokumen Pedoman Keselamatan, Keselamatan, Kesehatan Kerja,
Kesehatan Kerja, Pengamanan, dan Pengamanan, dan Pengelolaan
Pengelolaan Lingkungan serta Energi Lingkungan serta Energi (K3P2L-E)
(K3P2L-E) PGN. Document.
minimum 5 cm.
7.6.1.2. Pipa yang Terikat 7.6.1.2. Bundles
7.6.1.2.1. Pipa yang Terikat bisa diangkat oleh 7.6.1.2.1. Bundles may be lifted by crane or forklift
crane atau truk forklift. truck.
7.6.1.2.2. Sewaktu-waktu, beberapa Pipa yang 7.6.1.2.2. Occasionally, several Bundles may be
Terikat dimungkinkan diikat bersamaan fastened together by the Work Executor
oleh Pelaksana Pekerjaan untuk for ease of loading.
memudahkan transportasi.
7.6.1.2.3. Ketika melakukan penerimaan pipa, 7.6.1.2.3. Upon receipt of pipe, a check shall be
pemeriksaan harus dilakukan terhadap made to the capability of lifting
kemampuan alat angkut. Dimungkinkan equipment. It may be necessary to
untuk memisahkan kembali ikatan separate the load into its individual
bersama tersebut menjadi ikatan tunggal Bundles before unloading.
sebelum dibongkar.
7.6.1.2.4. Jika truk forklift digunakan, maka lapisan 7.6.1.2.4. If forklift truck is used, the first layer of
dasar dari Pipa yang terikat harus Bundles shall be placed on battens to
ditempatkan pada papan, untuk memberi allow sufficient clearance for fork entry.
ruang yang cukup saat memasukkan
garpu forklift.
7.6.1.2.5. Bantalan yang digunakan untuk menahan 7.6.1.2.5. The battens which restrain the Bundles
ikatan pipa harus didesain dengan are normally designed to provide a gap
menyiapkan ruang yang cukup untuk sufficient for fork entry when the Bundles
memasukan garpu forklift ketika ikatan are stacked one on another with the
pipa tersebut akan ditumpuk pada ikatan restraining battens coincident (see
lainnya (lihat Lampiran Gambar 7.1). Attachment Figure 7.1).
7.6.1.2.6. Jika menggunakan crane, pengangkatan 7.6.1.2.6. If a crane is used, the Bundles shall be
Pipa yang Terikat harus menggunakan lifted using spreader beam and sling belt.
spreader beam dan tali pengaman (sling
belt).
7.6.1.2.7. Rantai atau tali baja (wire slings) atau 7.6.1.2.7. Chains or wire rope slings or others
alat-alat lain yang terbuat dari logam tidak metal equipment shall not be used in
boleh bersentuhan langsung dengan pipa contact with the line pipe during lifting.
pada saat pengangkatan.
7.6.1.3. Pipa Individual 7.6.1.3. Individual pipe
7.6.1.3.1. Pipa Individual dapat diangkat secara 7.6.1.3.1. Individual Pipe may be lifted manually or
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
saat pengangkatan.
7.6.1.7.5. Untuk mencegah kerusakan coating pipa, 7.6.1.7.5. To prevent coating damage, coated
bantalan penahan pipa tegak lurus yang rectangular restrain pad shall be installed
telah dilapisi harus dipasang secara correctly.
tepat.
7.6.2. Hal-hal khusus 7.6.1. Special precautions
7.6.2.1. Pipa mungkin akan tergelincir ketika Pipa 7.6.2.1. Pipes are likely to roll when the Bundle is
yang Terikat rusak ikatannya. Oleh broken down for use. Therefore, care
karena itu, Pipa yang Terikat harus shall be taken and the Bundles shall be
diletakkan pada tempat yang sesuai atau placed in a suitable frame or post pallet
pada tiang bantalan penahan pipa (post before the strapping is cut.
pallet) sebelum sabuk ikatan dilepas.
7.6.2.2. Bantalan penahan pipa tegak lurus harus 7.6.2.2. The pallet restraining uprights shall be
dipasang secara tepat untuk mencegah suitably padded to prevent any damage
kerusakan pada coating pipa. to the pipe coating.
kayu atau bahan lainnya yang sesuai padded wooden wedges or other suitable
harus digunakan. means.
berbentuk busur (cradle) atau ganjalan secured to the lorry platform and manila
papan kayu yang kuat dan setiap lapisan bag or soft material. The pipes above
selanjutnya dilapisi manila bag atau shall rest between them as shown in
material lunak. Pipa di atasnya harus Attachment Figure 7.5. Padding shall be
dijajarkan seperti terlihat pada Lampiran placed between the pipes to separate
Gambar 7.5. Padding harus ditempatkan them and prevent chafing.
di antara pipa sebagai pemisah dan
berguna untuk mencegah gesekan.
7.7.3.3. Pemuatan berbentuk segi-empat 7.7.3.3. Rectangular loading (Attachment Figure
(Lampiran Gambar 7.7b), umumnya 7.7b), normally used for pipe with
digunakan untuk pipa dengan diameter nominal diameter not exceeding 150 mm
150 mm (6 inci) ke bawah. Bantalan (6 inches). Either profiled cradles or
berbentuk busur atau bantalan kayu yang broad wooden battens shall be placed
cukup lebar harus ditempatkan di antara between each layer of pipes. In the case
masing-masing lapisan tumpukan pipa. of broad wooden battens, the layers shall
Dalam hal menggunakan bantalan kayu be secured with broad wooden wedges.
yang lebar atau bantalan lunak, lapisan
tumpukan pipa harus diberi stopper
terbuat dari kayu agar stabil.
7.7.3.4. Pipa tidak boleh ditumpuk melebihi empat 7.7.3.4. The pipe shall not be racked more than
(4) lapis tumpukan atau maksimum 3 m four (4) layers or a maximum of 3 m in
tingginya atau atas dasar persetujuan height or otherwise approved by PGN.
dari PGN.
7.7.3.5. Lampiran Tabel 7.1 memberi 7.7.3.5. Attachment Table 7.1 gives
rekomendasi secara umum metoda recommendation in general for loading
pemuatan pipa berdasarkan diameter. method of pipe based on diameter.
7.7.3.6. Kehati-hatian dalam memuat pipa harus 7.7.3.6. Attention shall be taken to load pipes so
diperhatikan untuk menjaga that stability is ensured especially under
kestabilannya terutama dalam abnormal road conditions, such as may
transportasi pipa pada kondisi jalan be encountered in temporary pipe
dengan permukaan yang tidak rata, dumps.
seperti halnya dijumpai pada tempat
penyimpanan pipa sementara.
7.7.4. Beban Gandar 7.7.4. Axle Loads
7.7.4.1. Penggunaan kendaraan angkut harus 7.7.4.1. The use of transport vehicles shall be in
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
sesuai dengan kelas jalan yang accordance with the class of road listed
tercantum dalam Lampiran 2 PP No. 43 in Annex 2 of PP No. 43 Tahun 1993, as
Tahun 1993, sebagai berikut : follows :
7.7.4.1.1. Jalan kelas I, yaitu jalan arteri 7.7.4.1.1. Road Class I, is artery road which can be
yang dapat dilalui kendaraan bermotor through by vehicle including the load with
maximum width 2,500 mm, maximum
termasuk muatan dengan ukuran lebar length18,000 mm, the heaviest load per
tidak melebihi 2.500 mm, ukuran axle which permitted is more than 10 ton.
panjang tidak melebihi 18.000 mm,
dan muatan sumbu terberat yang
diizinkan lebih besar dari 10 ton.
7.7.4.1.2. Jalan kelas II, yaitu jalan arteri yang 7.7.4.1.2. Road Class II, is artery road which can
dapat dilalui kendaraan bermotor be through by vehicle including theload
termasuk muatan dengan ukuran lebar with maximum width 2,500 mm,
tidak melebihi 2.500 mm, ukuran panjang maximum length 18,000 mm, the
tidak melebihi 18.000 mm, dan muatan heaviest load per axle which permitted is
sumbu terberat yang diizinkan 10 ton. 10 ton.
7.7.4.1.3. Jalan kelas IIIA, yaitu jalan arteri atau 7.7.4.1.3. Road Class IIIA, is artery or collector
kolektor yang dapat dilalui kendaraan road which can be through by vehicle
bermotor termasuk muatan dengan including the load with maximum width
ukuran lebar tidak melebihi 2.500 mm, 2,500 mm, maximum length 18,000 mm,
ukuran panjang tidak melebihi 18.000 and the heaviest load per axle which
mm, dan muatan sumbu terberat yang permitted is 8 ton.
diizinkan 8 ton.
7.7.4.1.4. Jalan kelas IIIB, yaitu jalan kolektor yang 7.7.4.1.4. Road Class IIIB, is collector road which
dapat dilalui kendaraan bermotor can be through by vehicle including the
termasuk muatan dengan ukuran lebar load with maximum width 2,500 mm,
tidak melebihi 2.500 mm, ukuran panjang maximum length 12,000 mm, and the
tidak melebihi 12.000 mm, dan muatan heaviest load per axle which permitted is
sumbu terberat yang diizinkan 8 ton. 8 ton.
7.7.4.1.5. Jalan kelas IIIC, yaitu jalan lokal yang 7.7.4.1.5. Road Class IIIC, is local road which can
dapat dilalui kendaraan bermotor be through by vehicle including the load
termasuk muatan dengan ukuran lebar with maximum width 2,100 mm,
tidak melebihi 2.100 mm, ukuran panjang maximum length 9,000 mm, and the
tidak melebihi 9.000 mm, dan muatan heaviest load per axle which permitted is
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
dan keamanan pada saat pengambilan safety when it is loaded. In the case of
pipa. Dalam hal penumpukan Coated Coated Pipe, higher stacks will also
Pipe, tumpukan yang lebih tinggi juga require additional bearers.
memerlukan tambahan bantalan.
7.8.7. Tempat penyimpanan terbuka 7.8.7. Non-covered areas
Pipa dapat disimpan di lapangan terbuka Line pipe may be stored in the open area
dalam posisi horizontal, baik di gudang in a horizontal position, either at the
maupun di area konstruksi. Hal-hal lain depot or on site. Attention should be
yang perlu diperhatikan adalah: taken including:
7.8.7.1. Bantalan kayu harus ditempatkan untuk 7.8.7.1. Wooden battens shall be laid to raise
meninggikan elevasi pipa terhadap tanah. pipes off the ground.
7.8.7.2. Perlindungan dari sinar matahari 7.8.7.2. Protection from direct sunlight.
langsung.
7.8.7.3. Penggunaan coating anti korosi terhadap 7.8.7.3. The provision of a suitable anti-corrosion
soket yang dipasang pada ujung pipa. coating applied to screwed or socketed
ends.
7.8.7.4. Perhatian khusus harus diberikan 7.8.7.4. Consideration shall be given to the type
terhadap jenis coating dan perkiraan of coating and the maximum anticipated
suhu ambien maksimum manakala akan ambient temperature when designing the
menentukan ketinggian dari tumpukan permissible stack height.
pipa yang diizinkan.
7.8.8. Pipa harus ditempatkan di dalam 7.8.8. Pipe shall be retained in storage for
penyimpanan dalam waktu sesingkat period as short as possible and the
mungkin dan prosedur pengeluaran pipa procedure of pipe outflow from the
tersebut dari tempat penyimpanan harus storage shall follow rotation principle.
mengikuti prinsip rotasi.
7.8.9. Perlakuan khusus diperlukan manakala 7.8.9. Special precautions should be necessary
pipa tersebut akan disimpan untuk if it is expected that pipe will be stored for
periode yang lebih panjang. longer periods.
7.8.10. Penyimpanan coated pipe dalam periode 7.8.10. Storage of coated pipe over an longer
lama, terutama di lingkungan tropis, period, especially in the tropical
dapat menyebabkan kerusakan ujung environment, can lead to deterioration of
pipa baja dan coating-nya, undercutting steel pipe ends and coatings,
atau bahkan menyebabkan end undercutting or even causing end
disbondment lapisan isolasi eksternal disbondment of external
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
FBE/3LPE/3LPP. FBE/3LPE/3LPP.
7.8.11. Berbagai metode pelindung ujung pipa 7.8.11. Various temporary pipe end protective
sementara dapat digunakan untuk methods can be used to mitigate the
mengurangi dampak negatif dari negative impact of pipe storage over long
penyimpanan pipa dalam waktu lama. periods. The methods were: Vapor
Metode perlindungan tersebut adalah: Phase Corrosion Inhibitor (VpCl); Vapor
Vapor Phase Corrosion Inhibitor (VpCl); Corrosion Inhibitor (VCI) shrink wrap;
Vapor Corrosion Inhibitor (VCI) shrink Heat Shrinkable Wrap Sleeve (HSS
wrap; Heat Shrinkable Wrap Sleeve (HSS wrap); End Seal Tape; Peelable Varnish;
wrap); End Seal Tape; Peelable Varnish; and Water Displacement Oil.
dan Water Displacement Oil.
7.8.12. Ujung-ujung pipa harus diberi penutup. 7.8.12. Pipe ends shall be covered with layers.
7.8.13. Valve dan Instrument lainnya harus 7.8.13. Valve and other Instrument shall be
disimpan di dalam ruangan yang stored in temperature controllable room.
temperaturnya bisa dikontrol dengan baik
7.8.14. Material stainless steel dan sejenisnya 7.8.14. Stainless steel and similar material shall
harus dipisahkan dengan material be separated with carbon material.
carbon. Penyimpanan harus pada Storage shall be in uncorrosive
lingkungan yang tidak korosif dan jauh environment and far away from river
dari aliran sungai atau laut yang stream or sea that cause corrosion.
mengakibatkan korosi.
Lampiran / Attachment
Note:
a. Three additional bearers and pads shall be used for the bottom tier only when bare, epoxy coated or
Painted Pipe is stacked on hard standings.
b. The density of steel is assumed as 7850 kg/m3. For coal tar Coated Pipe add 15% to above weights.
For plastics clad pipes add 10% to above weights.
Reference : AASHTO
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Gambar 7.5 / Figure 7.5 - Road vehicle with pipes in pyramid loading configuration
Reference : IGE/TD/6, 1989
Gambar 7.6 / Figure 7.6 - Road vehicle with pipes in rectangular loading configuration
Reference : IGE/TD/6, 1989
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
harus sesuai dengan peruntukkan ditinjau accordance with the placement plan
dari lokasi, ketebalan, jenis coating, dll. based on location, thickness, type of
coating, etc.
8.5.6. Peralatan angkat dan angkut yang 8.5.6. Lifting and transport equipment
berpotensi bahaya harus dipastikan layak potentially dangerous shall be ensured
digunakan. properly use.
8.5.7. Rambu-rambu harus ditempatkan 8.5.7. Warning Signs shall be placed properly
sedemikian rupa pada lokasi penjajaran on line pipe stringing area as a warning
pipa sebagai peringatan dan pembatas and barrier of unauthorized persons.
dari orang yang tidak berkepentingan.
8.5.8. Prosedur keselamatan dan kesehatan 8.5.8. Safety procedure during pipe hauling and
pada pengangkutan dan penjajaran pipa stringing shall comply with PGN’s
harus mengacu pada Dokumen Pedoman Pedoman Keselamatan, Kesehatan
Keselamatan, Kesehatan Kerja, Kerja, Pengamanan, dan Pengelolaan
Pengamanan, dan Pengelolaan Lingkungan serta Energi (K3P2L-E)
Lingkungan serta Energi (K3P2L-E) PGN. Document.
8.6. Prosedur Pengangkutan dan 8.6. Procedure for Hauling and Stringing
Penjajaran Pipa of Line Pipe
8.6.1. Pelaksana Pekerjaan bertanggungjawab 8.6.1. The Work Executor shall be responsible
untuk memperoleh surat izin dan otorisasi for obtaining hauling permits and
dari instansi terkait dalam izin authorizations from the related
pengangkutan. authorities.
8.6.2. Semua rute jalan yang dilalui, jembatan 8.6.2. All roads, bridges and other
dan infrastruktur transportasi lainnya transportation infrastructure being
harus dipastikan mampu menahan beban crossed shall be ensured that are
dan dimensi peralatan pengangkut pipa. capable of handling transportation loads
and dimensions.
8.6.3. Material pipa atau fitting harus diperiksa 8.6.3. Pipe and fittings shall be inspected and
dan dicatat spesifikasi, rating dan class recorded for the specification, rating and
serta kondisinya terlebih dahulu sebelum class before lifting.
diangkat ke kendaraan pengangkut.
8.6.4. Hanya sabuk pegangan dan pengangkat 8.6.4. Only approved pipe end hooks and lifting
pipa yang disetujui dan yang tidak belt which will not damage bevels, shall
menyebabkan kerusakan pada bevel be used for lifting line pipe.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
yang terbuat dari material yang tidak non harmful material to prevent damage
merusak coating pipa dengan ketinggian to the coating at minimum 15 cm high
minimum 15 cm dari permukaan tanah. above the soil surface.
8.6.15. Ujung pipa harus dilindungi dengan bevel 8.6.15. End pipes shall be fitted with bevel
protectors dan plastic insert cap. protectors and plastic insert cap.
8.6.16. Dalam hal terdapat perbedaan antara 8.6.16. In case of discrepancy between the
alignment sheet dengan aktual alignment sheet and the actual Stringing,
Penjajaran di lapangan, alignment sheet it shall be proposed to revise alignment
harus ditinjau kembali untuk mendapat sheet for PGN approval.
persetujuan dari PGN.
8.6.17. Setiap perubahan harus dicatat sesuai 8.6.17. Each revision shall be recorded in
dengan prosedur perubahan catatan di accordance with the field change notice
lapangan. procedure.
BAB IX / SECTION IX
PEKERJAAN GALIAN PIPA / PIPE TRENCH EXCAVATION
oleh instansi terkait dan memenuhi authorities with all safety constraints
semua persyaratan keselamatan kerja. being fulfilled.
9.6.2.8. Di sekitar Galian yang terbuka harus 9.6.2.8. The barricades shall be provided around
dipasang barikade untuk menghindari the open trench to protect hazard for the
terjadinya bahaya kecelakaan bagi orang people cross the area.
yang melintasi lokasi tersebut.
9.6.2.9. Untuk daerah yang rawan longsor, pada 9.6.2.9. At the landslide area, slope of the trench
sisi Galian harus diperkeras atau shall be adequately batter or shored to
dipasangi penahan agar tidak longsor. avoid slippage of the trench walls. Type
Jenis penahan longsor dapat berupa of landslide protection can be shielding,
shielding, shoring atau penggunaan shoring or using cerucuk bamboo refer to
cerucuk bambu sesuai Lampiran Tabel Attachment Table 9.1 and Table 9.2. The
9.1 dan Tabel 9.2. Metode yang method used shall be comply with the
digunakan harus sesuai dengan standard technical requirement and
persyaratan teknis yang berlaku dan Volume II Typical Drawing.
Volume II Gambar Tipikal.
9.6.3. Kedalaman dan Lebar Galian 9.6.3. Depth and Width of Trench
9.6.3.1. Kedalaman galian adalah minimal 1.5 9.6.3.1. Minimum depth is 1.5 meters from top of
meter dari atas pipa. pipe.
9.6.3.2. Kedalaman galian minimal 1.2 meter dari 9.6.3.2. Minimum depth is 1.2 meters from top of
atas pipa untuk daerah kawasan industri pipe for the controlled industrial park
yang terkontrol. area.
9.6.3.3. Jika pipa akan dipasang di bawah jalan 9.6.3.3. If the pipes will be laid in the highway,
raya utama, rel kereta api dan sungai railway and river or irigation channel,
atau saluran irigasi, maka kedalaman minimum depth of trench shall be 2 m
minimal galian adalah 2 m dari from the top of pipe.
permukaan atas pipa.
9.6.3.4. Kedalaman galian minimal pada gorong- 9.6.3.4. Minimum depth in existing culvert or
gorong atau saluran air eksisting adalah drainage is 1.5 meters from top of
1.5 meter dari permukaan gorong-gorong existing culvert or drainage. If depth of
atau saluran air eksisting. Jika kedalaman culvert more than 1.5 meters, pipe shall
gorong-gorong melebihi 1.5 meter, maka be installed on 0.5 meters distance
pipa berada pada jarak 0.5 meter di beneath existing culvert or drainage.
bawah dasar gorong-gorong atau saluran
air.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
9.6.3.5. Lebar Galian pada setiap titik harus 9.6.3.5. The width of the trench at any point shall
cukup memberikan ruang untuk: be sufficient to provide adequate space
for:
(a). Penurunan Pipa ke dalam Galian. (a). Pipe Lowering In
(b). Penyambungan pipa di dalam Galian, (b). Pipeline tie-in in the ditch, if required.
jika diperlukan.
(c). Penimbunan dan pemadatan tanah (c). Backfilling and compacting soil at the
pada bagian sisi kanan dan kiri pipa. left and right side of pipe.
9.6.3.6. Lebar minimum dasar Galian adalah 9.6.3.6. The minimum width at the bottom of the
selebar diameter luar pipa ditambah 30 trench is equal with the pipe outside
cm. Lebar tersebut harus dibagi rata diameter plus 30 cm. The width shall be
antara dua sisi pipa equally distributed each side of the pipe.
9.6.3.7. Jika diperlukan pelindung beton pada 9.6.3.7. If the concrete slabs is required at the
kedua sisi dinding Galian, lebar minimum trench walls, the minimum width of trench
Galian harus ditambah sebesar 60 cm di shall be added for 60 cm excluded of
luar diameter pipa. Lebar tambahan outside diameter of pipe. The additional
tersebut harus dibagi rata antara dua sisi width shall be equally distributed each
pipa. side of the pipe.
9.6.3.8. Jika persyaratan kedalaman minimum 9.6.3.8. Where the minimum requirement of
tidak dapat dipenuhi karena adanya depth can not be achieved due to
substruktur yang telah terpasang atau jika existing substructure or if external load is
beban dari luar sangat besar, pipa harus excessive, the pipe shall be protected to
dilindungi untuk mampu menahan beban withstand any such anticipated external
tersebut dengan menambah kekuatannya load such as appropriately strengthened
secara memadai sesuai dengan as per PGN approval.
persetujuan PGN.
9.6.3.9. Jika pipa akan dipasang di lokasi dimana 9.6.3.9. If the pipes will be laid in the area where
akan ada pekerjaan pembuatan saluran a deep drainage work may be carried out
air di masa yang akan datang, perlu in the future, consideration shall be given
dipertimbangkan untuk menambah to increasing the depth trench as
kedalaman galian. appropriate.
9.6.3.10. Penggalian pada area yang diperkirakan 9.6.3.10. Trenching in the area that is expected to
merupakan lokasi yang keras (daerah be hard (rock area) shall be avoided as
yang berbatu-batu) sebisa mungkin harus far as possible.
dihindari.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
9.6.3.11. Persyaratan untuk pembuatan Galian 9.6.3.11. Requirement for trenching in the crossing
pada daerah perlintasan mengacu pada area shall be in accordance with this
panduan ini. guidance.
9.6.3.12. Gambar detail dimensi (lebar dan 9.6.3.12. Detail drawing of trench dimension (width
kedalaman) Galian pipa baja ditunjukkan and depth) of steel pipe is shown in
pada Volume II Gambar Tipikal. Volume II Typical Drawing.
9.6.4. Dasar Galian 9.6.4. Trench Bottom
9.6.4.1. Dasar Galian harus diratakan dan harus 9.6.4.1. The trench bottom shall be trimmed to
bersih dari akar tanaman, kayu, batu, provide uniform bedding for the pipe and
bahan-bahan dari logam, gundukan tanah shall be free from any debris such as root
atau material lain yang bisa merusak pipa of tree, wood, stone, metals, clods of soil
atau coating-nya. Seluruh Galian harus or other material that may damage the
diperiksa sebelum pipa diturunkan. pipe or the coating. The trench shall be
check before installation of the pipe.
9.6.4.2. Pada daerah berbatu atau dimana dasar 9.6.4.2. In the rock area or where the trench
Galian bisa menyebabkan kerusakan bottom is likely to cause damage the pipe
pipa atau coating-nya, kedalaman Galian or the coating, the trench shall be
ditambah sebesar 150 mm. Penambahan excavated to an additional 150 mm in
kedalaman tersebut harus ditambahkan depth. Additional depth to the trench
pasir. bottom shall be added sand.
9.6.4.3. Sebelum pemasangan pipa, kondisi 9.6.4.3. Before the installation of the pipe, the
Galian harus bebas dari genangan air. trench shall be free from flood.
9.6.5. Material Penggalian 9.6.5. Excavated Material
9.6.5.1. Material yang berasal dari permukaan 9.6.5.1. The surface material shall be kept
harus dipisahkan dengan sub-soil (tanah separate from the sub-soil.
bagian dalam).
9.6.5.2. Jika tanah galian ditumpuk di dalam 9.6.5.2. If the soil is to be stacked in the drain,
saluran air, saluran harus tetap suitable channels shall be left for surface
disediakan untuk mengalirnya air water drainage. Where condition is
permukaan. Jika kondisi mengizinkan, acceptable, the soil shall be stacked as a
tanah harus ditumpuk sebagai pembatas protective barrier against the traffic.
yang melindungi lokasi pekerjaan dari lalu
lintas.
9.6.5.3. Pada semua kasus, material Galian harus 9.6.5.3. In all cases, excavated material shall be
ditumpuk sehingga tidak mengganggu stacked to avoid nuisance and
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Lampiran/ Attachment
Keterangan:
Sloping : Jenis proteksi galian yang berupa sudut kemiringan galian.
Shoring : Jenis proteksi galian yang berupa penahan tanah dari material papan kayu, dolken,
anyaman bambu, pelat besi atau steel pile.
Shielding : Jenis proteksi galian yang berupa besi pelat baja yang dilas ke kerangka baja
Desain Khusus : Metode perlindungan di desain khusus sesuai oleh seorang sarjana teknik sipil dan
ahli tanah (Misalnya menggunakan sheet pile).
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Sloping
Shoring
Shielding
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
BAB X / SECTION X
PENGELASAN / WELDING
10.3.20. WPS adalah Spesifikasi Prosedur 10.3.20. WPS is Welding Procedure Specification
Pengelasan.
10.3.21. Zona Terpengaruhi Panas (HAZ) adalah 10.3.21. Heat Affected Zone is area around the
area di sekitar sambungan las yang welded joint that both changes its
mengalami perubahan baik perubahan structure and chemically affected by
struktur maupun kimiawi akibat welding process heat.
dipengaruhi oleh panas dari proses
pengelasan.
10.5.10. Long radius elbow dapat dipotong dengan 10.5.10. Long radius elbow may be cut by
mengikuti ketentuan pada Lampiran Tabel following the provision in Attachment
10.1. Table 10.1.
10.5.11. Apabila kondisi cuaca seperti angin 10.5.11. If weather conditions such as high winds,
kencang, hujan dan hembusan pasir rain and blowing sands could affect the
dapat mempengaruhi kualitas quality of welds, adequate protection shall
Pengelasan, tindakan pengamanan yang be provided or work shall be stopped. End
cukup harus dilakukan atau pekerjaan caps shall be installed on the ends of
harus dihentikan. Pada saat jam kerja each pipe string at the end of the day’s
berakhir, end cap harus dipasang pada work to prevent the entrance of foreign
setiap ujung pipa untuk menghindari matter.
masuknya benda asing ke dalam pipa.
10.5.12. Sebelum melakukan pengelasan di dalam 10.5.12. Prior to any welding in or around a
dan sekitar struktur atau area yang structure or area containing gas facilities,
mengandung gas, pemeriksaan dan a thorough check shall be made to
pengawasan menyeluruh harus dilakukan determine the possible presence of
secara cermat untuk mengetahui ada combustible gas mixture. Welding will be
tidaknya campuran gas yang mudah done after safe conditions are indicated.
terbakar. Pengelasan dapat dilakukan
jika diyakini kondisi aman.
10.5.13. Material mudah terbakar dan meledak 10.5.13. Flammable and explosive material should
harus diletakkan jauh dari area be located away from the welding area.
pengelasan. Pelaksana Pekerja harus Work Executor shall provide Fire
menyediakan Alat Pemadam Api Ringan Extinguisher (APAR) at the welding
(APAR) pada lokasi pengelasan. location.
10.5.14. Pelaksana Pekerjaan harus 10.5.14. Work Executor shall prepare Job Safety
mempersiapkan Job Safety Analysis Analysis (JSA) and Permit to Work (PTW)
(JSA) dan Permit to Work (PTW) untuk for PGN approval.
persetujuan PGN.
10.5.15. Safety Induction harus dilaksanakan 10.5.15. Safety Induction shall be carried out prior
sebelum memulai pekerjaan. Seluruh to commence welding, and use of
personil terkait harus menggunakan Alat Personal Protective Equipment (PPE) for
Pelindung Diri (APD) minimum selama a minimum of work.
bekerja.
10.5.16. Prosedur keselamatan dan kesehatan 10.5.16. Health and safety procedure during
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
pada pekerjaan pengelasan harus welding activity shall comply with PGN’s
mengacu pada Dokumen Pedoman Pedoman Keselamatan, Kesehatan Kerja,
Keselamatan, Kesehatan Kerja, Pengamanan dan Pegelolaan Lingkungan
Pengamanan dan Pengelolaan serta Energi (K3P2L-E) Document.
Lingkungan serta Energi (K3P2L-E) PGN.
pengujian lengkap dengan catatan complete with their callibration records for
kalibrasi untuk mendapatkan hasil yang satisfactory completion of all the work.
memuaskan dari semua pekerjaan.
10.6.6. Daftar peralatan dan alat ukur yang 10.6.6. List of equipments and measuring
digunakan harus dibuat oleh Pelaksana equipments shall be prepared by Work
Pekerjaan dan diserahkan kepada PGN Executor and submitted to PGN as
sebagai informasi mengenai tipe information about type of equipment and
peralatan dan tanggal kedaluwarsa expired date of calibration certificate.
sertifikat kalibrasi.
keempat kuadran dari sambungan around the weld joint has been
pengelasan. completed.
10.10.12. Pada pengelasan dimana kedua pipa 10.10.12. For Welding with different wall thickness,
memiliki tebal yang berbeda, katup atau valves or fittings, machined transition
fitting, potongan transisi yang dibuat pieces shall be 1 : 4 or other as approved
harus 1 : 4 atau sesuai persetujuan PGN. by PGN.
10.10.13. Pemanasan awal pada pipa sebelum 10.10.13. Preheating of pipe prior to Welding shall
pengelasan harus dilakukan sesuai be perfomed in accordance with approved
dengan Spesifikasi Prosedur Pengelasan Welding Procedure Specification.
yang telah disetujui.
10.10.14. Untuk diameter pipa 12” dan lebih besar, 10.10.14. For pipe with 12” diameter and above,
minimum 2 (dua) orang Juru Las yang minimum 2 (two) Welder shall be perform
harus melakukan pengelasan, satu orang the welding, one Welder for each side of
Juru Las pada setiap sisi sambungan. the joint.
10.10.15. Tack weld harus dilakukan oleh Juru Las 10.10.15. Tack welds shall be made by qualified
yang terkualifikasi dan harus dilakukan Welders and shall be deposited in
sesuai dengan Spesifikasi Prosedur accordance with the Welding Procedure
Pengelasan. Specification
10.10.16. Arah pengelasan harus sesuai dengan 10.10.16. Welding progression shall be referring to
WPS yang telah disetujui. approved WPS.
10.10.17. Polarity pengelasan harus sesuai dengan 10.10.17. Welding polarity shall be refer to
WPS yang telah disetujui. approved WPS.
10.10.18. Hot pass harus diterapkan setelah root 10.10.18. The hot pass shall be applied after the
bead selesai sesuai dengan WPS. root bead is completed in accordance with
WPS.
10.10.19. Temperatur interpass tidak boleh melebihi 10.10.19. The interpass temperature shall not
temperatur interpass maksimum yang exceed maximum interpass temperature
diizinkan sesuai dengan Spesifikasi permited in accordance with approved
Prosedur Pengelasan yang telah disetujui. Welding Procedure Specification. if the
Jika temperatur turun hingga berada di temperature falls below the minimum
bawah temperatur pemanasan awal yang required preheat temperature, preheat
disyaratkan, pemanasan awal harus shall be done prior to continued welding.
dilakukan sebelum kembali melanjutkan Flame heating with cutting torches shall
pengelasan. Pemanasan menggunakan not be permitted.
cutting torches tidak diperkenankan.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
10.10.20. Setiap pass dari logam las harus 10.10.20. Each pass of weld metal shall be cleaned
dibersihkan dari slug atau fluks yang of slugs or flux remaining, using power
tersisa, menggunakan power tools bila tools where feasible, before a further pass
memungkinkan, sebelum pass berikutnya is applied. Visible defects such as slag
dilanjutkan. Cacat yang terlihat seperti cavities, cold laps, clusters of surface
slag cavities, cold laps, clusters of surface porosity, starts, stops, high points and
porosity, starts, stops, high points dan other deposition faults shall be removed
kesalahan deposisi lainnya harus by grinding.
dihilangkan dengan cara digerinda.
10.10.21. Selama pengelasan, semua parameter 10.10.21. During Welding, all welding parameter
pengelasan harus diperiksa secara rutin shall be checked regularly at least 1 time
minimal satu kali sehari. Hasil a day. The result of examinations shall be
pemeriksaan harus dicatat dalam laporan permanently recorded on welding
parameter pengelasan. Toleransi parameter report. The range tolerance of
parameter pengelasan harus berada di welding parameter shall be within the limit
dalam batasan Spesifikasi Prosedur of approved Welding Procedure
Pengelasan yang telah disetujui. Mesin Specification. The welding machine which
las yang berada di luar toleransi harus is out of tolerances shall be removed and
segera dipindahkan dan tidak not to be used.
diperbolehkan untuk digunakan.
10.10.22. Selama proses pengelasan, perlindungan 10.10.22. During the Welding process, care shall be
harus diberikan untuk melindungi coating taken to protect the coated pipe at either
pipa pada kedua sisi untuk mencegah side of the weld from damage due to weld
terjadinya kerusakan akibat percikan spatter.
bunga las.
10.10.23. Setidaknya 50% dari ketebalan 10.10.23. At least 50% of the weld joint thickness
sambungan las harus diselesaikan must be completed prior to leaving an
sebelum lasan ditinggalkan dalam keadan uncompleted weld for any reason.
belum selesai dengan alasan apapun.
10.10.24. Pengelasan yang tidak terselesaikan tidak 10.10.24. Uncompleted welding shall not be
boleh dilanjutkan pada keesokan harinya continued on the next day unless the
kecuali Spesifikasi Prosedur Pengelasan Welding Procedure Specification is
dikualifikasi untuk hal tersebut. qualified for that condition.
10.10.25. Jika sambungan pengelasan harus 10.10.25. If welding joint has to be cut out from the
dipotong dari section pipa, sambungan pipeline section, welding joint shall be cut
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
pengelasan harus dipotong dengan out with minimum length 2 inches from
panjang minimal 2 inci dari setiap sisi kaki either side of weld toe.
lasan.
10.10.26. Apabila diperlukan sebuah potongan pipa 10.10.26. If required a pup piece to be inserted into
untuk disisipkan pada section tersebut, the section, minimum length of pup piece
maka panjang minimal potongan pipa shall be 1.5 times pipe diameter.
tersebut harus 1.5 kali diameter pipa.
10.10.27. Pengujian terhadap kualitas produksi 10.10.27. Production test shall be carried out one
pengelasan di lapangan harus dilakukan test for the first kilometer, one test at tenth
satu kali untuk kilometer pertama, satu kilometer and there after every 50
kali pada kilometer kesepuluh dan setelah kilometer.
itu pada setiap 50 kilometer.
10.10.28. Pengujian terhadap kualitas produksi 10.10.28. Production test shall be carried out on
pengelasan harus dilakukan pada pipa service lines that are within one area and
dinas atau pipa servis yang berada di have accumulated length more than 1
dalam satu area dan memiliki akumulasi kilometer.
panjang lebih dari 1 kilometer.
10.10.29. Production Test harus diuji dengan 10.10.29. Production test shall be examined by
Pengujian Visual, Pengujian Tidak Visual Examination, Non-Destructive
Merusak dan Uji Merusak. Examination and destructive Test.
10.10.30. Apabila hasil dari Uji Merusak terhadap 10.10.30. If Destructive Test result of production
produksi pengelasan tidak memenuhi welding not comply with applicable Code /
ketentuan Code / Standard yang berlaku, Standard, then 2 (two) additional
maka 2 production test tambahan harus production test shall be taken from 2 (two)
diambil dari 2 sambungan lainnya yang other joints that welded by the same
dilas oleh juru las yang sama dengan welder who performed welding on the
yang melakukan pengelasan pada previous production test and that
production test sebelumnya dan joint additional joint will be specified by PGN. If
tambahan tersebut akan ditentukan oleh additional examination not aceptable,
PGN. Apabila pengujian tambahan Work Executor shall evaluate all activities
tersebut masih tidak memenuhi kriteria consist by welding include WPS, welder,
penerimaan, maka Pelaksana Pekerjaan welding inspector, material and welding
harus melakukan evaluasi terhadap production and responsible for all risk. In
seluruh kegiatan pengelasan meliputi the evaluation, the Work Executor shall
WPS, Juru Las, Inspektur Las, material record all welding parameter for each
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
dan hasil produksi pengelasan dan welding joint until the next production test.
bertanggung jawab terhadap segala
resiko yang terjadi. Dalam evaluasi,
Pelaksana Pekerjaan harus mencatat
semua parameter pengelasan setiap
sambungan pengelasaan sampai pada
pengambilan production test berikutnya.
disetujui. Lasan yang telah diperbaiki repaired weld shall be completely re-
harus diuji kembali menggunakan metode tested using applicable methods in
yang berlaku sesuai dengan Code / accordance with applicable Code /
Standard yang digunakan dan prosedur Standard and approval procedures.
yang telah disetujui.
Lampiran / Attachment
Tabel 10.1 / Table 10.1
Ketentuan Pemotongan Elbow Long Radius / Long Radius Elbow Cutting Requirements
BAB XI / SECTION XI
PENGUJIAN TIDAK MERUSAK / NON DESTRUCTIVE EXAMINATION
belakang ke depan. Untuk probe (US) forward. For the upstream (US) probe the
hulu/ upstream, elemen dinomori mulai elements are numbered from 1 to 60. For
dari 1 sampai 60. Untuk probe hilir/ the downstream probe they are numbered
downstream diberi nomor mulai 65 from 65 to 124.
sampai 124.
11.4.11. Focal law adalah seluruh set parameter 11.4.11. Focal law is the entire set of hardware
perangkat keras dan perangkat lunak and software parameters affecting the
yang mempengaruhi bidang sensitivitas acoustic sensitivity field of a phased-array
akustik dari unit pencarian phased-array, search unit, whether a pulse-echo or a
baik pulse-echo atau konfigurasi pitch- pitch-catch configuration. Within focal
catch. Dalam focus law, termasuk delay laws, there are included delay laws in
law dalam transmitter dan delay law pada transmitter and delay laws in receiver, as
receiver, serta apodization law, dan well as apodization laws, and element
element activation laws. activation laws.
11.4.12. Gate adalah bagian penting dari 11.4.12. Gate is the pertinent section of the
perjalanan beam ultrasonik dimana data ultrasonic beams travel where the data is
dikumpulkan dan dicatat. collected and recorded.
11.4.13. Indikator Kualitas Gambar (IQI) adalah 11.4.13. Image Quality Indicators (IQI) is wire
standar indikator kawat untuk mengukur indicator standard for measure image
kualitas gambar radiografi. quality of radiography.
11.4.14. Inspeksi Cairan Penetran (LPI) / 11.4.14. Liquid Penetrant Inspection (LPI) / Dye
Inspeksi Dye Penetran (DPI) atau penetrant inspection (DPI) or also called
disebut juga Pengujian Penetran (PT) penetrant testing (PT) is inspection
adalah metode pemeriksaan yang method used to locate surface-breaking
digunakan untuk menemukan cacat defects in all non-porous materials
permukaan di semua material non-porous (metals, plastics, or ceramics).
(logam, plastik, atau keramik).
11.4.15. Inspeksi Partikle Magnetik (MPI) adalah 11.4.15. Magnetic Particle Inspection (MPI) is
adalah metode pemeriksaan yang inspection method used to detect cracks
digunakan untuk menemukan keretakan and other discontinuities on the surface of
dan cacat permukaan pada material ferromagnetic material.
ferromagnetic.
11.4.16. Kecepatan adalah kecepatan akustik 11.4.16. Velocity is the acoustic velocity for the
untuk modus gelombang yang ditentukan. specified wave mode is indicated.
11.4.17. Manufaktur adalah pihak yang 11.4.17. Manufacturer is the party which produce
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
serangkaian tertentu elemen yang corrected for delay and refracted angle.
dikoreksi untuk delay dan sudut yang When used to refer to the beam
dibiaskan merupakan tampilan 2D. Ketika movement it refers to the set of focal laws
digunakan untuk acuan perpindahan that sweeps a defined range of angles
pancaran maka harus mengacu pada using the same set of elements.
serangkaian focal law yang menyapu
berbagai sudut yang didefinisikan
menggunakan serangkaian elemen yang
sama.
11.4.23. Pengelasan adalah penggabungan 11.4.23. Welding is joining pieces of suitable
material logam atau plastik, yang metals or plastics, usually by raising the
dilakukan dengan cara menaikan temperature at the joint so that the pieces
temperatur pada sambungan sehingga may be united by fusing or by forging or
material tersebut bersatu oleh peleburan under pressure, either with or without any
atau penempaan atau diberi tekanan, baik filler metal. The welding temperature may
dengan menggunakan atau tanpa diberi be attained by external heating, by
logam pengisi. Temperatur pengelasan passing an electric current through the
dapat diperoleh dengan pemanasan joint or by friction.
eksternal, dengan mengalirkan arus
elektrik melalui penyambungan atau
dengan gesekan.
11.4.24. Pengujian Tidak Merusak (NDE) adalah 11.4.24. Non Destructive Examination (NDE) is
metode pemeriksaan kelayakan dari methods of examination the soundness of
sambungan las tanpa menggunakan welded joints without using mechanical
kekuatan/ gaya mekanis. forces
11.4.25. Peta channel. Sebuah tampilan data 11.4.25. Map channel. An Ultrasonic data display
ultrasonik di mana scan-A ditampilkan in which the A scan is displayed as if
seolah-olah dilihat dari atas dalam format viewed from above in a type of B scan
scan-B. format.
11.4.26. Phased Array. Sebuah metode untuk 11.4.26. Phased array. A method of producing
memproduksi beberapa sudut probe dan multiple probe angles and wave forms
bentuk gelombang dari probe tunggal from a single probe containing multiple
yang berisi beberapa elemen yang elements fired in discrete sequences.
menembak urutan berlainan/ diskrit.
11.4.27. Probe adalah perangkat yang 11.4.27. Probe is the device that transmitted
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
amplitudo sinyal yang diterima dari signal amplitudes received from fixed
kedalaman tetap side-drilled holes (SDHs) depth side-drilled holes (SDHs) during S-
selama kalibrasi S-scan. Kompensasi ini scan calibration. The compensation is
biasanya dilakukan secara elektronik di typically performed electronically at
beberapa kedalaman. Perhatikan bahwa multiple depths. Note that there are
ada batasan teknis untuk ACG, yaitu, di technical limits to ACG, that is, beyond a
luar rentang sudut tertentu, kompensasi certain angular range, compensation is
tidak mungkin diterima. not possible.
11.4.35. Ultrasonik adalah metode untuk 11.4.35. Ultrasonic is a method of detecting
mendeteksi cacat las bawah permukaan subsurface welding defects or
atau diskontinuitas melalui suara discontinuities by means of ultrasonic
ultrasonik ditransmisikan ke permukaan sound transmitted to the welded surface.
yang dilas.
11.4.36. Yoke adalah alat seperti huruf U yang 11.4.36. Yoke is poles device look like letter U that
berfungsi sebagai kutub yang mengalirkan transfer the electric current to built up a
arus listrik untuk menimbulkan medan magnetic field in ferromagnetic test piece.
magnetik pada benda uji ferromagnetic.
11.4.37. Wave adalah modus propagasi baik 11.4.37. Wave is the mode of propagation and is
longitudinal atau geser. either longitudinal or shear.
testing at temperatures higher than 50 °C. testing at temperatures higher than 50 °C.
11.5.42. ISO 3452-6, Non-destructive testing – 11.5.42. ISO 3452-6, Non-destructive testing –
Penetrant testing – Part 6: Penetrant Penetrant testing – Part 6: Penetrant
testing at temperatures lower than 10 °C. testing at temperatures lower than 10 °C.
11.5.43. ISO 9934-1, Non-destructive testing – 11.5.43. ISO 9934-1, Non-destructive testing –
Magnetic particle testing – Part 1: General Magnetic particle testing – Part 1:
principles. General principles.
11.5.44. ISO 9934-2, Non-destructive testing – 11.5.44. ISO 9934-2, Non-destructive testing –
Magnetic particle testing – Part 2: Magnetic particle testing – Part 2:
Detection media. Detection media.
11.5.45. ISO 9934-3, Non-destructive testing – 11.5.45. ISO 9934-3, Non-destructive testing –
Magnetic particle testing – Part 3: Magnetic particle testing – Part 3:
Equipment. Equipment.
11.5.46. ISO 12706, Non-destructive testing – 11.5.46. ISO 12706, Non-destructive testing –
Penetrant testing – Vocabulary. Penetrant testing – Vocabulary.
11.5.47. ISO 17638, Non-destructive testing of 11.5.47. ISO 17638, Non-destructive testing of
welds – Magnetic particle testing. welds – Magnetic particle testing.
11.5.48. ISO 23277, Non-destructive testing of 11.5.48. ISO 23277, Non-destructive testing of
welds – Penetrant testing of welds – welds – Penetrant testing of welds –
Acceptance levels. Acceptance levels.
11.5.49. ISO 23279, Non-destructive testing of 11.5.49. ISO 23279, Non-destructive testing of
welds – Magnetic particle testing of welds welds – Magnetic particle testing of welds
– Acceptance levels. – Acceptance levels.
11.5.50. ISO/ IEC 17025, General Requirements 11.5.50. ISO/ IEC 17025, General Requirements
(for the competence of testing and (for the competence of testing and
calibration of laboratories) calibration of laboratories)
11.5.51. ISO 19232-1, Non Destructive Testing – 11.5.51. ISO 19232-1, Non Destructive Testing –
Imagge Quality of Radiographs – Part 1: Imagge Quality of Radiographs – Part 1:
Image Quality Indicator (Wire Type) – Image Quality Indicator (Wire Type) –
Determination of Image Quality Value. Determination of Image Quality Value.
11.5.52. Keputusan Direktur Jendral Minyak dan 11.5.52. Keputusan Direktur Jendral Minyak dan
Gas Bumi Nomor 84.K/38/DJM/1998 Gas Bumi Nomor 84.K/38/DJM/1998
tentang Pedoman Dan Tata Cara tentang Pedoman Dan Tata Cara
Pemeriksaan Keselamatan Kerja Atas Pemeriksaan Keselamatan Kerja Atas
Instalasi, Peralatan Dan Teknik Yang Instalasi, Peralatan Dan Teknik Yang
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
pengamatan lapangan.
11.6.10. Safety Induction harus dilaksanakan 11.6.10. Safety Induction shall be carried out prior
sebelum memulai Pengujian Tidak to commence Non Destructive
Merusak. Seluruh personil terkait harus Examination, and use of Personal
menggunakan Alat Pelindung Diri (APD) Protective Equipment (PPE) for a
minimum selama bekerja. minimum of work.
11.6.11. Pelaksana Pekerjaan harus 11.6.11. Work Executor shall prepare Job Safety
mempersiapkan Job Safety Analysis dan Analysis and work permit for PGN
Izin Kerja untuk persetujuan PGN. approval.
mampu melihat density film dalam viewing film densities within the range
rentang yang telah ditentukan. specified.
11.7.3.9. Pengujian Radiografi harus dilakukan 11.7.3.9. Radiography Examination shall be
menggunakan film dari jenis fine grain. performed using a fine grain film type.
11.7.3.10. Perusahaan NDE harus memastikan 11.7.3.10. NDE Company shall ensure the lifetime
masa pakai film yang akan digunakan of film not expired.
masih berlaku.
11.7.3.11. Uji tiosulfat harus dilakukan secara 11.7.3.11. Thiosulphate tests shall be performed at
berkala setiap 50 film untuk memastikan regular intervals every 50 film to ensure
kualitas film dapat disimpan sekurang- the quality of the film can be stored at
kurangnya selama 5 tahun. least for 5 years.
11.7.3.12. Interprestasi film radiografi harus 11.7.3.12. Interpretation of radiography film shall be
dilakukan pada kondisi yang kering. performed on dry conditions.
11.7.3.13. Perusahaan NDE harus menyediakan 11.7.3.13. NDE Company shall provide Protection
Petugas Proteksi Radiasi berikut of Radiation Personnel (PPR) include the
prosedur, untuk memastikan area kerja procedure to ensure the work area is in
dalam keadaan yang aman dan safe condition and equipped with a sign
dilengkapi dengan tanda ketika while Radiography Examination in
Pengujian Radiografi sedang progress.
berlangsung.
11.7.3.14. Sebelum melakukan Pengujian 11.7.3.14. Prior to performed Radiography
Radiografi, perusahaan NDE harus Examination, NDE company shall
melakukan demonstrasi penerapan demonstrate the application of procedure
prosedur dan peralatan untuk and equipment to ensure that the
memastikan bahwa peralatan yang equipment used is capable to produced
digunakan mampu menghasilkan film radiography film in accordance with
radiografi sesuai dengan standard dan applicable standard and specifications.
spesifikasi yang digunakan.
11.7.3.15. Semua radiografi harus bebas dari cacat 11.7.3.15. All radiographs shall be free from
mekanik, kimia, atau cacat lainnya mechanical, chemical, or other blemishes
sejauh tidak menutupi dan tidak to the extent that they do not mask and
membingungkan image diskontinuitas are not confused with the image of any
dalam area of interest dari obyek yang discontinuity in the area of interest of the
diradiografi. noda tersebut meliputi, object being radiographed. Such
namun tidak terbatas pada: blemishes include, but are not limited to:
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
- fogging; - fogging;
- cacat pengolahan seperti coretan, - processing defects such as streaks,
watermarks, atau noda kimia; watermarks, or chemical stains;
- goresan, sidik jari, keriting, kotoran, - scratches, finger marks, crimps,
tanda statis, noda; dirtiness, static marks, smudges;
- indikasi palsu yang disebabkan karena - false indications due to defective
layar yang rusak. screens.
11.7.3.16. Identifikasi Radiografi 11.7.3.16. Identification of Radiography
Identifikasi film harus mengacu kepada Film identification shall be refer to
ketentuan yang sudah disetujui oleh provisions approved by PGN, that give
PGN, yang memberikan informasi minimum information as following:
minimal sebagai berikut:
- Nama Proyek - Project Name
- Nama Pelaksana Pekerjaan - Work Executor Name
- Tanggal radiografi - Date of Radiography
- Code atau standard yang digunakan - Applicable codes or standards
- Proses pengelasan - Welding process
- Nomor sambungan - Joint number
- Identifikasi juru las - Welder Identification
- Spesifikasi material, diameter dan - Material specification, diameter and
ketebalan thickness
D = St / k D = St ⁄ k
Dimana: Where:
- D adalah jarak minimum, dalam inci - D is the minimum distance, in inches
(mm), antara sumber atau focal spot (mm), between the source or focal spot
dan sisi sumber dari obyek yang and the source side of the object being
diradiografi; radiographed;
- S adalah ukuran, dalam inci (mm), dari - S is the size, in inches (mm), of the
sumber efektif atau focal spot; effective source or focal spot;
- t adalah ketebalan lasan, dalam inci - t is the thickness of the weld, in inches
(mm), termasuk reinforcement, (mm), including reinforcement, plus the
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
ditambah jarak antara sisi film dari distance between the film side of the
lasan dan film; weld and the film;
- k adalah faktor unsharpness - k is the geometric unsharpness factor.
geometris. When t is determined for SWE/SWV and
Ketika t ditentukan untuk SWE/SWV dan DWE/SWV procedures, the thickness of
prosedur DWE/SWV, ketebalan dinding the single wall and its weld reinforcement
tunggal dan reinforcement las harus shall be used. When t is determined for
digunakan. Ketika t ditentukan untuk DWE/DWV procedures, the OD of the
prosedur DWE/DWV, OD lasan (yaitu weld (i.e. the OD of the pipe plus twice
OD pipa ditambah dua kali tinggi rata- the average height of the weld crown)
rata lasan) harus digunakan; k shall be used; k is defined as 0.02 inch
didefinisikan sebagai 0,02 inci (0,5 mm) (0.5 mm) for material with a thickness of
untuk material yang memiliki ketebalan less than or equal to 2.0 inches (50.8
kurang dari atau sama dengan 2,0 inci mm).
(50,8 mm).
11.7.5.4. Jenis IQI 11.7.5.4. Type of IQIs
IQI kawat yang digunakan harus IQIs shall conform to the requirements of
memenuhi persyaratan ASTM E747 atau either ASTM E747 or ISO 19232-1 wire
ISO 19232-1. Perusahaan NDE harus IQI. The NDE company shall define
menentukan jenis IQI (ASTM atau ISO) which type of IQI (ASTM or ISO) is to be
yang akan digunakan. IQI harus dibuat used. The IQI shall be made of a material
dari material yang apabila diradiografi that is radiographically similar to the
mirip dengan material yang dilas. material being welded.
11.7.5.5. Pemilihan IQI 11.7.5.5. Selection of IQIs
IQI harus terdiri dari suatu seri dari enam The IQI shall consist of either a series of
(6) kawat untuk IQI jenis kawat six (6) wires for ASTM E747 wire type or
berdasarkan ASTM E747 atau a series of seven (7) wires for ISO
serangkaian dari tujuh (7) kawat untuk 19232-1 wire type IQI, arranged in order
IQI jenis kawat berdasarkan ISO 19232- of increasing diameter. The essential
1, yang diameternya diatur semakin wire diameter to be used, based on the
membesar. Diameter kawat essential thickness of the weld is shown in
yang digunakan, berdasarkan tebal dari Attachment Table 11.1 for ASTM E747
lasan ditunjukkan pada Lampiran Tabel wire type IQI and Attachment Table 11.2
11.1 untuk IQI jenis kawat berdasarkan for ISO 19232-1 wire type IQI.
ASTM E747 dan Lampiran Tabel 11.2
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
penerapan prosedur dan peralatan untuk and equipment to ensure that the
memastikan bahwa peralatan yang equipment used is capable to detect
digunakan mampu mendeteksi weld imperfection in accordance with the
ketidaksempurnaan pada lasan sesuai standards and specifications used.
dengan standard dan spesifikasi yang
digunakan.
11.8.3.4. Peralatan yang akan digunakan untuk 11.8.3.4. Equipment to be used for Manual
Pengujian Ultrasonik Manual harus Ultrasonic Examination shall be
dilengkapi dengan presentasi tampilan equipped with digital DAC display
digital DAC dari kurva yang ditetapkan. presentation of user-defined curves.
ketidaksempurnaan.
mungkin tidak dapat mengatasi. Jika drill another hole at 1/2 and use the
hal ini terjadi, bor lubang lain yang 1/2 and 3/4 thickness reflectors for
terletak pada 1/2 dari ketebalan dan correction.
gunakan reflektor yang terletak pada
1/2 dan 3/4 dari ketebalan untuk
koreksi.
b. Kalibrasi Pancaran Sudut-Koreksi b. Angle-Beam Calibration—Correction
untuk pengujian dengan pancaran for angle-beam examination may be
sudut dapat ditentukan dengan determined by means of side-drilled
perantaraan reflektor side drilled hole hole reflectors at 1/4 and 3/4 of the
yang terletak pada 1/4 dan 3/4 dari thickness. The 1/2 thickness depth to
ketebalan. Side-drilled hole yang a side-drilled hole may be added to
terletak pada 1/2 ketebalan dapat the calibration or used alone at
ditambahkan untuk kalibrasi atau thicknesses less than 1 inch (25.4
digunakan pada ketebalan kurang mm).
dari 1 inci (25,4 mm).
11.8.5.6. Prosedur Pemeriksaan 11.8.5.6. Examination Procedures
a. Prosedur pengujian yang dianjurkan a. Examination procedures
untuk konfigurasi las yang rinci pada recommended for common weld
Lampiran Tabel 11.3. configurations are detailed in
Attachment Table 11.3.
b. Bila lebih dari satu teknik yang b. When more than one technique is
diberikan untuk geometri atau given for a particular weld geometry
ketebalan lasan tertentu atau or thickness or both, the first
keduanya, teknik pertama dianggap technique is considered primary,
primer, sedangkan teknik tambahan while the additional techniques are
pelengkap dan dapat ditambahkan supplementary and may be added to
ke prosedur pemeriksaan. the inspection procedure.
11.8.5.7. Demonstrasi Prosedur Pengujian 11.8.5.7. Demonstration of the Testing Procedure
Sebelum prosedur disetujui, PGN harus Prior to final written approval, PGN shall
mensyaratkan Perusahaan NDE untuk require NDE Company to demonstrate
mendemonstrasikan penerapan prosedur the application of the procedure and
dan sistem ultrasonik. Laporan ultrasonic systems. A procedure
demonstrasi prosedur tersebutberikut demonstration report and the results
hasilnya harus dibuat dan shall be generated and documented. The
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
11.9. Pengujian Ultrasonik Phased Array 11.9. Phased Array Ultrasonic Examination
11.9.1. Tujuan 11.9.1. Objective
Memberikan panduan lengkap untuk Providing complete guidance to carry out
melaksanakan kegiatan Pengujian the Phased-Array Ultrasonic Examination
Ultrasonik Phased Array pada konstruksi activities for steel pipe construction
pipa baja sistem jaringan pipa distribusi natural gas distribution and Supporting
dan Fasilitas Penunjangnya. Facility.
11.9.5. Teknik Ultrasonik Phased Array 11.9.5. Ultrasonic Phased Array Technique
11.9.5.1. Teknik UT-Phased Array adalah proses 11.9.5.1. The UT-Phased Array Technique is a
dimana data UT dihasilkan dengan cara process wherein UT data are generated
mengendalikan kenaikan variasi dari by controlled incremental variation of the
pancaran sudut ultrasonik dalam arah ultrasonic beam angle in the azimuthal or
azimut atau arah lateral saat memindai lateral direction while scanning the object
obyek di bawah kondisi pemeriksaan. under examination. This process offers an
Proses ini menawarkan keuntungan yang advantage over processes using
lebih banyak dibandingkan proses pada conventional search units with fixed beam
unit pemindai konvensional yang angles because it acquires considerably
menggunakan pancaran sudut yang tetap more information about the reflecting
karena dipertimbangkan dapat object by using more aspect angles in
memperoleh informasi yang lebih banyak direct impingement. Each phased array
mengenai obyek yang dipantulkan search unit consists of a series of
dengan menggunakan aspek sudut yang individually wired transducer elements on
bertubrukan secara langsung lebih a wedge that are activated separately
banyak. Setiap unit pemindai phased using a pre-selectable time delay pattern.
array terdiri dari serangkaian kabel pada With a linear delay time between the
elemen transduser secara individual pada transmitter pulses, an inclined sound field
wedge yang diaktifkan secara terpisah is generated. Varying the angle of
menggunakan pemilihan pola time delay. refraction requires a variation of the linear
Dengan penundaan waktu linier antara distribution of the delay time. Depending
pulsa transmitter, maka kemiringan on the search unit design, it is possible to
medan suara dapat dihasilkan. Sudut bias electronically vary either the angle of
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
yang bervariasi membutuhkan variasi incidence or the lateral /skew angle. In the
distribusi linier dari penundaan waktu. receiving mode, acoustic energy is
Tergantung pada desain unit pemindai, received by the elements and the signals
secara elektronik sangat memungkinkan undergo a summation process utilizing the
terjadi variasi pada sudut datang atau same time delay pattern as was used
sudut lateral/ kemiringan. Pada mode during transmission. Flaw sizing is
penerimaan, energi akustik yang diterima normally performed by measuring the
oleh elemen dan sinyal yang menjalani vertical extent (in the case of cracks) or
proses penjumlahan memanfaatkan pola the cross-sectional distance (in the case
time delay yang sama seperti yang of volumetric /planar flaws) at the 6 dB
digunakan selama transmisi. Pengukuran levels once the flaw has been isolated and
cacat biasanya dilakukan dengan the imagenormalized. Tandem sizing and
mengukur tingkat vertikal (dalam kasus analysis uses techniques similar to pulse-
retak) atau jarak cross-sectional (dalam echo but provides images that are easier
kasus cacat volumetrik/ planar) pada 6 to interpret since specular reflection is
tingkat dB setelah cacat telah diisolasi used for defects oriented perpendicular to
dan gambar dinormalisasi. Pengukuran the surface. For cracks and planar
dan analisa tandem menggunakan teknik defects, the result should be verified using
yang serupa dengan pulse-echo namun crack-tip-diffraction signals from the upper
memberikan gambar yang lebih mudah and lower ends of the flaw, since the
untuk diinterprestasikan karena refleksi phased array approach with tomographic
specular yang digunakan untuk arah reconstruction is most sensitive to flaw tip
cacat yang tegak lurus ke arah indications and is able to give a clear
permukaan. Untuk retak dan cacat planar, reconstruction image of these refraction
hasilnya harus diverifikasi menggunakan phenomena. As with other techniques, the
sinyal crack-tip-diffraction pada ujung phased array process assumes isotropic
atas dan bawah dari cacat, karena and homogeneous material whose
pendekatan phased array dengan acoustic velocity is constant and
rekonstruksi tomografi paling sensitif accurately known. Sectorial scans (S-
terhadap indikasi cacat tip dan mampu scans) with phased array provides a fan-
memberikan gambar rekonstruksi yang like series of beam angles from a single
jelas dari fenomena pembiasan ini. emission point that can cover part or all of
Seperti pada teknik lain, proses phased a weld, depending on search unit size,
array mengasumsikan material bersifat joint geometry, and section thickness.
isotropik dan homogen yang kecepatan Such a series of beam angles can
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
data komputer dan dapat disimpan ke file acquisition systems and may be stored to
komputer. computer files.
11.9.6.5. Meskipun sebagian besar sistem 11.9.6.5. Although most systems use piezo-electric
menggunakan material piezo-electric materials for the elements, Electro-
untuk elemen, perangkat Electro- Magnetic Acoustic Transducer (EMAT)
Magnetic Acoustic Transducer (EMAT) devices have also been designed and
juga telah dirancang dan dibangun built using phased-array instrumentation.
dengan menggunakan peralatan phased-
array.
11.9.6.6. Pada umumnya sistem phased-array 11.9.6.6. Most phased-array systems can use
dapat menggunakan encoder untuk encoders for automated and semi-
pemindaian otomatis dan semi-otomatis. automated scanning.
11.9.6.7. Side-drilled holes yang digunakan 11.9.6.7. Side-drilled holes used as targets in this
sebagai target harus memiliki diameter document should have diameters less
kurang dari panjang gelombang pulsa than the wavelength of the pulse being
yang dinilai dan cukup panjang untuk assessed and long enough to avoid end
dapat dihindari dari efek akhir yang dapat effects from causing interfering signals.
menyebabkan sinyal terpengaruhi. Pada This will typically be accomplished when
umumnya dapat dicapai bila diameter the hole diameter is between about 1.5
lubang berada di antara 1,5 mm dan 2,5 mm and 2.5 mm and 20 mm to 25 mm in
mm dan panjangnya 20 mm sampai 25 length.
mm.
coba harus disertakan sepanjang sumbu displaced along the other axis.
yang satu dan jarak perpindahan
sepanjang sumbu yang lain.
A.1.1.5. Tampilan data untuk pemindaian A.1.1.5. Data display for an electronic scan using a
eklektronik yang menggunakan probe phased-array probe mounted on a wedge
phased-array yang dipasangkan pada can be similarly made using simple
wedge dapat dibuat serupa orthogonal representation of time versus
menggunakan penggambaran ortogonal displacement or it can be angle corrected.
sederhana dari perbandingan terbalik
antara waktu dan perpindahan, atau
dapat pula sudutnya diperbaiki.
A.1.1.6. Resolusi sepanjang poros perpindahan A.1.1.6. Resolution along the displacement axis
akan menjadi fungsi dari rentang jarak will be a function of the step size of the
langkah pemindaian elektronik, atau, bila electronic scan or, if the scan uses an
pemindaian menggunakan sebuah fitur encoded mechanical fixture the resolution
mekanis yang telah diterjemahkan ke will be dependent on the encoder step-
dalam kode, resolusi tersebut akan size used for sampling.
bergantung pada rentang jarak langkah
encoder yang digunakan untuk sampling.
A.1.1.7. Resolusi sepanjang poros pancaran akan A.1.1.7. Resolution along the beam axis will be a
menjadi fungsi dari interval diantara jalur- function of the intervals between the
jalur target. Pada pancaran yang memilikii target paths. For highly focused beams it
kemampuan fokus yang tinggi, sangat may be desirable to have small
diperlukan adanya sedikit selisih antara differences between the sound paths to
jalur suara menuju ke jalur target. the target paths (for example, 1 mm or 2
(misalnya, 1 mm atau 2 mm). mm).
A.1.1.8. Penetapan profil pancaran dalam bidang A.1.1.8. Beam profiling in the passive plane can
pasif juga dapat dilakukan. Bidang pasif also be made. The passive plane in a
dalam probe array linier tegak-lurus linear-array probe is perpendicular to the
terhadap bidang aktif dan mengacu pada active plane and refers to the plane in
bidang yang tidak memiliki pengendalian which no beam steering is possible by
pancaran dari efek yang bertahap. phasing effects. Beam profiling in the
Penetapan profil pancaran dengan arah passive direction will require mechanical
pasif akan membutuhkan pemindaian scanning.
mekanik.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
A.1.1.9. Kumpulan bentuk gelombang dari sinyal A.1.1.9. Wave form collection of signals using a
yang menggunakan perpaduan combination of electronic scanning in the
pemindaian elektronik dalam bidang aktif active plane and encoded mechanical
dan gerakan mekanis yang telah motion in the passive plane provides data
diterjemahkan ke dalam kode dalam that can be projection-corrected to provide
bidang pasif menyediakan data yang beam dimensions in the passive plane.
dapat dikoreksi proyeksinya untuk This technique uses a corner reflection
menyediakan dimensi pancaran dalam from an end-drilled hole at depths
bidang pasif. Teknik ini menggunakan established by a series of steps.
pantulan sudut dari sebuah end-drilled
hole dengan kedalaman yang diperoleh
dari serangkaian tahap.
A.1.1.10. Sebuah lubang yang menembus dapat A.1.1.10. A through hole may be arranged
diatur tegak-lurus terhadap pembelokan perpendicular to the required refracted
sudut yang dibutuhkan untuk memberikan angle to provide a continuous transition of
transisi yang berkesinambungan dari path length to the target.
panjang jalur menuju target.
A.1.1.11. Sebuah C-scan terproyeksi dapat A.1.1.11. A projected C-scan can be used to size
digunakan untuk mengukur pancaran the beam based on either color or
berdasarkan warna maupun grayscale grayscale indicating amplitude drop or a
yang mengindikasikan penurunan computer display that plots amplitude with
amplitudo atau sebuah tampilan komputer respect to displacement.
yang memplot amplitudo dengan
memperhatikan besar perpindahan.
A.2. Penetapan Batas Pengendalian Pancaran A.2. Determination of Phased Array Beam
Phased Array Steering Limits
A.2.1. Pengaturan Uji Coba - Atur focal law dari A.2.1. Test Set-Up - Configure the probe focal
probe sesuai kondisi uji coba. Mencakup laws for the conditions of the test. This will
immersion atau kontak, refracting wedge include immersion or contact, refracting
atau delay line, ketidakfokusan ataupun wedge or delay-line, unfocused or a
jarak fokal yang telah ditetapkan, dan defined focal distance and the test
material ujicoba yang akan digunakan. material to be used.
A.2.1.1. Persiapkan sekumpulan side-drilled holes A.2.1.1. Prepare a series of side-drilled holes in
pada material untuk digunakan pada the material to be used for the application
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
penerapan jarak, atau jarak yang akan at the distance or distances to be used in
digunakan dalam pengaplikasian. lubang the application. Holes indicated are at 5°
terletak pada interval 5° pada jarak 25 intervals at a 25-mm and 50-mm distance
mm dan 50 mm dari titik pusat dimana from a center where the probe is located.
probe diletakkan.
A.2.1.2. Penaksiran serupa mungkin dilakukan A.2.1.2. Similar assessments are possible for
untuk penerapan lain. Saat sekumpulan different applications. When a set of focal
focal law diatur untuk menghasilkan laws is arranged to provide resolution in a
resolusi didalam sebuah bidang, bukan plane instead of a sound path distance,
pada sebuah jarak jalur suara, bidang the plane of interest may be used to
yang menjadi pusat perhatian dapat assess the steering limits of the beam.
digunakan untuk menaksir batas The block used for assessment would be
pengendalian pancaran. Blok yang arranged with side-drilled holes in the
digunakan untuk menaksir harus diatur plane of interest. Such a plane-specific
dengan sejumlah side-drilled holes dalam block where a series of holes is made in a
bidang yang menjadi perhatian. Sebuah vertical and horizontal plane at a specified
blok dengan bidang yang spesifik dimana distance from the nominal exit point. Side-
sekumpulan lubang dibuat pada bidang drilled holes may be arranged in other
vertikal dan horizontal dengan jarak planes (angles) of interest.
tertentu terhadap titik keluar, side-drilled
holes dapat diatur pada bidang (sudut)
lain yang menjadi pusat perhatian.
A.2.1.3. Penaksiran dibuat dengan menempatkan A.2.1.3. Assessments are made placing the probe
probe sedemikian rupa sehingga pusat such that the center of beam ray enters
dari pancaran sinar menembus blok pada the block at the indicated centerline. For
garis tengah yang indikasi. Analisa dari analysis of a probe where all the elements
probe dimana semua elemen dalam in a single plane are used without a delay
sebuah bidang tunggal digunakan tanpa line or refracting wedge the midpoint of
sebuah delay line atau refracting wedge, the element array shall be aligned with the
titik tengah dari elemen array harus centerline. For focal laws using only a
sejajar dengan garis tengah. Untuk focal portion of the total available elements the
law yang menggunakan hanya sebagian midpoint of the element aperture shall be
kecil dari total elemen yang tersedia, titik aligned with the centerline. When delay
tengah dari lobang bidik elemen harus lines, refracting wedges or immersion
sejajar dengan garis tengah. Ketika delay methods are used corrections will be
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
yang mampu memperoleh jeda sebesar which achieves a 6-dB separation shall be
6-dB, harus ditetapkan sebagai considered the maximum steering
kemampuan pengendalian maksimum capability of the probe configuration.
terhadap konfigurasi probe tersebut.
A.2.1.6. Batas pengendalian yang diterima dapat A.2.1.6. Acceptable limits of steering may be
diindikasikan dari sudut maksimum dan indicated by the maximum and minimum
minimum yang dapat memperoleh nilai angles that can achieve a prespecified
pemisah baku diantara lubang yang separation between adjacent holes.
berdekatan. Bergantung dari Depending on the application a 6 dB or 20
pengaplikasian, nilai sebesar 6 dB atau dB (or some other value) may be specified
20 dB (atau nilai lain) dapat ditetapkan as the required separation.
sebagai nilai pemisah yang dibutuhkan.
A.2.1.7. Kapabilitas pengendalian dapat A.2.1.7. Steering capabilities may be used as a
digunakan sebagai prasyarat; contoh, prerequisite; for example, a phased-array
sistem phased array diharuskan untuk system is required to achieve a minimum
memperoleh kapabilitas pengendalian steering capability for 5 deg resolution of 2
minimum untuk resolusi 5° dari side- mm diameter side-drilled holes of plus and
drilled holes dengan diameter 2 mm minus 20 deg from a nominal mid-angle.
dengan kurang lebih 20° dari nominal Conversely, a system may be limited to S-
sudut tengah. Sebaliknya, sebuah sistem scans not exceeding the angles assessed
mungkin saja dibatasi hingga S-scan to achieve a specified signal separation,
tidak melebihi sudut taksiran untuk for example, −20 dB between 2 mm
memperoleh nilai pemisah sinyal tertentu, diameter SDHs separated by 5 deg.
misal -20 dB antara SDH dengan
diameter 2 mm terpisah sebesar 5°.
A.2.2. Penaksiran alternatif dapat menggunakan A.2.2. An alternative assessment may use a
sebuah SDH tunggal pada kedalaman single SDH at a specified depth or sound
atau jarak jalur suara tertentu. path distance. Displaying the A-scan for
Menampilkan A-scan untuk the maximum and minimum angles used
penggunanaan sudut maksimum dan would assess the steering capability by
minimum dapat menaksir kapabilitas observing the S/N ratio at the peaked
pengendalian dengan cara observasi response. Steering limit would be a
rasio S/N pada response sinyal puncak. predefined S/N ratio being achieved.
Batas pengendalian dapat menghasilkan Caution must be taken when using this
rasio S/N baku. Saat menggunakan method so as to not peak on grating lobe
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
metode ini harus diperhatikan agar cuping signals. This method will also require
sinyal tidak terparut/ terpecah-pecah. confirmation that the SDH is positioned at
Metode ini juga memerlukan konfirmasi the calculated refracted angle.
bahwa SDH telah diposisikan pada sudut
pembelokan yang telah dihitung terlebih
dahulu.
A.3. Penetapan Aktivitas Elemen Phased A.3. Determination of Phased Array Element
Array Activity
A.3.1. Pengaturan Uji Coba A.3.1. Test Set-Up
A.3.1.1. Hubungkan probe phased-array untuk A.3.1.1. Connect the phased-array probe to be
diujicoba dengan peralatan ultrasonik tested to the phased-array ultrasonic
phased-array dan hapus semua delay line instrument and remove any delay line or
atau refracting wedge dari Probe. refracting wedge from the probe.
A.3.1.2. Pasangkan probe secara akustik pada A.3.1.2. Acoustically couple the probe to the 25-
blok standar IIW (International Institute of mm thickness of an IIW (International
Welding) yang memiliki ketebalan 25 mm Institute of Welding) block with a uniform
dengan lapisan couplant. Hal ini dapat layer of couplant. This may be
diperoleh dengan teknik contact-gap bila accomplished by a contact-gap technique
interface probe-ke-blok berada di bawah such that the probe-to block interface is
air (untuk memastikan coupling seragam). under water (to ensure uniform coupling).
Sebagai alternatif metode immersion Alternatively an immersion method using
menggunakan jalur air tetap dapat a fixed water path may be used and the
digunakan dan sinyal water-steel water-steel interface signal monitored
interface dimonitor sebagai pengganti instead of the steel wall thickness.
ketebalan dinding baja.
A.3.1.3. Atur pemindaian elektronik yang terdiri A.3.1.3. Configure an electronic scan consisting of
dari sebuah elemen yang sejajar dengan one element that is stepped along one
elemen lain pada saat bersamaan untuk element at a time for the total number of
elemen secara keseluruhan pada array. elements in the array. (This should ensure
(hal ini akan memastikan pulser penerima that the pulser-receiver number 1 is used
nomor 1 digunakan pada setiap focal law in each focal law or if the channel is
atau bila saluran dapat dipilih, saluran selectable it should be the same channel
yang sama harus digunakan untuk setiap used for each element). Set the pulser
elemen). Atur parameter pulser untuk parameters to optimize the response for
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
probe phased-array yang baru ditemukan probes may be found to have inactive
memiliki elemen tak aktif sebagai hasil elements as a result of manufacturing
dari kesulitan proses produksi untuk difficulties ensuring the electrical
memastikan koneksi elektrikal dengan connections to elements with dimensions
elemen dengan dimensi dari pecahan on the order of a fraction of a millimetre.
tetap dalam skala milimeter.
A.3.1.9. Jumlah elemen tak aktif yang diizinkan A.3.1.9. The number of inactive elements allowed
harus berdasarkan pada performa dari should be based on performance of other
kapabilitas lain seperti kemampuan fokus capabilities such as focusing and steering
dan batas pengendalian dari focal law limits of the focal laws being used. No
yang digunakan. Tak ada aturan simple rule for the number of inactive
sederhana untuk jumlah elemen tak aktif elements can be made for all phased-
dapat dibuat untuk semua probe phased- array probes. Typically, if more than 25%
array. Biasanya, bila terdapat lebih dari of the elements in a probe are inactive,
25% elemen tidak aktif dalam sebuah sensitivity and steering capabilities may
probe, sensitivitas dan kapabilitas be compromised. Similarly, the number of
pengendalian masih dapat dimaklumi. adjacent elements allowed to be inactive
Serupa dengan itu, jumlah elemen tak should be determined by the steering and
aktif yang berdekatan yang diperbolehkan electronic raster resolution required by the
harus ditentukan oleh pengendalian dan application.
resolusi raster elektronik yang ditentukan
oleh aplikasi.
A.3.1.10. Kestabilan coupling sangat penting bagi A.3.1.10. Stability of coupling is essential for the
perbandingan penaksiran. Bila comparison assessment. If using a
menggunakan metode kontak dan contact method and the assessment of
penaksiran elemen menghasilkan sinyal elements produces signals outside the ±2
diluar jangkauan 2 dB, coupling harus dB range the coupling should be checked
dicek dan dicoba kembali. Bila masih and the test run again. If still outside the
diluar jangkauan yang diterima, probe acceptable range the probe should be
harus dilepas dan diperbaiki untuk removed from service and corrected prior
penggunaan berikutnya. Ujicoba to further use. The test using a fixed water
menggunakan water path yang tetap path to a water/steel interface will reduce
menuju penghubung baja/air akan coupling variations.
mengurangi variasi coupling.
A.3.1.11. Sebelum pencopotan probe dilakukan, A.3.1.11. Prior to removing the probe from service
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
kabel yang digunakan untuk ujicoba juga the cable used for the test should be
harus ditukar dengan kabel lain, bila exchanged with another cable, when
memungkinkan, untuk memastikan possible, to verify that the inactive
elemen tak aktif tidak disebabkan oleh elements are not due to a bad cable.
kualitas kabel yang buruk.
A.3.1.12. Adaptor kabel yang berkesinambungan A.3.1.12. Cable continuity adapters can be made
dapat dibuat sehingga memungkinkan that allow the multi-strand connectors to
konektor multi-strand untuk diujicoba be tested independently. These adaptors
secara terpisah. Adaptor ini dapat can be connected to the phased-array
dihubungkan ke peralatan phased-array instrument directly to verify that all output
secara langsung untuk memastikan channels are active or they can be
setiap saluran output aktif atau bisa pula connected to the probe end of the cable to
disambungkan ke ujung probe untuk indicate the continuity of the individual co-
mengindikasikan kesinambungan axial connectors in the interconnecting
konektor co-axial pada kabel yang cable.
tersambung.
A.4. Penaksiran Kemampuan Fokus Phased A.4. Assessment of Phased Array Focusing
Array Ability
A.4.1. Pengaturan Uji Coba A.4.1. Test Set-Up
A.4.1.1. Atur sistem phased-array untuk A.4.1.1. Configure the phased-array system for the
memfokuskan focal law agar dapat focusing focal laws to be assessed and
ditaksir dan pasangkan probe phased- acoustically couple the phased-array
array secara akustik pada sebuah blok probe to a block with inclined side-drilled
dengan side-drilled holes yang memiliki holes. Compression modes with or without
kemiringan tertentu. Mode kompresi a delay-line and shear modes using a
dengan atau tanpa delay line atau mode refracting wedge can be assessed by this
shear menggunakan refracting wedge method.
dapat ditaksir dengan metode ini.
A.4.1.2. Pemfokusan pada sudut belok tunggal A.4.1.2. Focusing at a single refracted angle is
dapat ditaksir dengan metode ini. Ketika assessed by this method. Where several
beberapa sudut digunakan, akan sangat angles are used it will be necessary to
penting untuk menaksir kemampuan assess the focusing ability for each angle
fokus pada tiap sudut secara terpisah. separately.
A.4.1.3. Menggunakan pemindaian elektronik A.4.1.3. Using either an electronic scan or
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
maupun pemindaian mekanis yang telah encoded mechanical scan in the plane of
diterjemahkan ke dalam kode dalam interest, the full waveforms are collected
bidang yang menjadi perhatian, bentuk and displayed in a depth corrected B-scan
gelombang keseluruhan akan terkumpul projection image.
dan ditampilkan pada gambar proyeksi B-
scan yang telah diperbaharui
kedalamannya.
A.4.1.4. Efektivitas algoritma pemfokusan ditaksir A.4.1.4. Effectiveness of the focusing algorithm is
dengan cara mengukur diameter gambar assessed by sizing the diameter of the
proyeksi dengan dasar penurunan dB dari projected image based on a dB drop from
amplitudo maksimum dan maximum amplitude and comparing that
membandingkannya dengan diameter dimension to the actual machined
sebenarnya dari side-drilled hole. diameter of the side-drilled hole.
A.4.1.5. Jangkauan algoritma pemfokusan dapat A.4.1.5. Working range of the focusing algorithm
ditentukan menurut kesepakatan may be determined by agreement as to
mengacu pada dimensi maksimum dari the maximum dimension of the oversizing
diameter side-drilled hole yang telah of the side-drilled hole diameter. For
diperbesar. Sebagai contoh, bila SDH example, if 2-mm diameter SDHs are
berdiameter 2 mm digunakan dan used and the 6-dB drop is used to gauge
penurunan 6 dB diterapkan untuk diameter from the B-scan, the working
mengukur diameter dari B-scan, jarak range can be defined as the depth or
jangkauan kerja dapat diartikan sebagai sound-path distance that the B-scan can
kedalaman ataupun jarak jalur suara yang maintain the 6-dB dimension to less than
dapat B-scan hasilkan dimensi 6 dB twice the actual diameter.
hingga kurang dari 2 kali lipat diameter
sebenarnya.
A.4.1.6. Batas praktikal untuk diameter lubang A.4.1.6. Practical limits for hole diameters and
dan ukuran titik focal diperlukan. Titik focal spot sizes are required. Practical
focal praktikal untuk pancaran terfokus focal spots for focused beams cannot be
tidak boleh dibuat kurang dari 1.5 kali made smaller that about 1.5 times the
panjang gelombang yang digunakan. wavelength used. For a 5-MHz
Untuk tekanan gelombang 5 MHz pada compression wave in steel this is about
baja nilainya 1.7 mm. Ukuran titik focal 1.7 mm. The focal spot size is also a
juga sebagai fungsi dari jalur suara; function of sound path; the deeper the
semakin dalam lubangnya, semakin holes, the weaker the focusing.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
komputer, taksiran kursor koordinat dan cursors assess and record the depths, off-
catatan kedalaman, cetakan dari titik sets from the centerline and angles to the
pusat dan sudut terhadap side-drilled side-drilled holes in a tabular form. For the
holes dalam bentuk tabulasi. Untuk side- side-drilled holes at 50-mm radius use the
drilled holes dengan radius 50 mm results of the focal laws configured for 50-
gunakan hasil pengaturan focal law untuk mm focus and for the holes at 25-mm
fokus 50 mm dan untuk lubang dengan radius use the focal laws configured for 25
radius 25 mm gunakan hasil pengaturan mm.
focal law untuk fokus 25 mm.
A.5.1.7. Bandingkan nilai taksir menggunakan A.5.1.7. Compare the values assessed using the
perangkat lunak terhadap kondisi fisik software to the physical positions of the
lubang pada blok. Jarak jalur suara holes in the block. Sound path distances
indikasi pada tampilan komputer akan indicated on the computer display should
mengindikasikan posisi lubang dalam indicate hole positions within ±0.5 mm.
jarak 0.5 mm. Kedalaman dan posisi Depth and off-set positions of holes
cetakan dari lubang seharusnya dalam should be within ±0.5 mm and all angles
jarak ± 0.5mm dan semua sudut terhadap to the holes should be within ±1.0 deg.
lubang bernilai ± 1.0°.
A.6. Penaksiran Wedge Attenuation dan A.6. Assessment of Phased Array Wedge
Kompensasi Penundaan Phased Array Attenuation and Delay Compensation
A.6.1. Kompensasi Wedge Attenuation A.6.1. Wedge-Attenuation Compensation
A.6.1.1. Panduan ini dapat digunakan untuk A.6.1.1. This guide applies to assessments of
penaksiran kompensasi wedge- wedge-attenuation compensations for E-
attenuation untuk E-scan atau scan or electronic raster scans where 1D
pemindaian raster elektronik dimana linear array probes are used.
probe array linier 1D digunakan.
A.6.1.2. Atur sistem phased-array untuk focal law A.6.1.2. Configure the phased-array system for the
yang digunakan pada aplikasi pemindaian focal laws to be used in the electronic
elektronik raster. raster scan application.
A.6.1.3. Pasangkan probe phased-array secara A.6.1.3. Acoustically couple the phased-array
akustik dengan blok yang memiliki side- probe to the block with a side-drilled hole
drilled hole dengan kedalaman yang at a known depth. The 1.5-mm diameter
diketahui. SDH berdiameter 1.5 mm pada SDH in the IIW block is a convenient
blok standar IIW adalah pilihan tepat target for this purpose.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
cocok untuk tugas ini. Target yang for this task. A recommended target is a
disarankan adalah radius yang serupa radius similar to that of the 100-mm radius
dengan radius 100 mm pada blok IIW. of the IIW block. For S-scans steps A6.1.2
Untuk S-scan pada langkah A6.1.2 to A6.1.6 are used replacing the SDH with
hingga A6.1.6 digunakan menggantikan a suitable radius. Use of the radius for S-
SDH dengan radius yang cocok. scan configurations also provides
Penggunaan radius pada pengaturan S- correction for echo transmittance effects
scan juga memberi koreksi bagi efek intrinsic in angle variation.
intrinsik pengiriman gema dalam sudut
yang bervariasi.
A.6.2. Kompensasi Wedge-Delay A.6.2. Wedge-Delay Compensation
A.6.2.1. Saat wedge pembelok sudut digunakan A.6.2.1. When an angled refracting wedge is used
untuk E-scan atau S-scan, atau saat for E-scans or S-scans, or when a fixed
delay line dengan ketebalan yang tetap thickness delay line is used for S-scans,
digunakan pada S-scan, jalur suara the sound path in the wedge material
dalam material wedge bervariasi dari satu varies from one focal law to the next.
focal law ke yang berikutnya. Kompensasi Compensation for this delay time
dari perbedaan waktu tunda ini diperlukan difference is required so as to ensure that
untuk memastikan indikasi yang terbaca indications detected are correctly
telah diposisikan dengan benar pada positioned in the projection scan displays,
tampilan pemindaian proyeksi, yang that is, depth and angle within the test
mana, kedalaman dan sudut saat ujicoba piece are correctly plotted.
telah diplot dengan tepat.
A.6.2.2. Atur sistem phased-array untuk focal law A.6.2.2. Configure the phased-array system for the
yang akan digunakan pada S-scan atau focal laws to be used in the S-scan or
aplikasi pemindaian raster elektronik. electronic raster scan application.
A.6.2.3. Pasang probe phased-array secara A.6.2.3. Acoustically couple the phased-array
akustik dengan sebuah blok yang radius probe to a block with known radius of
lekukannya diketahui. Blok IIW dengan curvature. The 50-mm or 100-mm radius
radius 50 mm atau 100 mm cocok untuk of the IIW block is a convenient target for
pengujian ini. this purpose.
A.6.2.4. Pilih tampilan A-scan untuk pengaturan A.6.2.4. Select the A-scan display for the first focal
focal law pertama dan pindahkan probe law configured and move the probe
maju-mundur untuk memposisikan forward and backward to locate the
amplitudo sinyal maksimum dari radius maximum amplitude signal from the radius
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
A.7. Penaksiran Linieritas dari Peralatan A.7. Assessment of Phased Array Instrument
Phased Array Linearities
A.7.1. Pengaturan Uji Coba A.7.1. Test Set-Up
A.7.1.1. Instrumen Phased-Array diatur untuk A.7.1.1. The phased-array instrument is configured
menampilkan presentasi A-scan. to display an A-scan presentation.
A.7.1.2. Sesuaikan time-base dari A-scan A.7.1.2. Adjust the time-base of the A-scan to a
terhadap jarak yang tepat untuk suitable range to display the pulse-echo
menampilkan sinyal pulse-echo yang signals selected for the linearity
dipilih untuk verifikasi linieritas. Sebuah verifications. A linearity block similar to
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
blok linier yang serupa dengan that described in ASTM E317 is selected
penjelasan pada ASTM E317 dipilih untuk to provide signals to assess linearity
menyediakan sinyal untuk menaksir aspects of the instrument.
aspek linier pada peralatan.
A.7.1.3. Parameter pulser dipilih untuk menyaring A.7.1.3. Pulser parameters are selected for the
frekuensi dan jaringan untuk optimalisasi frequency and bandpass filter to optimize
respon dari probe pulse-echo (elemen the response from the pulse-echo (single
tunggal) yang digunakan untuk verifikasi element) probe used for the linearity
linieritas. verifications.
A.7.1.4. Gain penerima diatur untuk menampilkan A.7.1.4. The receiver gain is set to display non-
sinyal non-saturasi dari target untuk saturating signals of interest for display
menampilkan penaksiran lineraritas height and amplitude control linearity
pengendalian dari tinggi tampilan dan assessments.
amplitudo.
A.7.2. Linieritas Tinggi Tampilan A.7.2. Display Height Linearity
A.7.2.1. Dengan terhubungnya peralatan phased- A.7.2.1. With the phased-array instrument
array dengan probe (shear ataupun connected to a probe (shear or
longitudinal) dan digabungkan dengan longitudinal) and coupled to any block that
blok mana saja akan menghasilkan dua will produce two signals, adjust the probe
sinyal, atur probe sedemikian rupa such that the amplitude of the two signals
sehingga amplitudo kedua sinyal berada are at 80% and 40% of the display screen
pada 80% dan 40% dari tinggi layar height. If the phasedarray instrument has
tampilan. Bila peralatan phased-array provision to address a single element
memiliki perlengkapan untuk probe in pulse-echo mode then the two
memposisikan probe dengan unsur flat bottom holes with adjustable acoustic
tunggal pada mode pulse-echo, maka impedance inserts in the custom linearity
dua lubang dengan dasar yang datar block provides such signals.
dengan impedansi akustik yang bisa
disesuaikan dan dimasukkan pada blok
linier yang disesuaikan, akan
menghasilkan sinyal tersebut.
A.7.2.2. Naikkan gain menggunakan pengaturan A.7.2.2. Increase the gain using the receiver gain
gain penerima untuk menghasilkan 100% adjustment to obtain 100% of full screen
tinggi layar dari respon yang lebih besar. height of the larger response. The height
Tinggi dari respon yang lebih rendah of the lower response is recorded at this
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
dicatat pada pengaturan gain ini sebagai gain setting as a percentage of full screen
persentasi dari tinggi tampilan. height.
A.7.2.3. Tinggi dari respon yang lebih tinggi A.7.2.3. The height of the higher response is
dikurangi 10% tahapan hingga 10% tinggi reduced in 10% steps to 10% of full
layar dan tinggi dari respon kedua dicatat screen height and the height of the
untuk setiap tahap. second response is recorded for each
step.
A.7.2.4. Kembalikan sinyal yang lebih besar ke A.7.2.4. Return the larger signal to 80% to ensure
kisaran 80% untuk memastikan sinyal that the smaller signal has not drifted from
yang lebih kecil tidak berkurang dari 40% its original 40% level due to coupling
besaran awal mengacu pada variasi variation. Repeat the test if variation of the
coupling. Ulangi langkah ujicoba bila second signal is greater than 41% or less
variasi sinyal kedua lebih besar dari 41% than 39% FSH.
atau kurang dari 39% FSH.
A.7.2.5. Untuk toleransi penerimaan, respon dari 2 A.7.2.5. For an acceptable tolerance, the
reflektor harus memikul hubungan 2 responses from the two reflectors should
terhadap 1 dengan besaran ±3% dari bear a 2-to-1 relationship to within ±3% of
tinggi tampilan dengan jangkauan 10% full screen height throughout the range
hingga 100% dari tinggi layar (99% 10% to 100% (99% if 100% is saturation)
apabila 100% terjadi saturasi). of full screen height.
A.7.2.6. Hasil dicatat dengan peralatan dalam A.7.2.6. The results are recorded on an instrument
bentuk linear. linearity form.
A.7.3. Linearitas Pengendalian Amplitudo A.7.3. Amplitude Control Linearity
A.7.3.1. Peralatan phased-array 16/64 memiliki 16 A.7.3.1. A 16⁄64 phased-array instrument has 16
pulser dan receiver yang digunakan untuk pulsers and receivers that are used to
menunjukkan elemen hingga sebanyak address up to 64 elements. Each of the
64 elemen. Masing-masing komponen pulser-receiver components is checked to
pulser-receiver diperiksa untuk determine the linearity of the instrument
menentukan linearitas dari kemampuan amplification capabilities.
amplification peralatan.
A.7.3.2. Pilih array linier yang datar probe phased- A.7.3.2. Select a flat (normal incidence) linear
array yang setidaknya memiliki jumlah array phased-array probe having at least
elemen sebanding dengan pulser yang as many elements as the phased-array
dimiliki peralatan ultrasonik phased-array. ultrasonic instrument has pulsers.
A.7.3.3. Menggunakan probe ini, atur peralatan A.7.3.3. Using this probe, configure the phased-
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
sebanyak ± 3% dari tinggi tampilan yang range of ±3% of the display height
ditentukan pada tabel A7.1 mengenai required in the allowed height range of
jangkauan tinggi sinyal yang Table A7.1.
diperbolehkan.
A.7.3.9. Ulangi urutan diatas dari A7.3.5 sampai A.7.3.9. Repeat the sequence from A7.3.5 to
A7.3.7 untuk semua saluran pulser- A7.3.7 for all other pulser-receiver
receiver yang lain. channels.
A.7.3.10. Untuk peralatan yang memiliki amplitudo A.7.3.10. For instruments having 10 or 12 bit
digitization 10 atau 12 bit dan diatur untuk amplitude digitization and configured to
membaca amplitudo dalam wilayah yang read amplitudes in a gated region to
dibatasi amplitudo yang lebih besar dari amplitudes greater than can be seen on
yang dapat dilihat pada tampilan, the display, a larger range of check points
gunakan titik pantau yang lebih luas. can be used. For these instruments the
Untuk peralatan tersebut keluaran yang gated output instead of the A-scan display
dibatasi akan dibuktikan linearitasnya would be verified for linearity.
menggantikan tampilan A-scan.
A.7.4. Linearitas Berbasis Waktu (Linearitas A.7.4. Time-Base Linearity (Horizontal Linearity)
Horizontal)
A.7.4.1. Atur peralatan phased-array untuk dapat A.7.4.1. Configure the phased-array instrument to
menampilkan A-scan. display an A-scan presentation.
A.7.4.2. Pilih probe tekanan gelombang mana A.7.4.2. Select any compression wave probe and
saja dan atur peraltan phased-array untuk configure the phased-array instrument to
menampilkan jangkauan yang sesuai display a range suitable to obtain at least
setidaknya 10 pantulan dari sebuah blok ten multiple back reflections from a block
yang ketebalannya diketahui. Blok IIW of a known thickness. The 25-mm wall
dengan ketebalan 25 mm akan sangat thickness of the IIW block is a convenient
sesuai dengan ujicoba ini. option for this test.
A.7.4.3. Atur tingkat konversi analog ke digital dari A.7.4.3. Set the phased-array instrument analog-
peralatan phased-array setidaknya ke todigital conversion rate to at least 80
tingkat 80 MHz. MHz.
A.7.4.4. Dengan probe yang terpasang ke blok A.7.4.4. With the probe coupled to the block and
dan A-scan menampilkan dengan jelas 10 the A-scan displaying 10 clearly defined
kelipatan tetap, perangkat lunak tampilan multiples, the display software is used to
digunakan untuk menaksir interval jarak assess the interval between adjacent
antara sinyal backwall. backwall signals.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
A.7.4.5. Kecepatan akustik blok ujicoba, A.7.4.5. Acoustic velocity of the test block,
ditetapkan menggunakan metode yang determined using the methods described
dijelaskan pada ASTM E494, disertakan in ASTM E494, is entered into the display
ke dalam perangkat lunak tampilan dan software and the display configured to
tampilan diatur untuk membaca pada read out in distance (thickness).
jarak (ketebalan) tertentu.
A.7.4.6. Dengan menggunakan referensi dan A.7.4.6. Using the reference and measurement
kursor pengukur menentukan interval cursors determine the interval between
antara masing-masing kelipatan dan each multiple and record the interval of
mencatat interval dari 10 kelipatan the first 10 multiples.
pertama.
A.7.4.7. Linearitas yang dapat diterima, ditetapkan A.7.4.7. Acceptable linearity may be established
dengan menggunakan toleransi by an error tolerance based on the
kesalahan yang berdasarkan pada tingkat analog-to-digital conversion rate
konversi analog ke digital yang converted to a distance equivalent. For
dikonversikan ke dalam kesetaraan jarak. example, at 100 MHz each sample of the
Sebagai contoh, pada 100 MHz, tiap time base is 10 ns. For steel at 5900 m/s
sampel time base ialah sebesar 10 ns. each sample along the timebase (10 ns)
Untuk baja dengan 5900 m/s, tiap sampel in pulse-echo mode represents 30 m. A
sepanjang time base (10 ns) pada mode tolerance of ±3 timing samples should be
pulse-echo mewakili 30 m. Toleransi ± 3 achievable by most analog-to-digital
sampel waktu harus dapat diraih oleh systems. Some allowance should be
sebagian besar sistem konversi analog ke made for velocity determination error
digital. Beberapa kelonggaran harus (~1%). Typically the errors on the
dibuat untuk kesalahan penetapan multiples should not exceed ±0.5 mm for a
kecepatan (~1%). Umumnya kesalahan steel plate.
pada kelipatannya tidak boleh melebihi ±
0.5 mm untuk plat baja.
pembersih yang digunakan harus tidak solvents used shall not exceed expiry
melebihi tanggal kedaluwarsa. date.
dalam kondisi di-las, di-rol, di-cetak, atau as-rolled, as-cast, or asforged conditions.
di-tempa. Namun, persiapan permukaan However, surface preparation by grinding
dengan menggunakan gerinda atau or machining may be necessary where
machining mungkin perlu dilakukan di surface irregularities could mask
mana ketidakteraturan permukaan bisa indications due to discontinuities.
menutupi indikasi diskontinuitas.
11.11.7.2. Sebelum melakukan Pengujian Partikel 11.11.7.2. Prior to Magnetic Particle Examination,
Magnetik, permukaan yang diuji dan the surface to be examined and all
semua area yang berdekatan dalam adjacent areas within at least 1 in. (25
jarak minimal 1 inci (25 mm) harus mm) shall be dry and free of all dirt,
kering dan bebas dari semua kotoran, grease, lint, scale, welding flux and
gemuk, serat, kerak, welding flux dan spatter, oil, or other extraneous matter
spatter, minyak, atau bahan asing that could interfere with the examination.
lainnya yang dapat mempengaruhi
pengujian.
11.11.7.3. Pembersihan dapat dilakukan dengan 11.11.7.3. Cleaning may be accomplished using
menggunakan deterjen, pelarut organik, detergents, organic solvents, descaling
descaling solution, penghilang cat, solutions, paint removers, vapor
pembersih uap, pasir atau grit blasting, degreasing, sand or grit blasting, or
atau metode pembersihan ultrasonik. ultrasonic cleaning methods.
11.11.7.4. Jika terdapat sisa lapisan non magnetik 11.11.7.4. If nonmagnetic coatings are left on the
pada area yang diuji, maka harus part in the area being examined, it shall
dilakukan demonstrasi yang dapat be demonstrated that indications can be
menunjukkan indikasi tersebut dapat detected through the existing maximum
dideteksi melalui ketebalan lapisan coating thickness applied.
maksimum yang ada.
antara 60 – 315 °C, maka pengujian 60 – 315 °C, the examination shall be
harus dilakukan dengan menggunakan conducted using dry particles.
partikel kering.
11.11.8.3. Pemeriksaan harus dilakukan dengan 11.11.8.3. Inspection shall be carried out with an
pencahayaan tidak kurang dari 100 fc illuminance of not less than 100 fc (1000
(1000 Lx) pada permukaan bagian yang Lx) on the surface of the tested part.
akan diuji.
11.11.8.4. Kekuatan medan magnet harus 11.11.8.4. Field strength shall be verified prior to
diverifikasi sebelum pengujian dengan examination by using Pie -Shaped
menggunakan Pie-Shaped Magnetic Magnetic Particle Field Indicator. Pie -
Particle Field Indicator. Pie-Shaped Shaped Magnetic Particle Field Indicator
Magnetic Particle Field Indicator di shall be positioned on the surface to be
posisikan pada permukaan yang diuji, examined, such that the copper-plate
dimana sisi yang ada tembaganya side is away from the inspected surface.
diletakkan menjauh dari permukaan The magnetic particle are applied
yang diinspeksi. Partikel magnetik simultaneously with the magnetizing
diaplikasikan bersamaan dengan force; the sufficient field strength is
magnetisasi; kekuatan magnet indicated when a clearly define lines of
ditunjukkan ketika terbentuk garis yang magnetic particles forms across the
jelas dari kumpulan partikel magnetic copper face of indicator.
yang memotong permukaan tembaga
dari indikator.
11.11.8.5. Pengamatan indikasi harus dilakukan 11.11.8.5. Observation of indications shall be
pada saat magnetisasi dan partikel performed upon the magnetizing current
magnetik diaplikasikan. on and magnetic particles being applied.
11.11.8.6. Interpretasi akhir harus dilaksanakan 11.11.8.6. Final interpretation shall be performed
setelah dilakukan magnetisasi sekurang- after the magnetizing current remain on
kurangnya selama 5 (lima) detik. at least 5 (five) second.
11.11.8.7. Untuk aplikasi serbuk magnet kering. 11.11.8.7. For dry magnetic powder application.
Tempatkan yoke pada area yang akan Place yoke in the area to be examined,
diuji, nyalakan arus dan semprotkan turn on current and light dust the
serbuk partikel pada permukaan. particles with a powder blower over the
Bentuk-bentuk dari indikasi harus terus surface. Formation of indications shall be
diamati selama pengaplikasian partikel observed during application of the
magnetik. Partikel kering yang magnetic particles. Excess dry particles
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
- Code/ standard yang digunakan untuk - Code/ standard used for acceptance
kriteria penerimaan criteria
- Identifikasi lasan (proses pengelasan, - Identification of the welds (welding
nomor joint, identitas juru las, diameter process, joint number, welder identity,
pipa, tebal pipa, spesifikasi material) pipe diameter, wall thickness, material
specifications)
- Peralatan dan jenis arus - Equipment and the type of flow
- Partikel magnetik - Magnetic particles
- Sketsa pengujian - Sketch testing
- Rincian Indikasi (bentuk linier/ rounded - Details Indication (linear/ rounded
dan ukuran) shape and size)
- Hasil pengujian - Examination result
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Lampiran / Attachment
12.4.13. SSPC-VIS1 Visual Standards for Blasted 12.4.13. SSPC-VIS1 Visual Standards for Blasted
Surfaces Surfaces
12.4.14. SSPC-VIS3 Visual Standards for Power 12.4.14. SSPC-VIS3 Visual Standards for Power
and Hand Tool Cleaned Steel and Hand Tool Cleaned Steel
12.4.15. Standar Teknis dan Material Field Joint 12.4.15. Standar Teknis dan Material Field Joint
Coating. Coating.
Stick harus berasal dari manufaktur yang be derived from the same manufacturer.
sama.
12.6.7. Material wrapping (primer, inner and 12.6.7. Wrapping material (primer, inner and
outer) harus berasal dari manufaktur outer) shall be derived from the same
yang sama. manufacturer.
12.6.8. Material Heat Shrink Sleeve termasuk 12.6.8. Heat Shrink Sleeve material including
primer, thinner, larutan pembersih dan primer, thinner, cleaning solvent and
material yang mudah terbakar lainnya other flammable materials shall be stored
harus disimpan sesuai dengan according to manufacturer's
rekomendasi yang diberikan oleh recommendations.
manufaktur.
12.7. Prosedur Heat Shrink Sleeve (HSS) 12.7. Procedure for Heat Shrink Sleeve
12.7.1. Jika tidak di-bevel oleh pabrikan, ujung 12.7.1. If not factory beveled, the edges of the
pipe coating harus di-bevel dengan sudut pipe coating shall be bevelled to
maksimum 15°. maximum 15°.
Permukaan pipe coating harus dibuat The pipe coating shall be roughened for
kasar minimum sepanjang area overlap the minimum length according to the
pada pipe coating. overlap on the pipe coating
12.7.2. Permukaan pipa dan pipe coating harus 12.7.2. The pipe surface and pipe coating shall
kering dan bebas dari kontaminasi be dry and free of any contamination
(seperti detritus, debu, partikel non- (such as detritus, dust, non-adhering
adhering, gemuk, minyak, garam yang particles, grease, oil, soluble salts, etc.)
dapat larut, dll) yang dapat mengganggu detrimental to surface preparation or to
persiapan permukaan atau adhesi adhesion of the coating on the steel.
coating pada baja.
12.7.3. Persiapan permukaan untuk aplikasi Heat 12.7.3. The surface preparation for Heat Shrink
Shrink Sleeve harus dilakukan dengan Sleeve application shall be carried out by
menggunakan blasting atau special blasting or special power tool in
power tool sesuai dengan rekomendasi accordance with manufacturer
manufaktur. recommendation.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
12.7.4. Daerah yang akan dilapisi harus 12.7.4. The area being coated shall be cleaned
dibersihkan sesuai dengan ISO 8501-1, according to ISO 8501-1, grade Sa 2.5
grade Sa 2,5 dibandingkan dengan compared with the comparator. Work
comparator. Pelaksana Pekerjaan wajib Executor shall provide the comparator.
menyediakan comparator.
12.7.5. Anchor profile pada persiapan 12.7.5. Anchor profile on surface preparation
permukaan yang dilakukan menggunakan performed by blasting or special power
blasting atau special power tool harus tool shall be checked every 50
diperiksa setiap 50 joint produksi atau production joints or minimum 1 joint per
minimal satu joint perhari dengan day using surface profile gauge and
menggunakan surface profile gauge dan replica tape with acceptance criteria 45 –
replica tape dengan kriteria penerimaan 100 µm.
45 – 100 µm.
12.7.6. Dust contamination harus diukur dengan 12.7.6. Dust contamination shall be measured
nilai rating maksimal 3 sesuai dengan with a maximum value of rating 3 in
ISO 8502-3. accordance with ISO 8502-3.
12.7.7. Pemeriksaan dust level harus dilakukan 12.7.7. Dust levels shall be checked every 50
setiap 50 joint produksi. Apabila produksi joint the production. If the production
tidak mencapai 50 joint, maka dust level does not reach 50 joint, dust level shall
harus dilakukan minimal satu joint per be done minimum 1 joint per day.
hari.
12.7.8. Penerapan blasting harus diulang jika 12.7.8. Blasting application shall be repeated if
ditemui salah satu hal dibawah ini: found one of the following:
Cleanliness dan surface profile tidak Cleanliness and surface profile is not
tercapai. reached.
Jeda waktu penerapan FJC lebih dari Time interval of FJC application is
3 jam setelah blasting dilakukan. more than 3 hours after blasting.
Permukaan pipa yang telah diblasting The surface of the blasted pipe
mulai terlihat berkarat. started to look rusty.
12.7.9. Permukaan pipa dan pipe coating harus 12.7.9. Pipe surface and pipe coating should be
dipanaskan mencapai temperatur yang heated as per manufacturer
direkomendasikan oleh manufaktur. recommendations. The temperature shall
Temperatur harus diperiksa dengan be checked by a temperature-measuring
menggunakan perangkat pengukur device (e.g. infrared termometer), at a
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
persiapan permukaan menggunakan special power tool, the area being coated
blasting atau special power tool, daerah shall be cleaned according to ISO 8501-
yang akan dilapisi harus dibersihkan 1, grade Sa 2.5.
sesuai dengan ISO 8501-1, grade Sa 2,5.
12.8.3. Anchor profile pada persiapan 12.8.3. Anchor profile on surface preparation
permukaan yang dilakukan menggunakan performed by blasting or special power
blasting atau special power tool harus tool shall be checked every 50
dilakukan setiap 50 joint produksi atau production joints or minimum 1 joint per
minimal satu joint per hari dengan day using surface profile gauge and
menggunakan surface profile gauge dan replica tape with acceptance criteria 45 –
replica tape dengan kriteria penerimaan 100 µm or in accordance with
45 – 100 µm atau sesuai rekomendasi manufacture recommendation.
manufaktur.
12.8.4. Dust contamination harus diukur dengan 12.8.4. Dust contamination shall be measured
nilai rating maksimal 3 sesuai dengan with a maximum value of rating 3 in
ISO 8502-3. accordance with ISO 8502-3.
12.8.5. Pemeriksaan dust level harus dilakukan 12.8.5. Dust levels shall be checked every 50
setiap 50 joint produksi. Apabila produksi joint the production. If the production
tidak mencapai 50 joint, maka dust level does not reach 50 joint, dust level shall
harus dilakukan minimal satu joint per be done minimum 1 joint per day.
hari.
12.8.6. Wrapping harus overlap pada pipe 12.8.6. Wrapping shall be overlap minimum 50
coating minimal 50 mm di kedua sisi mm onto the adjacent pipe coating on
sambungan. each side of the joint.
12.8.7. Pemasangan wrapping tape minimal 12.8.7. Wrapping tape installation shall be
harus overlap 50% dari lebar tape. overlap minimum 50% of the width of the
tape.
12.8.8. Untuk pemasangan wrapping pada bare 12.8.8. For wrapping installation on bare pipe,
pipe, sambungan antara ujung gulungan joint between the end of roll tape either
tape baik inner atau outer harus overlap inner or outer shall be minimum 300 mm.
minimal 300 mm.
12.8.9. Pada bagian pipeline yang tidak tertanam 12.8.9. On pipeline section that are not
(splash zone), pemasangan wrapping embedded (splash zone), the wrapping
harus dilanjutkan minimum sepanjang installation shall be continued minimum
500 mm pada permukaan yang tidak 500 mm on not embedded surface.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
tertanam.
12.8.10. Wrapping tape yang telah dipasang harus 12.8.10. The installed wrapping tape shall be
diperiksa secara visual dan holiday test. inspected by visual examination and
holiday test.
12.8.11. Kerusakan harus diperbaiki 12.8.11. Damaged areas shall be repaired using
menggunakan material yang disarankan material recommended by manufacturer
oleh manufaktur sesuai dengan prosedur in accordance with procedure approved
yang telah disetujui oleh PGN. by PGN.
batang, Pipe Book sebelum Lowering In Book before Lowering In is not required.
tidak perlu dibuat.
13.5.5. Jika bagian pipeline di sepanjang sisi galian 13.5.5. When long sections of pipeline that have
akan diturunkan, pemeriksaan harus been assembled alongside the trench are
dilakukan untuk menghindari adanya lowered in, inspection shall be done to
regangan yang mungkin dapat avoid any strains that may cause
menimbulkan tegangan berlebihan atau excessive stress or buckle.
buckle.
13.5.6. Jarak, jumlah dan kapasitas peralatan 13.5.6. Distance, number and capacity of
yang digunakan harus sesuai dengan equipment used shall be in accordance
hasil kalkulasi Penurunan Pipa atau free with the result of Pipe Lowering In
span analysis. calculation or free span analysis.
13.5.7. Penurunan Pipa pada daerah berair 13.5.7. Pipe Lowering In in the aqueous area by
dengan cara mengisi air ke dalam pipa water filling inside of pipe is not
tidak diperbolehkan. permitted.
13.5.8. Peralatan yang diperbolehkan untuk 13.5.8. Equipment that allowed for Pipe
Penurunan Pipa adalah sebagai berikut: Lowering In are as following:
a. Crane a. Crane
b. Sideboom b. Sideboom
c. Truck Mobile Crane (TMC) c. Truck Mobile Crane (TMC)
Bila tidak memungkinkan untuk When it is not practical to used the
menggunakan peralatan di atas, maka equipment above, then Pipe Lowering In
Penurunan Pipa dapat dilakukan may be conducted using equipment as
menggunakan peralatan sebagai berikut: following:
a. Tripod dan Chain Block a. Tripod and Chain Block
b. Excavator b. Excavator
13.5.9. Untuk pipa yang memiliki ukuran 13.5.9. For pipeline with diameter 6 inches or
diameter 6 inci atau lebih kecil, smaller, Pipe Lowering In can be
Penurunan Pipa dapat dilakukan performed using tripod and chain block.
menggunakan tripod dan chain block. For steel pipe with diameter greater than
Untuk pipa yang memiliki ukuran lebih 6 inches, Pipe Lowering In shall be
besar dari 6 inci, Penurunan Pipa harus performed in accordance with paragraph
dilakukan sesuai dengan paragraf 13.5.8. 13.5.8.
13.5.10. Seluruh alat angkat / angkut yang 13.5.10. All lifting / transportation equipment used
digunakan harus memiliki sertifikat yang shall have valid certificates issued by
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Penurunan Pipa.
13.6.8. Sebelum Penurunan Pipa dilakukan, 13.6.8. Prior to Pipe Lowering In, the trench
kontur galian harus sudah sesuai dengan contour shall be in accordance with
jalur pipa. Pipa yang akan diturunkan pipeline route. The pipeline to be lowered
tidak boleh dipaksakan untuk mengikuti in shall not forced into the trench contour.
kontur galian. Apabila kontur galian tidak If the trench contour not comply with the
sesuai dengan jalur pipa, maka galian pipeline route, then the trenching shall be
harus diperbaiki sehingga didapat kontur re-excavated until correct contour and
dan kedalaman yang diinginkan. depth reached.
13.6.9. Coupling bands, fittings dan produk 13.6.9. Coupling bands, fittings, and similar
sejenis harus ditangani secara hati-hati, products shall be handled carefully, using
menggunakan peralatan dan tali pengikat equipment and the correct straps.
yang benar.
13.6.10. Penurunan Pipa harus dilakukan sesuai 13.6.10. Pipe Lowering In shall performed in
prosedur yang telah disetujui dan accordance with approved procedure
menggunakan peralatan yang sesuai and using proper equipment to prevent
untuk mencegah kerusakan pada pipa any damage to the pipe and coating.
dan coating. Webbing sling / sling belt Webbing sling / sling belt or cradles shall
atau cradles yang sesuai harus be used.
digunakan.
13.6.11. Pipa tidak boleh diturunkan dengan cara 13.6.11. The pipeline shall not be lowered in by
menyeret, melemparkan atau dragged, throwed or rolled the pipe into
menggulingkan pipa ke dalam galian. the trench.
13.6.12. Setelah pipa diturunkan secara baik 13.6.12. After the pipe properly lowered into the
kedalam galian pipa, pemeriksaan harus trench, inspection shall be performed to
dilakukan untuk memastikan kedalaman ensure the depth of the pipeline lowered
pipa yang diturunkan telah sesuai dengan in is in accordance with the requirement
yang disyartakan dan tidak ada and no damage is found on the pipe or
kerusakan yang terjadi pada pipa atau coating. Minimum distance of pipeline
coating. Jarak minimum kedalaman pipa depth measured from the ground surface
diukur dari permukaan tanah hingga atas to the top of pipe shall be 1.5 meters. For
permukaan pipa harus 1,5 meter. Untuk controlled industrial park area, the
daerah kawasan industri yang terkontrol, minimum depth measured from the
kedalaman minimum diukur dari ground surface to the top of pipe shall be
permukaan tanah hingga atas permukaan 1.2 meters
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
ke dalam lubang untuk mengisi ruangan hole to fill space around Anodes, vent
di sekitar Anoda, pipa ventilasi dan pipe and other components.
komponen lainnya.
14.3.7. Ground-bed adalah satu Anoda atau 14.3.7. Ground-bed is one or more Anodes
lebih yang dipasang di bawah permukaan installed below the earth’s surface for
tanah untuk tujuan memasok arus supplying Cathodic Protection current.
Proteksi Katodik.
14.3.8. Ground-bed Lubang Dalam adalah satu 14.3.8. Deep Ground-bed is one or more
Anoda atau lebih yang dipasang secara Anodes installed vertically at a depth of
vertikal di dalam lubang yang dibor 15 meter or more below the earth’s
dengan kedalaman 15 meter atau lebih di surface in a drilled hole for the purpose of
bawah permukaan tanah, untuk tujuan supplying Cathodic Protection to the
memasok arus Proteksi Katodik ke exernal surface of a metallic structure in
permukaan struktur logam yang contact with a common electrolyte.
bersentuhan dengan elektrolit.
14.3.9. Ground-bed Lubang Dangkal adalah 14.3.9. Shallow Ground-bed is one or more
satu Anoda atau lebih yang dipasang Anodes installed either vertically or
secara horizontal atau vertikal pada horizontally at a nominal depth of less
kedalaman kurang dari 15 meter untuk than 15 m for the purpose of supplying
tujuan memasok Proteksi Katodik. Cathodic Protection.
14.3.10. Multiple Anode adalah pemasangan 14.3.10. Multiple Anode is installation of more
Anoda lebih dari satu di satu titik lokasi than one Anodes in one location point
dalam satu lubang yang sama atau within the same hole or separately.
terpisah.
14.3.11. Proteksi Katodik adalah teknik untuk 14.3.11. Cathodic Protection is a technique to
mengurangi laju korosi pada suatu reduce the corrosion on metal surface by
permukaan logam dengan cara membuat modifying the material as the cathode in
permukaan tersebut menjadi katoda the electrochemical cell.
dalam sel elektrokimia.
14.3.12. Tiang Ukur adalah terminal tempat kabel 14.3.12. Test Station is terminal where cable
yang terhubung dari pipa dan/atau Anoda connected to pipe and/or Anode are
untuk keperluan pengukuran potensial terminated for potential measurement or
atau arus keluaran Anoda. Anode current output check.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
14.4.11. Standar Teknis dan Material Insulating 14.4.11. Standar Teknis dan Material Insulating
Joint Joint
14.7. Pemasangan Anoda pada Sistem 14.7. Anodes Installation for Sacrificial
Anoda Korban Anode System
14.7.1. Umum 14.7.1. General
14.7.1.1. Jenis Anoda yang dipasang harus dalam 14.7.1.1. Type of Anodes installed shall be in
bentuk package atau yang sesuai dengan packed or comply with specification
spesifikasi dalam dokumen Standar available in document Standar Teknis
Teknis Material Spesifikasi Onshore Material Spesifikasi Onshore Cathodic
Cathodic Protection. Protection.
14.7.1.2. Sebelum dipasang, Anoda harus 14.7.1.2. Prior the installation, the Anodes shall be
diinspeksi untuk meyakinkan bahwa inspected to ensure that the Anodes are
Anoda dalam keadaan baik dan sesuai in good condition and complying with
dengan spesifikasinya. specification.
14.7.1.3. Untuk Anoda yang dikemas dalam 14.7.1.3. For the package Anodes, inspection shall
kantong, kondisi kemasan harus be taken to the packages condition to
diperiksa untuk menjamin bahwa material ensure that Backfill material completely
Backfill menutupi Anoda secara surrounds the Anode.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
sempurna.
14.7.1.4. Kabel Anoda harus tersambung dengan 14.7.1.4. Lead wire shall be securely connected to
baik ke Anoda, kabel tersebut harus the Anode. Lead wire shall be inspected
diinspeksi untuk menjamin bahwa kabel to ensure that it is not damaged.
tersebut tidak rusak.
14.7.1.5. Jarak penempatan galian Anoda Korban 14.7.1.5. The distance for excavation of Sacrificial
dengan pipa yang diproteksi adalah Anode placement to the protected pipe is
sekitar 1 sampai 1,5 meter. approximately 1 to 1.5 meters.
14.7.1.6. Lokasi dan posisi pemasangan serta 14.7.1.6. The location, position and distance of
jarak antar Anoda harus sesuai dengan Anodes installation shall comply with
gambar konstruksi yang telah disetujui construction drawing approved by PGN.
oleh PGN.
14.7.1.7. Anoda dapat dipasang secara vertikal 14.7.1.7. The Anodes may be installed vertically or
atau horizontal, tergantung dari kondisi horizontally, depend on soil condition,
lapisan tanah, ketersediaan lahan dan available space and design.
desain.
14.7.2. Pemasangan Anoda Tunggal secara 14.7.2. Vertical Installation of Single Anode.
Vertikal.
14.7.2.1. Pemasangan Anoda vertikal dapat secara 14.7.2.1. Depend on type and size of Anodes and
lateral (secara sejajar terhadap pipa) atau space availability, installed of vertical
perpendikular (tegak lurus terhadap pipa) Anodes may be lateral or perpendicular.
tergantung dari jenis dan ukuran Anoda
serta ketersediaan lahan.
14.7.2.2. Bila pada lokasi yang telah ditentukan 14.7.2.2. When high soil resistivity is encountered
mempunyai resistivitas tanah yang tinggi (such as rock, sand or gravel) in
(seperti daerah berbatuan, pasir atau specified location, relocate the Anode in
tanah liat), pindahkan lokasi pemasangan area with more desirable soil resistivity
Anoda ke arah lain sehingga didapatkan (such us area with black or clay soil, etc).
resistivitas tanah yang sesuai (seperti Location with low resistivity is preferable
tanah hitam, lempung dll). Lokasi dengan place for Anode installation. If relocation
resistivitas tanah rendah merupakan is not possible, then use horizontal
tempat yang baik untuk pemasangan installation.
Anoda. Jika pemindahan lokasi tidak
dimungkinkan, maka gunakan
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
14.7.2.3. Persyaratan pemasangan Anoda tunggal 14.7.2.3. Vertical Installation requirement of single
pada daerah normal (tidak padat) adalah Anodes in normal (un-congested) area
sebagai berikut: are as follow:
(a). Untuk Anoda ukuran standard dalam (a). For standard size of package
kemasan, Anoda boleh dipasang Anodes, the Anodes may be installed
secara lateral terhadap pipa. Bagian laterally to the pipe. The top side of
ujung atas Anoda harus sejajar Anode shall parallel with bottom side
dengan bagian sisi bawah pipa of pipe with the minimum clearance
dengan jarak minimum antara bagian between central line of Anode and
tengah Anoda dan sisi luar pipa out side of pipe is approximately 1.5
sekitar 1.5 meter. meter.
(b). Jarak minimum antara sisi luar Anoda (b). The minimum clearance between
dan dinding lubang sekitar 5 sampai outer of Anode and hole wall is
7.5 cm agar memungkinkan untuk approximately 5 to 7.5 cm to allow
memadatkan material Penimbunan compacting the Backfilling material.
Galian.
(c). Jika Anoda yang digunakan (c). If longer Anodes are used, the auger
berukuran lebih panjang, lubang hole in which the Anode are installed,
galian dimana Anoda akan dipasang shall be large enough so that when
harus berukuran cukup besar the Anodes is placed in the hole, the
sehingga ketika Anoda sudah Backfilling material may be placed
dipasang pada lubang, material and compacted to prevent any void.
Penimbunan Galian dapat dimasukan The minimum clearance between
dan dipadatkan untuk mencegah outer of Anode and auger hole wall is
adanya celah. Jarak minimum antara approximately 5 to 7.5 cm. The top
sisi luar Anoda dan dinding lubang side of Anodes shall be paralleled
sekitar 5 – 7.5 cm. Sisi luar bagian with the bottom side of pipe.
atas Anoda harus rata dengan bagian
sisi bawah pipa.
14.7.2.4. Pemasangan Anoda tunggal secara 14.7.2.4. Vertical Installation requirement of single
vertikal pada daerah yang padat adalah Anodes in congested area are as follow:
sebagai berikut:
(a). Pada situasi tertentu Anoda harus (a). In specific situation, Anodes are
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
14.7.3. Pemasangan Multiple Anode Secara 14.7.3. Vertical Installation of Multiple Anode
Vertikal adalah sebagai berikut: are as follow:
14.7.3.1. Multiple Anode digunakan jika kebutuhan 14.7.3.1. Multiple Anodes are used when amount
jumlah arus proteksi pada suatu lokasi of Cathodic Protection current are
lebih besar dari pada arus keluaran needed at one location which are larger
Anoda tunggal. than available single Anode.
14.7.3.2. Anoda bisa ditempatkan perpendikular 14.7.3.2. The Anodes may be placed
terhadap pipa atau sejajar dengan pipa. perpendicular or parallel to the pipeline.
Jarak antara Anoda yang terdekat Distance between nearest anode and
dengan sisi luar pipa sekitar 1 sampai 1.5 pipeline is approximately 1 to 1.5 meters.
meter.
14.7.3.3. Jarak antar Anoda minimal 50 cm. 14.7.3.3. Minimum clearance between Anodes is
50 cm.
14.7.3.4. Lubang harus berukuran cukup besar 14.7.3.4. The hole shall be large enough so that
sehingga ketika Anoda sudah dipasang when the Anodes are placed in position
pada lubang, material Penimbunan in the hole, the Backfilling material may
Galian dapat dimasukan dan dipadatkan be placed and temped to prevent void.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
untuk mencegah adanya celah. Jarak The minimum clearance between outside
minimum antara sisi luar Anoda dan of Anode and wall of auger hole is
dinding lubang sekitar 5 – 7.5 cm. Sisi approximately 5 to 7.5 cm. The top side
luar bagian atas Anoda harus rata of Anodes shall be parallel with the
dengan bagian sisi bawah pipa. bottom side of pipe.
14.7.3.5. Kabel setiap Anoda harus disambungkan 14.7.3.5. The lead wire of each Anode shall be
dengan kabel header dan kemudian connected to a header wire and then
disambungkan ke Tiang Ukur agar dapat connected to a Test Station to permit
melakukan monitoring dan pengukuran monitoring, and periodic measurement of
periodik arus keluaran Anoda untuk output current, for calculation of Anode
penghitungan waktu pakai Anoda life.
tersebut.
14.7.3.6. Tipikal pemasangan Multiple Anode 14.7.3.6. Typical multiple vertical Anode
secara vertikal untuk sistem Anoda installation for Sacrificial Anode system is
Korban seperti ditunjukan pada Volume II shown in Volume II Typical Drawing.
Gambar Tipikal.
14.7.4. Pemasangan Anoda Horizontal adalah 14.7.4. Installation of Horizontal Anode are as
sebagai berikut: follow:
14.7.4.1. Sebuah lubang yang memadai harus 14.7.4.1. A suitable hole around the pipe to be
disiapkan di dekat pipa yang akan protected shall be prepared using
diproteksi dengan menggunakan appropriate equipment such as backhoe,
peralatan yang sesuai seperti backhoe, trenching machine, mattock or other
mesin pembuat galian, cangkul atau equipment. Care shall be taken during
peralatan lainnya. Pelaksanaan excavation work to avoid any damage to
penggalian harus hati-hati untuk the pipe or other foreign structure.
menghindari kerusakan pipa atau struktur
lain.
14.7.4.2. Sebelum menurunkan Anoda ke dalam 14.7.4.2. Before lowering the Anode into the hole,
lubang, tarik kabel Anoda dengan hati- gently pull on the Anode connection wire
hati untuk meyakinkan bahwa kabel to ensure it is firmly connected to the
tersebut tersambung secara sempurna Anode, but do not lower Anode into hole
dengan Anoda, tidak boleh menurunkan using this wire. Use another method to
Anoda ke dalam lubang dengan lower Anode into hole, such as a rope or
menggunakan kabel tersebut. Gunakan another wire.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
14.7.5. Penyambungan Kabel Anoda adalah 14.7.5. Anode Lead Wire Connection are
sebagai berikut: follow:
14.7.5.1. Dalam sistem Anoda Korban, kabel 14.7.5.1. In Sacrificial Anode system, the Anode
Anoda disambungkan dengan pipa lead wire shall be connected directly to
melalui Tiang Ukur. the pipe or through Test Station.
14.7.5.2. Penyambungan kabel pada pipa dapat 14.7.5.2. The connection of Anode cable to the
menggunakan las exothermit atau pipe may use exothermite weld or CP
menggunakan CP plate. Ketentuan plate. The provision for cable connection
penyambungan kabel harus sesuai shall comply with specification as
dengan spesifikasi yang dijelaskan pada described in Sub Section 14.13 of this
Sub Bab 14.13 dalam prosedur ini. procedure.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
14.8. Pemasangan Ground-bed Anoda pada 14.8. Anodes Ground-bed Installation for
Sistem Arus Tanding Impressed Current System
14.8.1. Umum 14.8.1. General
14.8.1.1. Jenis Anoda yang dipasang harus sesuai 14.8.1.1. The types of Anodes installed shall
dengan spesifikasi yang ada di dokumen comply with specification available in
Standar Teknis Material Spesifikasi Standar Teknis Material Spesifikasi
Onshore Cathodic Protection. Onshore Cathodic Protection.
14.8.1.2. Sebelum dipasang, Anoda harus 14.8.1.2. Prior to installation, the Anodes shall be
diinspeksi untuk meyakinkan bahwa inspected to ensure that the Anodes in
Anoda dalam keadaan baik dan sesuai good condition and comply with
dengan spesifikasinya. specification.
14.8.1.3. Anoda harus ditangani secara baik untuk 14.8.1.3. The Anodes shall be carefully handled to
mencegah kerusakan sebelum maupun avoid any damage before and during
pada pemasangan. installation.
14.8.1.4. Pemasangan Ground-bed untuk sistem 14.8.1.4. Ground-bed installation for Impressed
Arus Tanding dapat berupa sistem Current system may be shallow Anode
Ground-bed Anoda lubang dangkal atau Ground-bed or deep well Anode Ground-
lubang dalam. bed.
atau peralatan sejenisnya. Dipastikan sling or equivalent mean. Make sure that
saat dilakukan penurunan Anoda tidak during Anode lowering there is no
terjadi kerusakan mekanis pada Anoda. mechanical damage. The Anode shall not
Anoda jangan dipegang dengan be handled by its lead wire.
menggunakan kabel Anoda.
14.8.2.5. Coke breeze harus digunakan untuk 14.8.2.5. Coke breeze shall be used to Backfill the
penimbunan lubang sampai sekitar 30 cm annulus of the hole to 30 cm above the
dari bagian atas Anoda. Sisa lubang yang Anode. The remainder of the hole may
belum terisi, boleh ditimbun dengan tanah be Backfilled with free sharp rock native
sekitarnya yang bebas dari batuan tajam soil which could damage the wire
yang dapat merusak isolasi kabel. insulating.
14.8.2.6. Harus hati-hati sewaktu memadatkan 14.8.2.6. Care should be taken to prevent damage
lubang Anoda untuk menghindari to the Anode when the tamping of
kerusakan. Semua lubang harus digali Anodes hole is being done. All of the
dalam satu garis lurus dengan interval holes shall be augered in one straight
antar Anoda minimal 2 meter. Jumlah line with 2 meters center to center
lubang tergantung desain proteksi intervals. Quantity of the holes depends
katodik. Lubang-lubang harus on the length of the pipelines. The holes
dihubungkan dengan galian sedalam 50 shall be connected with a 30 cm width x
cm dan lebar 30 cm untuk instalasi kabel 50 cm depth trench for installation of the
utama positif. positive header cable
14.8.2.7. Setelah Anodanya terpasang dan 14.8.2.7. After all Anodes are installed and
terhubung semua, kabel utama Anoda connected, the Anode header loop cable
harus diletakkan pada bagian tengah shall be laid in the middle of the trench
galian yang menghubungkan lubang- connecting the Anode holes. The Anode
lubang Anoda. Sambungan kabel Anoda lead wire to header cable connection
dengan kabel utama harus dibuat dengan shall be made using a split bolt
menggunakan split bolt connector. connector. The connection shall be
Sambungannya harus dilapisi dengan encapsulated using Y type splice kit
splice kit tipe Y yang terdiri dari dua consisting of two part plastic mould with
bagian cetakan plastik dengan resin epoxy resin. After finishing all
epoxy. Setelah menyelesaikan semua connections, the trench will be back filled
sambungan, galian kemudian ditimbun using native soils until the original grade.
kembali dengan tanah asli dari Each end of the positive header cable
penggalian sampai rata dengan shall be terminated in the positive
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
atau struktur lain jika pipa belum the pipeline is yet not installed. As the
dipasang. Ketika Anoda diturunkan ke Anode is lowered into the hole, a current
dalam lubang, pembacaan arus setiap reading shall be recorded for each 1.5
kedalaman 1.5 meter harus dicatat. meter of depth. The soil with lowest
Tanah dengan resistivitas paling rendah resistivity shall be located accurately to
harus diidentifikasi untuk penempatan permit optimum placement of each
setiap Anoda agar optimal. Jarak antar Anode. Anode shall not be closer than
Anoda tidak boleh kurang dari 0.6 meter 0.6 meter, end to end.
dari ujung ke ujung.
14.8.3.4. Pipa ventilasi dengan diameter dalam 1 14.8.3.4. A 1 inch (2.5 cm) inside diameter vent
inci (2.5 cm) dan dilubangi pada area pipe, perforated in the area of the
Anoda harus dipasang pada Ground-bed Anodes shall be installed in the deep
Anoda lubang dalam. Anoda boleh Anode Ground-bed. The Anode may be
ditempelkan pada pipa ventilasi untuk taped to the vent pipe for installation.
instalasi. Sebelum pemasangan Anoda, Prior to installation the Anode lead shall
kabelnya harus diuraikan, panjang kabel be unrolled, the lead length verified and
harus diverifikasi dan ujungnya harus the end of Anode lead labeled. The
diberi label. Anoda paling bawah adalah bottom Anode is Anode number 1. An
Anoda nomor 1. Pelurus Anoda harus Anode centralizer shall be attached to
ditempelkan pada setiap Anoda. each Anode. The Anode assembly shall
Penurunan Anoda dilakukan dengan tali, be lowered by rope, not by the lead wire.
tidak boleh menggunakan kabel Anoda.
14.8.3.5. Jika mungkin, lubang Anoda harus 14.8.3.5. If possible, the Anode hole shall be
dibersihkan dengan air bersih untuk flushed with fresh water to remove
menghilangkan lumpur dari lubang, cutting and mud from the hole till the
dilakukan hingga air siraman dalam water fairly clear.
lubang terlihat bersih.
14.8.3.6. Sebuah pipa pengisi harus dimasukan ke 14.8.3.6. A slurry pipe shall be lowered to the
dasar lubang untuk memudahkan bottom of the hole to facilitate displacing
penggantian air dan lumpur dengan coke the water and mud with coke breeze.
breeze. Coke breeze harus dimasukan Coke breeze shall be made into slurry
melalui pipa pengisi bersama dengan air with fresh water and pumped down the
dan dipompakan ke bawah. Pipa pengisi slurry pipe. The slurry pipe shall be
harus dicabut dari lubang setelah coke pulled out of the hole as the coke breeze
breeze disiikan ke dalam lubang. Coke fills the hole. The coke breeze shall be
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
breeze harus ditekan hingga ketinggian pumped until the desired height is
yang diinginkan tercapai. Coke breeze reached. The coke breeze shall be
harus dibiarkan selama 24 jam dan allowed to settle for 24 hours and the
kemudian ketinggiannya diperiksa. Jika level checked. If the coke breeze has
coke breeze telah terisikan dengan settled, additional coke breeze shall be
sempurna, penambahan coke breeze added. The remainder of the hole shall
baru dilakukan. Sisa lubang harus diisi then fill with material that will not damage
dengan material yang tidak akan merusak the Anode wire insulating.
isolasi kabel Anoda.
14.8.3.7. Kabel Anoda kemudian disambungkan ke 14.8.3.7. The Anode lead wire shall then be
terminal dalam kotak penghubung connected to the proper terminal in the
(junction box) Anoda yang berada tidak Anode junction box located adjacent to
jauh dari Ground-bed. the Ground-bed.
14.8.3.8. Tipikal pemasangan Ground-bed Anoda 14.8.3.8. Typical deep Anode Ground-bed
lubang dalam seperti ditunjukan pada installation is shown in Volume II Typical
Volume II Gambar Tipikal. Drawing.
14.9.5. Sambungan ke sumber listrik harus 14.9.5. Power source connection shall refer
mengacu pada persyaratan pada Sub requirement in Sub Section 14.10 of this
Bab 14.10 dalam panduan ini. guidance.
14.9.6. Setelah semua kabel dicek 14.9.6. After all cables are checked for
sambungannya, kabel harus continuity, cable connections shall be
disambungkan terhadap terminal input made to the respective input and output
dan output. Kabel dari Anoda harus terminals. The lead wire of Anodes shall
dihubungkan ke terminal positif dan kabel be connected to the positive terminal and
dari pipa yang akan diproteksi wire to pipe line to be protected shall be
dihubungkan ke terminal negatif. connected to negative terminal.
14.9.7. Tipikal pemasangan transformer rectifier 14.9.7. Typical transformer rectifier installation
dan fasilitas pendukungnya seperti and it facilities are shown in Volume II
ditunjukkan pada Volume II Gambar Typical Drawing.
Tipikal.
cable marker tape harus dipasang filled with native soil. Concrete tile and
sepanjang jalur kabel. cable route marker shall be installed
along the cable route.
14.10.4. Sambungan kabel pada terminal panel 14.10.4. Cable connections on terminal
distribusi harus dilengkapi dengan cable distribution panel shall be equipped with
shoe (penutup sambungan kabel). Kabel a shoe cable. Cables enter to the
masuk ke kotak terminal dan panel terminal box and distribution panel shall
distribusi harus dilengkapi dengan cable be fitted with cable gland.
gland.
14.10.5. Setelah penyambungan kabel selesai, 14.10.5. After the cables connections are
galian kabel harus ditimbun lagi dengan completed, the cable trench shall be back
material galiannya dan penanda rute – filled with the excavated material and
kabel bawah tanah harus dipasang pada be under ground makers of route shall be
jalur kabelnya. installed.
14.11. Pemasangan Kotak Distribusi Negatif 14.11. Negative Distribution Box Installation
14.11.1. Kotak distribusi negatif diperlukan agar 14.11.1. The negative distribution box is required
arus Proteksi Katodik dapat mengalir to allow the Cathodic Protection current
dengan baik pada pipa. flow well at pipeline.
14.11.2. Setelah tiang penyangga dibangun dan 14.11.2. After support channel is erected and
landasan cor beton dipasang, kotak concrete footing is set in the negative
distribusi negatif harus dipasang pada tiang distribution box shall be mounted on
penyangga. Lokasi panel distribusi negatif support channel. Location of the negative
berdekatan dengan transformer rectifier. distribution panel is adjacent to the
transformer rectifier.
14.11.3. Berikan penanda – cable tag pada semua 14.11.3. Attach the cable tag to all of cables
ujung kabel untuk mengidentifikasi ke terminating to identify the structure to
struktur mana kabel tersebut tersambung. which they are connected.
14.11.4. Tipikal pemasangan kotak distribusi 14.11.4. Typical negative distribution box
negatif seperti ditunjukan pada Volume II installation is shown in Volume II Typical
Gambar Tipikal. Drawing.
dengan benar pada tiang baja Galvanis mounted properly at the galvanized steel
yang diletakkan pada landas beton. conduit being set in a concrete footing.
14.12.2. Kabel utama Anoda terhubung ke 14.12.2. Connecting the Anode header cable to
terminal panel distribusi positif. the positive distribution panel termination.
14.12.3. Tipikal pemasangan kotak distribusi 14.12.3. Typical positive distribution box
positif seperti ditunjukkan pada Volume II installation is shown in Volume II Typical
Gambar Tipikal. Drawing.
sikat kawat.
14.13.7. Lasan exothermit harus diuji kekuatan 14.13.7. Exothermit weld shall be tested for joint
sambungannya dengan diketuk secara strength by gently tapped using a small
perlahan menggunakan palu kecil hammer (size ± 0.5 kg) were made of
(ukuran ± 0.5 kg) yang terbuat dari brass. If after 3 knocks, exothermit weld
kuningan. Apabila setelah 3 kali ketukan, has cracks or loose connections, then
sambungan mengalami keretakan atau welding shall be re-weld and re-tested.
lepas, maka pengelasan harus diulang
dan diuji kembali.
14.13.8. Setelah lasan dingin, semua kerak lasan 14.13.8. After the weld has cooled, all slag shall
harus dibersihkan dan kemudian daerah be cleaned and then the welded area
yang dilas harus ditutup dengan shall be covered using Epoxy Mastic
menggunakan Epoxy Mastic Compound Compound or other materials that have
atau material lainnya yang sudah been approved by PGN.
disetujui dan diterima oleh PGN.
14.13.9. Hasil lasan yang sudah dilapisi material 14.13.9. Weld results that has been covered by
compund harus diwrapping kembali. compound shall be re-wrapped.
14.13.10. Penyambungan setiap kabel Anoda ke 14.13.10. Connection of each Anode lead wire to
kabel utama harus menggunakan split- header cable shall using split-bolt-
bolt-connector atau cable splices connector or cable splice connection.
connection. Penyambungan yang sudah The finished connection shall be
selesai harus dilengkapi dengan completed with insulated properly with
selubung secara sempurna dengan epoxy encapsulated or equal method.
menggunakan epoxy encapsulated atau
metoda yang setara.
14.13.11. Kabel yang sudah terhubung secara 14.13.11. Connected cable to pipe by exothermite
exothermit ke pipa sebaiknya dililitkan should be twisted arroud the pipe as
pada pipa sebanyak 2-3 kali. much as 2-3 times.
14.13.12. Holiday Test harus dilakukan setelah 14.13.12. Holiday Test shall be performed after
dilakukan coating kembali. recoating.
14.13.13. Tipikal penyambungan kabel ke pipa 14.13.13. Typical cable connections to the pipe are
seperti ditunjukkan pada Volume II shown in Drawing Standard PGN.
Gambar Tipikal.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Katodik.
14.15.2. Pemilihan lokasi pemasangan Insulating 14.15.2. Location selection of Insulating Joint
Joint harus terhindar dari beban eksternal installation shall be free from external
berupa bending momen. Perkuatan dapat load such as moment bending.
dilakukan untuk meminimalkan beban Reinforcement can be done to minimize
eksternal yang dialami oleh Insulating external load experienced by Insulating
Joint. Joint
14.15.3. Pemasangan Insulating Joint harus 14.15.3. Insulating Joint installation shall be free
terhindar dari tegangan akibat proses from stress of installation process
pemasangan.
14.15.4. Insulating Joint (body utama dan pup 14.15.4. Insulating Joint (main body and pup
piece) yang dipasang di bawah tanah piece) installed underground shall be
harus dilindungi dengan wrapping. protected by wrapping
14.15.5. Jika Insulating Joint dipasang dibawah 14.15.5. If Insulating Joint installed underground
tanah dan berada di lokasi yang potensial and located on potential stray current
stray current (seperti Saluran Udara location (such as High Voltage
Tegangan Ekstra Tinggi / SUTET, rel Transmission Power Line, electric train
kereta listrik, groundbed), maka Insulating railways, grounbed), Insulating Joint shall
Joint harus dilengkapi zinc grounding di be equipped with zinc grounding in right
sisi kiri dan kanan. and left side of the Insulating Joint.
14.15.6. Semua pipa atau komponen fasilitas 14.15.6. All pipes or other supported facilities to be
penunjang lainnya yang akan dipasang installed shall be free from foreign
harus bebas dari material asing dan debu materials and dust generated from
yang ditimbulkan dari pekerjaan construction work.
konstruksi.
14.15.7. Pemasangan Insulating Joint dan 14.15.7. Insulating joint installation and testing
pengujiannya harus mengacu pada Bab shall refer to Welding Section.
Pengelasan.
14.15.8. Insulating joint harus dilengkapi dengan 14.15.8. Insulating joint shall be equipped with
grounding lug yang terpasang dengan full grounding lug joined by full penetration
penetration weld. welding.
14.15.9. Insulating joint harus dilengkapi dengan 14.15.9. Insulating joint shall be equipped with
Lightning Arrester sesuai dengan NACE- Lightning Arrester as per NACE-SP-0177.
SP-0177.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
14.15.10. Pada saat pemasangan dan setelah 14.15.10. Insulating joint shall not be treated
pemasangan, Insulating Joint tidak boleh external mechanically wether before or
mendapat perlakuan mekanis dari luar. after installation. The effectivity of
Setelah selesai pemasangan, insulating insulating joint shall be tested after
joint harus diuji keefektifannya. installation.
14.15.11. Pengujian tahanan elektrik mengikuti 14.15.11. Electrical Resistance Test shall be in
Standar Teknis dan Material Insulating accordance with Standar Teknis dan
Joint. Material Insulating Joint.
14.15.12. Tipikal pemasangan insulating joint harus 14.15.12. Typical installation of insulating joint shall
mengikuti Volume II Gambar Tipikal. refer to Volume II Typical Drawing.
diperlukan untuk mencegah adanya aliran action between insulating layers may be
kapiler antara lapisan insulator dan necessary to prevent corrosive element
mungkin juga diperlukan untuk mencegah from entering the junction box.
unsur korosif masuk ke junction box.
14.17.5. Penyekat kabel masuk mungkin juga 14.17.5. Sealing lead wire entry may be necessary
diperlukan untuk mencegah masuknya to prevent entry of gas.
gas.
14.17.6. Junction box dari bahan logam harus 14.17.6. Metal junction boxes shall be grounded.
diberi arde atau koneksi pentanahan
(grounding).
14.17.7. Penempatan sambungan kabel di dalam 14.17.7. Care shall be exercised in the placement
junction box harus dijaga agar tidak of spliced cablein junction boxes so that
mengalami kerusakan atau tergores pada the wire or joint insulating will not injure
saat penutup junction box dipasang. when the cover is fastened to the box.
14.17.8. Material dari Junction Box harus sesuai 14.17.8. Junction box material shall comply with
dengan Standar Teknis Material Standar Teknis Material Spesifikasi
Spesifikasi Onshore Cathodic Protection. Onshore Cathodic Protection.
14.17.9. Tipikal junction box seperti ditunjukan 14.17.9. Typical junction box is shown in Volume II
pada Volume II Gambar Tipikal. Typical Drawing.
14.18.4. Pada daerah yang sempit dan tindakan 14.18.4. In the restricted area and vandalism action
vandalisme bisa terjadi, Tiang Ukur jenis could be occured, Flush Mounted Test
Flush Mounted (dipasang di bawah Station (installed under ground) or gas
permukaan tanah) atau Tiang Ukur patok stake Test Station is preferred. Detail
gas akan lebih baik. Detail desain dari design of this Test Station shall refer to
tipe Tiang Ukur ini mengacu pada Volume II Typical Drawing. At area with
Volume II Gambar Tipikal. Pada daerah wide ROW like in the rural area, pole
dengan ROW yang luas seperti pinggiran mounted Test Station (mounted on pole
kota, Tiang Ukur jenis Pole Mounted above ground) may be used.
(bentuk tiang yang dipasang di atas
permukaan) boleh digunakan.
14.18.5. Pondasi yang digunakan untuk Tiang 14.18.5. The foundation used for Test Station shall
Ukur harus terbuat dari beton. be made from concrete.
14.18.6. Tiang Ukur harus dipasang dekat dengan 14.18.6. A terminal Test Station shall be installed in
pipa. close proximity to the pipeline.
14.18.7. Tiang Ukur untuk Anoda Korban terdiri 14.18.7. Test Station for Sacrificial Anode consist
dari 3 kabel yaitu 2 kabel dari pipa dan 1 of 3 wires such as 2 wires from pipe and
kabel dari Anoda. Tiang Ukur untuk Arus 1 wire from Anode. Test Station for
Tanding terdiri dari 1 kabel dari pipa. Impressed Current consist of 1 wire from
Junction Box terdiri dari 2 kabel dari pipa. pipe. Junction Box consist of 2 wires from
Tiang ukur pengukur arus terdiri 4 kabel pipe. Current Measurement Test Station
dari pipa. consist of 4 wires from pipe.
14.18.8. Warna kabel untuk pipa adalah hitam dan 14.18.8. Wire color coding for pipe is black and for
warna kabel untuk Anoda adalah merah. Anode is red.
14.18.9. Dua kabel untuk pengukuran harus 14.18.9. Two test lead wires shall be connected to
dihubungkan dengan masing-masing pipa each of the pipelines at each Test Station
pada setiap Tiang Ukur menggunakan using the exothermite weld as described
lasan exothermit seperti yang telah in Sub Section 14.13 of this guidance.
dijelaskan pada Sub Bab 14.13 dalam Care shall to be taken to avoid damage to
panduan ini. Perhatian harus diambil the insulating of test wires to be
untuk menghindari kerusakan permanently tagged and connected to the
pembungkus kabel pengukuran yang Test Station.
dipasang secara permanen dan
disambungkan pada tiang ukur.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
14.18.10. Sambungan kabel pada terminal tiang 14.18.10. Cable connection on the Test Station
ukur harus dilengkapi dengan penutup terminal shall be equipped with cable
sambungan kabel. shoe.
14.18.11. Tipikal pemasangan Tiang Ukur seperti 14.18.11. Typical Test Station installation for are
ditunjukan pada Volume II Gambar shown in Volume II Typical Drawing.
Tipikal.
Nilai potensial pipa ke tanah harus utilized for the testing of the pipelines.
tercatat dalam laporan. Potensial yang The pipe-to-soil potential values shall be
lebih besar dari -850 millivolt recorded in the report. Measurements
menunjukkan perlindungan penuh more negative than -850 millivolts to a
terhadap jaringan pipa. Cu/CuSO4 reference indicate full
protection of the pipeline.
Pertambangan Minyak Dan Gas Bumi Pertambangan Minyak Dan Gas Bumi
Dan Pengusahaan Sumber Daya Panas Dan Pengusahaan Sumber Daya Panas
Bumi. Bumi.
15.4.3. Keputusan Menteri Pertambangan dan 15.4.3. Keputusan Menteri Pertambangan dan
Energi Nomor 300.K/38/M.PE/1997 Energi Nomor 300.K/38/M.PE/1997
tentang Keselamatan Kerja Pipa Penyalur tentang Keselamatan Kerja Pipa
Minyak dan Gas Bumi. Penyalur Minyak dan Gas Bumi.
15.4.4. SNI 3474: 2009, Sistem Penyaluran dan 15.4.4. SNI 3474: 2009, Sistem Penyaluran dan
Distribusi Pipa Gas. Distribusi Pipa Gas.
pipa.
15.6.5. Pita pengenal (marker tape) harus 15.6.5. Marker tape shall be installed along the
dipasang sepanjang pipa ± 50 cm dari pipe approximately ± 50 cm above the
atas permukaan pipa. top of the pipe.
15.6.6. Jika dibutuhkan concrete slab sebagai 15.6.6. If concrete slab needed as a protection,
proteksi, maka concrete slab tersebut that concrete slab shall available in the
harus telah tersedia di area pekerjaan area when the Backfilling conducted.
saat Penimbunan Galian dilakukan.
15.6.7. Pemadatan setelah Penimbunan Galian 15.6.7. Compaction after Backfilling shall be
harus dilakukan sehingga kondisi galian performed so the trench condition looks
dapat terlihat seperti kondisi semula. like the initial conditions.
15.6.8. Pemadatan harus dilakukan secara hati- 15.6.8. Compaction shall be done carefully to
hati untuk mencegah kerusakan pada prevent a damage to the pipe and
pipa dan coating. coating.
15.6.9. Pemadatan pada daerah perlintasan 15.6.9. Compaction on open cut crossing shall
open cut dilakukan setelah pelindung be performed after the pipe protector
pipa dipasang sesuai dengan desain installed in accordance to construction
konstruksi. design.
15.6.10. Galian untuk daerah Tie-in dapat 15.6.10. Excavation for Tie-in area can be left in
dibiarkan dalam kondisi terbuka asalkan open condition as long as a safety sign
dipasang rambu pengaman atau ditutup installed or temporary covered by a steel
sementara dengan pelat baja hingga Tie- plate until Tie-in completed.
in selesai dilakukan.
15.6.11. Saluran pembuangan air harus 15.6.11. The drainage shall be made looks like
dikembalikan seperti kondisi semula. the initial conditions.
15.6.12. Penyelesaian akhir dari Penimbunan 15.6.12. The final completion of Backfilling shall
Galian harus dilakukan sesuai dengan be performed in accordance with the
ketentuan yang disyaratkan dalam requirements in this guidance.
panduan ini.
sambungan dengan penetrasi penuh dan joint penetration and the joint shall be
diuji dengan Pengujian Radiography. Jika examined with Radiography Examination.
Pengujian Radiography tidak If Radiography Examination is not
memungkinkan, sambungan dapat diuji possible, welding connection can be
dengan Uji Tidak Merusak lainnya. examined using other Non Destructive
Sambungan las sementara antara Pig Examination. Temporary welding
Launcher / Receiver sementara, connection between temporary Pig
Temporary Header atau Welding Neck Launcher / Receiver, Temporary Header
Flange dengan pipeline harus diuji or Welding Neck Flange on Test Blind
dengan Pengujian Radiography. with pipeline shall be tested using
Radiography Examination.
16.5.7. Jika Pig Launcher / Receiver sementara 16.5.7. If the temporary Pig Launcher / Receiver
atau Temporary Header akan digunakan or Temporary Header will be used for
saat Uji Hidrostatik, maka Pig Launcher / Hydrostatic Test operation, the temporary
Receiver sementara atau Temporary Pig Launcher / Receiver or Temporary
Header harus diuji terlebih dahulu pada Header shall be pretested before
tekanan uji penuh selama 2 jam. installation at the full test pressure for
Dokumen pendukung Pig Launcher / period of 2 hours. The supporting
Receiver sementara atau Temporary document of temporary Pig Launcher /
Header harus diserahkan kepada PGN Receiver or Temporary Header shall be
untuk ditinjau. submitted to PGN for review.
16.5.8. Proses peluncuran pig untuk pelaksanaan 16.5.8. Pig launching for Cleaning and Gauging
Cleaning dan Gauging dapat dilakukan operation may be performed using a
dengan menggunakan kompresor. compressor.
16.5.9. Pelaksanaan Cleaning pada pipa induk 16.5.9. Cleaning operations on main line or
atau pipa dinas dengan panjang lebih dari service line with length more than 200 m
200 m harus dilakukan dengan shall be performed using Bi Directional
menggunakan Bi Directional Pig. Pig. The use of Poly Pig on Cleaning
Penggunaan Poly Pig pada pelaksanaan operation shall be approved by PGN.
Cleaning harus mendapatkan persetujuan
dari PGN.
16.5.10. Material pig sebaiknya ditinjau terhadap 16.5.10. The manufacturing materials for the pigs
internal coating pipa untuk memastikan should be reviewed against the internal
pig yang digunakan tidak akan merusak coatings of pipe to ensure that no
internal coating. Bi Directional Brush Pig damage to the internal coating could be
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
jenis Nylon atau Poly Pig dapat incurred. Nylon Bi Directional Brush Pig
digunakan pada pipeline dengan internal type or Poly Pig shall be used for internal
coating. coated pipeline.
16.5.11. Jenis dan jumlah pig pada rangkaian pig 16.5.11. Type and number of pigs on pigging train
yang diajukan oleh Pelaksana Pekerjaan proposed by Work Executor shall be
harus mampu untuk memastikan seluruh capable to ensure that the entire
operasi dapat diselesaikan dengan baik operation is completed satisfactorily and
dan mendapatkan persetujuan PGN. subject to PGN approval.
16.5.12. Pemeriksaan dimensional pada bagian 16.5.12. Internal pipe dimensional inspection
dalam pipa dengan menggunakan using gauging plate shall be performed
gauging plate harus dilakukan pada: on:
a. Pipa dinas yang memiliki panjang a. Service line which has a length more
lebih dari 2000 meter. than 2000 meters.
b. Jaringan pipa yang yang memiliki b. Pipeline which has an elbow with
elbow dengan radius > 1.5 D. radius > 1.5 D.
Dengan ketentuan Pelaksana Pekerjaan With The Work Executor shall monitor
harus melakukan pengawasan pada saat the construction strictly start from
pelaksanaan konstruksi secara ketat stringing until backfilling to ensure
mulai dari stringing hingga backfilling pipeline is in good condition.
untuk memastikan jaringan pipa berada
dalam kondisi yang baik.
16.6.3. Daftar peralatan dan alat ukur yang 16.6.3. List of equipments and measuring
digunakan harus dibuat oleh Pelaksana devices used shall be prepared by Work
Pekerjaan dan diserahkan kepada PGN Executor and submitted to PGN as
sebagai informasi mengenai tipe information about type of equipment and
peralatan dan tanggal kedaluwarsa expired date of calibration certificate.
sertifikat kalibrasi.
16.6.4. Semua alat angkat / angkut yang 16.6.4. All lifting gear / equipment used shall
dipergunakan harus memiliki sertifikat have valid certificate.
yang berlaku.
16.6.5. Semua peralatan harus diletakkan pada 16.6.5. All equipment shall be placed on secure
area / lokasi yang aman. area / location.
16.8.2. Jika kualitas atau sumber air yang 16.8.2. If water quality or the water source is
digunakan tidak diketahui, contoh air unknown, water samples shall be
harus dianalisa pada laboratorium dan analyzed at laboratory and suitable
tindakan yang tepat harus diambil untuk actions shall be taken to remove and/or
menghilangkan dan/atau menghambat inhibit harmful substances.
zat yang berbahaya.
16.8.3. Jika air akan berada di dalam pipeline 16.8.3. If water is to remain in the pipeline for an
untuk jangka waktu yang cukup lama, extended period of time, consideration
harus dipertimbangkan untuk dilakukan shall be given to control of bacterial
pengendalian terhadap pertumbuhan growth and internal corrosion by
bakteri dan korosi internal dengan chemical treatment.
perlakuan bahan kimia.
16.8.4. Pemakaian corrosion inhibitor atau aditif 16.8.4. Addition of corrosion inhibitor or any
kimia lainnya harus mendapatkan chemical additives shall be approved by
persetujuan dari PGN dan MIGAS. PGN and MIGAS. Their impact on the
Dampak terhadap lingkungan selama dan environment during and after water
setelah pembuangan air harus disposal shall be considered related to
dipertimbangkan terkait dengan prosedur safety procedure, AMDAL and local
keselamatan, AMDAL dan peraturan regulation.
daerah setempat.
16.10. Pelaksanaan Cleaning dan Gauging 16.10. Cleaning and Gauging Enforcement
16.10.1. Jika operasi Cleaning dan Gauging 16.10.1. If Cleaning and Gauging operations
dilakukan secara bersamaan performed as single operation using
menggunakan beberapa pig, rangkaian multiple pigs, the pigging train shall
pig harus terdiri dari pig dengan desain incorporates the different pig designs to
yang berbeda untuk memastikan operasi ensure that the entire operation is
dapat diselesaikan dengan baik. Bi- completed satisfactorily. Bi-Directional
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Directional Gauging Pig harus diletakkan Gauging Pig shall be placed at the last
pada posisi terakhir pada rangkaian pig. position on pigging train.
16.10.2. Pressure Recorder harus terpasang pada 16.10.2. Pressure Recorder shall be connected
Pig Launcher untuk memantau tekanan di into Pig Launcher to monitor pressure
dalam pipeline selama pergerakan pig. inside the pipeline during pig movement.
16.10.3. Semua operasi pigging harus dicatat agar 16.10.3. All pigging operations shall be logged in
dapat memberikan informasi yang order to provide the necessary
diperlukan: jumlah dan jenis pig, volume information: number of pig in train and
air yang digunakan, waktu peluncuran type, volume of water used, time
dan penerimaan, kondisi pig saat launched and received, condition of pig
diterima, kotoran yang dikumpulkan. at arrival, debris collected. A continuous
Rekaman grafik dan data lain yang record of the charts and other relevant
berhubungan terkait dengan Cleaning data relating to the Cleaning and
dan Gauging harus diserahkan kepada Gauging shall be submitted to PGN at
PGN setelah pig selesai diluncurkan. the completion of each pig run. Chart
Waktu pada grafik harus sesuai dengan time shall correspond to actual time.
waktu aktual.
16.10.4. Proses Cleaning dapat diterima apabila 16.10.4. Cleaning process accepted if visually
telah dinyatakan bersih secara visual dan cleaned and approved by PGN.
disetujui oleh PGN.
16.10.5. Jika kebersihan pipeline dengan 16.10.5. If pipeline has not been adequately
peluncuran rangkaian pig yang pertama cleaned by the first run of pigging train,
masih belum cukup, maka pekerjaan the pigging train shall be repeated.
peluncuran rangkaian pig harus diulang
kembali.
16.10.6. Pelat gauging dinyatakan diterima apabila 16.10.6. Gauging plate otherwise accepted if no
tidak terdapat cacat pada pelat yang damage at the plate which indicated
mengindikasikan adanya perubahan internal pipe geometry changes found.
geometri pada bagian dalam pipa.
16.10.7. Apabila terdapat kerusakan pada pelat 16.10.7. If there is damage to gauging plate which
gauging yang mengindikasikan adanya indicated internal pipe geometry
perubahan geometri pada bagian dalam changes, the Work Executor shall
pipa, maka Pelaksana Pekerjaan harus conduct an investigation to find the cause
melakukan investigasi hingga ditemukan and location of damage.
penyebab dan lokasi kerusakan.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
16.10.8. Setelah hasil operasi Gauging dapat 16.10.8. Once Gauging operation successfully
diterima, hasil pelat gauging harus accepted, the gauging plate result shall
didokumentasikan sebagai lampiran pada be documented for attachment on
laporan pelat gauging. gauging plate report.
pipeline harus diuji dengan Pengujian between Test Header and pipeline shall
Radiography. Dokumen pendukung Test be tested using Radiography
Header harus diserahkan kepada PGN Examination. The supporting document
untuk ditinjau. of Test Header shall be submitted to
PGN for review.
17.5.9. Uji Hidrostatik harus disaksikan oleh 17.5.9. Hydrostatic Test shall be witnessed by
PGN, Pihak Ketiga dan MIGAS. PGN, Third Party and MIGAS.
17.5.10. Selama Uji Hidrostatik semua tindakan 17.5.10. During Hydrostatic Test, all safety
pencegahan untuk keselamatan harus precautions shall be undertaken
dilakukan termasuk evakuasi seluruh including evacuation of all unauthorized
personil yang tidak berkepentingan dari personnel from the test area.
area pengujian.
17.5.11. Sistem pipeline yang terpasang harus di- 17.5.11. The installed pipeline system shall be
Uji Hidrostatitk dengan tekanan minimal hydrostatically tested to minimum 1.5
1.5 kali tekanan desain, tekanan uji harus times design pressure, the test pressure
dilaksanakan minimal selama 24 jam. shall be held for minimum of 24 hours.
Tidak ada tekanan pada bagian uji yang No pressure in the test section that
boleh melebihi maximum hoop stress exceed maximum hoop stress 95%
95% SMYS pipa. SMYS of pipe.
17.5.12. Uji Hidrostatik pada Equalizing Line, 17.5.12. Hydrostatic Test on Equalizing Line,
Sectional Valve dan Insulating Joint dapat Sectional Valve and Insulating Joint may
dilakukan secara terpisah dari mainline. be performed separately from the
Tekanan uji harus dilaksanakan minimal mainline. The test pressure shall be held
selama 2 jam dan dapat dilakukan tanpa minimum for 2 hours and may be
menggunakan DWT. performed without using DWT.
17.5.13. Valve sebaiknya diuji secara terpisah dari 17.5.13. Valve should be tested separately from
mainline. Tekanan uji harus ditahan the mainline. The test pressure shall be
minimal selama 2 jam. Uji Pneumatic held minimum for 2 hours. Pneumatic
menggunakan nitrogen dapat dilakukan Test using nitrogen may be performed in
sebagai pengganti Uji Hidrostatik. lieu of Hydrostatic test.
17.5.14. Pengisian air harus dilakukan dengan 17.5.14. Water filling shall be performed using
menggunakan break water tank dan break water tank and buffer tank.
buffer tank.
17.5.15. Pelaksanaan Water Filling harus 17.5.15. Water Filling operation shall be
dilakukan dengan menggunakan Pig bila performed using Pig whenever possible
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
memungkinkan untuk memastikan tidak to ensure there is no air trap inside the
ada udara yang terperangkap di dalam pipeline.
jaringan pipa.
17.9. Pelaksanaan Water Filling dan Uji 17.9. Water Filling and Hydrostatic Test
Hidrostatik Execution
17.9.1. Pasokan air menuju pompa akan dibuka 17.9.1. The water supply to the pump will be
dan pemompaan akan dimulai untuk opened up and pumping will commence
mengisi penuh pipa. to fill and top up the pipeline.
17.9.2. Valve pada Receiver akan dibuka untuk 17.9.2. The valve at Receiver will be opened to
memungkinkan ventilasi selama allow venting during top up.
pengisian.
17.9.3. Setelah air mengalir (bebas dari udara) 17.9.3. Once good water flow (free of air) is
dilaporkan keluar dari lubang ventilasi reported to be exiting the vent and water
dan volume air pada pembacaan flow volume on flow meter reading exceeds
meter melebihi perhitungan volume air the calculation of water volume needed,
yang dibutuhkan, pemompaan akan the pump will be shut down.
dihentikan.
17.9.4. Setelah didapat konfirmasi bahwa venting 17.9.4. On confirmation that the vent point line
line telah dikencangkan, pelaksanaan have been tightening, commence
penekanan pada pipeline dapat dimulai. pressurization of the pipeline
17.9.5. Pelaksana Pekerjaan harus memastikan 17.9.5. Work Executor shall ensure that the
bahwa alat pencatat tekanan dan pressure and temperature recorders are
temperatur sudah terpasang. Kertas installed. The chart to be used shall be
grafik yang akan digunakan harus dalam new and signed by all parties.
kondisi baru dan ditandatangani oleh
semua pihak.
17.9.6. Penaikan tekanan harus dilakukan 17.9.6. The pressurizing shall be performed in
dengan kehadiran PGN, Pihak Ketiga dan the presence of PGN, Third Party and
MIGAS. MIGAS.
17.9.7. Tekanan di dalam pipeline harus 17.9.7. The pressure in the pipeline shall be
dinaikkan dengan laju sebagai berikut raised at the following rates until it
hingga mencapai tekanan uji yang telah reaches the test pressure:
ditentukan:
0% - 35% : 1.0 bar/menit (14.5 0% - 35% : 1.0 bar/minute (14.5
psi/menit), kemudian ditahan minimal psi/minute), then held for minimum 30
selama 30 menit. minute.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
35% - 95% : 1.0 bar/menit (14.5 35% - 95% : 1.0 bar/minute (14.5
psi/menit), kemudian ditahan minimal psi/minute), then held for minimum 30
selama 30 menit. minute.
95% - 100% : 0.1 bar/menit (1.5 95% - 100% : 0.1 bar/minute (1.5
psi/menit) psi/minute)
17.9.8. Perhitungan udara yang terjebak akan 17.9.8. An air entrapment calculation will be
dilakukan pada saat tekanan di dalam carried out when the pressure inside the
pipeline mencapai 35% dari tekanan uji. pipeline reach 35% of the test pressure.
Udara yang terperangkap harus ditaksir The air content of the test water shall be
dengan membuat plot tekanan terhadap assessed by constructing a plot of the
volume pada saat pengisian dan pressure against volume during the initial
penekanan awal, hingga terjadi hubungan filling and pressurisation, until a definite
linier yang jelas. Penaksiran udara yang linear relationship is apparent. The
terperangkap sebaiknya tidak melebihi assessed air content should not exceed
0.2% dari perhitungan volume secara 0.2% of the calculated total volume of the
keseluruhan pipeline yang akan diuji. pipeline under test. If the limit is
Apabila melebihi batasan tersebut, maka exceeded, it shall be documented that
harus didokumentasikan bahwa jumlah the amount of air, not will influence the
udara tidak akan mempengaruhi accuracy of the test significantly.
keakuratan pengujian secara signifikan.
17.9.9. Setelah udara yang terperangkap telah 17.9.9. Once the air trapped calculated, the
dihitung, penaikan tekanan harus pressurizing shall be continued.
dilanjutkan.
17.9.10. Selama proses penekanan, beberapa 17.9.10. During pressurization, the following
paramater berikut harus dipantau dan parameters shall be monitored and
dicatat setiap interval 0.5 barg: logged at every 0.5 barg intervals:
Waktu Time
Temperatur Temperature
Volume Masuk Volume Injected
17.9.11. Setelah tekanan pengujian yang telah 17.9.11. Once the specified test pressure has
ditentukan tercapai, penaikan tekanan been reached, pressurizing can be
dapat dihentikan. stopped.
17.9.12. Waktu permulaan minimal selama 2 jam 17.9.12. Minimum initial time 2 hours will be
diizinkan untuk konfirmasi stabilisasi allowed for confirmation of pressure
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
tekanan sebelum tekanan uji mulai stabilization before the test hold period
ditahan minimal selama 24 jam. Periode begins for minimum 24 hours. The
stabilisasi dianggap selesai ketika terlihat stabilization period is deemed complete
penurunan terhadap laju penurunan when the rate of pressure decay is seen
tekanan. to be decreasing.
17.9.13. Selama periode stabilisasi, tekanan dan 17.9.13. During stabilization period, the pressure
temperatur harus direkam atau dicatat and temperature shall be logged every
setiap 15 menit. Grafik dari tekanan 15 minutes. A graph of pressure vs time
terhadap waktu harus di-plot untuk shall be plotted to show the rate of
menunjukan tingkat penurunan tekanan. pressure decay.
17.9.14. Jika terjadi penurunan tekanan hingga 17.9.14. If any pressure drop below the specified
dibawah tekanan uji yang ditentukan test pressure during the stabilization
selama periode stabilisasi, maka tekanan period, the pressure in the pipeline can
di dalam pipeline dapat dinaikkan kembali be re-pressurized to the specific test
hingga pada tekanan uji yang ditentukan. pressure. The added volume of water
Jumlah air yang ditambahkan harus shall be accurately measured and
dihitung dan dicatat secara akurat. recorded.
17.9.15. Setelah tekanan di dalam pipeline stabil 17.9.15. Once the pressure inside the pipe
dan dikonfirmasi oleh semua pihak, stabilized and confirmed by all parties,
pompa tekanan harus diisolasi dari the pressurizing pump shall be isolated
pipeline dan sambungan selang harus from the pipeline and the hose
dilepaskan. Kemudian periode connection shall be disconnected. Then
penahanan tekanan uji selama 24 jam 24 hours test hold period shall be
harus dilakukan. proceed.
17.9.16. Tekanan pada pengukur tekanan dan 17.9.16. The pressure at the pressure gauge and
grafik pencatat tekanan terhadap Dead pressure chart recorder against the Dead
Weight Tester (DWT) harus dicatat. Weight Tester shall be recorded.
17.9.17. Selama periode penahanan tekanan uji 17.9.17. During the 24-hour test hold period, the
24-jam, parameter berikut harus terus following parameters shall be monitored
dipantau dan dicatat setiap interval 15 and logged at 15 minute intervals:
menit:
Waktu Time
Tekanan Pressure
Temperatur Temperature
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
17.9.18. Uji tekanan dapat diterima jika tidak 17.9.18. The pressure test is acceptable if the
terjadi kebocoran dan penurunan tekanan pipeline system is free from leaks and no
hingga dibawah tekanan uji pada sistem pressure drop below required test
pipeline, dan selisih tekanan antara pressure, and the pressure difference
tekanan awal dan tekanan akhir < 0,2% between initial pressure and final
dari tekanan uji. pressure ≤ 0.2% of the test pressure.
17.9.19. Selisih tekanan antara tekanan awal dan 17.9.19. Pressure difference between initial
tekanan akhir > 0,2% dari tekanan uji pressure and final pressure > 0.2% of the
dapat diterima jika selisih tekanan test pressure is acceptable if the
tersebut dapat dibuktikan menggunakan pressure difference can be proved with
perhitungan secara tertulis terjadi akibat documented calculation caused by
perubahan temperatur. temperature changes.
17.9.20. Apabila perhitungan tidak dapat 17.9.20. If the calculation can not proved the
membuktikan selisih tekanan awal dan difference between initial pressure and
akhir > 0,2% dari tekanan uji yang terjadi final pressure > 0.2% of the test pressure
diakibatkan oleh perubahan temperatur, caused by temperature changes, the
maka periode penahanan harus holding period shall be extended until the
diperpanjang hingga periode penahanan holding period with acceptable pressure
dengan variasi tekanan yang dapat difference obtained.
diterima diperoleh.
17.9.21. Jika kebocoran ditemukan, kebocoran 17.9.21. If any leaks are discovered, they shall be
tersebut harus ditandai dan diperbaiki located and rectified and the system shall
serta sistem harus diuji kembali sesuai be re-tested in accordance with the
dengan spesifikasi. specifications.
17.9.22. Uji Hidrostatik akan dinyatakan dapat 17.9.22. The Hydrostatic Test will be considered
diterima jika semua tekanan yang terisi acceptable if all pressure containing
ke dalam komponen-komponen jalur pipa components of the pipeline maintain their
tetap terjaga integritas nya dan tidak ada integrity and no leaks during the test.
kebocoran yang terjadi selama pengujian.
17.9.23. Pada penyelesaian dan penerimaan hasil 17.9.23. On completion and acceptance of the 24-
pada periode penahanan tekanan uji hour test hold period. The test pressure
selama 24-jam. Tekanan uji harus tetap shall be retained for at least 30 minutes
dipertahankan minimal selama 30 menit prior to depressurization.
sebelum tekanan di dalam pipeline
diturunkan.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
17.9.24. Pada penyelesaian dan penerimaan hasil 17.9.24. On completion and acceptance of the 24-
pada periode penahanan tekanan uji hour test hold period. The pressure
selama 24-jam. Tekanan di dalam inside the pipeline shall be de-
pipeline harus diturunkan, dengan laju pressurized at the following rates to
sebagai berikut hingga mencapai tekanan ambient pressure:
ambient:
100% - 95% : 0,1 bar/menit (1.5 100% - 95% : 0,1 bar/minute (1.5 psi/
psi/menit), kemudian ditahan minimal minute), then held for minimum 30
selama 30 menit. minute.
95% - 35% : 1 bar/menit (14.5 95% - 35% : 1 bar/minute (14.5
psi/menit), kenudian ditahan minimal psi/minute), then held for minimum 30
selama 30 menit. minute.
35% - 0% : 2 bar/menit (29 psi/menit) 35% - 0% : 2 bar/minute (29
psi/minute)
17.9.25. Air harus dibuang setelah penurunan 17.9.25. Water shall be disposed after de-
tekanan dan izin pembuangan limbah cair pressurization and waste water disposal
dari badan terkait telah diperoleh sesuai permit from related authorized body has
dengan ketentuan yang berlaku. been obtained in accordance with
applicable regulations.
17.9.26. Pada penyelesaian dan penerimaan hasil 17.9.26. On completion and acceptance of the
pada Uji Hidrostatik, kertas grafik dan Hydrostatic Test, the charts and
Berita Acara Hasil Uji Hidrostatik harus Hydrostatic Test Acceptance Certificate
diselesaikan dan ditandatangani oleh shall be completed and signed by all
semua pihak. parties.
17.10. Daftar Catatan Uji Hidrostatik 17.10. List of Hydrosatic Test Records
17.10.1. Setelah selesai pengujian, berikut ini 17.10.1. Upon completion of the test, the following
akan disusun dan diserahkan kepada will be compiled and submitted to PGN
PGN sebagai bagian dari dokumentasi as part of the as-built documentation:
as-built:
Salinan Berita Acara Uji Hidrostatik Signed copy of the Hydrotstatic Test
yang telah ditanda-tangani. Acceptance Certificate.
Rekaman grafik temperatur dan Temperature and pressure chart
tekanan. records.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Rekaman hasil uji untuk tekanan dan Test Log of pressure and
temperature. temperatures.
Perhitungan udara terperangkap. Calculation of air entrapment.
Semua perhitungan dan penjelasan All calculation and explanation of test
mengenai perubahan tekanan pressure changes due to temperature
dikarenakan oleh perubahan variations.
temperature
Data mengenai volume bahan kimia Total volume of chemical additive
yang digunakan. injection rate.
Daftar detail peralatan uji berserta Detail description of test equipment
diagram pengujiannya. with diagram of test hook up .
Penyimpangan terhadap prosedur, jika Deviations from procedures, if any.
ada.
Sertifikat kalibrasi untuk peralatan dan Calibration certificates for equipment
alat ukur. and measuring devices.
17.10.2. Pada grafik rekaman harus memuat: 17.10.2. On recording chart shall contain :
Tanda tangan berserta nama dari Initially signed off by Work Executor,
Pelaksana Pekerjaan, PGN, Third Party PGN, Third Party and MIGAS.
dan MIGAS.
Tanggal dan waktu pengujiannya The date and time of the test
Tekanan uji minimum dan tekanan uji The minimum test pressure and actual
aktual test pressure
Media uji The test medium
Pejelasan tentang fasilitas uji A description of the facility tested
Penjelasan dari setiap diskontinuitas An explanation of any pressure
tekanan yang muncul di grafik. discontinuities that appear on any
chart.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
18.5.3. Prosedur keselamatan dan kesehatan 18.5.3. Safety and healthy procedure during
pada pekerjaan Dewatering, Pigging dan Dewatering, Pigging and Swabbing shall
Swabbing harus mengacu pada comply with PGN’s Pedoman
Dokumen Pedoman Keselamatan, Keselamatan, Kesehatan Kerja,
Kesehatan Kerja, Pengamanan dan Pengamanan dan Pengelolaan
Pengelolaan Lingkungan serta Energi Lingkungan serta Energi (K3P2L-E)
(K3P2L-E) PGN. Document.
18.5.4. Pelaksanaan Dewatering, Pigging dan 18.5.4. Dewatering, Pigging and Swabbing
Swabbing dilakukan dengan operations are performed using the
menggunakan Pig Launcher / Receiver temporary Pig Launcher / Receiver or
sementara atau Temporary Header yang Temporary Header provided by Work
telah disiapkan oleh Pelaksana Executor. Dewatering, Pigging and
Pekerjaan. Pelaksanaan Dewatering, Swabbing operations on service line with
Pigging dan Swabbing pada pipa dinas length less than 200 m can be perfomed
dan pipa service dengan panjang kurang using Test Blind.
dari 200 m dapat dilakukan dengan
menggunakan Test Blind.
18.5.5. Desain sambungan pengelasan pada Pig 18.5.5. Design of welding connection on
Launcher / Receiver sementara, temporary Pig Launcher / Receiver,
Temporary Header atau Welding Neck Temporary Header or Welding Neck
Flange pada Test Blind harus berupa Flange on Test Blind shall be complete
sambungan dengan penetrasi penuh dan joint penetration and the joint shall be
diuji dengan Pengujian Radiography. Jika examined with Radiography
Pengujian Radiography tidak Examination. If Radiography Examination
memungkinkan, sambungan dapat diuji is not possible, welding connection can
dengan Uji Tidak Merusak lainnya. be examined using other Non Destructive
Sambungan las sementara antara Pig Examination. Temporary welding
Launcher / Receiver sementara, connection between temporary Pig
Temporary Header atau Welding Neck Launcher / Receiver, Temporary Header
Flange dengan pipeline harus diuji or Welding Neck Flange on Test Blind
dengan Pengujian Radiography. with pipeline shall be tested using
Radiography Examination.
18.5.6. Jika Pig Launcher / Receiver sementara 18.5.6. If the temporary Pig Launcher / Receiver
atau Temporary Header akan digunakan or Temporary Header will be used for
saat Uji Hidrostatik, maka Pig Launcher / Hydrostatic Test operation, the
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
18.5.13. Pemeriksaan geometri jaringan pipa 18.5.13. Internal pipe geometry inspection using
dengan menggunakan Caliper Pig tidak Caliper Pig no need to be performed on:
perlu dilakukan pada:
a. Pipa dinas/ pipa service. a. Services line
b. Jaringan pipa yang yang memiliki b. Pipeline which has an elbow with
elbow dengan radius ≤ 3 D. radius ≤ 3 D.
Dengan ketentuan Pelaksana Pekerjaan The Work Executor shall monitor the
harus melakukan pengawasan pada saat construction strictly start from stringing
pelaksanaan konstruksi secara ketat until backfilling to ensure pipeline is in
mulai dari stringing hingga backfilling good condition.
untuk memastikan jaringan pipa berada
dalam kondisi yang baik.
yang bebas oli untuk pipa dinas/servis other equipment approved by PGN for
atau jenis oil free / peralatan lain yang distribution pipeline.
disetujui oleh PGN untuk pipa distribusi.
18.6.5. Semua peralatan harus diletakkan pada 18.6.5. All equipment shall be placed on secure
area/ lokasi yang aman. area/ location.
18.8. Pelaksanaan Dewatering, Pigging dan 18.8. Dewatering, Pigging and Swabbing
Swabbing Execution
18.8.1. Pekerjaan Dewatering dan Swabbing 18.8.1. The Dewatering and Swabbing
dapat dilakukan mengunakan Bi- operations may be performed using Bi-
Directional Pig atau Poly Pig Directional Pigs or Poly Pig combined
dikombinasikan dengan Foam Pig yang with Foam Pigs that compressed by air
ditekan dengan kompresor udara. compressor.
18.8.2. Pada saat Dewatering pipeline, contoh air 18.8.2. During Dewatering, the disposal water
air yang dibuang harus diambil dan shall be taken and analyzed by
dianalisa oleh laboratorium yang independent laboratory.
independen.
18.8.3. Hasil analisa air Uji Hidrostatik sebelum 18.8.3. Water analysis Hydrostatic Test prior to
dibuang harus sesuai dengan Peraturan discharge shall be in accordance with
Menteri Lingkungan Hidup Republik Peraturan Menteri Lingkungan Hidup
Indonesia Nomor 5 Tahun 2014 tentang Republik Indonesia Nomor 5 Tahun 2014
Baku Mutu Air Limbah. Parameter tentang Baku Mutu Air Limbah. The
minimal yang diuji adalah pH, Residu minimum tested parameters are pH,
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Terlarut, Residu Tersuspensi, COD serta Total Dissolved Solid, Total Suspended
minyak dan lemak. Solid, COD, oil and grease.
18.8.4. Hasil analisa air permukaan sebelum dan 18.8.4. Surface water analysis before and after
setelah pembuangan air Uji Hidrostatik Hydrostatic Test disposal shall be in
sesuai dengan Peraturan Pemerintah accordance with Peraturan Pemerintah
Nomor 82 Tahun 2001. Parameter Nomor 82 Tahun 2001. The minimum
minimal yang diuji adalah pH, Residu tested parameters are pH, Total
Terlarut, Residu Tersuspensi, COD serta Dissolved Solid, Total Suspended Solid,
minyak dan lemak. COD, oil and grease.
18.8.5. Pressure Recorder harus terpasang pada 18.8.5. Pressure Recorder shall be connected
Test Header untuk memantau tekanan di into Test Header to monitor pressure
dalam pipeline selama pergerakan pig. inside the pipeline during pig movement.
18.8.6. Semua operasi pigging harus dicatat agar 18.8.6. All pigging operations shall be logged in
dapat memberikan informasi yang order to provide the necessary
diperlukan: jumlah dan jenis pig, waktu information: number of pig in train and
peluncuran dan penerimaan, kondisi pig type, time launched and received,
saat diterima. Rekaman grafik dan data condition of pig at arrival. A continuous
lain yang berhubungan terkait dengan record of the charts and other relevant
Dewatering, Pigging dan Swabbing harus data relating to the Dewatering, Pigging
diserahkan kepada PGN setelah pig and Swabbing shall be submitted to PGN
selesai diluncurkan. Waktu pada grafik at the completion of each pig run. Chart
harus sesuai dengan waktu aktual. time shall correspond to actual time.
18.8.7. Air pembuangan harus bersih dan tidak 18.8.7. The discharge water shall clean and not
mencemari lingkungan. Jika hasil proses pollute the environment. If the dewatering
pembuangan air tidak memuaskan, maka pig trains have not adequately cleaned
proses pembilasan harus diulang sampai the pipeline, the flushing operation shall
hasilnya disetujui PGN. be repeated until result obtained is
satisfactory to PGN.
18.8.8. Proses Swabbing dinyatakan diterima jika 18.8.8. Swabbing process is accepted if the last
penambahan berat Foam Pig yang Foam Pig in swabbing run weight shall
terakhir tidak lebih dari 10% berat awal not be more than 10% from original
untuk pipa induk dan pipa cabang atau weight, Foam Pig shall be dry to the
tidak lebih dari 5% berat awal untuk pipa touch and no dirt, scale or particles found
dinas dan pipa service, kondisi Foam Pig in front of the Foam Pig and the color
harus cukup kering dan tidak ada change can be accepted
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
18.9. Pemeriksaan Geometri Dalam Pipa 18.9. Inside Pipe Surface Inspection
18.9.1. Pelaksana Pekerjaan harus membuat 18.9.1. Work Executor shall prepared a written
Prosedur tertulis sebelum peluncuran procedure prior the launch of Caliper Pig
Caliper Pig dan harus disetujui oleh PGN. and must be approved by PGN.
18.9.2. Caliper Pig yang digunakan harus 18.9.2. Caliper Pig used shall be able to detect
mampu untuk mendeteksi girth-weld girth weld penetration, bulge, ovality,
penetration, bulge, ovality, expand dan expand and dent.
dents.
18.9.3. Caliper Pig harus dilengkapi dengan 18.9.3. The Caliper Pig shall be equipped with
pinger yang dapat menyala minimal pinger that having a minimum life of two
selama 2 bulan. months.
18.9.4. Sebelum digunakan, Caliper Pig harus 18.9.4. Prior to use, Caliper Pig shall be
telah dikalibrasi terlebih dahulu untuk calibrated to ensure the Caliper Pig in
memastikan Caliper Pig dalam kondisi good condition and ready for use.
bagus dan siap untuk digunakan.
18.9.5. Caliper Pig yang digunakan harus berupa 18.9.5. Caliper Pig used must multichannel
multichannel yang dapat menampilkan profiles that can display three-
profil 3 dimensi dan harus memiliki dimensional and must have the accuracy
keakuratan untuk mendeteksi dent dan to detect dents and ovality min. 0.2%
ovality min. 0.2% dengan resolusi 0.5 mm with a resolution of 0.5 mm and run at
dan dijalankan dengan kecepatan antara speeds between 0.1 m/s - 3 m/s.
0.1 m/s - 3 m/s.
18.9.6. Setelah mendapat konfirmasi bahwa 18.9.6. After confirmation that Caliper Pig have
Caliper Pig telah tiba di ujung arrived in the receiver ends, the system
penerimaan, sistem akan dibuang will be de-pressurized for Caliper Pig
tekanannya untuk mengeluarkan Caliper removed. Information from the Caliper
Pig, informasi dari Caliper Pig harus Pig shall be downloaded by technician as
diambil oleh teknisi sesuai prosedur. per procedure.
18.9.7. Selama pelaksanaan Caliper Pigging, 18.8.9. During Caliper Pigging, the following
pembacaan berikut ini harus dicatat readings will be logged at 30 minute
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
diperlukan. Hal ini dicapai dengan achieved by reducing the pressure in the
mengurangi tekanan di dalam pipeline pipeline still further which has the effect
sehingga memiliki efek menarik uap air of drawing the water vapour out of the
keluar dari pipeline melalui peralatan pipeline through the vacuum equipment.
vacuum. Jelas, semakin banyak uap air Obviously, the more water vapour
yang dibuang, maka akan semakin kering removed, then the drier the pipeline will
pipeline. become.
Metoda Kedua:Super Dry Air Second Method: Super Dry Air
19.9.8. Drying dapat dilaksanakan dengan 19.9.8. Drying may be performed by direct
memasukan Super Dry Air secara injection of Super Dry Air into the
langsung ke dalam pipeline hingga pipeline until the temperature inside the
temperatur di dalam pipeline berada pipeline drops below dew point -15°C.
dibawah nilai dew point -15°C.
19.9.9. Drying dengan Super Dry Air harus 19.9.9. Drying with super dry air shall provides
memberikan jaminan perlindungan internal corrosion protection if the line is
terhadap korosi internal jika pipeline tidak to remain out of service for some period
akan langsung dioperasikan untuk of time before it is placed in service.
beberapa waktu.
19.9.10. Setelah temperatur di dalam pipeline 19.9.10. The temperature inside the pipeline
berada dibawah nilai dew point -15°C, drops below dew point -15°C, 24 hours
soak test harus dilakukan selama 24 jam. soak test shall be performed.
19.9.11. Drying dianggap diterima apabila setelah 19.9.11. The Drying is considered acceptable if
24 jam temperatur di dalam pipeline tetap after 24 hours the temperature inside the
berada di bawah nilai dew point -15°C. pipeline shall remain below dew point -
15°C.
BAB XX / SECTION XX
PERBAIKAN KEMBALI / REINSTATEMENT
20.7.3. Ketidakteraturan permukaan tanah yang 20.7.3. Irregularities in the surface that result
diakibatkan oleh kegiatan pelapisan from topsoiling or other operations shall
permukaan atau lainnya harus diperbaiki be corrected to prevent the formation or
untuk mencegah pembentukan atau depressions or water pockets.
adanya tekanan air dari kubangan pada
tanah.
20.7.4. Lapisan permukaan harus cukup padat 20.7.4. The topsoil shall be compacted enough
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
20.7.5. Pemadatan yang berlebihan harus 20.7.5. Excessive compaction shall be avoided.
dihindari. Mesin pemadat ringan Lightweight compactor machine is
direkomendasikan untuk digunakan. recommended.
Peralatan survei dapat menggunakan GPS that comply with above criteria.
GPS Handheld yang memenuhi kriteria di
atas.
21.6.3.2. Peralatan yang digunakan untuk 21.6.3.2. The equipment used for As-Built Survey
pekerjaan Survey As-Built Pipa Distribusi Distribution Pipeline is total station
adalah alat total station atau equipment or NTRIP RTK (Network
menggunakan alat NTRIP RTK (Network Transport of RTCM via Internet Protocol
Transport of RTCM via Internet Protocol Real Time Kinematic) equipment.
Real Time Kinematic).
21.6.3.3. Sebelum pelaksanaan survei, alat-alat 21.6.3.3. Prior to commence the survey, the
yang akan digunakan harus diuji dan instruments which are proposed for used
dikalibrasi agar kualitasnya baik, sesuai shall be tested and calibrated for its good
dan akurasinya terjamin. quality, adjustment and accuracy
guarantee.
21.6.4. Sebelum penimbunan kembali, surveyor 21.6.4. Before backfilling, the surveyor shall
harus mencatat kondisi pipa dan rincian record the pipe conditions and detail as
instalasinya serta harus mencakup, installed and it shall consist of, but not
namun tidak terbatas pada: limited to:
1. Nomor dan koordinat sambungan 1. Number and coordinates pipeline
pipa terhadap natural ground level joint to the natural ground level and
dan posisi horizontal pipa (X, Y, Z) horizontal position of the pipe (X, Y,
yang dimulai dari titik awal. Z) which start from initial point.
2. Memplot koordinat Poin of 2. Centerline and Point of Intersection
Intersection (PI) dan garis tengah (PI) coordinate ploting of as-built
pada pipa as-built. pipe.
3. Klasifikasi pipa. 3. Classification of pipe.
4. Lokasi dari Titik Ikat. 4. Location of Benchmark.
5. Informasi tentang profil pipa dan 5. Top of cover (T.O.C) and top of pipe
kedalaman pipa. (T.O.P)
6. Profil memanjang pemasangan pipa 6. Longitudinal Profile with scale 1:1000
dengan skala horizontal dari 1: 1000 horizontal and 1:200 vertical.
dan vertikal 1:200.
7. Pelintasan sungai, jalur jalan, kanal 7. Crossing of river, roads, canals,
dan irigasi. irrigations.
8. Lokasi-lokasi stasiun dan pagar- 8. Station location and fences.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
pagar pembatas.
9. Lokasi-lokasi per kilometer, dan pos 9. Location of kilometer, and warning
peringatan-peringatan post.
10. Perlintasan utilitas seperti jalan, rel 10. Crossing with others utilities such as
kereta, sungai dan listrik yang ada di road, railways, river and High voltage
atas maupun di bawah permukaan power line above and underground.
tanah.
11. Koordinat box valve, future 11. Box valve, future connection,
connection, insulating joint, test insulating joint, test station, casing
station, casing dan venting. and venting coordinate.
12. Rumah-rumah penduduk desa yang 12. Village houses close to the pipe
dekat dengan jalur pipa. route.
13. Proses pengeboran pada 13. Thrust boring on major road
persimpangan jalan utama. crossing.
21.6.5. Untuk pipa dinas/pipa servis dengan 21.6.5. For service line with length < 2 km,
panjang < 2 km, penentuan elevasi dapat elevation determination can refer to
merujuk pada elevasi pipa induk existing mainline elevation
eksisting.
21.7.2.3. Semua Dokumen NDE (Non Destructive 21.7.2.3. All NDE (Non Destructive Examination)
Examination). documentation
21.7.2.4. Sertifikat Material 21.7.2.4. Material certificate
21.7.2.5. Koordinat 21.7.2.5. Coordinate
21.7.2.6. Perubahan arah pipa secara vertikal dan 21.7.2.6. Pipeline horizontal and vertical angle
horizontal. changes.
21.7.2.7. Profil memanjang yang 21.7.2.7. Longitudinal pipeline profile cover
direkomendasikan sesuai dengan elevasi referenced to natural grade and top of
dan puncak dari tanah dengan interval berth at 100-meter intervals in straight
100-meter sepanjang jalur pipa yang runs of pipe and at 30-meter intervals
lurus atau 30-meter untuk jalur pipa yang through the length of all horizontal and
belok, atau sesuai dengan kebutuhan vertical bends.
sepanjang lekukan horizontal dan
vertikal.
21.7.2.8. Lokasi dan spesifikasi dari set on weight, 21.7.2.8. Location and weight of all set-on weights,
bolt-on dan pemasangan concrete bolt-on weights and continuous concrete
coating yang terpasang sepanjang jalur coating installed.
pipa.
21.7.2.9. Lokasi dan orientasi dari semua jalan, 21.7.2.9. Location and orientation of all road,
jalur kereta api dan utilitas railroad track and utility crossings,
penyeberangan termasuk voltase dan including voltage and clearances for
clearences dari kabel listrik. power lines.
21.7.2.10. Perubahan grade ketebalan pipa. 21.7.2.10. Changes in pipe grade wall thickness.
21.7.2.11. Lokasi dari semua fasilitas terkait yang 21.7.2.11. Location of all associated facilities
meliputi valve, test station, lokasi including valves, test stations,
transformer rectifier, anchor, penopang transformer rectifier, anchors, pipe
pipa, pemasangan anoda galvanis, tanda supports, galvanic anode installations,
dan penanda, dan alat pengontrol erosi. signs and markers, and erosion control
measures.
21.7.2.12. Lokasi dan jarak tegak lurus dari baseline 21.7.2.12. Locations and perpendicular tie distance
terhadap Bench Mark. to all baseline and reference monument.
21.7.2.13. Semua Laporan Kegiatan Proyek yang 21.7.2.13. All construction report from Work
diserahkan oleh Pelaksana Pekerjaan ke Executor shall submit based on PGN
PGN sesuai yang disyaratkan, dari requirement from each construction
masing-masing area konstruksi yang spread and minimum shall cover, but not
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Skala /
No Deskripsi Gambar Rencana As-Built Drawing Keterangan
Ukuran
1 Cover / A3 Bertuliskan: Bertuliskan: Kertas buffalo/Manila.
Sampul - Gambar rencana; - As-Built Drawing;
menggunakan huruf menggunakan huruf
jenis Arial dengan jenis Arial dengan
ukuran proporsional. ukuran proporsional.
Skala /
No Deskripsi Gambar Rencana As-Built Drawing Keterangan
Ukuran
- Legenda dan Simbol yang ditampilkan:
(kode petunjuk - Legenda dan Simbol
gambar menurut (kode petunjuk
International Code gambar menurut
dan/atau yang International Code
berlaku di PGN) dan/atau yang
- Posisi pipa dan berlaku di PGN)
fasilitas - Posisi pipa dan
penunjangnya fasilitas
- Diameter dan penunjangnya
dimensi pipa dan - Diameter dan
fasilitas dimensi pipa dan
penunjangnya fasilitas
- Tag number pipa penunjangnya
dan fasilitas - Tag number pipa
penunjangnya dan fasilitas
- Rating class pipa penunjangnya
dan fasilitas - Rating class pipa
penunjangnya dan fasilitas
- Posisi open/close penunjangnya
valve - Posisi open/close
- Posisi under/above valve
pipa dan fasilitas - Posisi under/above
penunjangnya pipa dan fasilitas
- Desain pressure dan penunjangnya
desain temperature - Desain pressure dan
pipa dan fasilitas desain temperature
penunjangnya pipa dan fasilitas
penunjangnya
Skala /
No Deskripsi Gambar Rencana As-Built Drawing Keterangan
Ukuran
skala) sistem perpipaan yang (isometrik) sistem awal sampai titik
akan dipasang, perpipaan yang telah akhir pekerjaan.
termasuk spesifikasi dipasang, termasuk - Sistem perpipaan
fasilitasnya dan daftar spesifikasi materialnya digambar dengan
material. dan daftar material. mencantumkan
besaran panjang
dan sudut-sudut
kemiringannya.
- Fasilitas untuk
sistem perpipaan
yang dimaksud
antara lain : main
valve, branch
valves, fittings dan
MRS.
- Dicantumkan daftar
dan spesifikasi
materialnya.
- Crossing dengan
utilitas lain
digambarkan
dengan jelas.
6 Peta Jalur Vertikal Menunjukkan lokasi Menunjukkan realisasi - Ada petunjuk arah
(Alignment 1 : 200 jalan untuk jalur pipa lokasi jalan untuk jalur utara.
Sheet) Horizontal yang akan dipasang pemasangan pipa - Mencantumkan
1 : 1000 (tampak atas dan (tampak atas dan indeks kunci (Key
samping), dengan samping), dengan index) dan
peta digital untuk peta digital untuk menandai bagian
cabang yang sudah cabang yang sudah atau seksinya sesuai
mempunyai peta mempunyai peta dengan nomor
digital, ditunjang oleh digital, ditunjang oleh indeks pada peta
alat GPS. alat GPS. jalur.
Alignment sheet harus Alignment sheet harus - Mencantumkan arah
dilengkapi dengan: dilengkapi dengan: aliran gas.
- Koordinat - Koordinat - Untuk cabang yang
- Indeks Kunci (Key - Indeks Kunci (Key belum mempunyai
Plan) Plan) peta digital dapat
- Diameter, tebal dan - Diameter, tebal dan menggunakan peta
spesifikasi pipa. spesifikasi pipa. biasa berskala,
- Jenis coating. - Jenis coating. dengan diberi indeks
- Lokasi valve dan - Lokasi valve dan peta dan
fitting. fitting. mencantumkan
- Lokasi marker post - Lokasi marker post koordinat GPS.
dan patok gas. dan patok gas. - Menunjukkan
- Lokasi rectifier dan - Lokasi rectifier dan potongan - potongan
test station test station gambar seksi
- Potongan melintang - Potongan melintang - Harus diberi nomor
setiap adanya setiap adanya indeks peta dan
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Skala /
No Deskripsi Gambar Rencana As-Built Drawing Keterangan
Ukuran
perubahan profil perubahan profil koordinat GPS, baik
tanah yang tanah yang untuk Gambar Seksi
mengakibatkan mengakibatkan dengan cara grid
perubahan perubahan maupun jalur.
kedalaman pipa dari kedalaman pipa dari - Menggambarkan
kedalaman yang kedalaman yang kondisi sekitar
ditentukan ditentukan sebagai panduan:
- Potongan melintang - Potongan melintang misalnya: pabrik,
setiap adanya setiap adanya gedung-gedung atau
obstacles, misalnya obstacles, misalnya bangunan penting,
gorong-gorong, gorong-gorong, dll.
utilitas lain, utilitas lain, - Harus ada koordinat
hambatan-hambatan hambatan-hambatan GPS pada setiap
lain yang tidak lain yang tidak valve dan fittingnya.
mungkin dihindari. mungkin dihindari. - Harus terlihat jarak
- Legenda dan Simbol - Legenda dan Simbol terhadap utilitas lain,
(kode petunjuk (kode petunjuk misalnya: terhadap
gambar menurut gambar menurut tiang listrik, gorong-
International Code International Code gorong, pohon, pipa,
dan/atau yang dan/atau yang kabel, fasilitas
berlaku di PGN) berlaku di PGN) eksisting dan lain-
lain.
Horizontal:
- Menunjukkan jalur
pipa, yang diperjelas
dengan gambar
potongan
memanjang secara
vertikal.
Vertikal:
- Menunjukkan
elevasi tanah,
elevasi permukaan
pipa; pada crossing
sungai menunjukkan
muka air tertinggi
dan dasar sungai.
Skala /
No Deskripsi Gambar Rencana As-Built Drawing Keterangan
Ukuran
Detail/Gambar menurut rencana pemasangan rincian pemasangan detail dari:
Penjelasan kebutuhan pipa dan fasilitas yang pipa dan fasilitas yang - Pipa gas dan utilitas
(Max 1: akan dipasang. telah dipasang. lain yang berada di
100) sekitarnya atau
sejajar.
- Crossing jalan raya
(Boring / Open Cut /
HDD / dll.)
- Crossing rel kereta
api (Boring / HDD /
dll.)
- Crossing
sungai/rawa (Sinker
/ Jembatan (sendiri /
lain / bersama) /
HDD / dll.):
- Crossing dengan
utilitas lain (Pipa /
Kabel / Fasilitas
existing ):
- Valve dan bak valve.
- Pig trap (jika ada).
Skala /
No Deskripsi Gambar Rencana As-Built Drawing Keterangan
Ukuran
dinas.
- Harus diberi nomor
indeks peta dan
koordinat GPS, baik
untuk Gambar Seksi
dengan cara grid
maupun jalur.
- Dicantumkan indeks
kunci pada posisi
ujung gambar.
Catatan :
1. Gambar Alignment Sheet mengikuti Panduan Gambar Desain Pipa Penyalur di Darat
2. Gambar rencana dan AsBuilt Drawing dibuat dalam format AutoCAD
3. Koordinat gambar menggunakan Universal Transverse Mercator (UTM) dengan datum World Geodetic
System (WGS-84) dan MSL (ketinggian rata-rata muka air laut) atau Geoid.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
System. System.
22.4.3. ASME Section IX, Qualification Standard 22.4.3. ASME Section IX, Qualification Standard
for Welding, Brazing, and Fusing for Welding, Brazing, and Fusing
Procedures; Welders; Brazers; and Procedures; Welders; Brazers; and
Welding, Brazing, and Fusing Operators. Welding, Brazing, and Fusing Operators.
22.4.4. American Welding Society (AWS) D1.1, 22.4.4. American Welding Society (AWS) D1.1,
Structural Welding Code-Steel. Structural Welding Code-Steel.
22.4.5. Keputusan Menteri Pertambangan dan 22.4.5. Keputusan Menteri Pertambangan dan
Energi Nomor 300.K/38/M.PE/1997 Energi Nomor 300.K/38/M.PE/1997
tentang Keselamatan Kerja Pipa Penyalur tentang Keselamatan Kerja Pipa
Minyak dan Gas Bumi. Penyalur Minyak dan Gas Bumi.
22.4.6. SNI 3474: 2009, Sistem Penyaluran dan 22.4.6. SNI 3474: 2009, Sistem Penyaluran dan
Distribusi Pipa Gas. Distribusi Pipa Gas.
tegangan yang berlebihan tidak terjadi excessive stress does not occur on the
terhadap pipa saat pipa diangkat. pipe when the pipe is lifted.
22.6.3. Clamp harus digunakan untuk 22.6.3. Clamp shall be used to avoid strain and
menghindari regangan dan tegangan stress on pipe.
pada pipa.
22.6.4. Untuk Tie-in yang dilakukan di dalam 22.6.4. For Tie-in performed in the pits, the pits
galian, lubang galian atau bellholes harus or bellholes shall be available in sufficient
tersedia dengan ukuran yang cukup size for Welder to work normally.
untuk Juru Las dapat bekerja secara
normal.
22.6.5. Bellholes tidak perlu ditimbun hingga 22.6.5. Bellholes not need backfilled until the
lasan telah selesai dilaksanakan dan diuji weld has been completed and examined
dengan pengujian radiografi dengan hasil by radiographic examination with
yang dapat diterima, serta hasil holiday accepted results, and the results of
test pada field joint coating dapat holiday test on field joint coating is
diterima. accepted.
22.6.6. Jika Pelaksana Pekerjaan harus 22.6.6. If Work Executor shall re-cut the pipe to
memotong pipa untuk mendapatkan root obtain a root gap in accordance with
gap yang sesuai dengan WPS, maka WPS, the cutting on existing pipe shall
pemotongan pada pipa eksisting harus be performed with cold cutting method. If
dilakukan dengan metode cold cutting. cutting on pipe performed using
Apabila pemotongan pada pipa dilakukan automatic or semi-automatic oxy-
menggunakan peralatan oxy-acetylene acetylene equipment, the bevel shall
otomatis atau semi-otomatis, maka bevel inspected by Ultrasonic Examination and
pipa harus diinspeksi menggunakan Magnetic Particle Examination or Liquid
Pengujian Ultrasonik dan Pengujian Penetrant Examination prior to Welding.
Partikel Magnetik atau Pengujian Cairan
Penetran sebelum dilakukan pengelasan.
22.6.7. Coating pada area yang berdekatan 22.6.7. Coating in adjacent areas with Tie-in
dengan sambungan Tie-in harus dikupas connection must be peeled with sufficient
dengan lebar yang cukup. width.
22.6.8. Setelah pengelasan selesai, Tie-in harus 22.6.8. After welding is completed, Tie-in shall
diinspeksi dan memenuhi standar be inspected and meet the acceptance
penerimaan dari Code / Standard yang criteria of applicable Code / Standard.
digunakan.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
22.6.9. Tie-in harus diuji dengan menggunakan 22.6.9. Tie-in shall be examined with 100%
100% Pengujian Radiografi sesuai Radiography examination in accordance
dengan Code / Standard yang digunakan with applicable Code / Standard and
dan prosedur yang telah disetujui. approved procedures.
22.6.10. Perbaikan pengelasan pada Tie-in harus 22.6.10. Repair welding on Tie-in shall be done
dilakukan menggunakan proses strictly use manual welding process in
pengelasan manual sesuai dengan accordance with qualified and approved
prosedur yang telah dikualifikasi dan procedures by PGN and MIGAS.
disetujui oleh PGN dan MIGAS.
22.6.11. Sebelum perbaikan lasan, alur yang digali 22.6.11. Prior to weld repair, the excavated
harus diperiksa dengan metode NDE groove shall be examined by an
yang memadai (Pengujian Partikel adequate NDE method (Magnetic
Magnetik atau Pengujian Cairan Particle Examination or Liquid Penetrant
Penetran) untuk memastikan Examination) to ensure the imperfection
ketidaksempurnaan telah dihapus dan has been removed and no cracks
tidak ada retak yang terjadi setelah occured after excavation.
penggalian.
22.6.12. Perbaikan pengelasan pada Tie-in harus 22.6.12. Repair welding on Tie-in shall be
dilakukan oleh juru las yang telah performed by qualified welder.
terkualifikasi.
22.6.13. Area lasan yang telah diperbaiki pada 22.6.13. A repaired weld area on Tie-in shall be
Tie-in harus diuji kembali dengan completely re-examined with 100%
menggunakan Pengujian Radiografi. Radiography examination.
22.7.3. Clamp harus digunakan untuk 22.7.3. Clamp shall be used to avoid strain and
menghindari regangan dan tegangan stress on pipe.
pada pipa.
22.7.4. Untuk Golden Joint yang dilakukan di 22.7.4. For Golden Joint performed in the pits,
dalam galian, lubang galian atau the pits or bellholes shall be available in
bellholes harus tersedia dengan ukuran sufficient size for Welder to work
yang cukup untuk Juru Las dapat bekerja normally.
secara normal.
22.7.5. Bellholes tidak perlu ditimbun hingga 22.7.5. Bellholes not need backfilled until the
lasan telah selesai dilaksanakan dan diuji weld has been completed and examined
dengan 100% Pengujian Radiografi, by 100% Radiography examination,
100% Pengujian Ultrasonik dan 100% 100% Ultrasonic Examination and 100%
Pengujian Partikel Magnetik atau Magnetic Particle Examination or Liquid
Pengujian Cairan Penetran dengan hasil Penetrant Examination with accepted
yang dapat diterima, serta hasil holiday results, and the results of holiday test on
test pada field joint coating dapat field joint coating is accepted.
diterima.
22.7.6. Jika Pelaksana Pekerjaan harus 22.7.6. If Work Executor shall re-cut the pipe to
memotong pipa untuk mendapatkan root obtain a root gap in accordance with
gap yang sesuai dengan WPS, maka WPS, the cutting on existing pipe shall
pemotongan pada pipa eksisting harus be performed with cold cutting method. If
dilakukan dengan metode cold cutting. cutting on pipe performed using
Apabila pemotongan pada pipa dilakukan automatic or semi-automatic oxy-
menggunakan peralatan oxy-acetylene acetylene equipment, the bevel shall
otomatis atau semi-otomatis, maka bevel inspected by Ultrasonic Examination and
pipa harus diinspeksi menggunakan Magnetic Particle Examination or Liquid
Pengujian Ultrasonik dan Pengujian Penetrant Examination prior to Welding.
Partikel Magnetik atau Pengujian Cairan
Penetran sebelum dilakukan pengelasan.
22.7.7. Setelah pengelasan selesai, Golden Joint 22.7.7. After welding is completed, Golden Joint
harus diinspeksi dan memenuhi standar shall be inspected and meet the
penerimaan dari Code / Standard yang acceptance criteria of applicable Code /
digunakan. Standard.
22.7.8. Golden Joint harus diuji dengan 22.7.8. Golden Joint shall be examined with
menggunakan 100% Pengujian 100% Radiography examination, 100%
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
23.4.5. ASME Section V Non Destructive 23.4.5. ASME Section V Non Destructive
Examination. Examination.
23.4.6. ASME Section IX Qualification Standard 23.4.6. ASME Section IX Qualification Standard
for Welding, Brazing, and Fusing for Welding, Brazing, and Fusing
Procedures; Welders; Brazers; and Procedures; Welders; Brazers; and
Welding, Brazing, and Fusing Operators. Welding, Brazing, and Fusing Operators.
23.4.7. Keputusan Menteri Pertambangan dan 23.4.7. Keputusan Menteri Pertambangan dan
Energi Nomor 300.K/38/M.PE/1997 Energi Nomor 300.K/38/M.PE/1997
tentang Keselamatan Kerja Pipa Penyalur tentang Keselamatan Kerja Pipa
Minyak dan Gas Bumi. Penyalur Minyak dan Gas Bumi.
23.4.8. SNI 3474:2009 Sistem Penyaluran dan 23.4.8. SNI 3474:2009 Sistem Penyaluran dan
Distribusi Pipa Gas. Distribusi Pipa Gas.
23.4.9. Standar Teknis dan Material External 23.4.9. Standar Teknis dan Material External
Coating. Coating.
23.4.10. Standard Teknis dan Material Field Joint 23.4.10. Standard Teknis dan Material Field Joint
Coating. Coating.
23.5.4. Fiberglass reinforced sleeve harus 23.5.4. Fiberglass reinforced sleeve shall be
digunakan untuk sambungan pada string used for the joint on pipe string to be
pipa yang akan disisipkan kedalam inserted into the hole boring, either using
lubang boring, baik yang menggunakan Horizontal Directional Drilling (HDD) or
metode Horizontal Directional Drilling boring method with the approval of PGN.
(HDD) atau metode boring dengan Type material of fiberglass reinforced
persetujuan PGN. Jenis material sleeve used shall be in accordance with
fiberglass reinforced sleeve yang Standar Teknis dan Material Field Joint
digunakan harus sesuai dengan Standar Coating.
Teknis dan Material Field Joint Coating.
23.5.5. Holiday test harus dilakukan sebelum 23.5.5. Holiday test shall be carried out before
string pipa dimasukkan kedalam lubang. pipe string insertion into the hole.
23.5.6. Kapasitas peralatan angkat yang 23.5.6. The lifting equipment capacity used shall
digunakan harus berdasakan berat pipa be based on the weight of the pipeline to
yang akan diturunkan. be lowered.
23.5.7. Peralatan angkat dan angkut harus 23.5.7. The heavy equipment shall have valid
memiliki sertifikat yang diterbitkan oleh certificates issued by MIGAS or Disnaker
MIGAS atau Disnaker / Depnaker / / Depnaker / Kemenaker with test result
Kemenaker yang masih berlaku dengan attached.
mencantumkan hasil pengujian.
23.5.8. Operator alat berat harus memiliki izin 23.5.8. Heavy equipment operator shall have
yang diterbitkan oleh MIGAS atau license issued by MIGAS or Disnaker /
Disnaker / Depnaker / Kemenaker. Depnaker / Kemenaker.
23.5.9. Prosedur keselamatan dan kesehatan 23.5.9. Safety and healthy procedure during
pada pekerjaan ini harus mengacu pada construction survey shall comply with
Dokumen Pedoman Keselamatan, PGN’s Pedoman Keselamatan,
Kesehatan Kerja, Pengamanan dan Kesehatan Kerja, Pengamanan dan
Pengelolaan Lingkungan serta Energi Pengelolaan Lingkungan serta Energi
(K3P2L-E) PGN. (K3P2L-E) Document.
23.6.2. Semua utilitas eksisting harus diketahui, 23.6.2. Locate carefully all existing utilities in the
dan melakukan antisipasi terhadap working area, by detection, as
bahaya yang mungkin terjadi dengan appropriate to the hazards involved,
menempatkan penjaga, tanda peringatan, guards should be posted; warning signs,
sinyal lampu dan rambu-rambu lainnya lights, and flares should be placed; and
serta bila diperlukan dibuat pagar, temporary walkways, fences, and
perintang jalan dan jalur pejalan kaki barricades should be provided and
sementara. maintained.
23.6.3. Kendaraan, peralatan, material dan 23.6.3. The movement of vehicles, equipment,
personil yang melintasi jalan raya material, and personnel across a
sebaiknya mematuhi persyaratan yang highway should be in compliance with
berlaku, seperti penempatan petugas procedures, such as posting persons
pengatur kendaraan pada saat when loading the equipment. Highway
pengangkutan peralatan. Permukaan surfaces should be kept free from dirt,
jalan harus tetap dijaga kebersihannya rock, mud, oil, or other debris that
dari kotoran, tanah, batu, minyak dan present an unsafe condition.
kotoran lain yang menyebabkan kondisi
jalan tidak aman.
23.6.4. Penggunaan peralatan dan prosedur 23.6.4. Equipment used and procedures
yang dilaksanakan pada konstruksi followed in constructing a crossing
perlintasan sebaiknya tidak merusak should not cause damage to, or make
atau membahayakan fasilitas dan utilitas unsafe to any structure or facility
lain yang dilalui atau berdekatan dengan intercepted by or adjacent to the
perlintasan crossing.
23.6.5. Metode pengeboran dengan cara 23.6.5. Manual Crossing Bore method in the
penggalian di bawah perlintasan yang crossing hole with human power enter
menggunakan tenaga manusia masuk the hole is not allowed in any
kedalam lubang perlintasan dalam segala circumtances.
hal tidak boleh dilakukan.
raya dan rel kereta api yang berlaku construction of welded steel pipelines
untuk desain dan konstruksi pipa baja under railroad and highways.
yang dilas.
23.7.1. Umum 23.7.1. General
23.7.1.1. Jalur bentangan pipa harus dibuat lurus 23.7.1.1. The pipeline route should be as straight
dan kondisi tanah di jalur tersebut harus as practicable and should have uniform
memiliki daya dukung yang kuat soil support for the entire length of the
sepanjang perletakan perlintasan pipa. crossing.
23.7.1.2. Perletakan pipa diatur sedemikian rupa 23.7.1.2. The pipe installation shall have minimum
sehingga celah antara pipa dengan gap between the pipe and the trench
dinding tanah galian seminimal mungkin. wall.
23.7.2. Lokasi dan Alignment 23.7.2. Location and Alignment
23.7.2.1. Hindari perlintasan ditanah basah, 23.7.2.1. Crossing in wet or rock terrain, and
berbatu, serta dimana diperlukan where deep cuts are required, should be
penggalian yang dalam. avoided where practicable.
23.7.2.2. Sudut perlintasan pipa dengan jalan raya 23.7.2.2. The angle of intersection between a
atau rel kereta api sebaik mungkin pipeline crossing and the railroad or
mendekati 90 derajat dan dalam segala highway to be crossed should be as near
hal tidak boleh kurang dari 30 derajat. to 90 degrees as practicable and shall
not less than 30 degrees.
23.7.2.3. Tersedia jarak yang cukup pada posisi 23.7.2.3. Vertical and horizontal clearances
vertikal dan horizontal antara pipa between the pipeline and structure or
perlintasan terhadap fasilitas dan utilitas facility in place must be sufficient to
lain disekitarnya untuk keperluan permit maintenance of the pipeline and
perawatan pipa dan fasilitas atau utilitas facility or utility.
tersebut.
23.7.3. Ketentuan 23.7.3. Terms
23.7.3.1. Perlintasan Rel Kereta Api 23.7.3.1. Railroad Crossing
Kedalaman minimum pipa penyalur yang Pipeline under railroad should be
dipasang di bawah rel kereta api, diukur installed with a minimum of cover, as
dari bagian atas pipa adalah sebagai measured from the top of the pipe is, as
berikut (lihat Gambar 23.1 dan Tabel follows (see Figure 23.1 and Table 23.1)
23.1) atau sesuai dengan instansi terkait. or according to local authority
requirement.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Bahan untuk casing dapat menggunakan Suitable materials for casing are new or
pipa baru atau bekas, pipa reject dari used line pipe, mill reject pipe, or other
manufaktur atau pipa tubular, termasuk available steel tubular goods, including
split casing. split casing.
23.8.3. Minimum Diameter Bagian Dalam Casing 23.8.3. Minimum Internal Diameter of Casing
Diameter dalam dari pipa casing The inside diameter of the casing pipe
sebaiknya cukup besar untuk fasilitas should be large enough to facilitate
instalasi dari pipa penyalur, memberi installation of the pipeline, to provide
ruang yang tepat untuk perawatan proper isolation for maintenance of
proteksi katodik dan untuk mencegah catholic protection, and to prevent
pindahnya beban gaya luar dari casing ke transmission of external loads from
pipa penyalur. casing to pipeline.
23.8.4. Perlintasan dengan casing hanya 23.8.4. Casing crossing only use whereas heavy
digunakan untuk kasus khusus dimana load occur in the crossing and could
beban yang terjadi pada perlintasan damage the pipe or based on local
sangat berat dan dapat merusak pipa authority requirement.
pada saat operasi atau sesuai
permintaan instansi terkait.
23.8.5. Tebal Dinding Casing pada Perlintasan 23.8.5. Casing Wall Thickness on Bored
dengan Pengeboran Crossing
Minimum ukuran tebal nominal untuk pipa The minimum nominal wall thickness for
baja casing pada perlintasan yang di bor steel casing pipe in bored crossings
harus sama dengan atau lebih besar dari should equal or exceed the values shown
nilai yang ditunjukan pada Tabel 23.2. in following Table 23.2.
23.8.6. Umum 23.8.6. General
23.8.6.1. Diameter pipa casing minimum 2 inci 23.8.6.1. Casing diameter minimum 2 inches
lebih besar dari diameter pipa yang akan larger than the carrier pipe.
dipasang.
23.8.6.2. Pipa casing sebaiknya bebas dari cacat 23.8.6.2. The casing pipe should be free of internal
dibagian dalam, harus lurus dan harus obstructions, should be as straight as
diletakan pada permukaan yang rata. practicable, and shall be placed on flat
surface.
23.8.6.3. Pipa casing harus terpasang dengan 23.8.6.3. The casing pipe shall be installed with
jarak ke dinding lubang tanah the void between the pipe and the
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
23.8.10.2. Bila ruang sangat terbatas, kesulitan 23.8.10.2. Multiple carrier pipes may be installed
struktur, atau karena suatu keperluan with one casing where restricted working
khusus, beberapa pipa penyalur dapat area, structural difficulties, or special
dipasang dalam satu casing. Persyaratan needs are encountered. The stipulation
pada paragraph diatas sebaiknya in the above paragraph should apply,
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
dipenuhi, dan setiap pipa penyalur and each pipeline should be insulated
sebaiknya diisolasi dari pipa penyalur from other pipeline, as well as from the
lain, sama halnya dari pipa casing. casing pipe.
23.8.10.3. Seal Casing 23.8.10.3. Casing Seals
Casing sebaiknya diberi seal pada kedua The casing should be fitted with end
ujungnya untuk mengurangi intrusi air seals at both ends to reduce the intrusion
dan debu dari tanah disekitarnya. Perlu of water and fines from the surrounding
diingat bahwa pada kondisi lapangan, soil. It should be re cognized that a
seal kedap air sangat tidak mungkin, dan watertight seal is not possible under field
sebaiknya diantisipasi terjadinya infiltrasi condition, and that some water infiltration
air. Seal sebaiknya terbuat dari material should be anticipated. The seal should
lentur yang akan menghalangi be formed with a flexible material that will
terbentuknya jalan air melalui casing. inhibit the formation of a waterway
through the casing.
23.8.10.4. Ventilasi Casing 23.8.10.4. Casing Vents
1. Ventilasi tidak diperlukan pada 1. Vents are not required on crossing
perlintasan dengan casing. using casing.
2. Satu atau dua pipa ventilasi mungkin 2. One or two vents pipe may be
perlu dipasang. Jika dipasang, pipa installed. If used, vent pipe should
ventilasi tidak boleh berdiameter be not less than 2 inches in
kurang dari 2 inci. Pipa ventilasi dilas diameter. Pipe vent should be
pada pipa casing dan muncul welded to the casing, and should be
kepermukaan tanah, atau garis pagar project through the ground surface
(lihat gambar 23.2). Lubang melalui or fence line (see Figure 23.2). A
casing tidak kurang dari 1,5 kali hole through the casing not less than
diameter pipa ventilasi dan dibuat one-half the vent pipe diameter and
sebelum mengelas pipa ventilasi must be made prior to welding the
kepipa casing. casing vent over it.
3. Tinggi pipa ventilasi minimal 1,2 3. Vent pipe should extend not less
meter (4 kaki) diatas permukaan than 1.2 meters (4 feets) above the
tanah. Ujung atas pipa ventilasi Ground surface. The tops of vents
sebaiknya diberi tutup yang sesuai should be fitted with suitable weather
kondisi cuaca atau dibuat caps or bend the pipe down.
melengkung ke bawah.
4. Dua pipa ventilasi mungkin dipasang 4. Two vents pipe may be installed to
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
23.9. Auger Boring, Thrust Boring, Jacking, 23.9. Auger Boring, Thrust Boring, Jacking,
dan Tunneling and Tunneling
23.9.1. Metode yang dominan digunakan dalam 23.9.1. Pipe jacking with auger bore is the
pemasangan perlintasan pipa penyalur predominant means in practice pipeline
dibawah jalan kereta api ataupun jalan installation beneath railroads and
raya adalah dengan mendorong pipa highways.
dengan bor auger.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
23.9.2. Selain itu, percussive molding juga sering 23.9.2. Percussive molding also used but is
digunakan tetapi terbatas pada pipa restricted to pipe less than 6 inches (150
dengan diameter kurang dari 6 inci (150 mm) in diameter. For trench less
mm). Untuk teknik konstruksi tanpa construction techniques that excavate an
galian dengan pengeboran, lubang bor oversized hole relative to the size of the
harus lebih besar dari ukuran pipa. pipe, the diameter of the borehole needs
Diameter lubang bor harus diketahui atau to be known or specified before
dinyatakan sebelum konstruksi. construction.
23.9.3. Bila auger disesuaikan untuk menggali 23.9.3. When the auger is adjusted to excavate
lubang sesuai dengan ukuran pipa, atau a hole equal in size to the pipe, or when
bila percussive molding atau metoda percussive molding or a similar insertion
penyisipan yang sama digunakan, maka method is used, it should assume that
harus dianggap bahwa diameter bor the bored diameter is equal to the pipe
sama dengan diameter pipa. diameter.
23.9.4. Pengeboran dengan auger pada 23.9.4. Auger boring for a pipeline crossing often
perlintasan pipa penyalur dilakukan is performed with an auger that is a
dengan menggunakan auger berukuran fraction of an inch to as much as 2
maksimum lebih besar 2 inci dari inches larger in diameter than the pipe,
diameter pipa, dengan kondisi auger under circumstances in which the auger
berada di depan casing. is advanced in front of casing.
23.9.5. Untuk mengurangi penggalian dapat 23.9.5. Modifications of the method, such as
dilakukan dengan cara mengurangi reducing the auger size and fitting the
ukuran auger dan menghubungkan pipa pipe or casing with stops to prevent the
atau casing dengan pasak untuk auger from leading the pipe, can
mencegah auger meninggalkan pipa atau substantially reduce over excavation.
casing.
23.9.6. Pengurangan galian akan menurunkan 23.9.6. Reduction in the amount of over
kemungkinan gangguan pada tanah excavation will decrease the chances of
sekitarnya dan fasilitas terpasang serta disturbing the surrounding soil and over
dapat mengurangi jumlah tanah yang lying facility and can diminish the amount
membebani pipa. Namun, perlu juga of an earth imposed on the pipe. It
diperhatikan, bahwa pengurangan besar should be recognized, however, that
pemotongan umumnya akan reductions in over cutting generally would
meningkatkan gesekan dan tahanan lekat increase frictional and adhesive
pada gerak maju pipa. Untuk itu resistance to the advance of the pipe. It
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
23.10.3. Entry pit dan exit pit harus dibuat dengan 23.10.3. The entry pit and exit pit shall be
interval 25 meter dan dilengkapi dinding prepared at interval 25 meter and
penahan. equipped with retaining wall.
23.10.4. Penimbunan Galian harus dilakukan 23.10.4. Backfilling shall be performed in
sesuai dengan ketentuan yang accordance with the requirements in this
disyaratkan dalam panduan ini. guidance.
23.10.5. Perbaikan Kembali harus dilakukan 23.10.5. Reinstatement shall be performed in
sesuai dengan ketentuan yang accordance with the requirements in this
disyaratkan dalam panduan ini. guidance.
23.11. Horizontal Directional Drilling (HDD) 23.11. Horizontal Directional Drilling (HDD)
23.11.1. Survei kontrol horisontal, survei kontrol 23.11.1. Topographical survey including
vertikal dan survei seluruh situs horizontal control survey, vertical control
menggunakan penampang harus survey and survey the whole site using
dilakukan sebagai tahap awal pekerjaan cross section shall be performed as initial
HDD. stage of the work of HDD.
23.11.2. Soil Investigation harus menjadi acuan 23.11.2. Soil investigation shall used as reference
dalam pelaksanaan HDD. Syarat in HDD implementation. Requirement for
kedalaman tanah yang dapat dilewati soil depth that can be drilled is stiff clay
adalah tipe stiff clay. type.
23.11.3. Pada perlintasan sungai, kedalaman 23.11.3. In the river crossing, minimum HDD
HDD minimal adalah 2 meter dari dasar depth is 2 meters from river bed.
sungai.
23.11.4. Perhitungan HDD harus disetujui PGN 23.11.4. HDD calculation shall be approved by
sebelum pemilihan peralatan HDD yang PGN prior to HDD equipment selection
telah mempertimbangkan radius natural having consider natural bending radius
bending dan grade pipa sesuai kelas and pipe grade in accordance with
lokasi. location class.
23.11.5. Peralatan HDD harus diatur 23.11.5. The HDD equipment shall be arranged in
penempatannya agar tidak mengganggu order not disturb the activity.
kegiatan di sekitar.
23.11.6. Peralatan HDD harus menggunakan 23.11.6. The HDD equipment shall use digital
sistem tracking digital. tracking system.
23.11.7. Penggunaan bentonite tidak boleh 23.11.7. The use of bentonite shall not pollute the
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
diangkat menggunakan side boom atau can be lifted by sufficient side booms or
excavator. excavator.
pada casing dan kelembaban kondensasi casing and moisture condensation in the
di anulus casing. Coating yang tepat, jeep casing annulus. A proper coating, jeep
testing, jarak yang tepat dan end seals testing, proper spacing and end seals
mengurangi potensi korosi atmosferik reduce the potential for atmospheric
atau arus pendek. Masalah ini dapat corrosion or electrical shorts. This
diminimalkan dengan mengisi casing problem may be minimized by filling the
dengan high dielectric casing filler, casing with a high dielectric casing filler,
corrosion inhibitor, atau gas inert. Hal ini corrosion inhibitor, or inert gas. This is
paling mudah dilakukan segera setelah most easily accomplished immediately
konstruksi. after construction.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
24.4.3. Keputusan Menteri Pertambangan dan 24.4.3. Keputusan Menteri Pertambangan dan
Energi Nomor 300.K/38/M.PE/1997 Energi Nomor 300.K/38/M.PE/1997
tentang Keselamatan Kerja Pipa Penyalur tentang Keselamatan Kerja Pipa
Minyak dan Gas Bumi Penyalur Minyak dan Gas Bumi
24.4.4. SNI 3474:2009 Sistem Penyaluran dan 24.4.4. SNI 3474:2009 Sistem Penyaluran dan
Distribusi Pipa Gas Distribusi Pipa Gas
24.4.5. Panduan Basis Desain Sectional Valve 24.4.5. Panduan Basis Desain Sectional Valve
24.4.6. Panduan Basis Desain Future Connection 24.4.6. Panduan Basis Desain Future
Valve Connection Valve
24.4.7. Standar Teknis dan Material Ball Valve 24.4.7. Standar Teknis dan Material Ball Valve
24.4.8. Standar Teknis dan Material Plug Valve 24.4.8. Standar Teknis dan Material Plug Valve
24.4.9. Standar Teknis dan Material Gate Valve 24.4.9. Standar Teknis dan Material Gate Valve
24.4.10. Standar Teknis dan Material Globe Valve 24.4.10. Standar Teknis dan Material Globe Valve
24.4.11. Standar Teknis dan Material Check Valve 24.4.11. Standar Teknis dan Material Check
Valve
24.4.12. Standar Teknis dan Material Butterfly 24.4.12. Standar Teknis dan Material Butterfly
Valve Valve
24.4.13. Standar Teknis dan Material Fitting Baja 24.4.13. Standar Teknis dan Material Fitting Baja
24.4.14. Standar Teknis dan Material Flange, 24.4.14. Standar Teknis dan Material Flange,
Gasket, Bolt and Nuts Gasket, Bolt and Nuts
24.4.15. Standar Teknis dan Material Insulating 24.4.15. Standar Teknis dan Material Insulating
Joint Joint
24.6. Pemasangan Valve Pipa Induk 24.6. Installation of Main Line Valve
24.6.1. Valve Pipa Induk, baik untuk tujuan 24.6.1. Main Line Valves, whether for operating
pengoperasian maupun dalam keadaan or emergency purposes shall be located
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
darurat harus ditempatkan pada lokasi in a manner that will provide ready
yang mudah dijangkau dan access and facilitate their operation
memungkinkan pengoperasian selama during an emergency. The box or
dalam keadaan darurat. Bak atau area enclosure shall be installed in a manner
tertutup harus dipasang pada daerah to avoid transmitting external loads to the
yang aman sehingga tidak terpengaruh Main Line.
oleh beban luar terhadap Pipa Induk.
24.6.2. Tipikal pemasangan valve dan ketentuan 24.6.2. Typical installation of valve as well as
dimensi bak valve pada Pipa Induk dan dimension requirement of valve box for
Valve Pipa Service seperti ditunjukan Main Line and Service Line Valve as
pada Volume II Gambar Tipikal. shown in Volume II Typical Drawing.
24.7. Pemasangan Valve Pipa Service 24.7. Installation of Service Line Valves
24.7.1. Valve yang dipasang di bawah tanah 24.7.1. The underground valves shall be located
harus ditempatkan pada bak yang in a covered durable curb box. Typical
dilengkapi dengan tutup yang kuat. Tipikal installation and dimension requirement of
pemasangan dan ketentuan dimensi bak box valve of under ground valve as
valve bawah tanah seperti ditunjukkan shown in Volume II Typical Drawing.
pada Volume II Gambar Tipikal.
24.7.2. Valve dengan ukuran 6 inci ke atas harus 24.7.2. The valve with size 6 inches and above
ditopang oleh bantalan beton atau shall be supported on a bed of concrete
material lainnya yang cocok. or other suitable materials.
24.7.3. Prosedur penyambungan valve ke pipa 24.7.3. Joining procedure of valve and pipe shall
dengan sambungan las sesuai dengan be comply with the welding requirements
ketentuan pengelasan yang disyaratkan in this guidance.
dalam panduan ini.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
25.1.1. Memberikan panduan dalam penentuan 25.1.1. As general guidance for determination of
desain konstruksi sistem Odorisasi Gas construction design of Gas Odorization
pada konstruksi pipa baja untuk sistem for steel pipe construction in natural gas
jaringan pipa distribusi gas bumi dan distribution pipeline network system and
Fasilitas Penunjangnya. its Supporting Facilities.
25.3.6. Odorizer adalah alat/unit yang digunakan 25.3.6. Odorizer is equipment for Gas
untuk pemberian Odoran pada gas. Odorization.
25.5.3. Sistem odorisasi harus didesain agar 25.5.3. Odorizer system shall be design to
memudahkan pada saat pengisian ulang making easy when refilling the Odorant in
Odoran ke dalam tangki penyimpanan. to the tank.
25.5.4. Prosedur keselamatan dan kesehatan 25.5.4. Safety and healthy procedure during
pada pekerjaan Odorisasi harus mengacu Odorization shall comply with PGN’s
pada Dokumen Pedoman Keselamatan, Pedoman Keselamatan, Kesehatan
Kesehatan Kerja, Pengamanan dan Kerja, Pengamanan dan Pengelolaan
Pengelolaan Lingkungan serta Energi Lingkungan serta Energi (K3P2L-E)
(K3P2L-E) PGN. Document.
Idealnya terletak pada lokasi dengan The Ideal location is in the one with low
kepadatan populasi penduduk rendah. population density.
Ketersediaan sumber tenaga yang The availability of power to run the
cukup untuk kebutuhan kerja Odorizer Odorizer system continuously.
secara terus menerus.
Instalasi Odorizer harus terlindung dari Odorizer installation shall have
kegiatan perusakan dengan memasang protection from trespassers and
pagar pengaman secukupnya. vandals with sufficient fence.
25.6.4. Pemilihan Material 25.6.4. Material Selections
Material yang digunakan tidak boleh Material used in the Odorization system
rusak atau berubah bentuk atau bereaksi shall not reform or chemical reacted with
kimia dengan Odoran. the Odorant.
25.6.5. Pemilihan Lokasi Pendeteksi Odoran 25.6.5. Odorant Tested Location Selection
Lokasi pendeteksi Odoran harus berada Odorant Tested Location shall be placed
di daerah berikut ini: in this location:
Daerah dengan kepadatan penduduk Area with high density of population.
yang tinggi.
Area publik; seperti rumah sakit, pasar, Public Area such as: Hospital, Market,
terminal, bandar udara, pusat Stations, Airport, Shopping Mall,
perbelanjaan, sekolah dan tempat School and other public area.
umum lainnya
Di lokasi pelanggan atau meter Customer or customer meter location.
pelanggan.
Pengukur Kadar Bau atau Odor Meter Odor Meter is used for measure odor
digunakan untuk menentukan kadar content in natural gas.
bau Odoran yang telah tercampur
dengan gas bumi.
25.6.6. Metode Konstruksi 25.6.6. Construction Method
a) Mendisain dan menggambar proses a) Process and instrumentation design
dan instrumentasi sistem odorisasi drawing of odorization system in gas
pada Jaringan Distribusi gas, beserta Distribution Line with appropriate
jenis dan ukuran pipa serta peralatan type and size of pipeline and
sistem odorisasi yang sesuai. equipment of odorization system.
b) Membuat konfigurasi untuk seluruh b) Make configuration design of all
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
sedikit pengotoran yang disebabkan oleh caused by rust stain, mill scale oxides or
noda karat, oksida kerak pabrik atau slight, tight residues of paint or coating
sedikit residu cat atau pelapis yang that may remain.
tersisa.
26.3.4. Pembersihan dengan Blasting adalah 26.3.4. Blast Cleaning is a method for removing
metoda untuk menghilangkan kerak dari of mill scale, rust, rust scale, foreign
pabrik, kerak karat, material asing atau material or paint from surface, by the use
cat pada permukaan dengan of abrasive propelled through nozzles or
menggunakan blasting material abrasive by centrifugal wheels.
melalui nozzel atau dengan centrifugal
wheels.
26.3.5. Pembersihan dengan Pelarut adalah 26.3.5. Solvent Cleaning is a method for
metoda untuk menghilangkan semua removing all visible oil, grease, soil,
minyak yang terlihat, pelumas, tanah, drawing and cutting compounds and
senyawa yang digunakan pada other soluble contaminants from steel
pemotongan dan penandaan pada surface by use of specified chemicals in
permukaan baja dengan menggunakan accordance with SSPC-SP 1 standard.
bahan kimia tertentu sesuai dengan
standar SSPC-SP 1.
26.3.6. Pembersihan Manual adalah metoda 26.3.6. Hand Tool Cleaning is a method for
untuk menghilangkan karat, kerak dari removing of loose rust, loose mill scale,
pabrik, dan cat yang mudah lepas and loose paint to degree specified, by
dengan mengelupaskan menggunakan hand chipping, scraping, sanding, and
tangan, mengikis dan menyikat wire brushing in accordance with SSPC-
menggunakan kawat sesuai dengan SP 2 standard.
standar SSPC-SP 2.
26.3.7. Permukaan Tanpa Coating adalah 26.3.7. Bare Surfaces is un-coated metal
permukaan logam yang tidak dilapisi. surface.
Temperatures.
26.4.15. CSA-Z245.20 Plant-applied external 26.4.15. CSA-Z245.20 Plant-applied external
coatings for steel pipe. coatings for steel pipe.
26.4.16. IGE/TD/3 1992 Recommendation on 26.4.16. IGE/TD/3 1992 Recommendation on
Transmission and Distribution Practice; Transmission and Distribution Practice;
Distribution Mains. The Institution of Gas Distribution Mains. The Institution of Gas
Engineers, London UK. Engineers, London UK.
26.4.17. ISO 8501-1 Rust grades and preparation 26.4.17. ISO 8501-1 Rust grades and preparation
of uncoated steel substrates and steel of uncoated steel substrates and steel
substrates after overall removal of substrates after overall removal of
previous coatings. previous coatings.
26.4.18. ISO 8502-3 Preparation of steel 26.4.18. ISO 8502-3 Preparation of steel
substrates before application of paints substrates before application of paints
and related products - Tests for the and related products - Tests for the
assessment of surface cleanliness - Part assessment of surface cleanliness - Part
3: Assessment of dust on steel surfaces 3: Assessment of dust on steel surfaces
prepared for painting (pressure-sensitive prepared for painting (pressure-sensitive
tape method). tape method).
26.4.19. ISO 21809-3 Petroleum and natural gas 26.4.19. ISO 21809-3 Petroleum and natural gas
industries - External coatings for buried or industries - External coatings for buried
submerged pipelines used in pipeline or submerged pipelines used in pipeline
transportation systems - Part 3: Field joint transportation systems - Part 3: Field
coatings. joint coatings.
26.4.20. NACE SP0274 High-Voltage Electrical 26.4.20. NACE SP0274 High-Voltage Electrical
Inspection of Pipeline Coatings. Inspection of Pipeline Coatings.
26.4.21. NACE MR0274 Material Requirements 26.4.21. NACE MR0274 Material Requirements
For Polyolefin Cold-Applied Tapes For For Polyolefin Cold-Applied Tapes For
Underground Or Submerged Pipeline Underground Or Submerged Pipeline
Coatings. Coatings.
26.4.22. SNI 3474:2009 Sistem Penyaluran dan 26.4.22. SNI 3474:2009 Sistem Penyaluran dan
Distribusi Pipa Gas Distribusi Pipa Gas
26.4.23. SSPC-AB2 Cleanliness of Recycled 26.4.23. SSPC-AB2 Cleanliness of Recycled
Ferrous Metallic Abrasive. Ferrous Metallic Abrasive.
26.4.24. SSPC-AB3 Ferrous Metallic Abrasive. 26.4.24. SSPC-AB3 Ferrous Metallic Abrasive.
26.4.25. SSPC-AB4 Recyclable Encapsulated 26.4.25. SSPC-AB4 Recyclable Encapsulated
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
(b). Permukaan yang telah dilakukan (b). Shop-prepared and shop primed
persiapan permukaan dan dicat dasar surfaces that require additional
di pabrik yang masih memerlukan painting.
pengecatan tambahan.
(c). Kerusakan pada permukaan yang (c). Shop-prepared and shop-painted
telah dilakukan persiapan permukaan surfaces that have been damaged
dan dicat dasar di pabrik sehingga and require spot surface preparation
membutuhkan pekerjaan persiapan and paint repair.
permukaan dan perbaikan cat
kembali pada tempat tertentu.
26.5.2. Semua fasilitas permanen harus dicat, 26.5.2. All permanent construction shall be
dengan pengecualian berikut ini: painted, with the following exception:
(a). Logam kerja yang sudah di-plating (a). Metal work has a plated, polished.
dan dipoles.
(b). Ubin, teraso, dan lantai semen yang (b). Tile, terrazzo, and concrete floors
pengerjaan akhirnya diberi pengeras. finished with hardeners.
(c). Plafon dan permukaan dinding yang (c). Pre-painted ceiling and wall surfaces
telah dicat.
(d). Gelas ukur dan gelas tembus (d). Glass gauges and sight glasses
pandang.
(e). Permukaan baja tahan karat dan (e). Stainless steel and copper alloy
paduan tembaga. surfaces
(f). Grease nipple dan fitting. (f). Grease nipples and fitting
(g). Permukaan yang dikerjakan dengan (g). Machined surfaces
permesinan.
(h). Permukaan untuk kontak gasket (h). Gasket contact surfaces
(i). Sambungan berulir. (i). Threaded connection
(j). Bagian material yang akan dilas. (j). Site weld margins.
(k). Nama peralatan atau pelat instruksi (k). Equipments name or special
khusus. instruction plates
(l). Valve stem, sambungan yang (l). Valve stems, movable linkages,
bergerak, shafts kompressor atau compressor or pump shafts
pompa.
(m).Permukaan yang diberi pelumas atau (m).Surfaces that are lubricated or have
yang telah mendekati toleransi close working tolerances
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
kerjanya.
26.5.3. Pipa harus dicat secara penuh pada 26.5.3. Piping shall be fully painted in the area of
daerah penyangga sebelum diletakkan pipe support before mounting on pipe
pada penyangganya. Bantalan dari logam supports. Adequate metallic pads or
yang memadai atau lempengan ganda double plates welded to the pipe before
yang dilas ke pipa, sebelum pengecatan, painting shall be supplied at all pipe
harus dipasang pada semua penyangga. supports.
26.5.4. Pengecatan harus dilakukan pada kondisi 26.5.4. Painting shall be applied under the
lingkungan yang dipersyaratkan oleh environmental conditions established by
manufaktur cat tersebut. Pengecatan the painting manufacturer. No painting
tidak dapat dilakukan pada kondisi shall be applied on following conditions:
sebagai berikut:
(a). Pada permukaan yang lembab atau (a). On surface that are moist or may
yang akan menjadi lembab sebelum become moist before primer
dilapisi cat dasar. application.
(b). Jika temperatur pemukaan kurang (b). When the surface temperature is less
dari 3 °C atau 5 °F di atas titik than 3 °C or 5 °F above the dew
embunnya atau kelembaban relatif point or the relative humidity is more
lebih dari 85 %, atau, than 85 %, or,
(c). Wet abrasive blasting dapat (c). Wet abrasive blasting may be
dilakukan pada permukaan yang performed on damp surfaces and
basah / lembab dan dibawah under ambient temperature and
temperatur ambien sebagai humidity conditions that preclude dry
pendahuluan dry blasting. Kriteria blasting. The acceptance criteria for
penerimaan untuk kebersihan surface cleanliness with wet abrasive
permukaan yang menggunakan wet blasting shall be in compliance with
abrasive blasting harus sesuai the “Potassium Ferri cyanide Test for
dengan the “Potassium Ferri cyanide Detecting Soluble Rust Producing
Test for Detecting Soluble Rust Salts”.
Producing Salts”.
(d). Jika temperatur permukaan yang (d). When the surface temperature is
akan dicat dibawah temperatur below the minimum curing
minimum curing cat. temperature of paint.
(e). Jika kecepatan angin melebihi 15 mil (e). When the wind speed exceeds 15
per jam. miles per hour.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Technical / Product Data Sheet material Product Data Sheet for painting material
cat yang digunakan beserta MSDS-nya used including the MSDS to PGN.
kepada PGN.
26.6.7. Material cat baik primer coat, second coat 26.6.7. Painting material, either primer coat,
maupun top coat termasuk thinner (bila second coat and top coat including
diperlukan) harus berasal dari manufaktur thinner (if required) shall be derived from
yang sama. the same manufacturer.
26.6.8. Thinner tidak boleh digunakan tanpa 26.6.8. Thinner shall not be used without PGN
persetujuan dari PGN, penggunaannya approval, it shall be limited to 5 percent
dibatasi hanya 5 persen volume atau by volume or the VOC limit (420 g/l),
sesuai batasan dari VOC (420g/l), mana whichever is less.
yang lebih kecil.
26.6.9. Material cat baik primer coat, second coat 26.6.9. Painting material, either primer coat,
maupun top coat termasuk thinner dan second coat and top coat including
material yang mudah terbakar lainnya thinner and other flammable materials
harus disimpan sesuai dengan shall be stored according to
rekomendasi yang diberikan oleh manufacturer's recommendations.
manufaktur.
26.7.3. Persiapan permukaan untuk aplikasi 26.7.3. The surface preparation for painting
pengecatan dapat dilakukan dengan application may be carried out by
menggunakan blasting, special power blasting, special power tool or power tool
tool atau power tool sesuai rekomendasi in accordance with manufacturer
manufaktur. recommendation.
26.7.4. Untuk persiapan permukaan 26.7.4. For surface preparation using power tool,
menggunakan power tool, daerah yang the area being painted shall be cleaned
akan dicat harus dibersihkan sesuai according to ISO 8501-1, grade St 3. For
dengan ISO 8501-1, grade St 3. Untuk Surface preparation using blasting or
persiapan permukaan menggunakan special power tool, the area being
blasting atau special power tool, daerah painted shall be cleaned according to
yang dicat harus dibersihkan sesuai ISO 8501-1, grade Sa 2.5.
dengan ISO 8501-1, grade Sa 2,5.
26.7.5. Anchor profile pada persiapan 26.7.5. Anchor profile on surface preparation
permukaan yang dilakukan menggunakan performed by blasting or special power
blasting atau special power tool harus tool shall be checked using surface
dilakukan dengan menggunakan surface profile gauge and replica tape with
profile gauge dan replica tape dengan acceptance criteria 45 – 100 µm or in
kriteria penerimaan 45 – 100 µm atau accordance with manufacture
sesuai rekomendasi manufaktur. recommendation.
26.7.6. Setelah pembersihan dengan blasting, 26.7.6. After blast cleaning, dust, grit, shot and
debu, goresan, butiran dan kontaminan similar contaminants shall be removed
yang sejenis harus dihilangkan. and the surface cleaned before pain
Permukaan baja dibersihkan sebelum application, using one of the following:
pelaksanaan pengecatan, dengan
menggunakan salah satu metoda berikut:
(a) Vacuum cleaner (a) Vacuum cleaner
(b) Kompresor udara yang kering dan (b) Clean, dry compressed air, or
bersih, atau,
(c) Sikat pembersih (c) Clean brush
26.7.7. Dust contamination harus diukur dengan 26.7.7. Dust contamination shall be measured
nilai rating maksimal 3 sesuai dengan with a maximum value of rating 3 in
ISO 8502-3. accordance with ISO 8502-3 .
26.7.8. Deterjen atau air pembersih tidak boleh 26.7.8. Detergents or water washing shall not be
digunakan terhadap baja yang baru saja used on newly cleaned steel except after
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
(c) Permukaan yang telah dicat dasar (c) Primed surfaces exposed to a marine
yang berhubungan dengan udara laut or polluted atmosphere shall be
atau udara tercemar, harus scrubbed with fresh water and dried
dibersihkan dengan air tawar dan prior to over coating.
dikeringkan terlebih dahulu sebelum
dicat kembali.
(d) Jika logam tanpa pelapis terpapar (d) When bare metal is exposed during
selama pembersihan baja yang telah the cleaning of previously painted
dicat sebelumnya, cat dasar harus steel, a prime coat shall be applied to
digunakan untuk menutup daerah the exposed areas before processing
yang terpapar tersebut sebelum with the application of the
proses pelaksanaan lapisan antara intermediate or finish coat.
(intermediate) atau lapisan akhir.
26.9.3. Untuk mencapai ketebalan cat dasar 26.9.3. To secure a satisfactory thickness of
yang cukup, semua kepala baut, mur, primer, all bolt heads, nuts, edges,
pinggiran, sudut dan celah harus dicat corners and crevices shall be striped with
dasar dengan menggunakan kuas dalam primary paint by brushing on a single
sekali pengecatan (jika metoda pass (if spraying) before the steel
penyemprotan digunakan) sebelum baja receives its first full prime coat. Striping
diberikan cat dasar secara penuh. shall extend 3 centimeters from all
Pemberian cat dasar tersebut harus edges.
mencapai 3 cm dari semua pinggirannya.
26.10. Second Coat dan Top Coat 26.10. Second Coat and Top Coat
26.10.1. Second coat dan Top coat harus 26.10.1. Second coat and top coat shall apply
diaplikasikan setelah cat dasar. Jika after primer coat. If thinner are approved
penggunaan thinner diperbolehkan oleh for use by PGN, the wet film thickness
PGN, ketebalan lapisan dalam kondisi shall be increased proportionally to
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
basah harus ditambah secara produce the correct Dry Film Thickness
proporsional untuk mendapatkan Dry Film (DFT) in accordance with Standar Teknis
Thickness (DFT) yang sesuai dengan dan Material Painting.
Standar Teknis dan Material Painting.
26.10.2. Pelaksanaan lapisan second coat dan top 26.10.2. Second coat and top coat applications
coat berikut warna cat harus memenuhi including color requirement shall be as
persyaratan sebagai berikut: follows:
(a) Setiap lapisan cat harus sudah kering (a) Each coat of paint shall be dry to
ketika disentuh sebelum pengecatan touch prior to application of the next
lapisan berikutnya. coat.
(b) Pencampuran/pengadukan cat untuk (b) Paint mixed for second coat and top
second coat dan top coat harus coats shall be applied within the time
dilakukan dalam batas waktu yang limit specified by the manufacturer.
ditentukan oleh manufaktur.
(c) Sistem perpipaan harus diberi warna (c) Piping systems shall be color coded
yang sesuai dengan jenis fluida yang to identify the fluid type flowing within
mengalir di dalamnya sesuai dengan in accordance with Standar Teknis
Standar Teknis dan Material Painting. dan Material Painting.
(d) Jika waktu maksimum pelapisan (d) If manufacturer’s maximum recoat
ulang yang ditetapkan oleh pabrik times are exceeded, special surface
pembuatnya telah terlampaui, preparation shall be carried out as
persiapan permukaan harus recommended by manufacturer and
dilakukan kembali sebagaimana approved by PGN.
rekomendasi dari pabrik pembuatnya
dan mendapat persetujuan dari PGN.
26.12. Pengecatan pada Permukaan Baja 26.12. Painting for Galvanized Steel and
Galvanis dan Alumunium Aluminum Surface
26.12.1. Permukaan harus dibersihkan dengan air 26.12.1. The surfaces shall be cleaned with
mineral untuk menghilangkan kotoran, oli, mineral spirits to removed dirt, grease oil
minyak dan lapisan film yang terbawa and factory film. And wiped dry in
dari pabrik, dan dikeringkan sesuai accordance with SSPC-SP 1. Water-
dengan SSPC-SP 1. Pembersih berbasis base cleansers may be used for
air boleh digunakan untuk permukaan galvanized surface only. Deposits on
yang digalvanis saja. Endapan pada weathering metal shall be removed by
logam tahan cuaca harus dihilangkan wire brushing in accordance with SSPC-
dengan sikat kawat sesuai dengan SP 2 or SSPC-SP 3 before painting. In
SSPC-SP 2 atau SSPC-SP 3 sebelum addition, surface shall be etched with a
dilakukan pengecatan. Sebagai commercial solution or chemical
tambahan, permukaan harus dietsa phosphoric metal etch, rinsed with water
dengan larutan komersial atau bahan and allowed to dry prior to painting.
kimia posfor untuk etsa logam, dibilas
dengan air dan dibiarkan kering sebelum
pengecatan dapat dimulai.
26.12.2. Permukaan baja yang dilapisi dengan hot- 26.12.2. Steel surface coated by hot-dipped
dipped galvanize yang menunjukan galvanizing that have areas showing
adanya daerah dengan pelekatan yang poor adhesion or areas damaged during
kurang baik atau yang mengalami shipment or construction shall be
kerusakan dalam pengangkutan atau cleaned by abrasive blasting, wire
konstruksi harus dibersihkan dengan brushing or another mechanical means
abrasive blasting, sikat kawat atau cara conforming to SSPC-SP 2 or SSPC-SP
mekanis lainnya sesuai dengan SSPC- 3. These areas shall be recoated with an
SP 2 atau SSPC-SP 3. Daerah tersebut inorganic zinc (i.e. cold galvanizing)
harus dilapisi ulang dengan material material to yield a Dry Film Thickness
inorganic zinc (seperti cold galvanizing) (DFT) of 100 microns.
hingga mendapatkan Dry Film Thickness
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
26.13. Pengecatan pada Permukaan Baja 26.13. Painting for Primed Steel Surface
yang Telah diberi Cat Dasar
26.13.1. Baja yang telah diberi cat dasar harus 26.13.1. Primed steel surface shall be cleaned of
dibersihkan dari debu, oli, minyak, karat, dirt, grease, oil, rust, scale and other
kerak, dan material yang merugikan deleterious materials, When primed
lainnya. Jika permukaan yang telah surface have been subjected to welding,
diberi cat dasar mengalami pengelasan, all flux slag deposits, welding flux fume
semua endapan terak fluks, endapan deposits formed by welding shall be
fluks lasan yang terbentuk akibat removed 20 cm from the weld area by
pengelasan harus dihilangkan 20 cm dari abrasive blasting, wire brushing or for
daerah lasan dengan abrasive blasting, another mechanical means conforming to
sikat kawat atau cara mekanis lainnya SSPC-SP 2 or SSPC-SP 3. This
sesuai dengan SSPC-SP 2 or SSPC-SP procedure also applies to the repair of
3. Prosedur ini juga dapat diterapkan yard-primed surfaces damage during
untuk perbaikan terhadap permukaan shipment or construction.
yang telah diberi cat dasar dari pabrik
yang mengalami kerusakan selama
pengiriman atau konstruksi.
26.14. Pengecatan pada Kuningan, Tembaga 26.14. Painting for Brass, Copper and
dan Baja Tahan Karat Stainless Steel Surface
26.14.1. Perpipaan, valve, tubing dan fitting yang 26.14.1. Brass, copper and stainless steel piping,
terbuat dari kuningan, tembaga dan baja valves, tubing and fitting shall properly
tahan karat harus diberi pelindung yang masked and not painted.
memadai dan tidak dilakukan
pengecatan.
26.15. Pengecatan pada Permukaan Beton 26.15. Painting for Concrete Surfaces
26.15.1. Beton, lempengan beton dan permukaan 26.15.1. Concrete, concrete blocks and masonry
dari batu hanya dicat jika ditentukan. surfaces shall be painted only when
specified.
26.15.2. Beton atau lempengan beton harus 26.15.2. Concrete and concrete blocks shall cure
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
26.16. Pengecatan pada Permukaan Logam 26.16. Painting for Pre-coated Metal Surfaces
yang Sudah Dilapisi
26.16.1. Material panel bangunan dan trim hanya 26.16.1. Pre-coated material building panels and
perlu dicat jika mengalami kerusakan trim require painting only when damaged
pada waktu pengangkutan atau by shipment or erection. The panel/trim
pemasangan. Persiapan permukaan surface shall be prepared by solvent
panel/trim harus dilakukan dengan cleaning in accordance with SSPC-SP 1
pembersihan menggunakan pelarut untuk to remove oil, grease, dirt and other
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
26.17. Perbaikan Permukaan Cat yang Rusak 26.17. Repair of Damaged Paint Surface
26.17.1. Bila pengecatan yang telah dilakukan di 26.17.1. Where shop paint has been damaged in
pabrik mengalami kerusakan selama handling, all damaged and loosely
dalam penanganan, semua kerusakan adhering paint shall be removed and the
dan cat yang kehilangan daya lekatnya surface thoroughly cleaned and
(terkelupas) harus dihilangkan. repainted.
Permukaan harus dibersihkan kembali
secara baik dan dilakukan proses
pengecatan ulang.
cat untuk menjamin resin terkatalisasi pack paintings to ensure that the
secara sempurna dan persyaratan resin is properly catalyzed and
waktu induksi terpenuhi. induction time requirements are met.
(d) Inspeksi kontinuitas dan ketebalan (d). Inspect every coat of paint for
setiap lapisan cat. continuity and thickness.
(e) Menjamin bahwa semua tahap (e). Ensure observation of specified
pekerjaan sesuai dengan standar cleanliness and procedure
kebersihan dan prosedur yang standards.
ditentukan.
(f) Menerima atau menolak hasil (f). Accept or reject the quality of every
pekerjaan pada setiap tahapan stage of the painting procedure.
prosedurpengecatan.
(g) Melaksanakan inspeksi pada daerah (g). Conducts spot inspection for inter
tertentu (spot) terhadap adanya coat contamination.
kontaminasi pada intercoat.
26.18.3. PGN boleh melakukan pengambilan 26.18.3. PGN may take random samples of
sampel secara acak terhadap material cat painting materials according to ASTM
sesuai dengan ASTM D3925 untuk D3925 for analysis and testing. Samples
keperluan analisis dan pengujian. Sampel shall be provided by the Work Executor
harus disediakan oleh Pelaksana or vendor at PGN request.
Pekerjaan atau vendor sesuai dengan
keperluan PGN.
26.18.4. PGN mempunyai hak untuk mengaudit 26.18.4. PGN has the right to audit and witness all
dan menyaksikan semua uji batch quality control tests and
pengendalian mutu dan prosedurnya. procedures at the manufacturer’s
facilities.
26.18.5. Temperatur, titik embun dan kelembaban 26.18.5. The temperature, dew point and relative
relatif harus ditentukan sesuai dengan humidity shall be determined according
ASTM E337, menggunakan hygrometer to ASTM E337, using a hygrometer or
atau alat ukur kelembaban yang disetujui approved equipment to make the
dan harus sesuai dengan ketentuan di humidity measurements and shall also
bawah ini: be in accordance with the following
requirements:
(a). Pengukuran kondisi lingkungan harus (a). Environmental readings shall be
dilaksanakan pada saat dimulainya taken at the start of work and every 4
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Lampiran / Attachment
Keterangan:
Location Class 1
Jika setiap 1.6 km panjang area terdapat 10 atau kurang bangunan hunian penduduk.
Location Class 2
Jika setiap 1.6 km panjang area terdapat lebih dari 10 sampai dengan 46 bangunan hunian penduduk.
Location Class 3
Jika setiap 1.6 km panjang area terdapat lebih dari 46 bangunan hunian penduduk kecuali telah ditetapkan lain sebagai
Location Class 4 oleh badan yang berwenang.
Location Class 4
Area dimana terdapat bangunan-bangunan bertingkat, lalu lintas padat, dan banyak fasilitas umum tersedia.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Practice for Welding on Steel Pipes Practice for Welding on Steel Pipes
Containing Process Fluids or Their Containing Process Fluids or Their
Residuals. Residuals.
27.4.8. CP 2003 British Standard Code of 27.4.8. CP 2003 British Standard Code of
Practice Earthworks. Practice Earthworks.
27.4.9. Keputusan Direktur Jenderal Minyak dan 27.4.9. Keputusan Direktur Jenderal Minyak
Gas Bumi Nomor 84.K/38/Djm/1998 dan Gas Bumi Nomor 84.K/38/Djm/1998
tentang Panduan dan Tata Cara tentang Panduan dan Tata Cara
Pemeriksaan Keselamatan Kerja Atas Pemeriksaan Keselamatan Kerja Atas
Instalasi, Peralatan dan Teknik Yang Instalasi, Peralatan dan Teknik Yang
Dipergunakan Dalam Usaha Dipergunakan Dalam Usaha
Pertambangan Minyak dan Gas Bumi Pertambangan Minyak dan Gas Bumi
dan Pengusahaan Sumber Daya Panas dan Pengusahaan Sumber Daya Panas
Bumi Bumi
27.4.10. SNI 3474: 2009, Sistem Penyaluran dan 27.4.10. SNI 3474: 2009, Sistem Penyaluran dan
Distribusi Pipa Gas. Distribusi Pipa Gas.
27.4.11. STM Split Tee 27.4.11. STM Split Tee
27.4.12. STM Flange, Gasket, Bolt and Nuts 27.4.12. STM Flange, Gasket, Bolt and Nuts
27.5.8. Proses pengelasan Hot Tapping dapat 27.5.8. Hot tapping welding process may be
dilakukan dengan Shielded Metal Arc performed by Shielded Metal Arc
Welding (SMAW), Gas Tungsten Arc Welding (SMAW), Gas Tungsten Arc
Welding (GTAW) , atau kombinasi dari Welding (GTAW) , or by a combination
proses pengelasan tersebut. of these processes.
27.5.9. Material fitting untuk pekerjaan Hot 27.5.9. Material fitting for Hot Tapping shall
Tapping harus memiliki sertifikat dari have a certificate from manufacturer.
manufaktur.
27.5.10. Ball valve yang digunakan sebaiknya 27.5.10. Ball valve used should be full bore type
tipe Full Bore atau tipe lain yang or other type approved by PGN.
disetujui oleh PGN.
27.5.11. Gasket yang digunakan harus spiral 27.5.11. Gaskets used shall be spiral wound
wound gasket dengan ketebalan 3-5 mm gaskets with a thickness of 3-5 mm (API
(API 601) 601).
27.5.12. Opening pada pipa dengan diameter 27.5.12. Opening on pipe with diameter larger
lebih besar dari 2 inci harus dilakukan than 2 inches shall be done using a hole
dengan menggunakan pemotong cutter. Opening on pipe with diameter
lubang. Opening pada pipa dengan less than 2 inches can be done using a
diameter kurang dari 2 inci dapat manual drill.
dilakukan dengan menggunakan bor
manual.
27.5.13. Pemilihan ukuran cutter harus mengacu 27.5.13. Cutter size selection shall refer to
pada Lampiran Tabel 27.1. Bila tidak Atachment Table 27.1. When it is not
memungkinkan untuk memenuhi practical to comply that requirement, the
ketentuan tersebut, maka Pelaksana Work Executor shall make an analysis
Pekerjaan harus membuat analisa dan and subject to PGN approval.
mendapatkan persetujuan PGN.
27.5.14. Langkah dasar untuk melakukan Hot 27.5.14. The basic steps to perform a Hot Tap
Tap adalah: are:
a. Fitting harus disambung ke pipa a. Fitting shall be connected to the
penyalur eksisting dengan lasan existing pipeline by Welding (steel),
(baja), dikunci/baut atau diikat bolting (cast iron), or bonding
kemudian dipasang valve. (plastic) then install the valve.
b. Pneumatic test menggunakan N2 b. Pneumatic test using N2 shall be
harus dilakukan selama 2 jam sesuai conducted for 2 hours in accordance
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
control valve untuk sambungan baru, or a control valve for the new
dan dapat dilalui Coupon (bagian connection, and must allow the coupon
dinding pipa yang dipotong mesin bor) (section of pipeline wall cut out by the
yang diambil setelah operasi drilling machine) to be removed after the
pemotongan. Valve yang sesuai cutting operation. Suitable valves
termasuk ball valve atau gate valve, included a ball valve or gate valve, but
tetapi bukan plug valve atau butterfly not included a plug valve or butterfly
valve dan harus memenuhi ketentuan valve and shall comply with the
berikut; following requirement;
Full bore, bila memungkinkan dengan Full bore with sufficient diameter
diameter yang cukup untuk bor dan clearance for the drill and stopple if
stopple. applicable
Memiliki rating yang sesuai. Suitable rating
Panjang valve terhadap permukaan The length of the valve across the
flange harus diperiksa untuk flange faces shall be checked to
memastikan bor Hot Tapping memiliki ensure the Hot Tapping drill has
langkah yang cukup untuk melewati sufficient travel to pass through the
valve dan Hot Tap tee. Operasi valve and Hot Tap tee. The drilling
manual pemboran harus diperhatikan manual operation shall be considered
dalam menghitung jarak bor yang in calculating the critical drilling
kritis. distance.
Pressure relief valve yang digunakan Pressure relief valve used should
sebaiknya memiliki lubang vent. have a venting.
Flange yang digunakan harus tipe The flanges used shall be raised face
raised face. type.
27.6.5. Gasket 27.6.5. Gaskets
Gasket mengacu pada STM Flange, Gasket refer to STM Flange, Gasket,
Gasket, Bolt dan Nut. Gasket harus Bolt dan Nut. The gaskets shall be
diperoleh dari manufaktur yang disetujui. obtained from an approved
Gasket yang digunakan harus baru, manufacturer. The gasket used shall be
dalam kondisi yang baik dan bebas dari a new one, in good condition with no
cacat. sign of any defect.
27.6.6. Elektroda 27.6.6. Electrodes
a. Elektroda las / logam pengisi harus a. The welding electrodes / filler metal
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
sesuai dengan kelas yang telah shall conform to the class specified in
ditentukan di dalam Spesifikasi the approved Welding Procedure
Prosedur Pengelasan yang telah Specification.
disetujui.
b. Semua consumable (elektroda, b. All consumables (electrode, shielding
shielding gas, dll) harus dibeli dalam gas, etc.) shall be purchased in
keadaan tersegel, dikemas dan sealed, containers and stored
disimpan dengan benar untuk properly to prevent deterioration.
mencegah kerusakan.
c. Pelaksana Pekerjaan harus c. The Work Executor shall submit
menyerahkan sertifikat uji batch dari batch test certificates from the
produsen elektroda yang memberikan electrode manufacturers giving
rincian dari tes fisik dan kimia yang details of physical and chemical tests
dilakukan oleh vendor / supplier untuk carried out by vendor/ supplier for
masing-masing batch elektroda yang each, batch of electrodes to be used.
akan digunakan.
d. Sertifikat harus memiliki minimal, d. The certificates shall have as
informasi seperti nomor batch, minimum, information such as batch
tanggal pembuatan, nomor number, date of manufacture,
pencetakan consumable, sifat kimia consumable cast number,
consumable, analisis kimia logam las, consumable chemistry, weld metal
sifat mekanik logam las termasuk uji chemical analysis, weld metal
Charpy. mechanical properties including
Charpy impact energy.
e. Elektroda yang digunakan harus e. The electrodes used shall be free
bebas dari retak, lembab, karat, from crack, moisture, rust, oil,
minyak, gemuk, tanah dan benda grease, earth and other foreign
asing lainnya, yang dapat matter, which affect the quality of
mempengaruhi kualitas pengelasan. welding.
f. Elektroda yang digunakan untuk f. Electrode used for Shielded Metal
Shielded Metal Arc Welding (SMAW) Arc Welding (SMAW) shall be low
harus tipe low hydrogen. Ukuran hydrogen type. The sizes shall be
harus mengacu pada Lampiran Tabel refer to Attachment Table 27.2.
27.2.
g. Elektroda jenis low hydrogen harus g. Low hydrogen electrodes shall be
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
27.7.2.3. Bila galian lebih dalam dari 1,2 meter, 27.7.2.3. When the excavation is deeper than 1.2
galian harus ditopang secara memadai meters, excavation shall be adequately
atau diberi dinding penahan. supported or equipped with retaining
wall.
27.7.2.4. Penyangga harus dibuat sedemikian 27.7.2.5. The support shall be made in such way
rupa untuk memberi cukup ruang untuk to provide sufficient space to carry out
melakukan operasi pengeboran. the drilling operation.
27.7.2.6. Lubang percobaan harus dibuat pada 27.7.2.7. Trial hole shall be made at the Hot
lokasi Hot Tapping untuk memastikan Tapping location to ensure the area is
area tersebut aman terhadap pipa, clear from pipes, cables, drains, and
kabel, saluran air dan fasilitas pihak other third party facilities that may
ketiga lainnya yang dapat mengganggu interfere the Hot Tapping activity.
kegiatan Hot Tapping. Pada umumnya, Normally the size of trial hole is smaller
ukuran lubang percobaan lebih kecil dari than the full size excavation.
lubang galian sesungguhnya.
a. Diameter luar pipa dan ovalitasnya. a. Outside diameter of pipe and the
ovality.
b. Pipa tanpa sambungan atau welded. b. Seamless or welded pipe.
c. Korosi dan geometri pipa seperti c. Corrosion and pipe geometry such
buckles, dents, dan ovality yang as buckles, dents and ovality that
menyebabkan Hot Tapping tidak cause Hot Tapping can not be
dapat dilakukan pada section pipa carried out on the pipe section.
tersebut.
d. Ketebalan dan laminasi dengan d. Thickness and laminations using
Ultrasonic Thickness Gauge dan Ultrasonic Thickness Gauge and
Ultrasonic Flaw Detector. Bila Ultrasonic Flaw Detector. If defects
ditemukan cacat, keputusan untuk are found, the decision to replace the
mengganti section pipa tersebut pipe section shall be made based on
harus dibuat berdasarkan ASME ASME B31.8.
B31.8.
e. Perhitungan kekuatan dan kondisi e. Strength calculation and operational
operasi pipa penyalur eksisting untuk condition of existing pipeline to
memastikan Hot Tapping aman untuk ensure that Hot Tapping are safe to
dilaksanakan. be conducted.
27.7.4.2. Galian pada daerah Hot Tapping dapat 27.7.4.2. Excavation at Hot Tapping area can be
dibiarkan dalam kondisi terbuka asalkan left in open condition as long as safety
dipasang rambu pengaman atau ditutup sign installed or temporary covered by a
sementara dengan pelat baja hingga Hot steel plate until Hot Tapping completed.
Tapping selesai dilakukan.
27.7.4.3. Ketika lubang percobaan diperbesar ke 27.7.4.3. When the trial hole is enlarged to the full
ukuran sebenarnya, galian harus size excavation, excavation shall be
ditopang secara memadai atau diberi adequately supported or equipped with
dinding penahan. retaining wall.
27.7.4.4. Lantai galian harus kokoh, stabil dan 27.7.4.4. The excavation floor shall be firm, stable
memadai untuk digunakan sebagai and adequate to be used as the
pondasi untuk bekerja. foundation for work.
27.7.4.5. Seluruh fasilitas, pipa dan kabel pihak 27.7.4.5. all third party facilities, pipe and cable
ketiga harus ditopang secara memadai. shall be adequtely supported.
27.7.4.6. Metoda penyelamatan darurat untuk 27.7.4.6. Emergency rescue method for
para pekerja harus disediakan. personnel shall be provided.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
27.7.4.7. Tanda peringatan dan perintang yang 27.7.4.7. Warning signs and a strong barrier shall
kuat harus dipasang 3 m dari galian dan be installed 3 m from the excavation
sinyal waspada bagi lalu-lintas harus and alert signals for traffic shall be
dipasang dengan baik sepanjang jalan properly positioned along the highway,
raya, jalan atau jalur pejalan kaki. road or pedestrian paths.
27.7.4.8. Setelah selesai melakukan pengeboran 27.7.4.8. After the completion of drilling and
dan penyambungan, pipa, valve, dan connection, the pipe, valves and fitting
fitting harus segera di-coating. shall be coated.
27.7.4.9. Setelah Hot Tapping selesai, box valve 27.7.4.9. After Hot Tapping completed, box valve
harus dibuat sesuai dengan ketentuan shall be made in accordance with the
yang disyaratkan dalam panduan ini dan requirements in this guidance and shall
mengacu pada Volume II Gambar comply with Volume II Typical Drawing.
Tipikal. Box valve tidak boleh ditutup The box valve shall not closed
secara permanen dan pagar pengaman permanently and the security fence shall
harus dipasang, kecuali disetujui lain be installed, unless otherwise approved
oleh PGN. by PGN.
terlihat seperti slag cavities, cold laps, of surface porosity, starts, stops, high
clusters of surface porosity, starts, stops, points and other deposition faults shall
high points dan kesalahan deposisi be removed by grinding.
lainnya harus dihilangkan dengan cara
digerinda.
penuh dan bor dalam posisi selesai fully retracted position and the drill in
memotong. Pengukuran serupa the final cutting position. Similar
diperlukan untuk memposisikan measure is required for positioning of
stopple dan plug. the stopple and plug.
e. Jarak antara pipa ke pemotong dalam e. The distance between the pipes to
posisi ditarik harus diukur dan the cutter in retracted position shall
dialihkan ke skala ukur mesin bor. be measured and transferred to the
measurement scale drilling machine.
f. Diameter pemotong harus dipilih f. The cutter diameter shall be
dengan hati-hati/baik agar sesuai choosing carefully to suit either a
dengan operasi bor stopple atau non- stopple or non-stopple drilling
stopple. Diameter stopple pemotong operation. The diameter of the
lebih besar dari pemotong Hot Tap. stopple cutter is larger than a Hot
Tap cutter.
valve Hot Tap terpusat di flange dan the Hot Tap valve axis centrally on the
garis tengah pengeboran berada dalam flange and drilling centre line shall be in
posisi 90° terhadap flange Hot Tap. position 90° to the Hot Tap flange. Any
Setiap kesalahan dapat menyebabkan misalignment could result the drill strike
bor mengenai sisi dari Fitting. the side of the Fitting.
27.7.10.7. Saat bor siap, valve Hot Tap harus 27.7.10.7. When the drill set ready for drilling, Hot
dibuka, bor dan pemotong harus Tap valve shall be opened, the drill and
digerakan dengan tangan menuju pipa, cutter shall hand crank onto the pipe,
lalu bor ditarik kembali 25 mm dan siap then the drill retracted 25 mm and ready
menggunakan tenaga penggerak. to use the power drive.
27.7.10.8. Pengeboran dapat dimulai dan saat 27.7.10.8. Drilling can be initiated and upon
berakhir seperti dinyatakan batang ukur, completion as determined by the
tarik kembali pemotong termasuk measuring rod, withdraw the cutter
potongan pipa (Coupon). including the cut piece of pipe (coupon).
27.7.10.9. Valve Hot Tap harus ditutup dan 27.7.10.9. Hot Tap valve shall be closed and
tekanan di dalam mesin bor harus pressure inside the drilling machine
diturunkan melalui vent. shall be de-pressurized through the
vents.
27.7.10.10. Pindahkan mesin bor dan kosongkan 27.7.10.10. Remove drilling machine and blank off
valve Hot Tap. Hot Tap valve.
Lampiran / Attachment
Encirclement Fittings
kampuh membujur / longitudinal seams
- root pass ν
- next two pass ν ν
- remainder of passes ν* ν ν
Buttering passes ν
Fillet Weld – first 2 passes ν
Subsequence passes ν*
Weldolet, long Weld neck flanges
- first pass ν
- next passes ν*
Cathodic protection plates
– all passes ν*
*) Arus maksimum yang diizinkan untuk deposit langsung ke pipa penyalur harus 170 A. untuk tebal dinding > 6 mm, dan 150 A. untuk
tebal dinding > 5 mm < 6 mm. / Maximum allowable currents for deposition directly on to the carrier pipe shall be 170 A. for wall
thickness > 6 mm, and 150 A. for wall thickness > 5 mm < 6 mm.
28.7. Analisa Data dan Perhitungan Desain 28.7. Data Analysis and Design Calculation
28.7.1. Semua pekerjaan sipil didesain 28.7.1. All civil works on the designed in
berdasarkan standar yang telah disetujui. accordance with approved standards.
28.7.2. Data dan analisa perhitungan desain 28.7.2. Data analysis and calculations of the
menggunakan parameter pembebanan design shall use load parameters such
seperti berikut namun tidak terbatas as but are not limited to: dead load, live
pada: beban mati, beban hidup, Beban load, equipment load, impact load, wind
equipment, Beban impact, Beban angin, load, earthquake load, piping load,
Beban gempa, Beban piping, Thermal Thermal Force, lateral soil with or without
Force, Beban tanah kesamping dengan water pressure land, buoyancy, vibration
atau tanpa tekanan air tanah, buoyancy loads, Process Loads (i.e., Fluids loads
dan beban getaran. during operation and Hydrostatic Test),
Existing and future structures load.
28.7.3. Kombinasi pembebanan masing-masing 28.7.3. The combination of loading of each load
beban tersebut disesuaikan dengan is adjusted to the standard that has been
standar yang telah disetujui oleh PGN. approved by PGN.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
28.8. Pondasi dan Pipe Support 28.8. Foundation and Pipe Support
28.8.1. Pemilihan tipe dan material pondasi 28.8.1. Type selection of materials and
harus berdasar pada rekomendasi hasil foundation must be based on soil
penyelidikan tanah dan telah disetujui investigation results and
oleh PGN. recommendations which have been
approved by PGN.
28.8.2. Pondasi yang digunakan bisa berupa 28.8.2. Foundations used can be shallow
pondasi dangkal atau pondasi dalam. foundation or deep foundation. If the
Jika pondasi menggunakan material baja, Foundation made from steea protection
maka harus diberi perlindungan terhadap against corrosion shall be applied.
korosi.
28.8.3. Bagian pondasi dangkal atau pile cap 28.8.3. The part of shallow foundation or pile cap
yang berhubungan langsung dengan which relate directly to the land during
tanah saat pengecoran harus dilapisi concrete placement should be covered
terlebih dahulu dengan lean concrete. first with a lean concrete.
28.8.4. Safety factor minimum terhadap rolling 28.8.4. Minimum safety factor againt rolling force
force harus minimal 1.5 untuk tanah pasir at least 1.5. sand and 2.0 for clay soil.
dan 2.0 untuk tanah lempung. Untuk daya For the carrying capacity and other
dukung dan kondisi lainnya, safety factor conditions, the minimum safety factor of
minimum 2. Sedangkan safety factor at least 2. Meanwhile, safety factor for
untuk geser minimal 1.5 untuk tanah pasir sliding is minimum 1.5 for sand and 2.0
dan 2.0 untuk tanah lempung. for clay soil.
28.8.5. Tipe dan material Pipe Support yang 28.8.5. Type of Pipe Support and materials used
digunakan harus sesuai dengan Pipe shall be in accordance with Pipe Stress
Stress Analysis. Analysis.
28.8.6. Pipa dan support tidak boleh bersentuhan 28.8.6. Pipes and support should not directly
secara langsung dan harus dilapisi contact, and shall be covered with Teflon
dengan Teflon atau bahan lain yang or another weather-resistant material.
tahan cuaca.
Top Soiling adalah proses pemeliharaan Top soiling is the process of preserving
dan penggunaan tanah lapisan atas and using topsoil to enhance final site
untuk meningkatkan stabilisasi akhir stabilization with vegetation for the
dengan vegetasi untuk tujuan memiliki purpose of having a suitable growth
medium pertumbuhan yang cocok untuk medium for re-vegetation.
penanaman kembali.
28.11.2. Ditch Breaker 28.11.2. Ditch Breaker
Ditch Breaker dipasang pada jalur pipa Ditch Breaker installed on the pipe route
yang memiliki kemiringan lebih dari 2%, which has a slope of more than 2%, and
dan juga dipasang pada tanggul dari also installed on the embankment of a
pekerjaan open cut saat crossing dengan job open cut when crossing rivers and in
sungai dan pada area dimana terdapat areas where there is the possibility of
kemungkinan terjadi erosi. erosion.
Ditch Breaker dipasang di jalur pipa Ditch Breaker installed in the pipeline
dengan jarak minimum sesuai dengan route with minimum spacing as per
Lampiran Tabel 28.1 Attachment Table 28.1
28.11.3. Diversion Dikes 28.11.3. Diversion Dikes
Pengalihan tanggul/parit harus disurvei Diversion dikes locations shall be
sebelumnya untuk mendapat persetujuan previously surveyed for PGN approval.
dari PGN.
Pengalihan tanggul/parit harus Diversion dikes shall be compacted by
dipadatkan dengan peralatan pemindah earth-moving equipment and have
tanah dan mempunyai saluran positive drainage to an outlet.
pembuangan yang baik.
Diversion dike dipasang untuk Diversion Dike installed to direct
mengarahkan aliran limpasan concentrated runoff in the pipeline area
terkonsentrasi pada area pipeline menuju into remains stable outlet.
outlet yang diperkirakan cukup stabil.
Diversion dike dipasang di jalur pipa Diversion Dike installed in the pipeline
dengan jarak minimum seperti Lampiran route with a minimum distance as per
Tabel 28.1 Attachment Table 28.1.
28.11.4. Side Slope Stability 28.11.4. Side Slope Stability
Side Slope Stability adalah penggunaan Side slope stability entails use of
struktur, shoring, sheet piling, geotekstil structures, shoring, sheet piling,
tanpa atau dengan kombinasi dengan geotextile fabric in combination with or
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
unsur biologis (atau tanaman) untuk without biological elements (or plants) to
menahan dan mencegah kelongsoran arrest and prevent slope failures and
lereng dan erosi. erosion.
28.11.5. Rip Rap 28.11.5. Rip Rap
Ketebalan rip-rap harus 1.5 kali ukuran Thickness of rip rap shall be minimum
batu terbesar dan terbuat dari campuran 1.5 of the largest stone and made from
gradasi ukuran dan lebih dari 50% mixed size gradation and more than 50%
mengindikasikan gradasi yang are identicating of gradation which is
didapatkan dari Lampiran Figure 28.1 obtained from Figure 28.1 Design Chart
Design Chart for Rip Rap Linings. Ukuran for Rip Rap Linings. The smallest size
terkecil juga harus lebih kecil dari 15% also shall less than 15% of total weight.
dari berat total.
28.11.6. Sediment Trap 28.11.6. Sediment Trap
Luas drainase area untuk sediment trap Drainage area for sediment trap shall
harus kurang dari 6 hektar dan less than 6 hectare and using rip rap
menggunakan konstruksi rip rap. construction.
Volume endapan yang akan ditampung Volume of sedimentation which is
(diukur sampai 500 mm di bawah puncak covered (measured to 500 mm under top
outlet) minimum 126 m3 per hektar. of outlet) are 126 m 3 per hectare
Tinggi timbunan harus kurang dari 1.5 m minimum.
(diukur dari titik terendah permukaan Height of embankment shall less than 1.5
tanah asli sepanjang garis tengah m (measured from the lowest existing
timbunan). Lebar bagian atas timbunan ground level along the mid line of
harus minimum 1.2 m. embankment). Width of top embankment
Kemiringan lereng untuk timbunan shall be 1.2 m minimum.
minimum 2H:1V atau lebih landai; Slope of embankment shall be 2H:1V
sedangkan kemiringan lereng untuk minimum or slighter; for slope of
galian minimum 1H:1V atau lebih landai. excavation soil shall be 1H:1V or slighter.
Ujung sediment trap harus pada tanah
yang stabil atau badan air atau saluran Edge of sediment trap shall be on stable
yang diperkuat. ground or body of water or strengthen
Outlet sediment trap harus didesain, canal.
dikonstruksi dan dipelihara sehingga Outlet of sediment trap shall be
endapan tidak meninggalkan trap dan designed, constructed, and maintained
erosi tidak terjadi pada outlet maupun di so the sediment is not leaving the trap
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
harus bisa menahan keluarnya atau able tohold water cement’sleak out
hilangnya air semen. or lose out.
b. Pencampuran material beton b. To maintain the quality of concrete
diutamakan menggunakan readymix mixing, concrete materials preferably
untuk menjaga mutu beton. used readymix.
c. Jika tidak memungkinkan c. If it is not possible to use readymix
menggunakan readymix karena caused in remote areas or smaller
berada di area terpencil atau volume volume of concrete required, it is
beton yang dibutuhkan kecil maka allowed to use the mixer with the
bisa menggunakan mixer dengan right mix of test results.
campuran sesuai dari hasil pengujian.
d. Pelaksana harus menjamin bahwa d. Work Executors must ensure that
antara beton lama dengan beton baru between the old concrete with new
harus menyatu. concrete must be uniformed.
e. Saat meletakkan beton ke dalam e. When placing the concrete into the
cetakan, jarak jatuh beton tidak boleh mold, concrete falling distance shall
lebih dari 1 meter untuk menghindari be not more than 1 meters to avoid
segregasi antara aggregate dengan segregation of aggregate with
semen. Untuk struktur yang sulit di cement. For structures that are
jangkau seperti pengecoran pada difficult in such a variety of casting
kolom maka beton diletakkan dengan the concrete columns in place by
menggunakan tremi atau drop using the tremi or drop bucket.
bucket.
f. Beton dipadatkan dengan f. Concrete shall be compacted using a
menggunakan vibrator untuk vibrator to avoid air cavity.
menghindari terjadinya rongga udara.
g. Proses pengecoran tidak boleh g. Conreting process shal not be done
dilakukan saat hujan. when it rains.
h. Selama pengecoran, mutu beton h. During casting, concrete quality
harus dijaga dengan melakukan should be maintained by conducting
slump test dengan nilai 7,5 - 15 cm slump tests for 7.5 – 15 cm and take
dan mengambil sampel test (3 test samples (3 samples for 7, 14
sample untuk tiap uji test umur 7, 14 and 28 days) or in accordance with
dan 28 hari) atau sesuai dengan PGN’s requirement.
persyaratan PGN.
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
Lampiran / Attachment
Maximum distance
N/A 150 m 90 m 60 m 30 m 15 m
between plugs
Luas Wilayah Pematusan (ha) Kedalaman saluran (mm) Panjang bendung (m)
1.0 500 1.8
2.0 500 3.7
3.0 500 4.9
4.0 600 3.7
5.0 600 4.6
6.0 600 5.5
c. Commissioning c. Commissioning
30.6. Uji Fungsi Peralatan dan Sistem 30.6. Functional Testing of Equipment and
System
30.6.1. Sebagai bagian dari Commissioning, 30.6.1. As a part of commissioning, all pipeline
semua pipa dan fasilitas pendukungnya, and compressor station monitor and
peralatan dan sistem kontrol harus diuji control equipment and systems shall be
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
30.7.2. Sebelum menjalankan proses gas in, 30.7.2. Prior to perform gas in work, check list
dilakukan cek list (go/no go list) untuk (go/no go list) of the minimum following
beberapa kondisi berikut dan tidak conditions shall be performed:
terbatas pada:
Persiapan keselamatan Safety preparation
Mechanical completion certificate Mechanical completion certificate
Ketersediaan suplai gas Supply gas availability
Kesiapan personil commissioning Commissioning personnel readiness
Kepastian bahwa alat instrument Instrument functional check
berfungsi dengan baik
Ketersediaan peralatan dan material Equipment and material readiness
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
30.7.4. Semua posisi valve harus diperiksa dan 30.7.4. All valves position shall be checked and
dipastikan sesuai dengan prosedur meet with the procedure
30.7.5. Pada saat gas in, nitrogen akan didorong 30.7.5. The nitrogen will be purged by natural
dengan gas yang dimasukkan dengan gas. The natural gas is introduced with
kecepatan 0,6 m/s sampai dengan 20 m/s minimum speed of 0.6 m/s until maximum
dan nitrogen diventing pada titik ujung 20 m/s and the nitrogen is vented at the
pipa. opposite end of the pipeline section.
30.7.6. Nitrogen yang terdorong dari dalam pipa 30.7.6. Nitrogen pushed from inside the pipe
PANDUAN
KONSTRUKSI PIPA BAJA DI DARAT PADA SISTEM JARINGAN PIPA
DISTRIBUSI GAS BUMI DAN FASILITAS PENUNJANGNYA
PT PERUSAHAAN GAS NEGARA (Persero) Tbk.
harus diventing di lokasi yang aman dan should be vented in a secure location and
diatur oleh personel yang kompeten. arranged by competent personnel.
30.7.7. Kecepatan gas diatur dengan mengontol 30.7.7. Gas speed may be controlled by adjusting
back pressure untuk mendapatkan gas the back pressure for certain gas flow
flow rate tertentu. Jika pada venting gas rate. Once vented gas is detected and
terdeteksi sudah mencapai kandungan contains 95% of methane volume from
methane 95% volume dari komposisi methane composition in natural gas,
methane di dalam gas maka venting venting is stopped.
ditutup.
30.7.8. Setelah venting ditutup, gas yang masuk 30.7.8. Once the vent valve is closed, further
ke dalam pipa akan membuat tekanan introduction of natural gas will cause the
menjadi naik. Pada kondisi seperti ini pressure increase. During this filling
dilakukan leak test setiap kenaikan 100 operation, every 100 psig increase leak
psig pada semua flanges dan koneksi test shall be performed on all flanges and
instrument. instrument connection.
30.7.9. Setelah gas mencapai tekanan yang 30.7.9. After gas filled in the pipeline with the
sesuai dengan prosedur, dilanjutkan required pressure, trial operation shall be
dengan melakukan trial operation. performed.
30.7.10. Gas in dapat diterima jika hal-hal berikut 30.7.10. Gas-in is considered as completed if the
ini terpenuhi: following criteria are fulfilled:
Pipeline terisi dengan kandungan Pipeline is filled with minimum 95% of
methane minimum 95% dari komposisi methane volume from methane
methane didalam gas composition in natural gas
Tidak terdapat leak selama tekanan No leak during gas delivery at the
operasi dengan menggunakan gas operating pressure checked by using
detector pada semua flanges yang gas detector on all flanges covered by
ditutup dengan masking tape pada masking tape during and after gas-in
saat dan setelah gas-in
Tekanan operasi yang stabil Stable operating pressure
30.8.2. Rencana darurat harus didasarkan pada 30.8.2. The contingency plan shall be based on a
sedikitnya beberapa alasan yang tidak minimum of the following unplanned
direncanakan seperti berikut: circumstances:
Jika diidentifikasi terdapat pembekuan Any freezing identified
Jika diidentifikasi ada kebocoran Any leaking identified
Jika ada peralatan yang rusak Any broken equipment
Keadaan kahar Force majeure
30.8.3. Rencana darurat harus diserahkan ke 30.8.3. The contingency plan shall be submitted
PGN sebelum pelaksanaan kegiatan to PGN prior to execution of
Commissioning. Commissioning.
VOLUME II / VOL II
GAMBAR TIPIKAL / TYPICAL DRAWING
