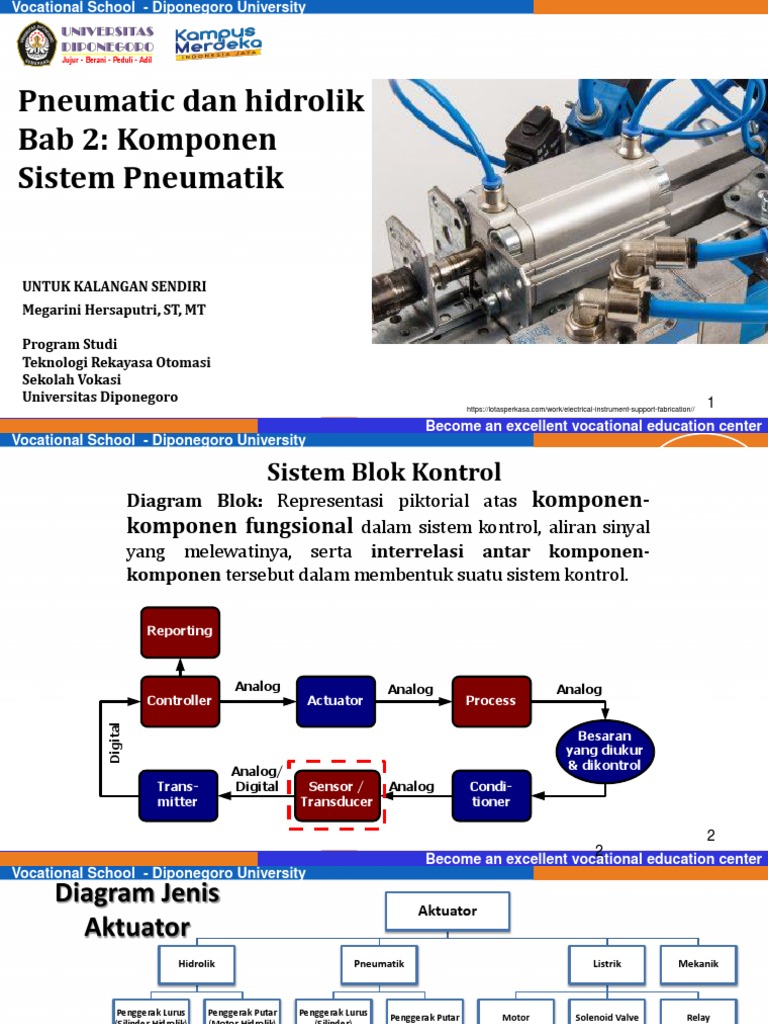

Program Studi
Teknologi Rekayasa Otomasi
Sekolah Vokasi
Universitas Diponegoro 1
https://lotasperkasa.com/work/electrical-instrument-support-fabrication//
Reporting
Besaran
yang diukur
Analog/ & dikontrol
Trans- Digital Sensor / Analog Condi-
mitter Transducer tioner
2
2
Become an excellent vocational education center
Vocational School - Diponegoro University
Diagram Jenis Aktuator
Aktuator
Hidrolik Pneumatik Listrik Mekanik
Multiple Position
Cylinder, Double- Motor Stepper
Acting
3
Motor Servo
Become an excellent vocational education center
Vocational School - Diponegoro University
Sistem Penggerak (Aktuator)
• Sistem penggerak (aktuator) adalah elemen/bagian dari
sistem kontrol yang berfungsi untuk mengubah
output/keluaran dari mikrokontroler atau mikroprosesor
atau sistem kontrol ke aksi (penggerak) pada perangkat
atau mesin.
4
Become an excellent vocational education center
Vocational School - Diponegoro University
Sensor vs Aktuator
• Sensor
– Mengukur, mendeteksi, merasakan parameter/variabel fisika, kimia, biologi atau lainnya
kemudian mengirimkan sinyal ke transmitter atau ke indikator.
• Aktuator
– Perangkat keras yang mengkonversi/mengubah sinyal perintah kontroler menjadi
perubahan/aksi pada parameter fisik.
– Perubahan biasanya berbentuk mekanis seperti perubahan posisi atau perubahan
kecepatan.
– Aktuator adalah tranduser karena aktuator mengubah suatu parameter/sinyal dari
kontroler menjadi suatu aksi atau bentuk lainnya.
– Aktuator biasanya diaktifkan oleh sinyal perintah yang lemah (low-level), maka
dibutuhkan amplifier untuk memberikan daya yang cukup untuk menggerakkan
aktuator.
5
Become an excellent vocational education center
Vocational School - Diponegoro University
Sistem Aktuasi
• Pada setiap proses industri terdapat benda/objek yang
harus dipindahkan, dimanipulasi, dipegang, atau
mengalami beberapa jenis gaya.
• Metode yang paling umum digunakan untuk
menghasilkan gaya/tenaga yang dibutuhkan adalah
– Udara – Pneumatik
– Cairan – Hidrolik
– Elektrikal – Motor, Solenoida.
– Mekanikal
6
Become an excellent vocational education center
Vocational School - Diponegoro University
AKTUATOR HIDROLIK
Motor silinder atau fluida yang menggunakan tenaga
hidrolik untuk operasi mekanis.
Hidrolik actuator dapat dibedakan menjadi dua macam
yakni:
- Penggerak lurus (Aktuator Linier) : silinder
hidrolik.
- Penggerak putar : motor hidrolik, rotary actuator
7
Become an excellent vocational education center
Vocational School - Diponegoro University
Bagan Cara Kerja Sistem Aktuator Hidrolik
8
Become an excellent vocational education center
Vocational School - Diponegoro University
9
Become an excellent vocational education center
Vocational School - Diponegoro University
10
Become an excellent vocational education center
Vocational School - Diponegoro University
11
Become an excellent vocational education center
Vocational School - Diponegoro University
http://teknikmesinmanufaktur.blogspot.com/2017/09/aktuator-hidrolik.html 12
Become an excellent vocational education center
Vocational School - Diponegoro University
Aktuator Pneumatik
Energi pneumatik biasanya
digunakan untuk mengontrol
Konversi energi yang dibentuk mesin utama karena dapat
oleh udara bertekanan pada dengan cepat merespons ketika
tekanan tinggi menjadi gerak memulai dan menghentikan
linear atau putar. sistem serta sumber daya tidak
perlu disimpan sebagai
cadangan untuk operasi.
Aktuator
Pneumatik
13
Become an excellent vocational education center
Vocational School - Diponegoro University
Bagan Cara Kerja Sistem Aktuator Pneumatik
14
Become an excellent vocational education center
Vocational School - Diponegoro University
1. Kompresor
• Kompresor adalah suatu alat
mekanikal yang bertujuan untuk
menaikkan tekanan suatu gas
dengan cara menurunkan volumenya.
15
Become an excellent vocational education center
Vocational School - Diponegoro University
16
Become an excellent vocational education center
Vocational School - Diponegoro University
17
Become an excellent vocational education center
Vocational School - Diponegoro University
3. Manifold
18
Become an excellent vocational education center
Vocational School - Diponegoro University
4. Check Valve
• Check Valve adalah valve atau katup yang berfungsi untuk mencegah adanya
aliran balik dari fluida kerja, dalam hal ini udara terkompresi.
• Terutama apabila pada sebuah sistem pneumatik tersebut dipergunakan tanki
akumulator udara, sehingga Check Valve tersebut mencegah adanya udara dari
akumulator untuk kembali menuju kompresor namun tetap mengalirkan udara
bertekanan dari kompresor untuk masuk ke dalam akumulator.
19
Become an excellent vocational education center
Vocational School - Diponegoro University
5. Tangki Akumulator
• Tangki akumulator atau juga disebut buffer tank berfungsi sebagai cadangan (storage)
tekanan udara terkompresi yang digunakan untuk penggerak aktuator.
• Selain itu tangki ini juga berfungsi untuk mencegah ketidakstabilan supply udara ke
aktuator, lebih menstabilkan kerja kompresor agar tidak terlalu sering mematikan dan
menyalakannya lagi, serta lebih memudahkan desain sistem dalam menempatkan
kompresor jika diharusakan penempatan aktuator pneumatik lebih jauh dengan
kompresor.
20
Become an excellent vocational education center
Vocational School - Diponegoro University
6. Selang
• Selang digunakan untuk mendistribusikan udara terkompresi dari
kompresor atau tanki akumulator ke berbagai sistem aktuator.
• Diameter selang yang digunakan pun bermacam-macam tergantung
dari desain dan tujuan penggunaan sistem pneumatik tersebut.
21
Become an excellent vocational education center
Vocational School - Diponegoro University
7. Directional Valve
• Directional valve atau katub pengatur arah yang instalasinya berada tepat
sebelum aktuator, adalah berfungsi untuk mengatur kerja actuator dengan
cara mengatur arah udara terkompresi yang masuk atau keluar dari aktuator.
• Satu valve ini didesain untuk dapat mengatur arah aliran fluida kerja di dua
atau bahkan lebih arah aliran. Ia bekerja secara mekanis atau elektrik
tergantung dari desain yang ada.
22
Become an excellent vocational education center
Vocational School - Diponegoro University
23
Become an excellent vocational education center
Vocational School - Diponegoro University
24
Become an excellent vocational education center
Vocational School - Diponegoro University
25
Become an excellent vocational education center
Vocational School - Diponegoro University
26
Become an excellent vocational education center
Vocational School - Diponegoro University
27
Become an excellent vocational education center
Vocational School - Diponegoro University
28
Become an excellent vocational education center
Vocational School - Diponegoro University
29
Become an excellent vocational education center
Vocational School - Diponegoro University
30
Become an excellent vocational education center
Vocational School - Diponegoro University
31
Become an excellent vocational education center
Vocational School - Diponegoro University
8. I/P Controller
• Pada aktuator pneumatik yang kerjanya dapat bermodulasi diperlukan satu alat kontrol supply
udara bertekanan yang khusus bernama I/P Controller.
• I/P Controller ini mengubah perintah kontrol dari sistem kontrol yang berupa sinyal arus,
menjadi besar tekanan udara yang harus disupply ke aktuator
32
Become an excellent vocational education center
Vocational School - Diponegoro University
9. Aktuator
Aktuator adalah alat yang berfungsi melakukan kerja pada sistem pneumatik. Ada berbagai macam
jenis pneumatik aktuator sesuai dengan penggunaannya. Antara lain adalah silinder pneumatik,
diafragma aktuator, serta pneumatik motor.
33
Become an excellent vocational education center
Vocational School - Diponegoro University
34
Become an excellent vocational education center
Vocational School - Diponegoro University
35
Become an excellent vocational education center
Vocational School - Diponegoro University
36
Become an excellent vocational education center
Vocational School - Diponegoro University
37
Become an excellent vocational education center
Vocational School - Diponegoro University
Aktuator Elektrik
Energi listrik
Perangkat Aktuator Elektrik
digunakan untuk
dibangkitkan dianggap sebagai
menggerakkan
Aktuator oleh tenaga dari
motor yang
peralatan yang salah satu bentuk
aktuator yang
membutuhkan
Elektrik mengubah energi
listrik menjadi
katup/ valve multi-
paling bersih karena
tidak melibatkan
putaran seperti gate minyak.
torsi mekanis.
valve atau globe
valve.
38
Become an excellent vocational education center
Vocational School - Diponegoro University
39
Become an excellent vocational education center
Vocational School - Diponegoro University
https://mitakk
a369.blogspo
t.com/2016/1
1/ac-and-dc-
motors-and-
how-they-
work.html
40
Become an excellent vocational education center
Vocational School - Diponegoro University
Aktuator Mekanik
AKTUATOR MEKANIK
42
Become an excellent vocational education center
Vocational School - Diponegoro University
43
Become an excellent vocational education center
Vocational School - Diponegoro University
44
Become an excellent vocational education center
Vocational School - Diponegoro University
45
Become an excellent vocational education center
Vocational School - Diponegoro University
46
Become an excellent vocational education center
