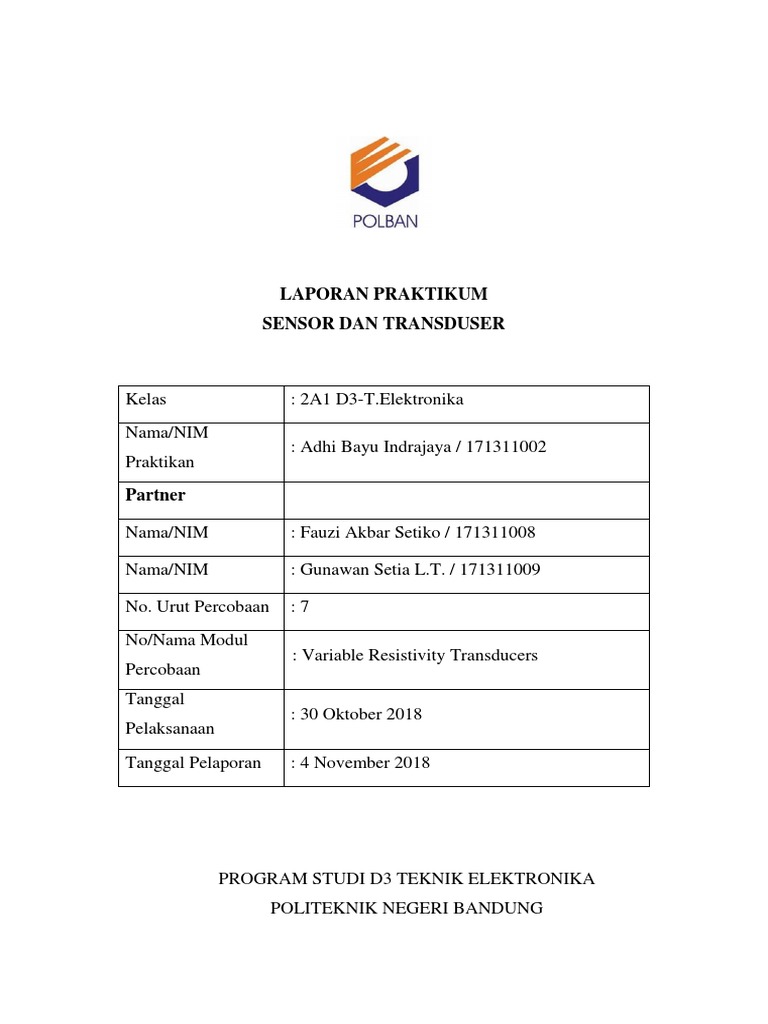

LAPORAN PRAKTIKUM

SENSOR DAN TRANSDUSER

Kelas : 2A1 D3-T.Elektronika

Nama/NIM
: Adhi Bayu Indrajaya / 171311002
Praktikan
Partner

Nama/NIM : Fauzi Akbar Setiko / 171311008

Nama/NIM : Gunawan Setia L.T. / 171311009

No. Urut Percobaan :7

No/Nama Modul
: Variable Resistivity Transducers
Percobaan
Tanggal
: 30 Oktober 2018
Pelaksanaan
Tanggal Pelaporan : 4 November 2018

PROGRAM STUDI D3 TEKNIK ELEKTRONIKA

POLITEKNIK NEGERI BANDUNG
I. Tujuan
a. Mahasiswa mampu mengetahui perubahan nilai resistansi yang terjadi pada
sensor elektroda pada saat terdapat perubahan konsentrasi.
b. Mahasiswa mampu mengetahui sensitivitas dari sensor elemen elektroda yang
mengubah nilai konsentrasi zat cair menjadi nilai resistansi.
c. Mahasiswa mampu mengukur tegangan menggunakan rangkaian amplifier
dengan rangkaian Jembatan Wheatstone.

II. Alat dan Bahan

1. Resistor Dekade (Kode: I.322807) 1 buah
2. Function Generator (09757) 1 buah
3. Multimeter Digital (37.L.INS) 1 buah
4. Penguat Instrumentasi (6) 1 buah
5. Modul 294 A (5) 1 buah
6. Gelas Ukur 3 buah
7. Sendok Teh 1 buah
8. Elemen Elektroda 1 buah
9. Air tawar 1000 mL
10. Air garam 200 mL,1/8 sendok teh
11. Kabel penghubung secukupnya

III. Gambar Rangkaian

Gambar 1
Pengukuran Konsentrasi dan Konduktansi
IV. Data Hasil Percobaan
Tabel 1 Pengukuran Larutan Elektroda

Salt Water
Concentration Resistance Conductance
Added
(%) (Ω) (S)
(x)

0 0 170 0.005

1 3.33 143 0.006

2 6.66 160 0.006

3 10 140 0.007

4 13.33 144 0.006

5 16.66 135 0.007

6 20 135 0.007

7 23.33 136 0.007

8 26.66 137 0.007

9 30 118 0.008

10 33.33 137 0.007

11 36.66 125 0.008

12 40 123 0.008

13 43.44 114 0.008

14 46.66 113 0.008

15 50 124 0.008

16 53.33 142 0.007

17 56.66 42 0.023

18 60 41 0.024

19 63.33 41 0.024

20 66.66 41 0.024

21 70 41 0.024
 22 73.33 41 0.024

23 76.66 42 0.023

24 80 44 0.022

25 83.33 44 0.022

26 86.66 45 0.022

27 90 41 0.024

28 93.33 42 0.023

29 96.66 41 0.024

30 100 41 0.024

V. Jawaban Pertanyaan
1. Measure the resistance between the probes in the uncontaminated water using
the measuring technique evolved in Assignment 6. Balance is indicated by a null
in the meter deflection, a true zero will not be obtained as explained at the end of
Assignment 4. Record your reading in a table such as in fig 7.3. Remove one
teaspoon of water from your test solution and add one teaspoon of the salt
solution. Measure the new resistance value, and record it in the table.
Repeat the procedure above for amounts of salt water added of 2,3,4,5,6,7,8 and
9 teaspoonsfull. For each spoonful added, remove one from the test solution to
keep the amount of solution to keep the amount of solution constant.
To calculate the concentration of salt solution in the water for the purpose of this
experiment we will define it as the ratio of salt solution added to the total amount
of liquid in the test solution.
Measure the total amount of liquid in the test solution in teaspoonsfull. Record
this figure.
Jawaban : Terdapat pada data percobaan tabel 1

2. Calculate the concentration for each step from:

Concentration = no. of teaspoons added x 100 total no. of teaspoons 1
Record these results in your table.
Jawaban : Terdapat pada data percobaan tabel 1
3. Calculate the reciprocals of the resistances and record these in the conductance
column.
Jawaban : Terdapat pada data percobaan tabel 1

4. Does the resistance measured vary with salt concentration?

Jawaban : Iya, tentu

5. Between what values does it vary?

Jawaban : Antara 0 – 100 %

6. Plot graphs of resistance and conductance against concentration. Use the same
piece of graph paper with axes as in fig 7.4.
Jawaban : Sudah terdapat pada data percobaan

7. What is the relationship between the conductance and the liquid concentration?
Jawaban : Semakin tinggi konsentrasi, maka nilai konduktansi semakin tinggi

8. Therefore, what is the relationship between the resistance and the concentration?
Jawaban : Semakin tinggi konsentrasi, maka semakin kecil nilai resistansi

9. As the resistivity is directly proportional to the resistance, what is the relationship

between the resistivity and the concentration?
It can be seen from this experiment what it is possible to use the principle of
variation of resistivity in a practical transducer.
Jawaban : Nilai konsentrasi berbanding terbalik dengan nilai resistansi

10. What other effect was mentioned in the introduction to this Assignment which
changes the resistivity of metals?
Jawaban : Temperature, purity, surface condition, voltage applied, mechanical
stress

11. Could this be put to use for a practical transducer?

Jawaban : Iya, dapat digunakan
VI. Analisa

 Percobaan ini bertujuan untuk mengetahui nilai perubahan resistansi yang

disebabkan oleh perubahan konsentrasi. Nilai R1 dan R2 pada Jembatan
Wheatstone berfungsi sebagai pembanding untuk nilai R dekade dan Rx/(sensor
elektrode).
 Sensor elektrode digunakan untuk membaca perubahan konsentrasi pada gelas
ukur, lalu diubah menjadi nilai resistansi. Pada percobaan ini, nilai resistansi
berbanding terbalik dengan nilai konsentrasi. Sedangkan nilai konsentrasi
berbanding lurus dengan nilai konduktansi.

VII. Kesimpulan
Pada percobaan ini dapat disimpulkan bahwa, semakin tinggi nilai konsentrasi
larutan elektrode, maka nilai konduktansi akan semakin tinggi. Namun nilai
konsentrasi tersebut berbanding terbalik dengan nilai resistansi. Sehingga semakin
tinggi nilai konsentrasi, maka semakin kecil nilai resistansinya.
